Programming Comments - Edges And Contours In OpenCV

Summary

This is the 3rd post in a series on OpenCV. Previously:

part #1 discussed getting started with OpenCV in Ubuntu
part #2 discussed colours, grayscale, and binary images in OpenCV

This article will discuss finding edges and contours within the image.

Canny Edge Detection

Canny edge detection takes a colour or grayscale input image and returns a black-and-white image showing all the detected edges. Parameters to cv::canny() determine the level of edge detection. Here is an example with 3 different thresholds:

A good starting point for the first threshold is the value returned by cv::threshold() when used with the parameter cv::THRESH_OTSU, as described in the previous post. The second threshold is typically several times larger than the first.

for (double canny_threshold : { 40.0, 90.0, 140.0 } )
{
	cv::Mat canny_output;
	cv::Canny(original_image, canny_output, canny_threshold, 3.0 * canny_threshold, 3, true);

	const std::string name = "Canny Output Threshold " + std::to_string((size_t)canny_threshold);
	cv::namedWindow(name, cv::WINDOW_AUTOSIZE);
	cv::imshow(name, canny_output);
}


Once edge detection has run, the next step is to find the contours. The input image to cv::findContours() is the binary image from Canny edge detection. The main output is not an image, but a vector of contours, each of which is a vector of points. These points can then be easily drawn to create a new image, or even drawn on top of an existing image. An example will help:

typedef std::vector<cv::Point> Contour; // a single contour is a vector of many points
typedef std::vector<Contour> VContours; // many of these are then combined to create a vector of contour points

VContours contours;
std::vector hierarchy;
cv::findContours(canny_output, contours, hierarchy, cv::RETR_EXTERNAL, cv::CHAIN_APPROX_SIMPLE);


If 10 different edges/contours were identified, then contours will contain 10 items. Each of these items is a vector of points. Some contours will be composed of a dozen points, while others may be hundreds or thousands of points.

Many things can be done with contours. You could calculate the area of each individual contour:

for (auto & c : contours)
{
	std::cout << "contour area: " << cv::contourArea(c) << std::endl;
}


But possibly more interesting, is to draw the contours on top of the original image so we can visually examine exactly what was detected. One of the parameters to cv::polylines() is a vector of points, each representing the ends of the line to draw. Conveniently, each contour is exactly that -- a vector of points. So starting with the original colour image, we can create a clone (just because I didn't want to make changes to the original image) and draw each contour:

const cv::Scalar green(0, 255, 0);
cv::Mat output = original_image.clone();
for (auto & c : contours)
{
	cv::polylines(output, c, true, green, 1, cv::LINE_AA);
}
cv::namedWindow("Contours Drawn Over Image", cv::WINDOW_AUTOSIZE);
cv::imshow("Contours Drawn Over Image", output);

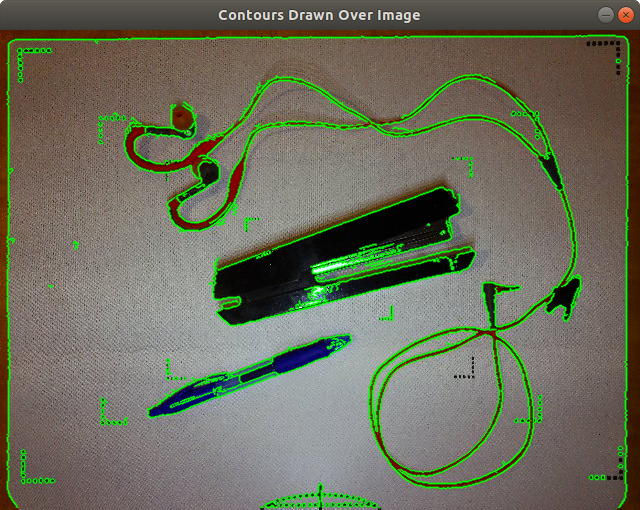

This should give results that look similar to this:

False positives can be reduced or eliminated using several different methods:

You can walk the vector of contours and examine the area or the number of points in each contour to filter out too-small or too-large contours.
You can tweak the threshold values during Canny edge detection.
You can blur the image first to reduce the number of small items picked up.
You can erode and dilate the image to reduce noise.

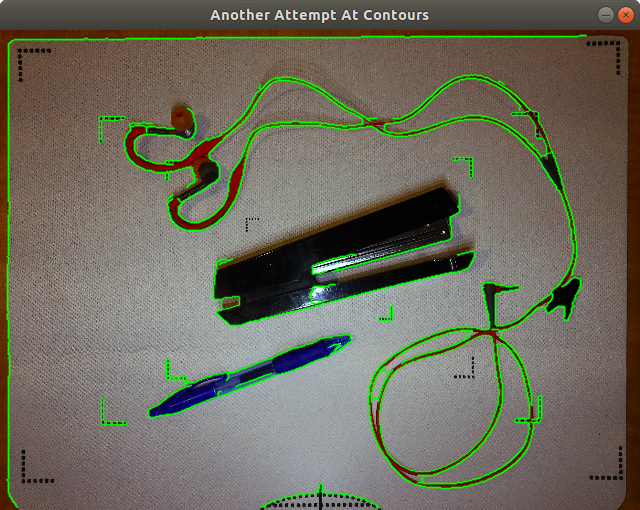

See the attached source code which uses a combination of Gaussian blur, erosion, and dilation to generate the following boundaries:
