Feature Detection

Goal

In this tutorial you will learn how to:

  • Use the cv::FeatureDetector interface in order to find interest points. Specifically:
    • Use the cv::xfeatures2d::SURF and its function cv::xfeatures2d::SURF::detect to perform the detection process
    • Use the function cv::drawKeypoints to draw the detected keypoints
Warning
You need the OpenCV contrib modules to be able to use the SURF features (alternatives are ORB, KAZE, ... features).

Theory

Code

This tutorial code's is shown lines below. You can also download it from here

#include <iostream>
#include "opencv2/core.hpp"
#ifdef HAVE_OPENCV_XFEATURES2D
#include "opencv2/highgui.hpp"
#include "opencv2/features2d.hpp"
#include "opencv2/xfeatures2d.hpp"
using namespace cv;
using namespace cv::xfeatures2d;
using std::cout;
using std::endl;
int main( int argc, char* argv[] )
{
CommandLineParser parser( argc, argv, "{@input | ../data/box.png | input image}" );
Mat src = imread( parser.get<String>( "@input" ), IMREAD_GRAYSCALE );
if ( src.empty() )
{
cout << "Could not open or find the image!\n" << endl;
cout << "Usage: " << argv[0] << " <Input image>" << endl;
return -1;
}
//-- Step 1: Detect the keypoints using SURF Detector
int minHessian = 400;
Ptr<SURF> detector = SURF::create( minHessian );
std::vector<KeyPoint> keypoints;
detector->detect( src, keypoints );
//-- Draw keypoints
Mat img_keypoints;
drawKeypoints( src, keypoints, img_keypoints );
//-- Show detected (drawn) keypoints
imshow("SURF Keypoints", img_keypoints );
return 0;
}
#else
int main()
{
std::cout << "This tutorial code needs the xfeatures2d contrib module to be run." << std::endl;
return 0;
}
#endif

Explanation

Result

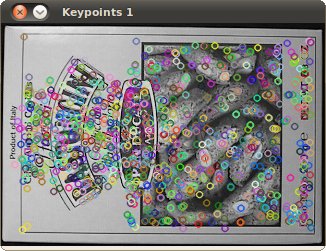

  1. Here is the result of the feature detection applied to the box.png image:

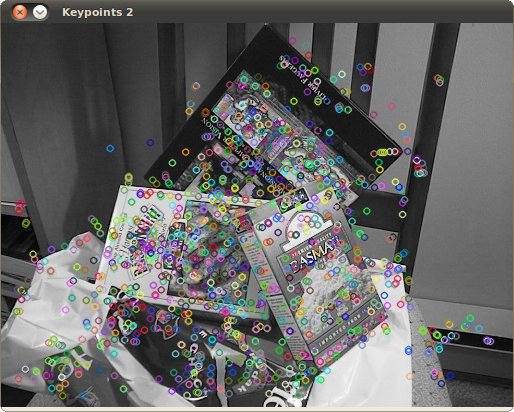

  2. And here is the result for the box_in_scene.png image:
