SG::BeagleBone::Detect Namespace Reference

The Detect namespace contains several related functions to help determine if the device where the code is running is a BeagleBone Black, BeagleBone Green, or some other type of device. More...

Typedefs
typedef std::vector< ECompatibility >	Compatibilities
	A vector of capabilities describing a device. More...

Enumerations
enum	ECompatibility {   ECompatibility::invalid = 0,   ECompatibility::other,   ECompatibility::ti_am33xx,   ECompatibility::ti_am335x_bone,   ECompatibility::ti_am335x_bone_black,   ECompatibility::ti_am335x_bone_green,   ECompatibility::ti_am335x_bone_green_wireless,   ECompatibility::ti_am335x_bone_black_wireless,   ECompatibility::ti_am335x_bone_blue_wireless }
	Compability enums for this device. More...

Functions
std::string	to_string (const ECompatibility type)
	Convert a single compatibility to a text string. More...
VStr	to_string (const Compatibilities &compabilities)
	Convert a vector of capabilities to a vector of strings. More...
Compatibilities	get_compatibilities (void)
	Get the vector of compabilities for this device. More...
bool	has (const ECompatibility type)
	Determine if the device compatibilities contains the given type. More...
std::string	get_model (void)
	Return the device model or product name as a text string. More...
bool	is_beaglebone_compatible (void)
	Determine if the device is compatible with the given type. More...
bool	is_beaglebone_black_compatible (void)
	Determine if the device is compatible with the given type. More...
bool	is_beaglebone_green_compatible (void)
	Determine if the device is compatible with the given type. More...
bool	is_beaglebone_green_wireless_compatible (void)
	Determine if the device is compatible with the given type. More...
bool	is_beaglebone_black_wireless_compatible (void)
	Determine if the device is compatible with the given type. More...
bool	is_beaglebone_blue_wireless_compatible (void)
	Determine if the device is compatible with the given type. More...
bool	is_beaglebone_wireless_compatible (void)
	Determine if the device is compatible with the given type. More...

Detailed Description

The Detect namespace contains several related functions to help determine if the device where the code is running is a BeagleBone Black, BeagleBone Green, or some other type of device.

For example, note the following code:

if (SG::BeagleBone::Detect::is_beaglebone_green_compatible())
{
    std::cout << "This device is a BeagleBone Green with Grove connections." << std::endl;
}
else if (SG::BeagleBone::Detect::is_beaglebone_black_compatible())
{
    std::cout << "This device is a BeagleBone Black." << std::endl;
}
else if (SG::BeagleBone::Detect::is_beaglebone_compatible())
{
    std::cout << "This device is a BeagleBone." << std::endl;
}
else
{
    std::cout << "This is an unknown type of computer." << std::endl;
}

In addition, the actual model name can also be obtained. This contains a single text string which looks similar to "TI AM335x BeagleBone Green". For example:

const std::string model = SG::BeagleBone::Detect::get_model();
std::cout << model << std::endl;

Typedef Documentation

Compatibilities

typedef std::vector<ECompatibility> SG::BeagleBone::Detect::Compatibilities

A vector of capabilities describing a device.

You'd typically obtain this by calling SG::BeagleBone::Detect::get_compatibilities(). BeagleBone devices typically report they are compatible with multiple devices. For example, a BeagleBone Green doesn't just call itself a BeagleBone Green, but also reports as a BeagleBone and a BeagleBone Black.

Enumeration Type Documentation

ECompatibility

enum SG::BeagleBone::Detect::ECompatibility

strong

Compability enums for this device.

Enumerator
invalid
other
ti_am33xx	Texas Instrument Sitara ARM processor AM33XX.
ti_am335x_bone	BeagleBone
ti_am335x_bone_black	BeagleBone Black
ti_am335x_bone_green	BeagleBone Green
ti_am335x_bone_green_wireless	BeagleBone Green Wireless
ti_am335x_bone_black_wireless	BeagleBone Black Wireless
ti_am335x_bone_blue_wireless	BeagleBone Blue Wireless

Function Documentation

get_compatibilities()

SG::BeagleBone::Detect::Compatibilities SG::BeagleBone::Detect::get_compatibilities

(

void

)

Get the vector of compabilities for this device.

See also

/proc/device-tree/compatible

References SG::BeagleBone::all, get_model(), SG::read_file(), and to_string().

Referenced by bb_detect(), and has().

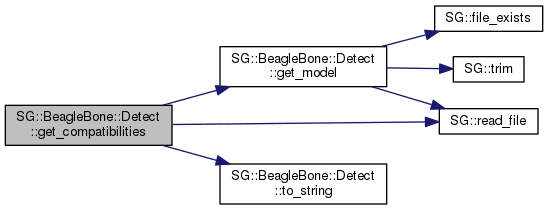

Here is the call graph for this function:

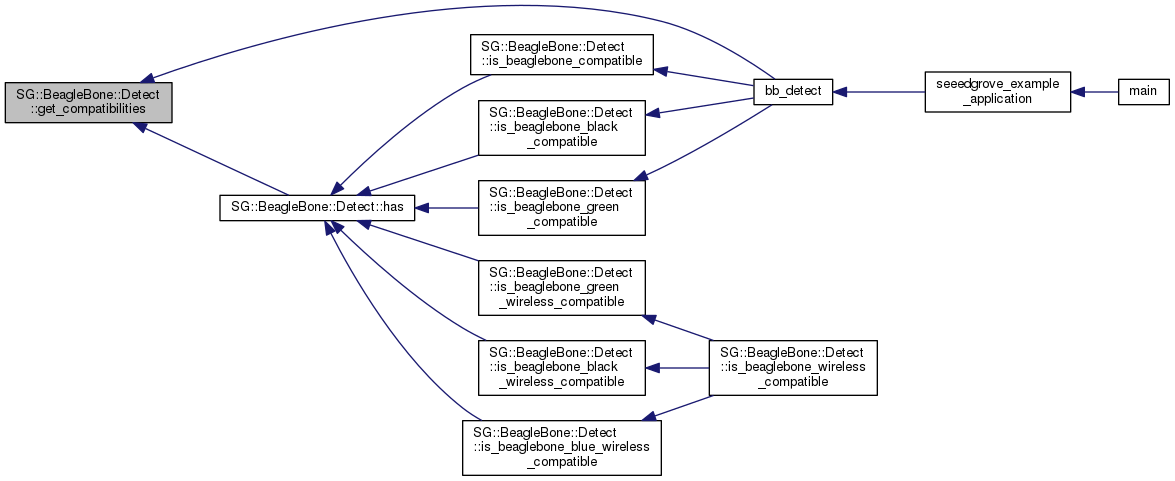

Here is the caller graph for this function:

get_model()

std::string SG::BeagleBone::Detect::get_model

(

void

)

Return the device model or product name as a text string.

For example:

• TI AM335x BeagleBone Black
• TI AM335x BeagleBone Green

Note

Even on non-BeagleBone devices, this is likely to return a text string. For example, this can return strings such as "VirtualBox" or "Vostro 470".

See also

/proc/device-tree/model

/sys/devices/virtual/dmi/id/product_name

References SG::file_exists(), SG::read_file(), and SG::trim().

Referenced by bb_detect(), and get_compatibilities().

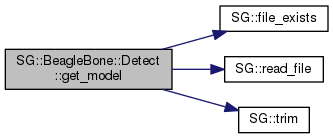

Here is the call graph for this function:

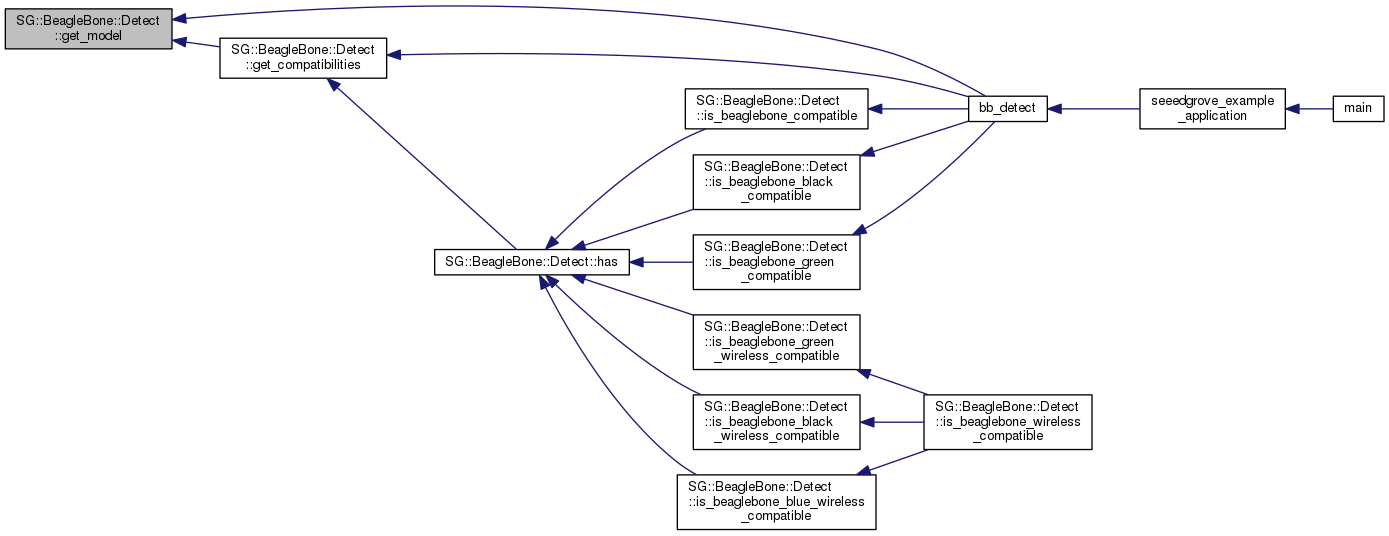

Here is the caller graph for this function:

has()

bool SG::BeagleBone::Detect::has

(

const ECompatibility

type

)

Determine if the device compatibilities contains the given type.

For example:

if (SG::BeagleBone::Detect::has( SG::BeagleBone::Detect::ECompatibility::ti_am335x_bone_green_wireless ))
{
    // ...
}

The equivalent functionality can be obtained by calling the individual type functions, such as:

if (SG::BeagleBone::Detect::is_beaglebone_green_wireless_compatible())
{
    // ...
}

See also

is_beaglebone_compatible()

is_beaglebone_black_compatible()

is_beaglebone_green_compatible()

is_beaglebone_green_wireless_compatible()

is_beaglebone_black_wireless_compatible()

is_beaglebone_wireless_compatible()

References get_compatibilities().

Referenced by is_beaglebone_black_compatible(), is_beaglebone_black_wireless_compatible(), is_beaglebone_blue_wireless_compatible(), is_beaglebone_compatible(), is_beaglebone_green_compatible(), and is_beaglebone_green_wireless_compatible().

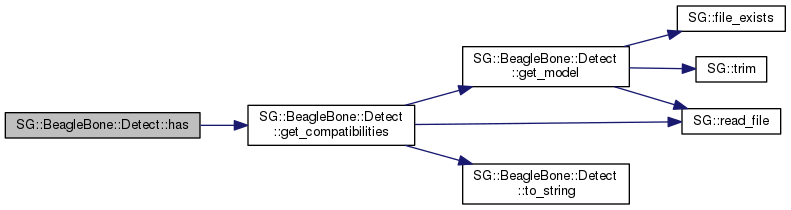

Here is the call graph for this function:

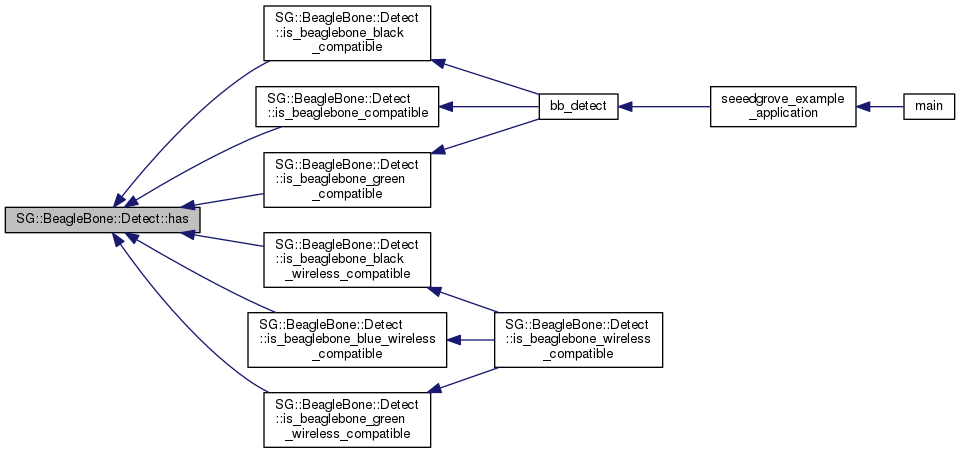

Here is the caller graph for this function:

is_beaglebone_black_compatible()

bool SG::BeagleBone::Detect::is_beaglebone_black_compatible ( void  )

inline

Determine if the device is compatible with the given type.

References has(), and ti_am335x_bone_black.

Referenced by bb_detect().

Here is the call graph for this function:

Here is the caller graph for this function:

is_beaglebone_black_wireless_compatible()

bool SG::BeagleBone::Detect::is_beaglebone_black_wireless_compatible ( void  )

inline

Determine if the device is compatible with the given type.

References has(), and ti_am335x_bone_black_wireless.

Referenced by is_beaglebone_wireless_compatible().

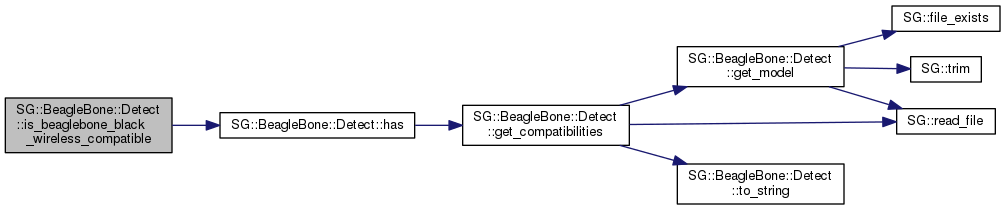

Here is the call graph for this function:

Here is the caller graph for this function:

is_beaglebone_blue_wireless_compatible()

bool SG::BeagleBone::Detect::is_beaglebone_blue_wireless_compatible ( void  )

inline

Determine if the device is compatible with the given type.

References has(), and ti_am335x_bone_blue_wireless.

Referenced by is_beaglebone_wireless_compatible().

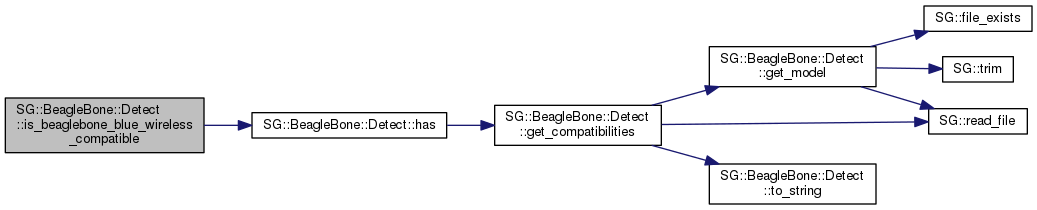

Here is the call graph for this function:

Here is the caller graph for this function:

is_beaglebone_compatible()

bool SG::BeagleBone::Detect::is_beaglebone_compatible ( void  )

inline

Determine if the device is compatible with the given type.

References has(), and ti_am335x_bone.

Referenced by bb_detect().

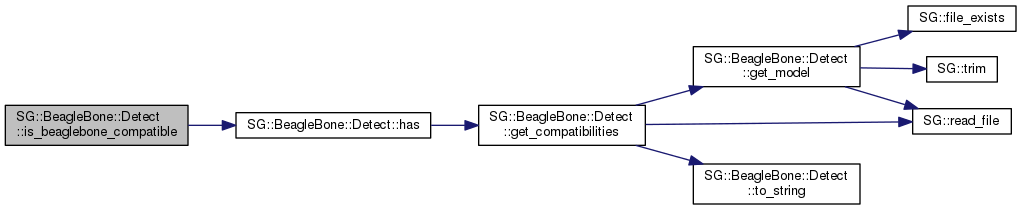

Here is the call graph for this function:

Here is the caller graph for this function:

is_beaglebone_green_compatible()

bool SG::BeagleBone::Detect::is_beaglebone_green_compatible ( void  )

inline

Determine if the device is compatible with the given type.

References has(), and ti_am335x_bone_green.

Referenced by bb_detect().

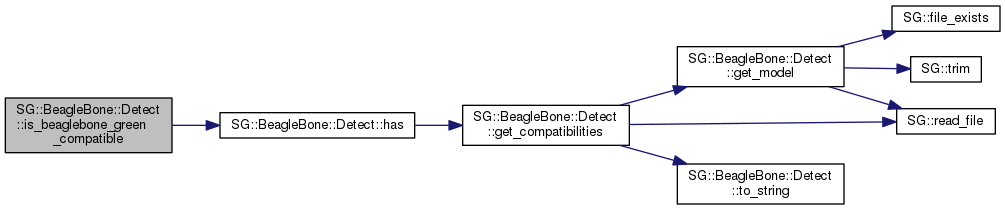

Here is the call graph for this function:

Here is the caller graph for this function:

is_beaglebone_green_wireless_compatible()

bool SG::BeagleBone::Detect::is_beaglebone_green_wireless_compatible ( void  )

inline

Determine if the device is compatible with the given type.

References has(), and ti_am335x_bone_green_wireless.

Referenced by is_beaglebone_wireless_compatible().

Here is the call graph for this function:

Here is the caller graph for this function:

is_beaglebone_wireless_compatible()

bool SG::BeagleBone::Detect::is_beaglebone_wireless_compatible ( void  )

inline

Determine if the device is compatible with the given type.

References is_beaglebone_black_wireless_compatible(), is_beaglebone_blue_wireless_compatible(), and is_beaglebone_green_wireless_compatible().

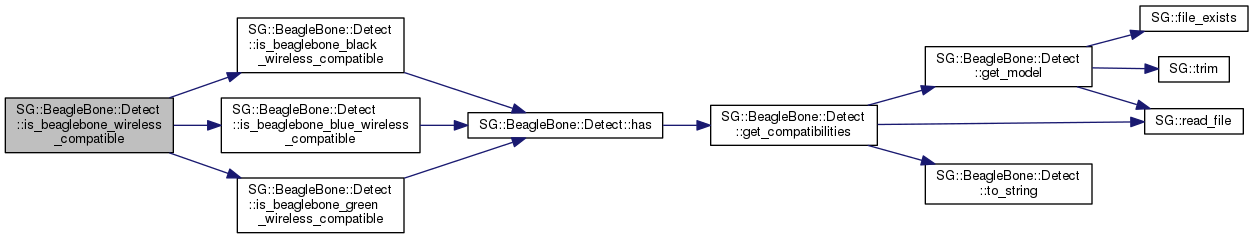

Here is the call graph for this function:

to_string() [1/2]

std::string SG::BeagleBone::Detect::to_string

(

const ECompatibility

type

)

Convert a single compatibility to a text string.

Referenced by bb_detect(), SG::Font::Monospace::get(), SG::BeagleBone::LEDControl::get_base_path(), get_compatibilities(), SG::GroveBase::get_description(), SG::GpioManagement::get_value(), SG::GpioManagement::gpio_export(), SG::GroveI2CDigital::GroveI2CDigital(), SG::GpioManagement::is_exported(), SG::GpioManagement::set_direction(), SG::ThreeAxisDigitalCompass::set_mode(), SG::CommonOLED::set_orientation(), SG::BeagleBone::Watchdog::set_timeout(), SG::GpioManagement::set_value(), SG::CommonOLED::show(), to_string(), and SG::GroveI2CDigital::write_block().

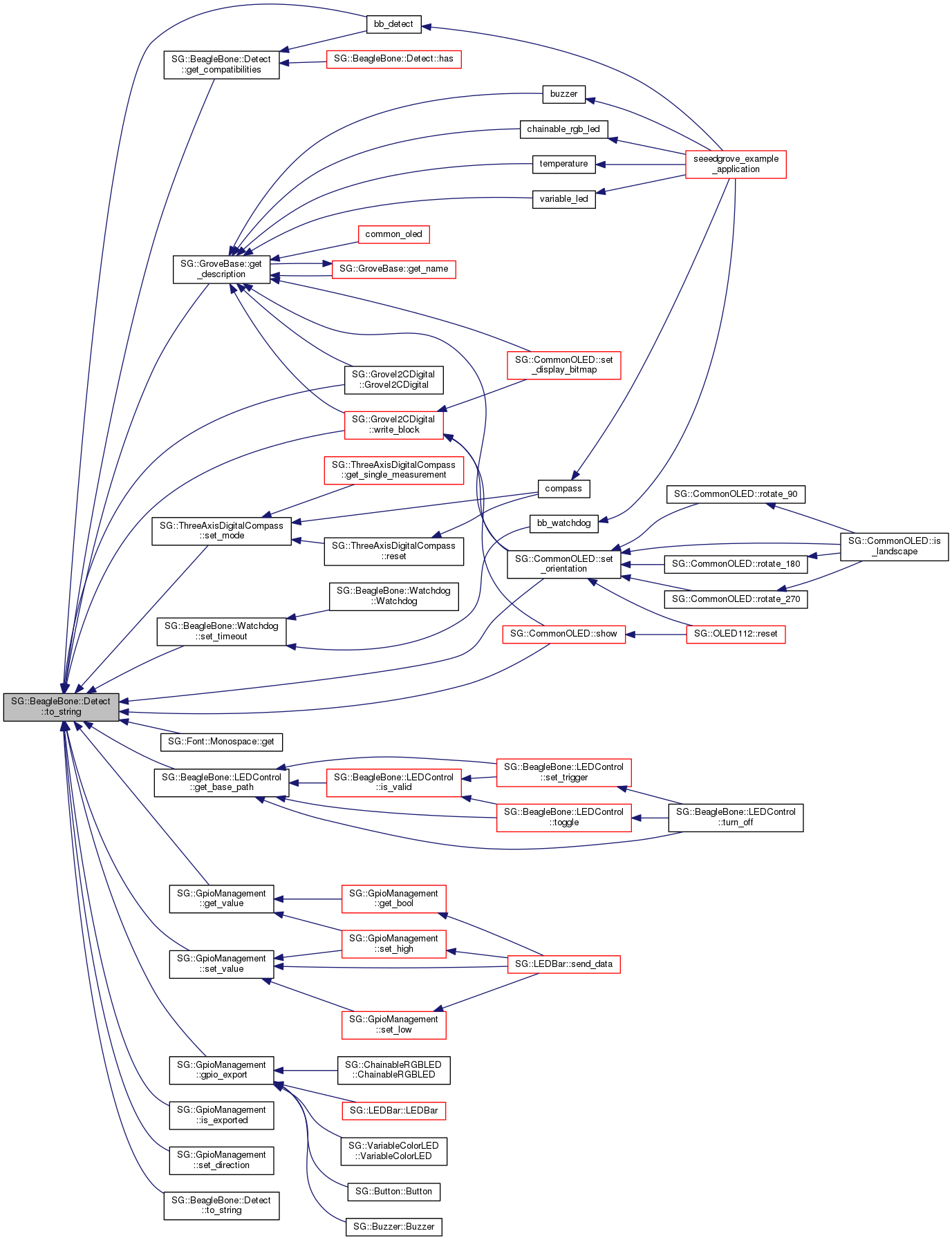

Here is the caller graph for this function:

to_string() [2/2]

SG::VStr SG::BeagleBone::Detect::to_string

(

const Compatibilities &

compabilities

)

Convert a vector of capabilities to a vector of strings.

References to_string().

Here is the call graph for this function:
