juce::ComboBoxParameterAttachment Class Reference

An object of this class maintains a connection between a ComboBox and a plug-in parameter. More...

#include <juce_ParameterAttachments.h>

Inheritance diagram for juce::ComboBoxParameterAttachment:

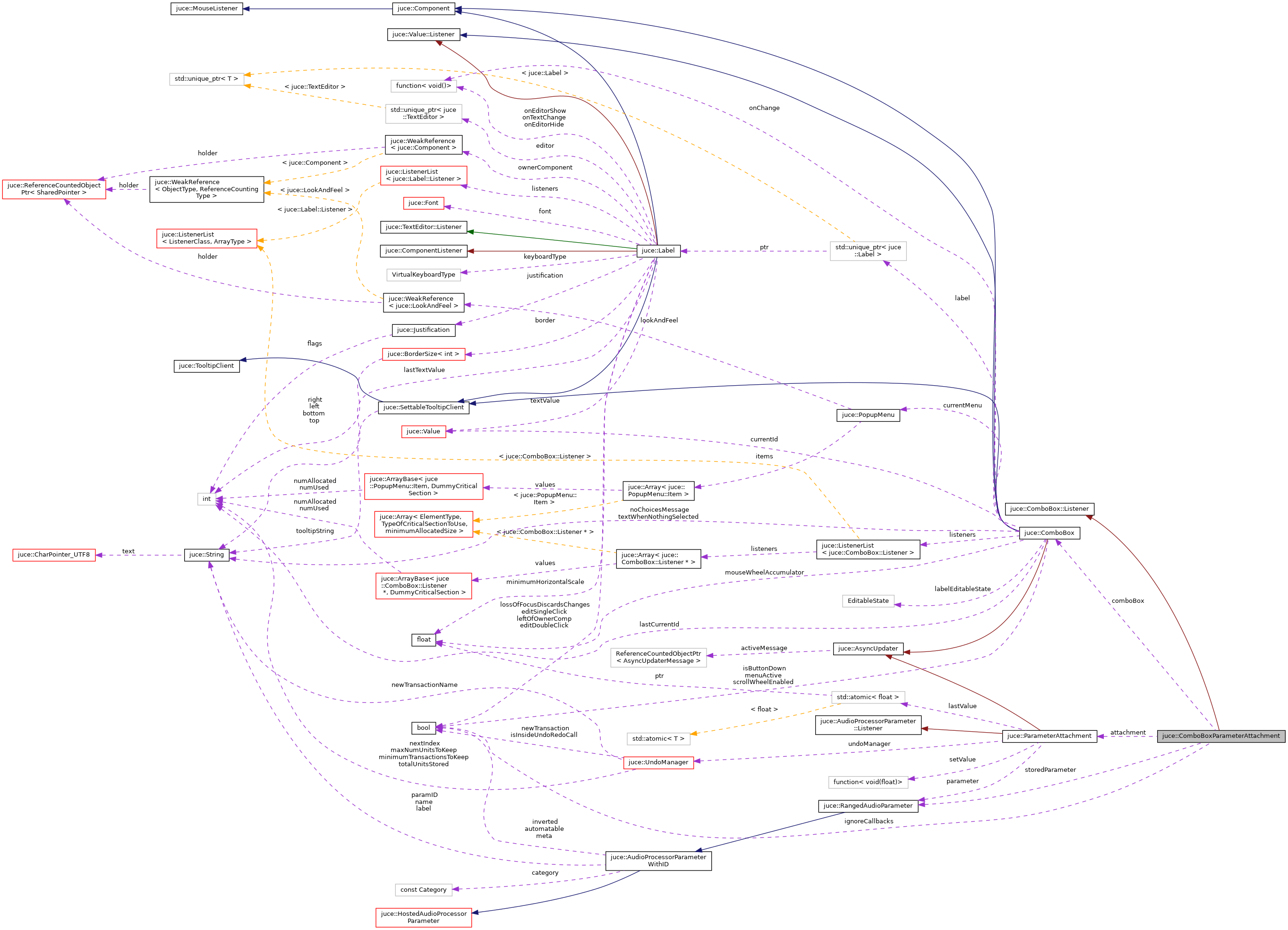

Collaboration diagram for juce::ComboBoxParameterAttachment:

Public Member Functions
	ComboBoxParameterAttachment (RangedAudioParameter &parameter, ComboBox &combo, UndoManager *undoManager=nullptr)
	Creates a connection between a plug-in parameter and a ComboBox. More...
	~ComboBoxParameterAttachment () override
	Destructor. More...
void	sendInitialUpdate ()
	Call this after setting up your combo box in the case where you need to do extra setup after constructing this attachment. More...

Private Member Functions
void	comboBoxChanged (ComboBox *) override
	Called when a ComboBox has its selected item changed. More...
void	setValue (float newValue)

Private Attributes
ParameterAttachment	attachment
ComboBox &	comboBox
bool	ignoreCallbacks = false
RangedAudioParameter &	storedParameter

Detailed Description

An object of this class maintains a connection between a ComboBox and a plug-in parameter.

ComboBox items will be spaced linearly across the range of the parameter. For example if the range is specified by NormalisableRange<float> (-0.5f, 0.5f, 0.5f) and you add three items then the first will be mapped to a value of -0.5, the second to 0, and the third to 0.5.

During the lifetime of this object it keeps the two things in sync, making it easy to connect a combo box to a parameter. When this object is deleted, the connection is broken. Make sure that your parameter and ComboBox are not deleted before this object!

@tags{Audio}

Constructor & Destructor Documentation

ComboBoxParameterAttachment()

juce::ComboBoxParameterAttachment::ComboBoxParameterAttachment	(	RangedAudioParameter &	parameter,
		ComboBox &	combo,
		UndoManager *	undoManager = nullptr
	)

Creates a connection between a plug-in parameter and a ComboBox.

Parameters

parameter	The parameter to use
combo	The ComboBox to use
undoManager	An optional UndoManager

~ComboBoxParameterAttachment()

juce::ComboBoxParameterAttachment::~ComboBoxParameterAttachment ( )

override

Destructor.

Member Function Documentation

comboBoxChanged()

void juce::ComboBoxParameterAttachment::comboBoxChanged ( ComboBox *  comboBoxThatHasChanged )

overrideprivatevirtual

Called when a ComboBox has its selected item changed.

Implements juce::ComboBox::Listener.

sendInitialUpdate()

void juce::ComboBoxParameterAttachment::sendInitialUpdate

(

)

Call this after setting up your combo box in the case where you need to do extra setup after constructing this attachment.

setValue()

void juce::ComboBoxParameterAttachment::setValue ( float  newValue )

private

Member Data Documentation

attachment

ParameterAttachment juce::ComboBoxParameterAttachment::attachment

private

comboBox

ComboBox& juce::ComboBoxParameterAttachment::comboBox

private

ignoreCallbacks

bool juce::ComboBoxParameterAttachment::ignoreCallbacks = false

private

storedParameter

RangedAudioParameter& juce::ComboBoxParameterAttachment::storedParameter

private

---

The documentation for this class was generated from the following file:

• juce_ParameterAttachments.h
