The class is a base class for objects that manage the loading of a type of component from a ValueTree. More...

#include <juce_ComponentBuilder.h>

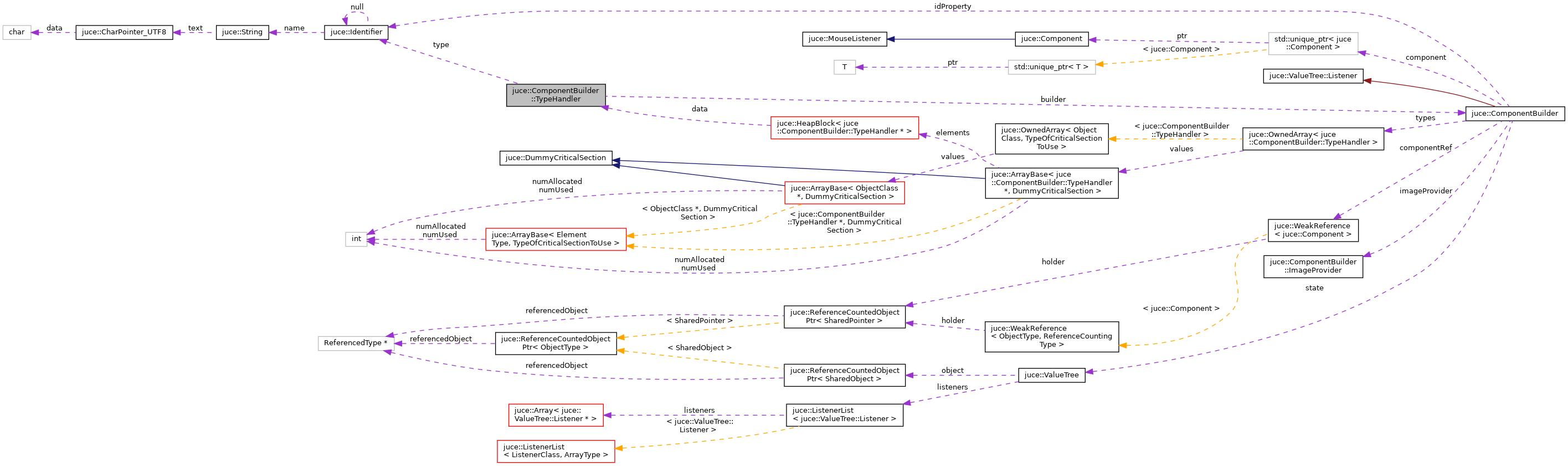

Collaboration diagram for juce::ComponentBuilder::TypeHandler:

[legend]

Public Member Functions
	TypeHandler (const Identifier &valueTreeType)
	Creates a TypeHandler. More...

virtual	~TypeHandler ()
	Destructor. More...

virtual Component *	addNewComponentFromState (const ValueTree &state, Component *parent)=0
	This method must create a new component from the given state, add it to the specified parent component (which may be null), and return it. More...

ComponentBuilder *	getBuilder () const noexcept
	Returns the builder that this type is registered with. More...

virtual void	updateComponentFromState (Component *component, const ValueTree &state)=0
	This method must update an existing component from a new ValueTree state. More...

Public Attributes
const Identifier	type
	Returns the type of the ValueTrees that this handler can parse. More...

Private Attributes
ComponentBuilder *	builder

Friends
class	ComponentBuilder

Detailed Description

The class is a base class for objects that manage the loading of a type of component from a ValueTree.

To store and re-load a tree of components as a ValueTree, each component type must have a TypeHandler to represent it.

See also: ComponentBuilder::registerTypeHandler(), Drawable::registerDrawableTypeHandlers()

Constructor & Destructor Documentation

◆ TypeHandler()

juce::ComponentBuilder::TypeHandler::TypeHandler ( const Identifier & valueTreeType )

explicit

Creates a TypeHandler.

The valueTreeType must be the type name of the ValueTrees that this handler can parse.

◆ ~TypeHandler()

virtual juce::ComponentBuilder::TypeHandler::~TypeHandler ( )

virtual

Destructor.

Member Function Documentation

◆ addNewComponentFromState()

virtual Component* juce::ComponentBuilder::TypeHandler::addNewComponentFromState	(	const ValueTree &	state,
		Component *	parent
	)

pure virtual

This method must create a new component from the given state, add it to the specified parent component (which may be null), and return it.

The ValueTree will have been pre-checked to make sure that its type matches the type that this handler supports.

There's no need to set the new Component's ID to match that of the state - the builder will take care of that itself.

◆ getBuilder()

ComponentBuilder* juce::ComponentBuilder::TypeHandler::getBuilder ( ) const

noexcept

Returns the builder that this type is registered with.

◆ updateComponentFromState()

virtual void juce::ComponentBuilder::TypeHandler::updateComponentFromState	(	Component *	component,
		const ValueTree &	state
	)

pure virtual

This method must update an existing component from a new ValueTree state.

A component that has been created with addNewComponentFromState() may need to be updated if the ValueTree changes, so this method is used to do that. Your implementation must do whatever's necessary to update the component from the new state provided.

The ValueTree will have been pre-checked to make sure that its type matches the type that this handler supports, and the component will have been created by this type's addNewComponentFromState() method.

Friends And Related Function Documentation

◆ ComponentBuilder

friend class ComponentBuilder

friend

Member Data Documentation

◆ builder

ComponentBuilder* juce::ComponentBuilder::TypeHandler::builder

private

◆ type

const Identifier juce::ComponentBuilder::TypeHandler::type

Returns the type of the ValueTrees that this handler can parse.

The documentation for this class was generated from the following file:

juce_ComponentBuilder.h
