juce::IIRFilterBase< Mutex > Class Template Reference

An IIR filter that can perform low, high, or band-pass filtering on an audio signal. More...

#include <juce_IIRFilter.h>

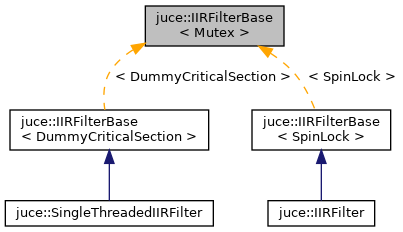

Inheritance diagram for juce::IIRFilterBase< Mutex >:

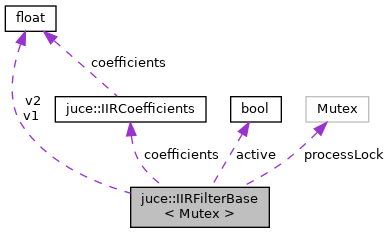

Collaboration diagram for juce::IIRFilterBase< Mutex >:

Public Member Functions

 IIRFilterBase () noexcept
 Creates a filter. More...

 IIRFilterBase (const IIRFilterBase &) noexcept
 Creates a copy of another filter. More...

IIRCoefficients getCoefficients () const noexcept
 Returns the coefficients that this filter is using. More...

void makeInactive () noexcept
 Clears the filter so that any incoming data passes through unchanged. More...

void processSamples (float *samples, int numSamples) noexcept
 Performs the filter operation on the given set of samples. More...

float processSingleSampleRaw (float sample) noexcept
 Processes a single sample, without any locking or checking. More...

void reset () noexcept
 Resets the filter's processing pipeline, ready to start a new stream of data. More...

void setCoefficients (const IIRCoefficients &newCoefficients) noexcept
 Applies a set of coefficients to this filter. More...


Protected Member Functions

IIRFilteroperator= (const IIRFilter &)=delete


Protected Attributes

bool active = false

IIRCoefficients coefficients

Mutex processLock

float v1 = 0

float v2 = 0


Detailed Description

template<typename Mutex>
class juce::IIRFilterBase< Mutex >

An IIR filter that can perform low, high, or band-pass filtering on an audio signal.

See also
IIRCoefficient, IIRFilterAudioSource

@tags{Audio}

Constructor & Destructor Documentation

◆ IIRFilterBase() [1/2]

template<typename Mutex >
juce::IIRFilterBase< Mutex >::IIRFilterBase ( )
noexcept

Creates a filter.

Initially the filter is inactive, so will have no effect on samples that you process with it. Use the setCoefficients() method to turn it into the type of filter needed.

◆ IIRFilterBase() [2/2]

template<typename Mutex >
juce::IIRFilterBase< Mutex >::IIRFilterBase ( const IIRFilterBase< Mutex > &  )
noexcept

Creates a copy of another filter.

Member Function Documentation

◆ getCoefficients()

template<typename Mutex >
IIRCoefficients juce::IIRFilterBase< Mutex >::getCoefficients ( ) const
inlinenoexcept

Returns the coefficients that this filter is using.

◆ makeInactive()

template<typename Mutex >
void juce::IIRFilterBase< Mutex >::makeInactive ( )
noexcept

Clears the filter so that any incoming data passes through unchanged.

◆ operator=()

template<typename Mutex >
IIRFilter& juce::IIRFilterBase< Mutex >::operator= ( const IIRFilter )
protecteddelete

◆ processSamples()

template<typename Mutex >
void juce::IIRFilterBase< Mutex >::processSamples ( float samples,
int  numSamples
)
noexcept

Performs the filter operation on the given set of samples.

◆ processSingleSampleRaw()

template<typename Mutex >
float juce::IIRFilterBase< Mutex >::processSingleSampleRaw ( float  sample)
noexcept

Processes a single sample, without any locking or checking.

Use this if you need fast processing of a single value, but be aware that this isn't thread-safe in the way that processSamples() is.

◆ reset()

template<typename Mutex >
void juce::IIRFilterBase< Mutex >::reset ( )
noexcept

Resets the filter's processing pipeline, ready to start a new stream of data.

Note that this clears the processing state, but the type of filter and its coefficients aren't changed. To put a filter into an inactive state, use the makeInactive() method.

◆ setCoefficients()

template<typename Mutex >
void juce::IIRFilterBase< Mutex >::setCoefficients ( const IIRCoefficients newCoefficients)
noexcept

Applies a set of coefficients to this filter.

Member Data Documentation

◆ active

template<typename Mutex >
bool juce::IIRFilterBase< Mutex >::active = false
protected

◆ coefficients

template<typename Mutex >
IIRCoefficients juce::IIRFilterBase< Mutex >::coefficients
protected

◆ processLock

template<typename Mutex >
Mutex juce::IIRFilterBase< Mutex >::processLock
protected

◆ v1

template<typename Mutex >
float juce::IIRFilterBase< Mutex >::v1 = 0
protected

◆ v2

template<typename Mutex >
float juce::IIRFilterBase< Mutex >::v2 = 0
protected

The documentation for this class was generated from the following file:
