#include <iostream>
#include <vector>
#include <map>
#include <stdarg.h>
#include <opencv2/imgproc/imgproc.hpp>
#include <opencv2/highgui/highgui.hpp>
#include <opencv2/core/core.hpp>

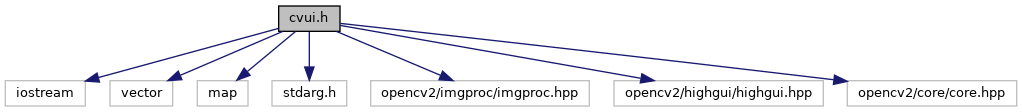

Include dependency graph for cvui.h:

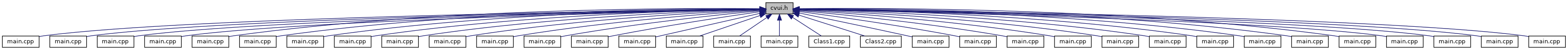

This graph shows which files directly or indirectly include this file:

Classes
struct	cvui::cvui_block_t

struct	cvui::cvui_context_t

struct	cvui::cvui_input_t

struct	cvui::cvui_label_t

struct	cvui::cvui_mouse_btn_t

struct	cvui::cvui_mouse_t

Namespaces
	cvui

Macros
#define	_CVUI_IMPLEMENTATION_NOTICE "cvui.h: compiling implementation because of CVUI_IMPLEMENTATION. See: https://dovyski.github.io/cvui/usage/"

#define	_CVUI_NO_IMPLEMENTATION_NOTICE "cvui.h: implementation skipped. Ensure one of your C++ files included cvui.h after a #define CVUI_IMPLEMENTATION. See: https://dovyski.github.io/cvui/usage/"

#define	CVUI_ANTIALISED CV_AA

#define	CVUI_FILLED -1

#define	sprintf_s sprintf

#define	vsprintf_s vsprintf

Functions
void	cvui::beginColumn (cv::Mat &theWhere, int theX, int theY, int theWidth=-1, int theHeight=-1, int thePadding=0)
	Start a new column. More...

void	cvui::beginColumn (int theWidth=-1, int theHeight=-1, int thePadding=0)
	Start a column. More...

void	cvui::beginRow (cv::Mat &theWhere, int theX, int theY, int theWidth=-1, int theHeight=-1, int thePadding=0)
	Start a new row. More...

void	cvui::beginRow (int theWidth=-1, int theHeight=-1, int thePadding=0)
	Start a row. More...

bool	cvui::button (const cv::String &theLabel)
	Display a button within a `begin()` and `end()` block. More...

bool	cvui::button (cv::Mat &theIdle, cv::Mat &theOver, cv::Mat &theDown)
	Display a button whose graphics are images (cv::Mat). More...

bool	cvui::button (cv::Mat &theWhere, int theX, int theY, const cv::String &theLabel)
	Display a button. More...

bool	cvui::button (cv::Mat &theWhere, int theX, int theY, cv::Mat &theIdle, cv::Mat &theOver, cv::Mat &theDown)
	Display a button whose graphics are images (cv::Mat). More...

bool	cvui::button (cv::Mat &theWhere, int theX, int theY, int theWidth, int theHeight, const cv::String &theLabel)
	Display a button. More...

bool	cvui::button (int theWidth, int theHeight, const cv::String &theLabel)
	Display a button within a `begin()` and `end()` block. More...

bool	cvui::checkbox (const cv::String &theLabel, bool *theState, unsigned int theColor=0xCECECE)
	Display a checkbox within a `begin()` and `end()` block. More...

bool	cvui::checkbox (cv::Mat &theWhere, int theX, int theY, const cv::String &theLabel, bool *theState, unsigned int theColor=0xCECECE)
	Display a checkbox. More...

void	cvui::context (const cv::String &theWindowName)
	Inform cvui that all subsequent component calls belong to a window in particular. More...

double	cvui::counter (cv::Mat &theWhere, int theX, int theY, double theValue, double theStep=0.5, const char theFormat="%.2f")
	Display a counter for float values that the user can increase/descrease by clicking the up and down arrows. More...

int	cvui::counter (cv::Mat &theWhere, int theX, int theY, int theValue, int theStep=1, const char theFormat="%d")
	Display a counter for integer values that the user can increase/descrease by clicking the up and down arrows. More...

double	cvui::counter (double theValue, double theStep=0.5, const char theFormat="%.2f")
	Display a counter for float values that the user can increase/descrease by clicking the up and down arrows. More...

int	cvui::counter (int theValue, int theStep=1, const char theFormat="%d")
	Display a counter for integer values that the user can increase/descrease by clicking the up and down arrows. More...

void	cvui::endColumn ()
	End a column. More...

void	cvui::endRow ()
	Ends a row. More...

void	cvui::handleMouse (int theEvent, int theX, int theY, int theFlags, void *theData)

bool	cvui::headless ()
	Inform if cvui is running in headless more. More...

void	cvui::headless (bool theValue)
	Enable/disable headless more. More...

int	cvui::iarea (int theX, int theY, int theWidth, int theHeight)
	Create an interaction area that reports activity with the mouse cursor. More...

void	cvui::image (cv::Mat &theImage)
	Display an image (cv::Mat) within a `begin()` and `end()` block. More...

void	cvui::image (cv::Mat &theWhere, int theX, int theY, cv::Mat &theImage)
	Display an image (cv::Mat). More...

void	cvui::imshow (const cv::String &theWindowName, cv::InputArray theFrame)
	Display an image in the specified window and update the internal structures of cvui. More...

void	cvui::init (const cv::String &theWindowName, int theDelayWaitKey=-1, bool theCreateNamedWindow=true, bool theHeadlessMode=false)
	Initializes cvui. More...

void	cvui::init (const cv::String theWindowNames[], size_t theHowManyWindows, int theDelayWaitKey=-1, bool theCreateNamedWindows=true, bool theHeadlessMode=false)
	Initialize cvui using a list of names of windows where components will be added. More...

int	cvui::input (cv::Mat &theWhere, int theX, int theY, int theWidth, const cv::String theName, cv::String &theValue, double theFontScale=0.5)
	Display an inputtext. More...

int	cvui::lastKeyPressed ()
	Return the last key that was pressed. More...

bool	cvui::mouse (const cv::String &theWindowName, int theButton, int theQuery)
	Query the mouse for events in a particular button in a particular window. More...

bool	cvui::mouse (const cv::String &theWindowName, int theQuery)
	Query the mouse for events in a particular window. More...

cv::Point	cvui::mouse (const cv::String &theWindowName="")
	Return the last position of the mouse. More...

bool	cvui::mouse (int theButton, int theQuery)
	Query the mouse for events in a particular button. More...

bool	cvui::mouse (int theQuery)
	Query the mouse for events, e.g. More...

void	cvui::printf (const char *theFmt,...)
	Display a piece of text that can be formated using `stdio's printf()` style. More...

void	cvui::printf (cv::Mat &theWhere, int theX, int theY, const char *theFmt,...)
	Display a piece of text that can be formated using `stdio's printf()` style. More...

void	cvui::printf (cv::Mat &theWhere, int theX, int theY, double theFontScale, unsigned int theColor, const char *theFmt,...)
	Display a piece of text that can be formated using `stdio's printf()` style. More...

void	cvui::printf (double theFontScale, unsigned int theColor, const char *theFmt,...)
	Display a piece of text within a `begin()` and `end()` block. More...

void	cvui::rect (cv::Mat &theWhere, int theX, int theY, int theWidth, int theHeight, unsigned int theBorderColor, unsigned int theFillingColor=0xff000000)
	Display a filled rectangle. More...

void	cvui::rect (int theWidth, int theHeight, unsigned int theBorderColor, unsigned int theFillingColor=0xff000000)
	Display a rectangle within a `begin()` and `end()` block. More...

void	cvui::space (int theValue=5)
	Add an arbitrary amount of space between components within a `begin()` and `end()` block. More...

void	cvui::sparkline (cv::Mat &theWhere, std::vector< double > &theValues, int theX, int theY, int theWidth, int theHeight, unsigned int theColor=0x00FF00)
	Display the values of a vector as a sparkline. More...

void	cvui::sparkline (std::vector< double > &theValues, int theWidth, int theHeight, unsigned int theColor=0x00FF00)
	Display the values of a vector as a sparkline within a `begin()` and `end()` block. More...

void	cvui::text (const cv::String &theText, double theFontScale=0.4, unsigned int theColor=0xCECECE)
	Display a piece of text within a `begin()` and `end()` block. More...

void	cvui::text (cv::Mat &theWhere, int theX, int theY, const cv::String &theText, double theFontScale=0.4, unsigned int theColor=0xCECECE)
	Display a piece of text. More...

template<typename num_type >
bool	cvui::trackbar (cv::Mat &theWhere, int theX, int theY, int theWidth, num_type theValue, num_type theMin, num_type theMax, int theSegments, const char theLabelFormat, unsigned int theOptions, num_type theDiscreteStep)

template<typename T >
bool	cvui::trackbar (cv::Mat &theWhere, int theX, int theY, int theWidth, T theValue, T theMin, T theMax, int theSegments=1, const char theLabelFormat="%.1Lf", unsigned int theOptions=0, T theDiscreteStep=1)
	Display a trackbar for numeric values that the user can increase/decrease by clicking and/or dragging the marker right or left. More...

template<typename num_type >
bool	cvui::trackbar (int theWidth, num_type theValue, num_type theMin, num_type theMax, int theSegments, const char theLabelFormat, unsigned int theOptions, num_type theDiscreteStep)

template<typename T >
bool	cvui::trackbar (int theWidth, T theValue, T theMin, T theMax, int theSegments=1, const char theLabelFormat="%.1Lf", unsigned int theOptions=0, T theDiscreteStep=1)
	Display a trackbar for numeric values that the user can increase/decrease by clicking and/or dragging the marker right or left. More...

void	cvui::update (const cv::String &theWindowName="")
	Update the library internal things. More...

void	cvui::watch (const cv::String &theWindowName, bool theCreateNamedWindow=true)
	Track UI interactions of a particular window. More...

void	cvui::window (cv::Mat &theWhere, int theX, int theY, int theWidth, int theHeight, const cv::String &theTitle)
	Display a window (a block with a title and a body). More...

void	cvui::window (int theWidth, int theHeight, const cv::String &theTitle)
	Display a window (a block with a title and a body) within a `begin()` and `end()` block. More...

Variables
const int	cvui::CLICK = 3

const int	cvui::COLUMN = 1

const int	cvui::DOWN = 2

const unsigned int	cvui::INTPUT_CURSOR_BLINK_SLOWNESS = 10

const int	cvui::IS_DOWN = 7

const unsigned int	cvui::KEY_ARROW_DOWN = 2621440

const unsigned int	cvui::KEY_ARROW_LEFT = 2424832

const unsigned int	cvui::KEY_ARROW_RIGHT = 2555904

const unsigned int	cvui::KEY_ARROW_UP = 2490368

const unsigned int	cvui::KEY_BACKSPACE = 8

const unsigned int	cvui::KEY_DELETE = 3014656

const unsigned int	cvui::KEY_END = 2293760

const unsigned int	cvui::KEY_ENTER = 13

const unsigned int	cvui::KEY_HOME = 2359296

const unsigned int	cvui::KEY_NONE = -1

const unsigned int	cvui::KEY_TAB = 9

const int	cvui::LEFT_BUTTON = 0

const int	cvui::MIDDLE_BUTTON = 1

const int	cvui::OUT = 5

const int	cvui::OVER = 4

const int	cvui::RIGHT_BUTTON = 2

const int	cvui::ROW = 0

const unsigned int	cvui::TRACKBAR_DISCRETE = 4

const unsigned int	cvui::TRACKBAR_HIDE_LABELS = 32

const unsigned int	cvui::TRACKBAR_HIDE_MIN_MAX_LABELS = 8

const unsigned int	cvui::TRACKBAR_HIDE_SEGMENT_LABELS = 1

const unsigned int	cvui::TRACKBAR_HIDE_STEP_SCALE = 2

const unsigned int	cvui::TRACKBAR_HIDE_VALUE_LABEL = 16

const int	cvui::UP = 6

Macro Definition Documentation

◆ _CVUI_IMPLEMENTATION_NOTICE

#define _CVUI_IMPLEMENTATION_NOTICE "cvui.h: compiling implementation because of CVUI_IMPLEMENTATION. See: https://dovyski.github.io/cvui/usage/"

◆ _CVUI_NO_IMPLEMENTATION_NOTICE

#define _CVUI_NO_IMPLEMENTATION_NOTICE "cvui.h: implementation skipped. Ensure one of your C++ files included cvui.h after a #define CVUI_IMPLEMENTATION. See: https://dovyski.github.io/cvui/usage/"

◆ CVUI_ANTIALISED

#define CVUI_ANTIALISED CV_AA

◆ CVUI_FILLED

#define CVUI_FILLED -1

◆ sprintf_s

#define sprintf_s sprintf

◆ vsprintf_s

#define vsprintf_s vsprintf
