Implements a websocket client based on the SSL client. More...

#include "wsclient.h"

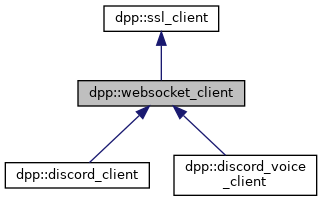

Inheritance diagram for dpp::websocket_client:

[legend]

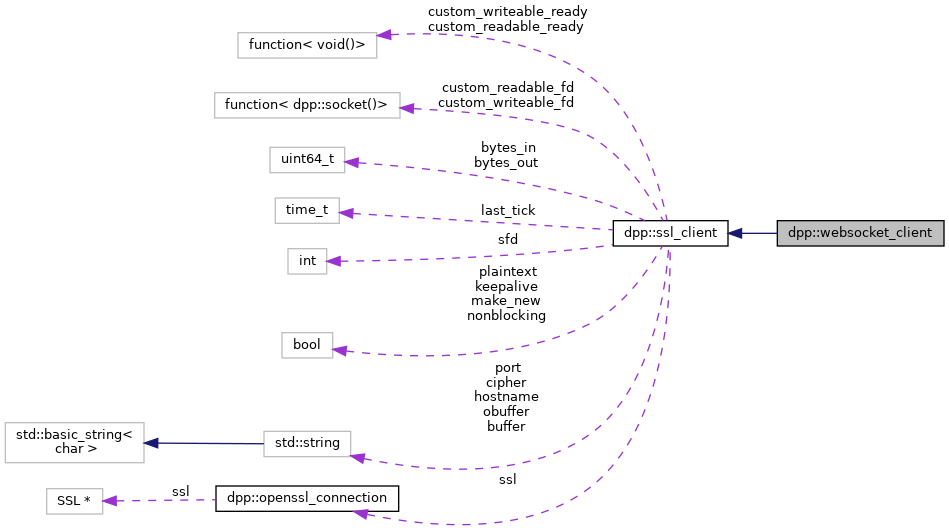

Collaboration diagram for dpp::websocket_client:

[legend]

Public Member Functions
	websocket_client (const std::string &hostname, const std::string &port="443", const std::string &urlpath="", ws_opcode opcode=OP_BINARY)
	Connect to a specific websocket server. More...

virtual	~websocket_client ()=default
	Destroy the websocket client object. More...

virtual void	close ()
	Close websocket. More...

virtual void	error (uint32_t errorcode)
	Called upon error frame. More...

uint64_t	get_bytes_in ()
	Get total bytes received. More...

uint64_t	get_bytes_out ()
	Get the bytes out objectGet total bytes sent. More...

std::string	get_cipher ()
	Get SSL cipher name. More...

virtual bool	handle_buffer (std::string &buffer)
	Processes incoming frames from the SSL socket input buffer. More...

virtual bool	handle_frame (const std::string &buffer)
	Receives raw frame content only without headers. More...

virtual void	log (dpp::loglevel severity, const std::string &msg) const
	Log a message. More...

virtual void	one_second_timer ()
	Fires every second from the underlying socket I/O loop, used for sending websocket pings. More...

void	read_loop ()
	Nonblocking I/O loop. More...

void	send_close_packet ()
	Send OP_CLOSE error code 1000 to the other side of the connection. More...

virtual void	write (const std::string &data)
	Write to websocket. More...

Public Attributes
socket_callback_t	custom_readable_fd
	Attaching an additional file descriptor to this function will send notifications when there is data to read. More...

socket_notification_t	custom_readable_ready
	This event will be called when you can read from the custom fd. More...

socket_callback_t	custom_writeable_fd
	Attaching an additional file descriptor to this function will send notifications when you are able to write to the socket. More...

socket_notification_t	custom_writeable_ready
	This event will be called when you can write to a custom fd. More...

bool	keepalive
	True if we are keeping the connection alive after it has finished. More...

Protected Member Functions
virtual void	connect ()
	(Re)connect More...

ws_state	get_state ()
	Get websocket state. More...

Protected Attributes
std::string	buffer
	Input buffer received from socket. More...

uint64_t	bytes_in
	Bytes in. More...

uint64_t	bytes_out
	Bytes out. More...

std::string	cipher
	SSL cipher in use. More...

std::string	hostname
	Hostname connected to. More...

time_t	last_tick
	For timers. More...

bool	make_new
	True if we are establishing a new connection, false if otherwise. More...

bool	nonblocking
	True if in nonblocking mode. More...

std::string	obuffer
	Output buffer for sending to socket. More...

bool	plaintext
	True for a plain text connection. More...

std::string	port
	Port connected to. More...

dpp::socket	sfd
	Raw file descriptor of connection. More...

openssl_connection *	ssl
	Openssl opaque contexts. More...

Detailed Description

Implements a websocket client based on the SSL client.

Constructor & Destructor Documentation

◆ websocket_client()

dpp::websocket_client::websocket_client	(	const std::string &	hostname,
		const std::string &	port = `"443"`,
		const std::string &	urlpath = `""`,
		ws_opcode	opcode = `OP_BINARY`
	)

Connect to a specific websocket server.

Parameters

hostname	Hostname to connect to
port	Port to connect to
urlpath	The URL path components of the HTTP request to send
opcode	The encoding type to use, either OP_BINARY or OP_TEXT

Note: Voice websockets only support OP_TEXT, and other websockets must be OP_BINARY if you are going to send ETF.

References dpp::HTTP_HEADERS, dpp::http_version, and write().

Here is the call graph for this function:

◆ ~websocket_client()

virtual dpp::websocket_client::~websocket_client ( )

virtualdefault

Destroy the websocket client object.

Member Function Documentation

◆ close()

void dpp::websocket_client::close ( )

virtual

Close websocket.

Reimplemented from dpp::ssl_client.

Referenced by dpp::discord_client::handle_frame().

Here is the caller graph for this function:

◆ connect()

void dpp::websocket_client::connect ( )

protectedvirtual

(Re)connect

Reimplemented from dpp::ssl_client.

Referenced by dpp::discord_client::discord_client(), dpp::discord_voice_client::discord_voice_client(), and dpp::discord_voice_client::discover_ip().

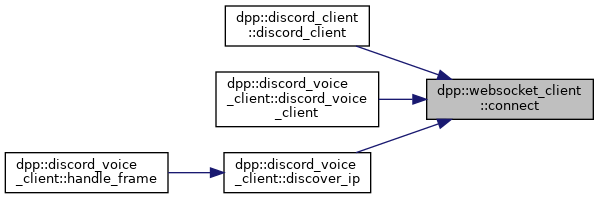

Here is the caller graph for this function:

◆ error()

void dpp::websocket_client::error ( uint32_t errorcode )

virtual

Called upon error frame.

Parameters

errorcode The error code from the websocket server

Reimplemented in dpp::discord_voice_client, and dpp::discord_client.

◆ get_bytes_in()

uint64_t dpp::ssl_client::get_bytes_in ( )

inherited

Get total bytes received.

Returns: uint64_t bytes received

References dpp::ssl_client::bytes_in.

◆ get_bytes_out()

uint64_t dpp::ssl_client::get_bytes_out ( )

inherited

Get the bytes out objectGet total bytes sent.

Returns: uint64_t bytes sent

References dpp::ssl_client::bytes_out.

◆ get_cipher()

std::string dpp::ssl_client::get_cipher ( )

inherited

Get SSL cipher name.

Returns: std::string ssl cipher name

References dpp::ssl_client::cipher.

◆ get_state()

ws_state dpp::websocket_client::get_state ( )

protected

Get websocket state.

Returns: websocket state

References dpp::WS_MASKBIT.

Referenced by dpp::discord_client::is_connected(), dpp::discord_voice_client::is_connected(), and dpp::discord_voice_client::one_second_timer().

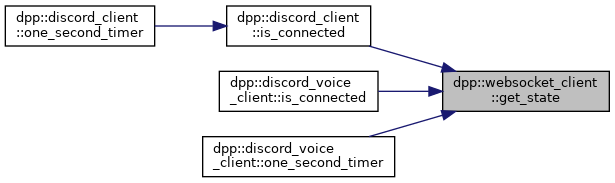

Here is the caller graph for this function:

◆ handle_buffer()

bool dpp::websocket_client::handle_buffer ( std::string & buffer )

virtual

Processes incoming frames from the SSL socket input buffer.

Parameters

buffer The buffer contents. Can modify this value removing the head elements when processed.

Reimplemented from dpp::ssl_client.

References dpp::CONNECTED.

◆ handle_frame()

bool dpp::websocket_client::handle_frame ( const std::string & buffer )

virtual

Receives raw frame content only without headers.

Parameters

buffer The buffer contents

Returns: True if the frame was successfully handled. False if no valid frame is in the buffer.

Reimplemented in dpp::discord_voice_client, and dpp::discord_client.

◆ log()

void dpp::ssl_client::log	(	dpp::loglevel	severity,
		const std::string &	msg
	)		const

virtualinherited

Log a message.

Parameters

severity	severity of log message
msg	Log message to send

Reimplemented in dpp::discord_voice_client, and dpp::discord_client.

Referenced by dpp::ssl_client::read_loop().

Here is the caller graph for this function:

◆ one_second_timer()

void dpp::websocket_client::one_second_timer ( )

virtual

Fires every second from the underlying socket I/O loop, used for sending websocket pings.

Reimplemented from dpp::ssl_client.

Reimplemented in dpp::discord_voice_client, and dpp::discord_client.

Referenced by dpp::discord_client::one_second_timer().

Here is the caller graph for this function:

◆ read_loop()

void dpp::ssl_client::read_loop ( )

inherited

Nonblocking I/O loop.

Exceptions

std::exception Any std::exception (or derivative) thrown from read_loop() causes reconnection of the shard

References dpp::ssl_client::buffer, dpp::ssl_client::bytes_in, dpp::ssl_client::bytes_out, dpp::ssl_client::custom_readable_fd, dpp::ssl_client::custom_readable_ready, dpp::ssl_client::custom_writeable_fd, dpp::ssl_client::custom_writeable_ready, DPP_BUFSIZE, dpp::err_invalid_socket, dpp::err_nonblocking_failure, dpp::err_socket_error, dpp::ssl_client::handle_buffer(), INVALID_SOCKET, dpp::ssl_client::last_tick, dpp::ll_warning, dpp::ssl_client::log(), dpp::ssl_client::nonblocking, dpp::ssl_client::obuffer, dpp::ssl_client::one_second_timer(), dpp::ssl_client::plaintext, dpp::set_nonblocking(), dpp::ssl_client::sfd, dpp::openssl_connection::ssl, and dpp::ssl_client::ssl.

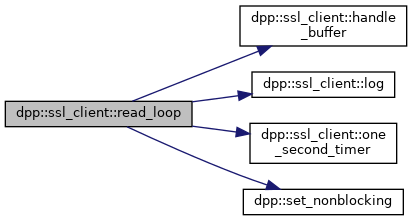

Here is the call graph for this function:

◆ send_close_packet()

void dpp::websocket_client::send_close_packet ( )

Send OP_CLOSE error code 1000 to the other side of the connection.

This indicates graceful close.

References dpp::ssl_client::close(), and dpp::HTTP_HEADERS.

Here is the call graph for this function:

◆ write()

void dpp::websocket_client::write ( const std::string & data )

virtual

Write to websocket.

Encapsulates data in frames if the status is CONNECTED.

Parameters

data	The data to send.

Reimplemented from dpp::ssl_client.

Referenced by dpp::discord_client::handle_frame(), dpp::discord_voice_client::handle_frame(), dpp::discord_client::one_second_timer(), dpp::discord_voice_client::one_second_timer(), and websocket_client().

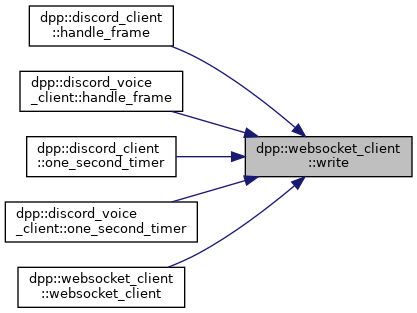

Here is the caller graph for this function:

Member Data Documentation

◆ buffer

std::string dpp::ssl_client::buffer

protectedinherited

Input buffer received from socket.

Referenced by dpp::ssl_client::close(), dpp::discord_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ bytes_in

uint64_t dpp::ssl_client::bytes_in

protectedinherited

Bytes in.

Referenced by dpp::ssl_client::get_bytes_in(), and dpp::ssl_client::read_loop().

◆ bytes_out

uint64_t dpp::ssl_client::bytes_out

protectedinherited

Bytes out.

Referenced by dpp::ssl_client::get_bytes_out(), and dpp::ssl_client::read_loop().

◆ cipher

std::string dpp::ssl_client::cipher

protectedinherited

SSL cipher in use.

Referenced by dpp::ssl_client::connect(), and dpp::ssl_client::get_cipher().

◆ custom_readable_fd

socket_callback_t dpp::ssl_client::custom_readable_fd

inherited

Attaching an additional file descriptor to this function will send notifications when there is data to read.

NOTE: Only hook this if you NEED it as it can increase CPU usage of the thread! Returning -1 means that you don't want to be notified.

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ custom_readable_ready

socket_notification_t dpp::ssl_client::custom_readable_ready

inherited

This event will be called when you can read from the custom fd.

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ custom_writeable_fd

socket_callback_t dpp::ssl_client::custom_writeable_fd

inherited

Attaching an additional file descriptor to this function will send notifications when you are able to write to the socket.

NOTE: Only hook this if you NEED it as it can increase CPU usage of the thread! You should toggle this to -1 when you do not have anything to write otherwise it'll keep triggering repeatedly (it is level triggered).

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ custom_writeable_ready

socket_notification_t dpp::ssl_client::custom_writeable_ready

inherited

This event will be called when you can write to a custom fd.

Referenced by dpp::discord_voice_client::handle_frame(), and dpp::ssl_client::read_loop().

◆ hostname

std::string dpp::ssl_client::hostname

protectedinherited

Hostname connected to.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), and dpp::ssl_client::ssl_client().

◆ keepalive

bool dpp::ssl_client::keepalive

inherited

True if we are keeping the connection alive after it has finished.

Referenced by dpp::ssl_client::close(), and dpp::ssl_client::ssl_client().

◆ last_tick

time_t dpp::ssl_client::last_tick

protectedinherited

For timers.

Referenced by dpp::ssl_client::read_loop().

◆ make_new

bool dpp::ssl_client::make_new

protectedinherited

True if we are establishing a new connection, false if otherwise.

Referenced by dpp::ssl_client::connect(), and dpp::ssl_client::ssl_client().

◆ nonblocking

bool dpp::ssl_client::nonblocking

protectedinherited

True if in nonblocking mode.

The socket switches to nonblocking mode once ReadLoop is called.

Referenced by dpp::ssl_client::connect(), dpp::ssl_client::read_loop(), and dpp::ssl_client::write().

◆ obuffer

std::string dpp::ssl_client::obuffer

protectedinherited

Output buffer for sending to socket.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::read_loop(), and dpp::ssl_client::write().

◆ plaintext

bool dpp::ssl_client::plaintext

protectedinherited

True for a plain text connection.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), dpp::ssl_client::read_loop(), dpp::ssl_client::ssl_client(), and dpp::ssl_client::write().

◆ port

std::string dpp::ssl_client::port

protectedinherited

Port connected to.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), and dpp::ssl_client::ssl_client().

◆ sfd

dpp::socket dpp::ssl_client::sfd

protectedinherited

Raw file descriptor of connection.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), dpp::discord_client::one_second_timer(), dpp::ssl_client::read_loop(), dpp::ssl_client::ssl_client(), and dpp::ssl_client::write().

◆ ssl

openssl_connection* dpp::ssl_client::ssl

protectedinherited

Openssl opaque contexts.

Referenced by dpp::ssl_client::close(), dpp::ssl_client::connect(), dpp::ssl_client::read_loop(), dpp::ssl_client::ssl_client(), and dpp::ssl_client::write().

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ websocket_client()

◆ ~websocket_client()

Member Function Documentation

◆ close()

◆ connect()

◆ error()

◆ get_bytes_in()

◆ get_bytes_out()

◆ get_cipher()

◆ get_state()

◆ handle_buffer()

◆ handle_frame()

◆ log()

◆ one_second_timer()

◆ read_loop()

◆ send_close_packet()

◆ write()

Member Data Documentation

◆ buffer

◆ bytes_in

◆ bytes_out

◆ cipher

◆ custom_readable_fd

◆ custom_readable_ready

◆ custom_writeable_fd

◆ custom_writeable_ready

◆ hostname

◆ keepalive

◆ last_tick

◆ make_new

◆ nonblocking

◆ obuffer

◆ plaintext

◆ port

◆ sfd

◆ ssl
