Modals

Modal dialog interactions are a new Discord API feature that allow you to have pop-up windows which prompt the user to input information. Once the user has filled in this information, your program will receive an on_form_submit event which will contain the data which was input. You must use a slash command interaction response to submit your modal form data to Discord, via the on_slashcommand event. From here calling the dialog method of the interaction_create_t event object will trigger the dialog to appear.

Each dialog box may have up to five rows of input fields. The example below demonstrates a simple setup with just one text input:

#include <dpp/dpp.h>
#include <iostream>
int main() {
dpp::cluster bot("token");
bot.on_slashcommand([&bot](const dpp::slashcommand_t& event) {
/* Check for our /dialog command */
if (event.command.get_command_name() == "dialog") {
/* Instantiate an interaction_modal_response object */
dpp::interaction_modal_response modal("my_modal", "Please enter stuff");
/* Add a text component */
modal.add_component(
dpp::component()
.set_label("Short type rammel")
.set_id("field_id")
.set_type(dpp::cot_text)
.set_placeholder("gumd")
.set_min_length(5)
.set_max_length(50)
.set_text_style(dpp::text_short)
);
/* Add another text component in the next row, as required by Discord */
modal.add_row();
modal.add_component(
dpp::component()
.set_label("Type rammel")
.set_id("field_id2")
.set_type(dpp::cot_text)
.set_placeholder("gumf")
.set_min_length(1)
.set_max_length(2000)
.set_text_style(dpp::text_paragraph)
);
/* Trigger the dialog box. All dialog boxes are ephemeral */
event.dialog(modal);
}
});
/* This event handles form submission for the modal dialog we create above */
bot.on_form_submit([](const dpp::form_submit_t & event) {
/* For this simple example, we know the first element of the first row ([0][0]) is value type string.
* In the real world, it may not be safe to make such assumptions!
*/
std::string v = std::get<std::string>(event.components[0].components[0].value);
m.set_content("You entered: " + v).set_flags(dpp::m_ephemeral);
/* Emit a reply. Form submission is still an interaction and must generate some form of reply! */
event.reply(m);
});
bot.on_ready([&bot](const dpp::ready_t & event) {
if (dpp::run_once<struct register_bot_commands>()) {
/* Create a slash command and register it as a global command */
bot.global_command_create(dpp::slashcommand("dialog", "Make a modal dialog box", bot.me.id));
}
});
/* Start bot */
bot.start(dpp::st_wait);
return 0;
}

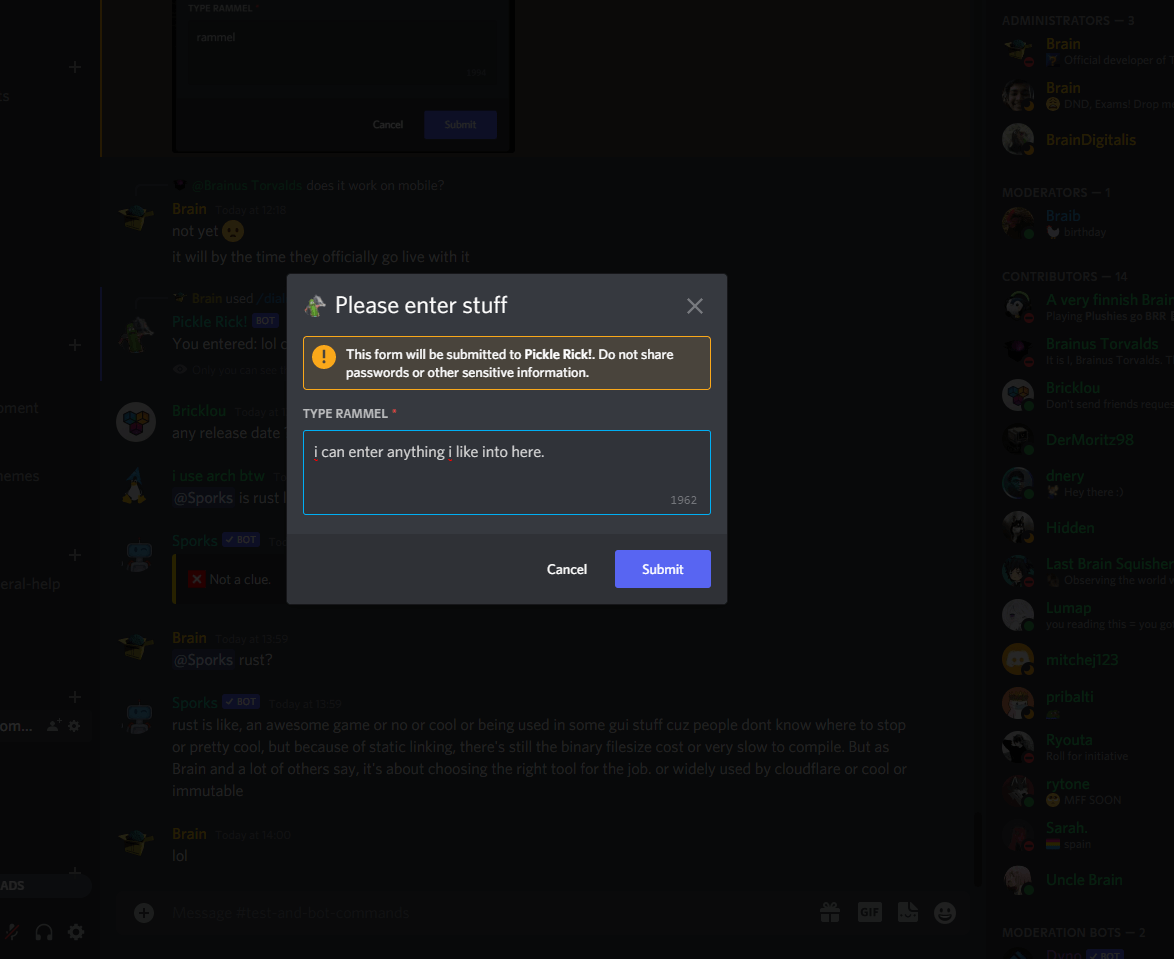

If you compile and run this program and wait for the global command to register, typing /dialog will present you with a dialog box like the one below:
