A text string with a set of colour/font settings that are associated with sub-ranges of the text. More...

#include <juce_AttributedString.h>

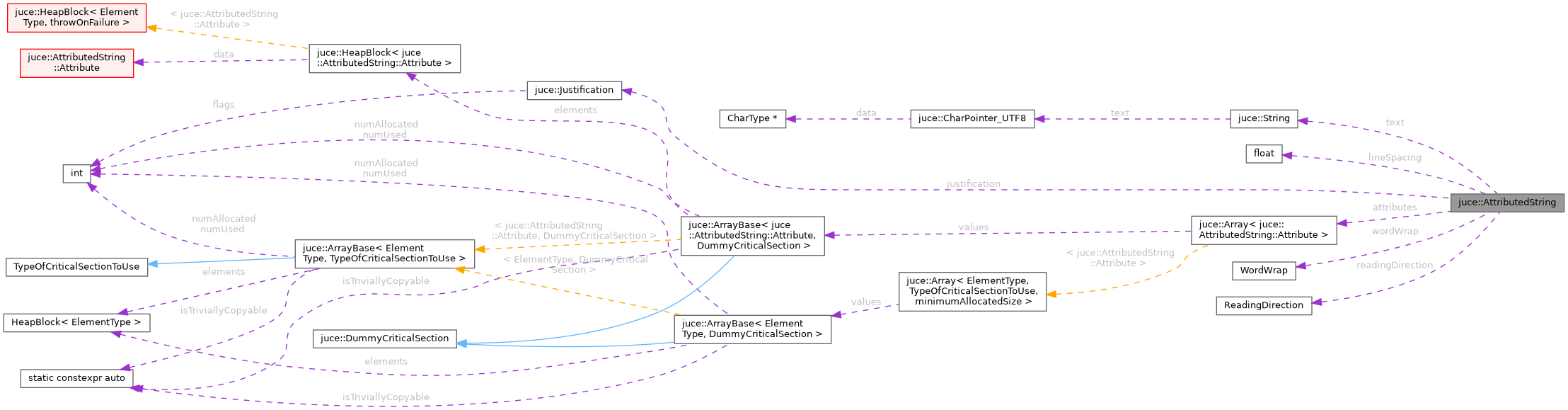

Collaboration diagram for juce::AttributedString:

[legend]

Classes
class	Attribute
	An attribute that has been applied to a range of characters in an AttributedString. More...

Public Types
enum	ReadingDirection { natural, leftToRight, rightToLeft }
	Types of reading direction that can be used. More...

enum	WordWrap { none, byWord, byChar }
	Types of word-wrap behaviour. More...

Public Member Functions
	AttributedString ()=default
	Creates an empty attributed string. More...

	AttributedString (AttributedString &&) noexcept=default

	AttributedString (const AttributedString &)=default

	AttributedString (const String &newString)
	Creates an attributed string with the given text. More...

void	append (const AttributedString &other)
	Appends another AttributedString to this one. More...

void	append (const String &textToAppend)
	Appends some text (with a default font and colour). More...

void	append (const String &textToAppend, Colour colour)
	Appends some text, with a specified colour, and the default font. More...

void	append (const String &textToAppend, const Font &font)
	Appends some text, with a specified font, and the default colour (black). More...

void	append (const String &textToAppend, const Font &font, Colour colour)
	Appends some text, with a specified font and colour. More...

void	clear ()
	Resets the string, clearing all text and attributes. More...

void	draw (Graphics &g, const Rectangle< float > &area) const
	Draws this string within the given area. More...

const Attribute &	getAttribute (int index) const noexcept
	Returns one of the string's attributes. More...

Justification	getJustification () const noexcept
	Returns the justification that should be used for laying-out the text. More...

float	getLineSpacing () const noexcept
	Returns the extra line-spacing distance. More...

int	getNumAttributes () const noexcept
	Returns the number of attributes that have been added to this string. More...

ReadingDirection	getReadingDirection () const noexcept
	Returns the reading direction for the text. More...

const String &	getText () const noexcept
	Returns the complete text of this attributed string. More...

WordWrap	getWordWrap () const noexcept
	Returns the word-wrapping behaviour. More...

AttributedString &	operator= (AttributedString &&) noexcept=default

AttributedString &	operator= (const AttributedString &)=default

void	setColour (Colour colour)
	Removes all existing colour attributes, and applies this colour to the whole string. More...

void	setColour (Range< int > range, Colour colour)
	Adds a colour attribute for the specified range. More...

void	setFont (const Font &font)
	Removes all existing font attributes, and applies this font to the whole string. More...

void	setFont (Range< int > range, const Font &font)
	Adds a font attribute for the specified range. More...

void	setJustification (Justification newJustification) noexcept
	Sets the justification that should be used for laying-out the text. More...

void	setLineSpacing (float newLineSpacing) noexcept
	Sets an extra line-spacing distance. More...

void	setReadingDirection (ReadingDirection newReadingDirection) noexcept
	Sets the reading direction that should be used for the text. More...

void	setText (const String &newText)
	Replaces all the text. More...

void	setWordWrap (WordWrap newWordWrap) noexcept
	Sets the word-wrapping behaviour. More...

Private Attributes
Array< Attribute >	attributes

Justification	justification = Justification::left

float	lineSpacing = 0.0f

ReadingDirection	readingDirection = AttributedString::natural

String	text

WordWrap	wordWrap = AttributedString::byWord

Detailed Description

A text string with a set of colour/font settings that are associated with sub-ranges of the text.

An attributed string lets you create a string with varied fonts, colours, word-wrapping, layout, etc., and draw it using AttributedString::draw().

Invariants:

Every character in the string is a member of exactly one attribute.
Attributes are sorted such that the range-end of attribute 'i' is equal to the range-begin of attribute 'i + 1'.

See also: TextLayout

@tags{Graphics}

Member Enumeration Documentation

◆ ReadingDirection

enum juce::AttributedString::ReadingDirection

Types of reading direction that can be used.

See also: getReadingDirection, setReadingDirection

Enumerator
natural
leftToRight
rightToLeft

◆ WordWrap

enum juce::AttributedString::WordWrap

Types of word-wrap behaviour.

See also: getWordWrap, setWordWrap

Enumerator
none	No word-wrapping: lines extend indefinitely.
byWord	Lines are wrapped on a word boundary.
byChar	Lines are wrapped on a character boundary.

Constructor & Destructor Documentation

◆ AttributedString() [1/4]

juce::AttributedString::AttributedString ( )

default

Creates an empty attributed string.

◆ AttributedString() [2/4]

juce::AttributedString::AttributedString ( const String & newString )

inlineexplicit

Creates an attributed string with the given text.

◆ AttributedString() [3/4]

juce::AttributedString::AttributedString ( const AttributedString & )

default

◆ AttributedString() [4/4]

juce::AttributedString::AttributedString ( AttributedString && )

defaultnoexcept

Member Function Documentation

◆ append() [1/5]

void juce::AttributedString::append ( const AttributedString & other )

Appends another AttributedString to this one.

Note that this will only append the text, fonts, and colours - it won't copy any other properties such as justification, line-spacing, etc from the other object.

◆ append() [2/5]

void juce::AttributedString::append ( const String & textToAppend )

Appends some text (with a default font and colour).

◆ append() [3/5]

void juce::AttributedString::append	(	const String &	textToAppend,
		Colour	colour
	)

Appends some text, with a specified colour, and the default font.

◆ append() [4/5]

void juce::AttributedString::append	(	const String &	textToAppend,
		const Font &	font
	)

Appends some text, with a specified font, and the default colour (black).

◆ append() [5/5]

void juce::AttributedString::append	(	const String &	textToAppend,
		const Font &	font,
		Colour	colour
	)

Appends some text, with a specified font and colour.

◆ clear()

void juce::AttributedString::clear ( )

Resets the string, clearing all text and attributes.

Note that this won't affect global settings like the justification type, word-wrap mode, etc.

◆ draw()

void juce::AttributedString::draw	(	Graphics &	g,
		const Rectangle< float > &	area
	)		const

Draws this string within the given area.

The layout of the string within the rectangle is controlled by the justification value passed to setJustification().

◆ getAttribute()

const Attribute& juce::AttributedString::getAttribute ( int index ) const

inlinenoexcept

Returns one of the string's attributes.

The index provided must be less than getNumAttributes(), and >= 0.

References juce::gl::index.

◆ getJustification()

Justification juce::AttributedString::getJustification ( ) const

inlinenoexcept

Returns the justification that should be used for laying-out the text.

This may include both vertical and horizontal flags.

◆ getLineSpacing()

float juce::AttributedString::getLineSpacing ( ) const

inlinenoexcept

Returns the extra line-spacing distance.

◆ getNumAttributes()

int juce::AttributedString::getNumAttributes ( ) const

inlinenoexcept

Returns the number of attributes that have been added to this string.

◆ getReadingDirection()

ReadingDirection juce::AttributedString::getReadingDirection ( ) const

inlinenoexcept

Returns the reading direction for the text.

◆ getText()

const String& juce::AttributedString::getText ( ) const

inlinenoexcept

Returns the complete text of this attributed string.

References juce::UnitTestCategories::text.

◆ getWordWrap()

WordWrap juce::AttributedString::getWordWrap ( ) const

inlinenoexcept

Returns the word-wrapping behaviour.

◆ operator=() [1/2]

AttributedString& juce::AttributedString::operator= ( AttributedString && )

defaultnoexcept

◆ operator=() [2/2]

AttributedString& juce::AttributedString::operator= ( const AttributedString & )

default

◆ setColour() [1/2]

void juce::AttributedString::setColour ( Colour colour )

Removes all existing colour attributes, and applies this colour to the whole string.

◆ setColour() [2/2]

void juce::AttributedString::setColour	(	Range< int >	range,
		Colour	colour
	)

Adds a colour attribute for the specified range.

◆ setFont() [1/2]

void juce::AttributedString::setFont ( const Font & font )

Removes all existing font attributes, and applies this font to the whole string.

◆ setFont() [2/2]

void juce::AttributedString::setFont	(	Range< int >	range,
		const Font &	font
	)

Adds a font attribute for the specified range.

◆ setJustification()

void juce::AttributedString::setJustification ( Justification newJustification )

noexcept

Sets the justification that should be used for laying-out the text.

This may include both vertical and horizontal flags.

◆ setLineSpacing()

void juce::AttributedString::setLineSpacing ( float newLineSpacing )

noexcept

Sets an extra line-spacing distance.

◆ setReadingDirection()

void juce::AttributedString::setReadingDirection ( ReadingDirection newReadingDirection )

noexcept

Sets the reading direction that should be used for the text.

◆ setText()

void juce::AttributedString::setText ( const String & newText )

Replaces all the text.

This will change the text, but won't affect any of the colour or font attributes that have been added.

◆ setWordWrap()

void juce::AttributedString::setWordWrap ( WordWrap newWordWrap )

noexcept

Sets the word-wrapping behaviour.

Member Data Documentation

◆ attributes

Array<Attribute> juce::AttributedString::attributes

private

◆ justification

Justification juce::AttributedString::justification = Justification::left

private

◆ lineSpacing

float juce::AttributedString::lineSpacing = 0.0f

private

◆ readingDirection

ReadingDirection juce::AttributedString::readingDirection = AttributedString::natural

private

◆ text

String juce::AttributedString::text

private

◆ wordWrap

WordWrap juce::AttributedString::wordWrap = AttributedString::byWord

private

The documentation for this class was generated from the following file:

juce_AttributedString.h
