juce::FlexBox Class Reference

Represents a FlexBox container, which contains and manages the layout of a set of FlexItem objects. More...

#include <juce_FlexBox.h>

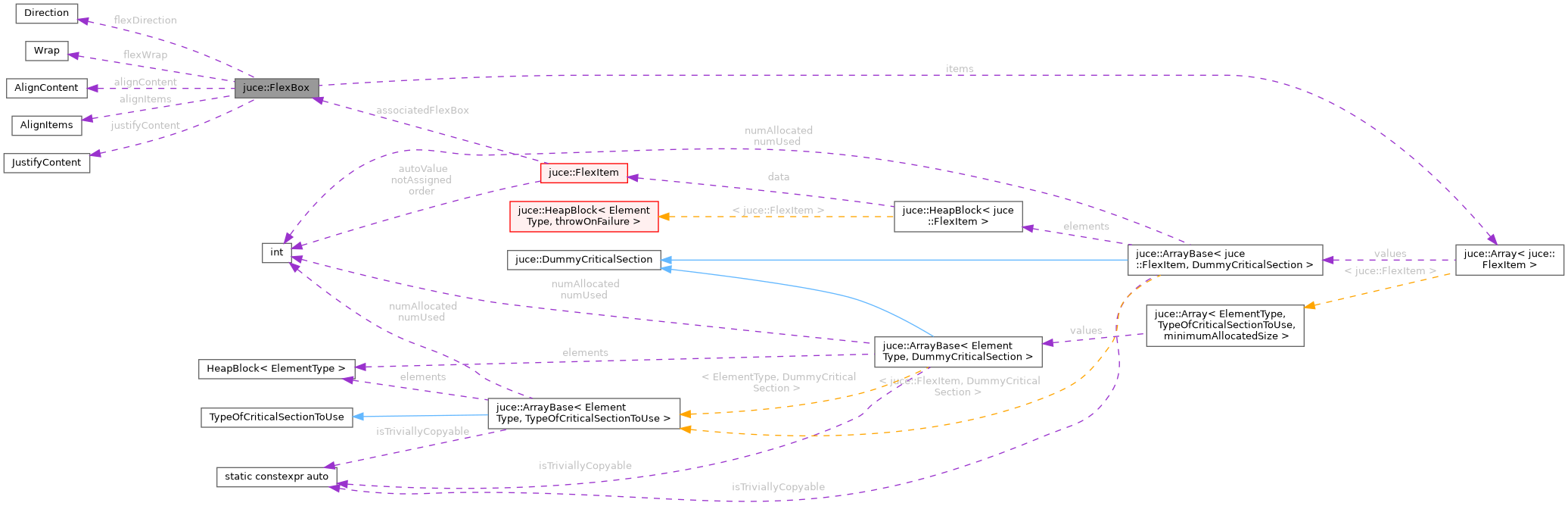

Collaboration diagram for juce::FlexBox:

Public Types
enum	AlignContent {   AlignContent::stretch,   AlignContent::flexStart,   AlignContent::flexEnd,   AlignContent::center,   AlignContent::spaceBetween,   AlignContent::spaceAround }
	Possible values for the alignContent property. More...
enum	AlignItems {   AlignItems::stretch,   AlignItems::flexStart,   AlignItems::flexEnd,   AlignItems::center }
	Possible values for the alignItems property. More...
enum	Direction {   Direction::row,   Direction::rowReverse,   Direction::column,   Direction::columnReverse }
	Possible values for the flexDirection property. More...
enum	JustifyContent {   JustifyContent::flexStart,   JustifyContent::flexEnd,   JustifyContent::center,   JustifyContent::spaceBetween,   JustifyContent::spaceAround }
	Possible values for the justifyContent property. More...
enum	Wrap {   Wrap::noWrap,   Wrap::wrap,   Wrap::wrapReverse }
	Possible values for the flexWrap property. More...

Public Member Functions
	FlexBox () noexcept=default
	Creates an empty FlexBox container with default parameters. More...
	FlexBox (Direction, Wrap, AlignContent, AlignItems, JustifyContent) noexcept
	Creates an empty FlexBox container with these parameters. More...
	FlexBox (JustifyContent) noexcept
	Creates an empty FlexBox container with the given content-justification mode. More...
void	performLayout (Rectangle< float > targetArea)
	Lays-out the box's items within the given rectangle. More...
void	performLayout (Rectangle< int > targetArea)
	Lays-out the box's items within the given rectangle. More...

Public Attributes
AlignContent	alignContent = AlignContent::stretch
	Specifies how a flex container's lines are placed within the flex container when there is extra space on the cross-axis. More...
AlignItems	alignItems = AlignItems::stretch
	Specifies the alignment of flex items along the cross-axis of each line. More...
Direction	flexDirection = Direction::row
	Specifies how flex items are placed in the flex container, and defines the direction of the main axis. More...
Wrap	flexWrap = Wrap::noWrap
	Specifies whether items are forced into a single line or can be wrapped onto multiple lines. More...
Array< FlexItem >	items
	The set of items to lay-out. More...
JustifyContent	justifyContent = JustifyContent::flexStart
	Defines how the container distributes space between and around items along the main-axis. More...

Detailed Description

Represents a FlexBox container, which contains and manages the layout of a set of FlexItem objects.

To use this class, set its parameters appropriately (you can search online for more help on exactly how the FlexBox protocol works!), then add your sub-items to the items array, and call performLayout() in the resized() function of your Component.

See also

FlexItem

@tags{GUI}

Member Enumeration Documentation

AlignContent

enum juce::FlexBox::AlignContent

strong

Possible values for the alignContent property.

Enumerator
stretch	Lines of items are stretched from start to end of the cross axis.
flexStart	Lines of items are aligned towards the start of the cross axis.
flexEnd	Lines of items are aligned towards the end of the cross axis.
center	Lines of items are aligned towards the center of the cross axis.
spaceBetween	Lines of items are evenly spaced along the cross axis with spaces between them.
spaceAround	Lines of items are evenly spaced along the cross axis with spaces around them.

AlignItems

enum juce::FlexBox::AlignItems

strong

Possible values for the alignItems property.

Enumerator
stretch	Items are stretched from start to end of the cross axis.
flexStart	Items are aligned towards the start of the cross axis.
flexEnd	Items are aligned towards the end of the cross axis.
center	Items are aligned towards the center of the cross axis.

Direction

enum juce::FlexBox::Direction

strong

Possible values for the flexDirection property.

Enumerator
row	Set the main axis direction from left to right.
rowReverse	Set the main axis direction from right to left.
column	Set the main axis direction from top to bottom.
columnReverse	Set the main axis direction from bottom to top.

JustifyContent

enum juce::FlexBox::JustifyContent

strong

Possible values for the justifyContent property.

Enumerator
flexStart	Items are justified towards the start of the main axis.
flexEnd	Items are justified towards the end of the main axis.
center	Items are justified towards the center of the main axis.
spaceBetween	Items are evenly spaced along the main axis with spaces between them.
spaceAround	Items are evenly spaced along the main axis with spaces around them.

Wrap

enum juce::FlexBox::Wrap

strong

Possible values for the flexWrap property.

Enumerator
noWrap	Items are forced into a single line.
wrap	Items are wrapped onto multiple lines from top to bottom.
wrapReverse	Items are wrapped onto multiple lines from bottom to top.

Constructor & Destructor Documentation

FlexBox() [1/3]

juce::FlexBox::FlexBox ( )

defaultnoexcept

Creates an empty FlexBox container with default parameters.

FlexBox() [2/3]

juce::FlexBox::FlexBox ( Direction  , Wrap  , AlignContent  , AlignItems  , JustifyContent    )

noexcept

Creates an empty FlexBox container with these parameters.

FlexBox() [3/3]

juce::FlexBox::FlexBox ( JustifyContent  )

noexcept

Creates an empty FlexBox container with the given content-justification mode.

Member Function Documentation

performLayout() [1/2]

void juce::FlexBox::performLayout

(

Rectangle< float >

targetArea

)

Lays-out the box's items within the given rectangle.

performLayout() [2/2]

void juce::FlexBox::performLayout

(

Rectangle< int >

targetArea

)

Lays-out the box's items within the given rectangle.

Member Data Documentation

alignContent

AlignContent juce::FlexBox::alignContent = AlignContent::stretch

Specifies how a flex container's lines are placed within the flex container when there is extra space on the cross-axis.

This property has no effect on single line layouts.

alignItems

AlignItems juce::FlexBox::alignItems = AlignItems::stretch

Specifies the alignment of flex items along the cross-axis of each line.

flexDirection

Direction juce::FlexBox::flexDirection = Direction::row

Specifies how flex items are placed in the flex container, and defines the direction of the main axis.

flexWrap

Wrap juce::FlexBox::flexWrap = Wrap::noWrap

Specifies whether items are forced into a single line or can be wrapped onto multiple lines.

If wrapping is allowed, this property also controls the direction in which lines are stacked.

items

Array<FlexItem> juce::FlexBox::items

The set of items to lay-out.

justifyContent

JustifyContent juce::FlexBox::justifyContent = JustifyContent::flexStart

Defines how the container distributes space between and around items along the main-axis.

The alignment is done after the lengths and auto margins are applied, so that if there is at least one flexible element, with flex-grow different from 0, it will have no effect as there won't be any available space.

---

The documentation for this class was generated from the following file:

• juce_FlexBox.h
