juce::Grid Class Reference

Container that handles geometry for grid layouts (fixed columns and rows) using a set of declarative rules. More...

#include <juce_Grid.h>

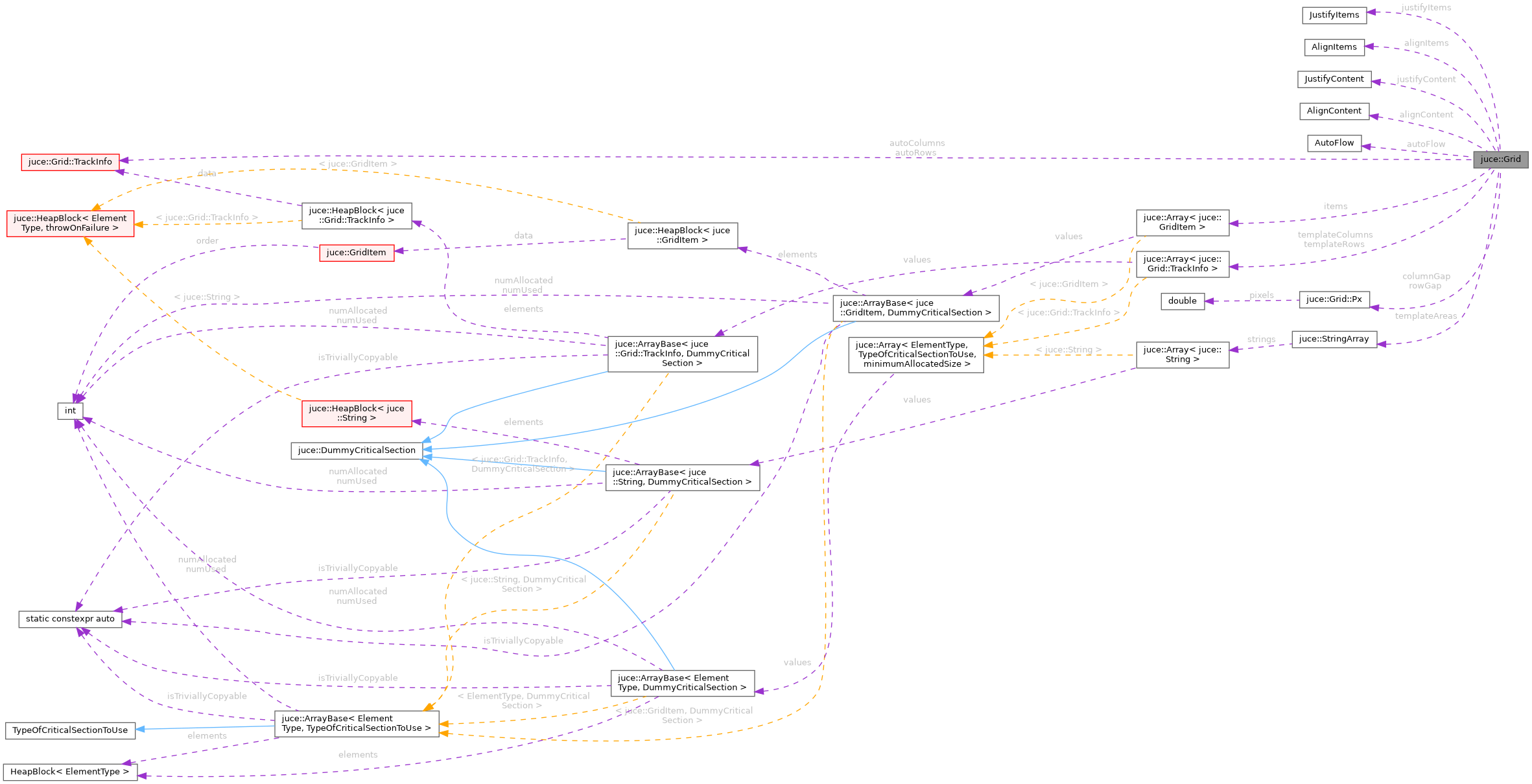

Collaboration diagram for juce::Grid:

Classes
struct	Fr
	A fractional ratio integer. More...
struct	Px
	A size in pixels. More...
struct	TrackInfo
	Represents a track. More...

Public Types
enum	AlignContent {   AlignContent::start,   AlignContent::end,   AlignContent::center,   AlignContent::stretch,   AlignContent::spaceAround,   AlignContent::spaceBetween,   AlignContent::spaceEvenly }
	Possible values for the alignContent property. More...
enum	AlignItems : int {   AlignItems::start = 0,   AlignItems::end,   AlignItems::center,   AlignItems::stretch }
	Possible values for the alignItems property. More...
enum	AutoFlow {   AutoFlow::row,   AutoFlow::column,   AutoFlow::rowDense,   AutoFlow::columnDense }
	Possible values for the autoFlow property. More...
enum	JustifyContent {   JustifyContent::start,   JustifyContent::end,   JustifyContent::center,   JustifyContent::stretch,   JustifyContent::spaceAround,   JustifyContent::spaceBetween,   JustifyContent::spaceEvenly }
	Possible values for the justifyContent property. More...
enum	JustifyItems : int {   JustifyItems::start = 0,   JustifyItems::end,   JustifyItems::center,   JustifyItems::stretch }
	Possible values for the justifyItems property. More...

Public Member Functions
	Grid ()=default
	Creates an empty Grid container with default parameters. More...
	~Grid () noexcept=default
	Destructor. More...
int	getNumberOfColumns () const noexcept
	Returns the number of columns. More...
int	getNumberOfRows () const noexcept
	Returns the number of rows. More...
void	performLayout (Rectangle< int >)
	Lays-out the grid's items within the given rectangle. More...
void	setGap (Px sizeInPixels) noexcept
	Sets the gap between rows and columns in pixels. More...

Public Attributes
AlignContent	alignContent = AlignContent::stretch
	Specifies the alignment of items along the columns. More...
AlignItems	alignItems = AlignItems::stretch
	Specifies the alignment of content inside the items along the columns. More...
TrackInfo	autoColumns
	The column track for auto dimension. More...
AutoFlow	autoFlow = AutoFlow::row
	Specifies how the auto-placement algorithm places items. More...
TrackInfo	autoRows
	The row track for auto dimension. More...
Px	columnGap { 0 }
	The gap in pixels between columns. More...
Array< GridItem >	items
	The set of items to lay-out. More...
JustifyContent	justifyContent = JustifyContent::stretch
	Specifies the alignment of items along the rows. More...
JustifyItems	justifyItems = JustifyItems::stretch
	Specifies the alignment of content inside the items along the rows. More...
Px	rowGap { 0 }
	The gap in pixels between rows. More...
StringArray	templateAreas
	Template areas. More...
Array< TrackInfo >	templateColumns
	The set of column tracks to lay out. More...
Array< TrackInfo >	templateRows
	The set of row tracks to lay out. More...

Detailed Description

Container that handles geometry for grid layouts (fixed columns and rows) using a set of declarative rules.

Implemented from the CSS Grid Layout specification as described at: https://css-tricks.com/snippets/css/complete-guide-grid/

See also

GridItem

@tags{GUI}

Member Enumeration Documentation

AlignContent

enum juce::Grid::AlignContent

strong

Possible values for the alignContent property.

Enumerator
start	Items are aligned towards the top of the container.
end	Items are aligned towards the bottom of the container.
center	Items are aligned towards the center of the container.
stretch	Items are stretched from top to bottom of the container.
spaceAround	Items are evenly spaced along the column with spaces between them.
spaceBetween	Items are evenly spaced along the column with spaces around them.
spaceEvenly	Items are evenly spaced along the column with even amount of spaces between them.

AlignItems

enum juce::Grid::AlignItems : int

strong

Possible values for the alignItems property.

Enumerator
start	Content inside the item is aligned towards the top.
end	Content inside the item is aligned towards the bottom.
center	Content inside the item is aligned towards the center.
stretch	Content inside the item is stretched from top to bottom.

AutoFlow

enum juce::Grid::AutoFlow

strong

Possible values for the autoFlow property.

Enumerator
row	Fills the grid by adding rows of items.
column	Fills the grid by adding columns of items.
rowDense	Fills the grid by adding rows of items and attempts to fill in gaps.
columnDense	Fills the grid by adding columns of items and attempts to fill in gaps.

JustifyContent

enum juce::Grid::JustifyContent

strong

Possible values for the justifyContent property.

Enumerator
start	Items are justified towards the left of the container.
end	Items are justified towards the right of the container.
center	Items are justified towards the center of the container.
stretch	Items are stretched from left to right of the container.
spaceAround	Items are evenly spaced along the row with spaces between them.
spaceBetween	Items are evenly spaced along the row with spaces around them.
spaceEvenly	Items are evenly spaced along the row with even amount of spaces between them.

JustifyItems

enum juce::Grid::JustifyItems : int

strong

Possible values for the justifyItems property.

Enumerator
start	Content inside the item is justified towards the left.
end	Content inside the item is justified towards the right.
center	Content inside the item is justified towards the center.
stretch	Content inside the item is stretched from left to right.

Constructor & Destructor Documentation

Grid()

juce::Grid::Grid ( )

default

Creates an empty Grid container with default parameters.

~Grid()

juce::Grid::~Grid ( )

defaultnoexcept

Destructor.

Member Function Documentation

getNumberOfColumns()

int juce::Grid::getNumberOfColumns ( ) const

inlinenoexcept

Returns the number of columns.

getNumberOfRows()

int juce::Grid::getNumberOfRows ( ) const

inlinenoexcept

Returns the number of rows.

performLayout()

void juce::Grid::performLayout

(

Rectangle< int >

)

Lays-out the grid's items within the given rectangle.

setGap()

void juce::Grid::setGap ( Px  sizeInPixels )

inlinenoexcept

Sets the gap between rows and columns in pixels.

Member Data Documentation

alignContent

AlignContent juce::Grid::alignContent = AlignContent::stretch

Specifies the alignment of items along the columns.

alignItems

AlignItems juce::Grid::alignItems = AlignItems::stretch

Specifies the alignment of content inside the items along the columns.

autoColumns

TrackInfo juce::Grid::autoColumns

The column track for auto dimension.

autoFlow

AutoFlow juce::Grid::autoFlow = AutoFlow::row

Specifies how the auto-placement algorithm places items.

autoRows

TrackInfo juce::Grid::autoRows

The row track for auto dimension.

columnGap

Px juce::Grid::columnGap { 0 }

The gap in pixels between columns.

items

Array<GridItem> juce::Grid::items

The set of items to lay-out.

justifyContent

JustifyContent juce::Grid::justifyContent = JustifyContent::stretch

Specifies the alignment of items along the rows.

justifyItems

JustifyItems juce::Grid::justifyItems = JustifyItems::stretch

Specifies the alignment of content inside the items along the rows.

rowGap

Px juce::Grid::rowGap { 0 }

The gap in pixels between rows.

templateAreas

StringArray juce::Grid::templateAreas

Template areas.

templateColumns

Array<TrackInfo> juce::Grid::templateColumns

The set of column tracks to lay out.

templateRows

Array<TrackInfo> juce::Grid::templateRows

The set of row tracks to lay out.

---

The documentation for this class was generated from the following file:

• juce_Grid.h
