juce::Path::Iterator Class Reference

Iterates the lines and curves that a path contains. More...

#include <juce_Path.h>

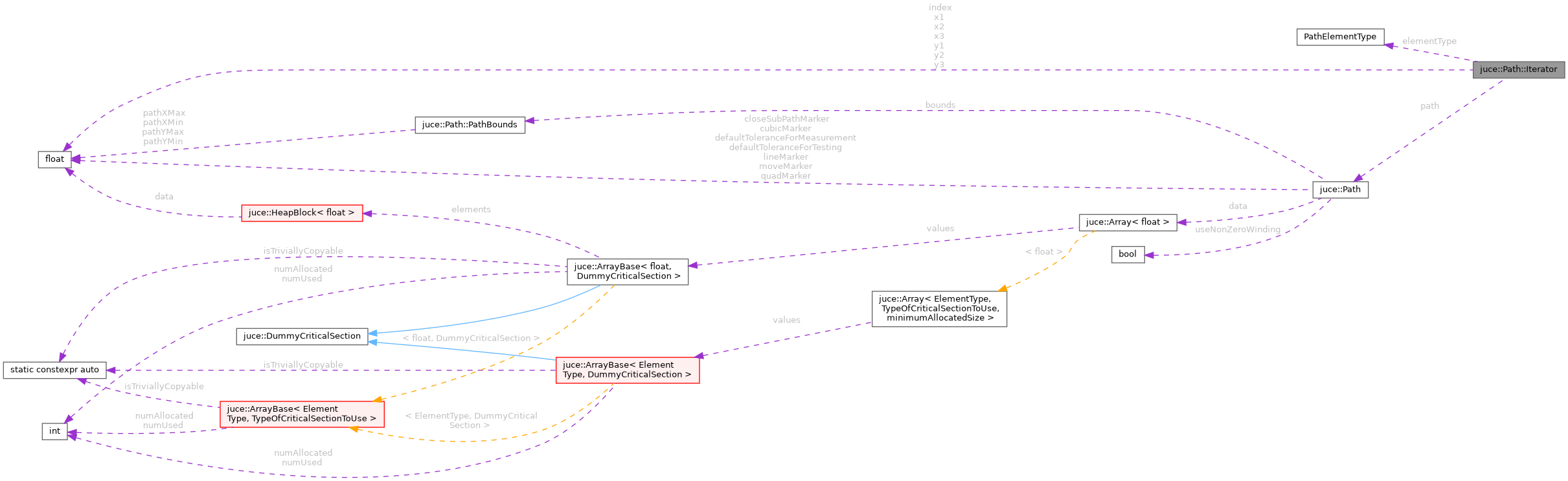

Collaboration diagram for juce::Path::Iterator:

Public Types
enum	PathElementType {   startNewSubPath,   lineTo,   quadraticTo,   cubicTo,   closePath }

Public Member Functions
	Iterator (const Path &path) noexcept
	~Iterator () noexcept
bool	next () noexcept
	Moves onto the next element in the path. More...

Public Attributes
PathElementType	elementType
float	x1 = 0
float	x2 = 0
float	x3 = 0
float	y1 = 0
float	y2 = 0
float	y3 = 0

Private Attributes
const float *	index
const Path &	path

Detailed Description

Iterates the lines and curves that a path contains.

See also

Path, PathFlatteningIterator

Member Enumeration Documentation

PathElementType

enum juce::Path::Iterator::PathElementType

Enumerator
startNewSubPath	For this type, x1 and y1 will be set to indicate the first point in the subpath.
lineTo	For this type, x1 and y1 indicate the end point of the line.
quadraticTo	For this type, x1, y1, x2, y2 indicate the control point and endpoint of a quadratic curve.
cubicTo	For this type, x1, y1, x2, y2, x3, y3 indicate the two control points and the endpoint of a cubic curve.
closePath	Indicates that the sub-path is being closed. None of the x or y values are valid in this case.

Constructor & Destructor Documentation

Iterator()

juce::Path::Iterator::Iterator ( const Path &  path )

noexcept

~Iterator()

juce::Path::Iterator::~Iterator ( )

noexcept

Member Function Documentation

next()

bool juce::Path::Iterator::next ( )

noexcept

Moves onto the next element in the path.

If this returns false, there are no more elements. If it returns true, the elementType variable will be set to the type of the current element, and some of the x and y variables will be filled in with values.

Member Data Documentation

elementType

PathElementType juce::Path::Iterator::elementType

index

const float* juce::Path::Iterator::index

private

path

const Path& juce::Path::Iterator::path

private

x1

float juce::Path::Iterator::x1 = 0

x2

float juce::Path::Iterator::x2 = 0

x3

float juce::Path::Iterator::x3 = 0

y1

float juce::Path::Iterator::y1 = 0

y2

float juce::Path::Iterator::y2 = 0

y3

float juce::Path::Iterator::y3 = 0

---

The documentation for this class was generated from the following file:

• juce_Path.h
