Support Vector Machines. More...
#include <opencv2/ml.hpp>
Classes | |
class | Kernel |
Public Types | |
enum | Flags { UPDATE_MODEL = 1, RAW_OUTPUT =1, COMPRESSED_INPUT =2, PREPROCESSED_INPUT =4 } |
Predict options. More... | |
enum | KernelTypes { CUSTOM =-1, LINEAR =0, POLY =1, RBF =2, SIGMOID =3, CHI2 =4, INTER =5 } |
SVM kernel type More... | |
enum | ParamTypes { C =0, GAMMA =1, P =2, NU =3, COEF =4, DEGREE =5 } |
SVM params type More... | |
enum | Types { C_SVC =100, NU_SVC =101, ONE_CLASS =102, EPS_SVR =103, NU_SVR =104 } |
SVM type More... | |
Public Member Functions | |
virtual float | calcError (const Ptr< TrainData > &data, bool test, OutputArray resp) const |
Computes error on the training or test dataset. More... | |
virtual void | clear () |
Clears the algorithm state. More... | |
virtual bool | empty () const CV_OVERRIDE |
Returns true if the Algorithm is empty (e.g. More... | |
virtual double | getC () const =0 |
Parameter C of a SVM optimization problem. More... | |
virtual cv::Mat | getClassWeights () const =0 |
Optional weights in the SVM::C_SVC problem, assigned to particular classes. More... | |
virtual double | getCoef0 () const =0 |
Parameter coef0 of a kernel function. More... | |
virtual double | getDecisionFunction (int i, OutputArray alpha, OutputArray svidx) const =0 |
Retrieves the decision function. More... | |
virtual String | getDefaultName () const |
Returns the algorithm string identifier. More... | |
virtual double | getDegree () const =0 |
Parameter degree of a kernel function. More... | |
virtual double | getGamma () const =0 |
Parameter \(\gamma\) of a kernel function. More... | |
virtual int | getKernelType () const =0 |
Type of a SVM kernel. More... | |
virtual double | getNu () const =0 |
Parameter \(\nu\) of a SVM optimization problem. More... | |
virtual double | getP () const =0 |
Parameter \(\epsilon\) of a SVM optimization problem. More... | |
virtual Mat | getSupportVectors () const =0 |
Retrieves all the support vectors. More... | |
virtual cv::TermCriteria | getTermCriteria () const =0 |
Termination criteria of the iterative SVM training procedure which solves a partial case of constrained quadratic optimization problem. More... | |
virtual int | getType () const =0 |
Type of a SVM formulation. More... | |
virtual Mat | getUncompressedSupportVectors () const =0 |
Retrieves all the uncompressed support vectors of a linear SVM. More... | |
virtual int | getVarCount () const =0 |
Returns the number of variables in training samples. More... | |
virtual bool | isClassifier () const =0 |
Returns true if the model is classifier. More... | |
virtual bool | isTrained () const =0 |
Returns true if the model is trained. More... | |
virtual float | predict (InputArray samples, OutputArray results=noArray(), int flags=0) const =0 |
Predicts response(s) for the provided sample(s) More... | |
virtual void | read (const FileNode &fn) |
Reads algorithm parameters from a file storage. More... | |
virtual void | save (const String &filename) const |
Saves the algorithm to a file. More... | |
virtual void | setC (double val)=0 |
Parameter C of a SVM optimization problem. More... | |
virtual void | setClassWeights (const cv::Mat &val)=0 |
Optional weights in the SVM::C_SVC problem, assigned to particular classes. More... | |
virtual void | setCoef0 (double val)=0 |
Parameter coef0 of a kernel function. More... | |
virtual void | setCustomKernel (const Ptr< Kernel > &_kernel)=0 |
Initialize with custom kernel. More... | |
virtual void | setDegree (double val)=0 |
Parameter degree of a kernel function. More... | |
virtual void | setGamma (double val)=0 |
Parameter \(\gamma\) of a kernel function. More... | |
virtual void | setKernel (int kernelType)=0 |
Initialize with one of predefined kernels. More... | |
virtual void | setNu (double val)=0 |
Parameter \(\nu\) of a SVM optimization problem. More... | |
virtual void | setP (double val)=0 |
Parameter \(\epsilon\) of a SVM optimization problem. More... | |
virtual void | setTermCriteria (const cv::TermCriteria &val)=0 |
Termination criteria of the iterative SVM training procedure which solves a partial case of constrained quadratic optimization problem. More... | |
virtual void | setType (int val)=0 |
Type of a SVM formulation. More... | |
virtual bool | train (const Ptr< TrainData > &trainData, int flags=0) |
Trains the statistical model. More... | |
virtual bool | train (InputArray samples, int layout, InputArray responses) |
Trains the statistical model. More... | |
virtual bool | trainAuto (const Ptr< TrainData > &data, int kFold=10, ParamGrid Cgrid=getDefaultGrid(C), ParamGrid gammaGrid=getDefaultGrid(GAMMA), ParamGrid pGrid=getDefaultGrid(P), ParamGrid nuGrid=getDefaultGrid(NU), ParamGrid coeffGrid=getDefaultGrid(COEF), ParamGrid degreeGrid=getDefaultGrid(DEGREE), bool balanced=false)=0 |
Trains an SVM with optimal parameters. More... | |
virtual bool | trainAuto (InputArray samples, int layout, InputArray responses, int kFold=10, Ptr< ParamGrid > Cgrid=SVM::getDefaultGridPtr(SVM::C), Ptr< ParamGrid > gammaGrid=SVM::getDefaultGridPtr(SVM::GAMMA), Ptr< ParamGrid > pGrid=SVM::getDefaultGridPtr(SVM::P), Ptr< ParamGrid > nuGrid=SVM::getDefaultGridPtr(SVM::NU), Ptr< ParamGrid > coeffGrid=SVM::getDefaultGridPtr(SVM::COEF), Ptr< ParamGrid > degreeGrid=SVM::getDefaultGridPtr(SVM::DEGREE), bool balanced=false)=0 |
Trains an SVM with optimal parameters. More... | |
virtual void | write (FileStorage &fs) const |
Stores algorithm parameters in a file storage. More... | |
void | write (const Ptr< FileStorage > &fs, const String &name=String()) const |
simplified API for language bindings This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More... | |
Static Public Member Functions | |
static Ptr< SVM > | create () |
Creates empty model. More... | |
static ParamGrid | getDefaultGrid (int param_id) |
Generates a grid for SVM parameters. More... | |
static Ptr< ParamGrid > | getDefaultGridPtr (int param_id) |
Generates a grid for SVM parameters. More... | |
static Ptr< SVM > | load (const String &filepath) |
Loads and creates a serialized svm from a file. More... | |
template<typename _Tp > | |
static Ptr< _Tp > | load (const String &filename, const String &objname=String()) |
Loads algorithm from the file. More... | |
template<typename _Tp > | |
static Ptr< _Tp > | loadFromString (const String &strModel, const String &objname=String()) |
Loads algorithm from a String. More... | |
template<typename _Tp > | |
static Ptr< _Tp > | read (const FileNode &fn) |
Reads algorithm from the file node. More... | |
template<typename _Tp > | |
static Ptr< _Tp > | train (const Ptr< TrainData > &data, int flags=0) |
Create and train model with default parameters. More... | |
Protected Member Functions | |
void | writeFormat (FileStorage &fs) const |
Support Vector Machines.
|
inherited |
SVM kernel type

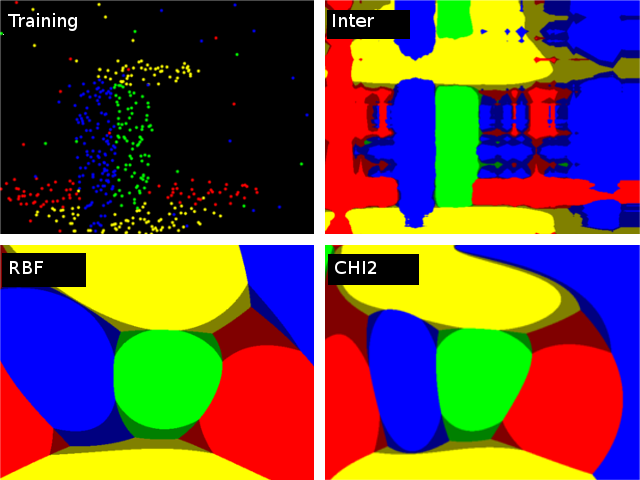

A comparison of different kernels on the following 2D test case with four classes. Four SVM::C_SVC SVMs have been trained (one against rest) with auto_train. Evaluation on three different kernels (SVM::CHI2, SVM::INTER, SVM::RBF). The color depicts the class with max score. Bright means max-score > 0, dark means max-score < 0.
Enumerator | |
---|---|
CUSTOM | Returned by SVM::getKernelType in case when custom kernel has been set. |
LINEAR | Linear kernel. No mapping is done, linear discrimination (or regression) is done in the original feature space. It is the fastest option. \(K(x_i, x_j) = x_i^T x_j\). |
POLY | Polynomial kernel: \(K(x_i, x_j) = (\gamma x_i^T x_j + coef0)^{degree}, \gamma > 0\). |
RBF | Radial basis function (RBF), a good choice in most cases. \(K(x_i, x_j) = e^{-\gamma ||x_i - x_j||^2}, \gamma > 0\). |
SIGMOID | Sigmoid kernel: \(K(x_i, x_j) = \tanh(\gamma x_i^T x_j + coef0)\). |
CHI2 | Exponential Chi2 kernel, similar to the RBF kernel: \(K(x_i, x_j) = e^{-\gamma \chi^2(x_i,x_j)}, \chi^2(x_i,x_j) = (x_i-x_j)^2/(x_i+x_j), \gamma > 0\). |
INTER | Histogram intersection kernel. A fast kernel. \(K(x_i, x_j) = min(x_i,x_j)\). |
enum cv::ml::SVM::Types |
SVM type
Enumerator | |
---|---|
C_SVC | C-Support Vector Classification. n-class classification (n \(\geq\) 2), allows imperfect separation of classes with penalty multiplier C for outliers. |
NU_SVC | \(\nu\)-Support Vector Classification. n-class classification with possible imperfect separation. Parameter \(\nu\) (in the range 0..1, the larger the value, the smoother the decision boundary) is used instead of C. |
ONE_CLASS | Distribution Estimation (One-class SVM). All the training data are from the same class, SVM builds a boundary that separates the class from the rest of the feature space. |
EPS_SVR | \(\epsilon\)-Support Vector Regression. The distance between feature vectors from the training set and the fitting hyper-plane must be less than p. For outliers the penalty multiplier C is used. |
NU_SVR | \(\nu\)-Support Vector Regression. \(\nu\) is used instead of p. See [19] for details. |
|
virtualinherited |
Computes error on the training or test dataset.
data | the training data |
test | if true, the error is computed over the test subset of the data, otherwise it's computed over the training subset of the data. Please note that if you loaded a completely different dataset to evaluate already trained classifier, you will probably want not to set the test subset at all with TrainData::setTrainTestSplitRatio and specify test=false, so that the error is computed for the whole new set. Yes, this sounds a bit confusing. |
resp | the optional output responses. |
The method uses StatModel::predict to compute the error. For regression models the error is computed as RMS, for classifiers - as a percent of missclassified samples (0%-100%).
|
inlinevirtualinherited |
Clears the algorithm state.
Reimplemented in cv::FlannBasedMatcher, and cv::DescriptorMatcher.
Creates empty model.
Use StatModel::train to train the model. Since SVM has several parameters, you may want to find the best parameters for your problem, it can be done with SVM::trainAuto.
|
virtualinherited |
Returns true if the Algorithm is empty (e.g.
in the very beginning or after unsuccessful read
Reimplemented from cv::Algorithm.
|
pure virtual |
Parameter C of a SVM optimization problem.
For SVM::C_SVC, SVM::EPS_SVR or SVM::NU_SVR. Default value is 0.
|
pure virtual |
Optional weights in the SVM::C_SVC problem, assigned to particular classes.
They are multiplied by C so the parameter C of class i becomes classWeights(i) * C
. Thus these weights affect the misclassification penalty for different classes. The larger weight, the larger penalty on misclassification of data from the corresponding class. Default value is empty Mat.
|
pure virtual |
Parameter coef0 of a kernel function.
For SVM::POLY or SVM::SIGMOID. Default value is 0.
|
pure virtual |
Retrieves the decision function.
i | the index of the decision function. If the problem solved is regression, 1-class or 2-class classification, then there will be just one decision function and the index should always be 0. Otherwise, in the case of N-class classification, there will be \(N(N-1)/2\) decision functions. |
alpha | the optional output vector for weights, corresponding to different support vectors. In the case of linear SVM all the alpha's will be 1's. |
svidx | the optional output vector of indices of support vectors within the matrix of support vectors (which can be retrieved by SVM::getSupportVectors). In the case of linear SVM each decision function consists of a single "compressed" support vector. |
The method returns rho parameter of the decision function, a scalar subtracted from the weighted sum of kernel responses.
|
static |
Generates a grid for SVM parameters.
param_id | SVM parameters IDs that must be one of the SVM::ParamTypes. The grid is generated for the parameter with this ID. |
The function generates a grid for the specified parameter of the SVM algorithm. The grid may be passed to the function SVM::trainAuto.
Generates a grid for SVM parameters.
param_id | SVM parameters IDs that must be one of the SVM::ParamTypes. The grid is generated for the parameter with this ID. |
The function generates a grid pointer for the specified parameter of the SVM algorithm. The grid may be passed to the function SVM::trainAuto.
|
virtualinherited |
Returns the algorithm string identifier.
This string is used as top level xml/yml node tag when the object is saved to a file or string.
Reimplemented in cv::AKAZE, cv::KAZE, cv::SimpleBlobDetector, cv::GFTTDetector, cv::AgastFeatureDetector, cv::FastFeatureDetector, cv::MSER, cv::ORB, cv::BRISK, and cv::Feature2D.
|
pure virtual |
|
pure virtual |
Parameter \(\gamma\) of a kernel function.
For SVM::POLY, SVM::RBF, SVM::SIGMOID or SVM::CHI2. Default value is 1.
|
pure virtual |
Type of a SVM kernel.
See SVM::KernelTypes. Default value is SVM::RBF.
|
pure virtual |
Parameter \(\nu\) of a SVM optimization problem.
For SVM::NU_SVC, SVM::ONE_CLASS or SVM::NU_SVR. Default value is 0.
|
pure virtual |
Parameter \(\epsilon\) of a SVM optimization problem.
For SVM::EPS_SVR. Default value is 0.
|
pure virtual |
Retrieves all the support vectors.
The method returns all the support vectors as a floating-point matrix, where support vectors are stored as matrix rows.
|
pure virtual |
Termination criteria of the iterative SVM training procedure which solves a partial case of constrained quadratic optimization problem.
You can specify tolerance and/or the maximum number of iterations. Default value is TermCriteria( TermCriteria::MAX_ITER + TermCriteria::EPS, 1000, FLT_EPSILON )
;
|
pure virtual |
|
pure virtual |
Retrieves all the uncompressed support vectors of a linear SVM.
The method returns all the uncompressed support vectors of a linear SVM that the compressed support vector, used for prediction, was derived from. They are returned in a floating-point matrix, where the support vectors are stored as matrix rows.
|
pure virtualinherited |
Returns the number of variables in training samples.
|
pure virtualinherited |
Returns true if the model is classifier.
|
pure virtualinherited |
Returns true if the model is trained.
|
inlinestaticinherited |
Loads algorithm from the file.
filename | Name of the file to read. |
objname | The optional name of the node to read (if empty, the first top-level node will be used) |
This is static template method of Algorithm. It's usage is following (in the case of SVM):
In order to make this method work, the derived class must overwrite Algorithm::read(const FileNode& fn).
References CV_Assert, cv::FileNode::empty(), cv::FileStorage::getFirstTopLevelNode(), cv::FileStorage::isOpened(), and cv::FileStorage::READ.
|
inlinestaticinherited |
Loads algorithm from a String.
strModel | The string variable containing the model you want to load. |
objname | The optional name of the node to read (if empty, the first top-level node will be used) |
This is static template method of Algorithm. It's usage is following (in the case of SVM):
References CV_WRAP, cv::FileNode::empty(), cv::FileStorage::getFirstTopLevelNode(), cv::FileStorage::MEMORY, and cv::FileStorage::READ.
|
pure virtualinherited |
Predicts response(s) for the provided sample(s)
samples | The input samples, floating-point matrix |
results | The optional output matrix of results. |
flags | The optional flags, model-dependent. See cv::ml::StatModel::Flags. |
Implemented in cv::ml::LogisticRegression, and cv::ml::EM.
|
inlinevirtualinherited |
Reads algorithm parameters from a file storage.
Reimplemented in cv::FlannBasedMatcher, cv::DescriptorMatcher, and cv::Feature2D.
|
inlinestaticinherited |
Reads algorithm from the file node.
This is static template method of Algorithm. It's usage is following (in the case of SVM):
In order to make this method work, the derived class must overwrite Algorithm::read(const FileNode& fn) and also have static create() method without parameters (or with all the optional parameters)
|
virtualinherited |
Saves the algorithm to a file.
In order to make this method work, the derived class must implement Algorithm::write(FileStorage& fs).
|
pure virtual |
Parameter C of a SVM optimization problem.
|
pure virtual |
Optional weights in the SVM::C_SVC problem, assigned to particular classes.
|
pure virtual |
Parameter coef0 of a kernel function.
Initialize with custom kernel.
See SVM::Kernel class for implementation details
|
pure virtual |
Parameter degree of a kernel function.
|
pure virtual |
Parameter \(\gamma\) of a kernel function.
|
pure virtual |
Initialize with one of predefined kernels.
See SVM::KernelTypes.
|
pure virtual |
Parameter \(\nu\) of a SVM optimization problem.
|
pure virtual |
Parameter \(\epsilon\) of a SVM optimization problem.
|
pure virtual |
Termination criteria of the iterative SVM training procedure which solves a partial case of constrained quadratic optimization problem.
|
pure virtual |
Type of a SVM formulation.
|
virtualinherited |
Trains the statistical model.
trainData | training data that can be loaded from file using TrainData::loadFromCSV or created with TrainData::create. |
flags | optional flags, depending on the model. Some of the models can be updated with the new training samples, not completely overwritten (such as NormalBayesClassifier or ANN_MLP). |
|
virtualinherited |
Trains the statistical model.
samples | training samples |
layout | See ml::SampleTypes. |
responses | vector of responses associated with the training samples. |
|
inlinestaticinherited |
Create and train model with default parameters.
The class must implement static create()
method with no parameters or with all default parameter values
|
pure virtual |
Trains an SVM with optimal parameters.
data | the training data that can be constructed using TrainData::create or TrainData::loadFromCSV. |
kFold | Cross-validation parameter. The training set is divided into kFold subsets. One subset is used to test the model, the others form the train set. So, the SVM algorithm is executed kFold times. |
Cgrid | grid for C |
gammaGrid | grid for gamma |
pGrid | grid for p |
nuGrid | grid for nu |
coeffGrid | grid for coeff |
degreeGrid | grid for degree |
balanced | If true and the problem is 2-class classification then the method creates more balanced cross-validation subsets that is proportions between classes in subsets are close to such proportion in the whole train dataset. |
The method trains the SVM model automatically by choosing the optimal parameters C, gamma, p, nu, coef0, degree. Parameters are considered optimal when the cross-validation estimate of the test set error is minimal.
If there is no need to optimize a parameter, the corresponding grid step should be set to any value less than or equal to 1. For example, to avoid optimization in gamma, set gammaGrid.step = 0
, gammaGrid.minVal
, gamma_grid.maxVal
as arbitrary numbers. In this case, the value Gamma
is taken for gamma.
And, finally, if the optimization in a parameter is required but the corresponding grid is unknown, you may call the function SVM::getDefaultGrid. To generate a grid, for example, for gamma, call SVM::getDefaultGrid(SVM::GAMMA)
.
This function works for the classification (SVM::C_SVC or SVM::NU_SVC) as well as for the regression (SVM::EPS_SVR or SVM::NU_SVR). If it is SVM::ONE_CLASS, no optimization is made and the usual SVM with parameters specified in params is executed.
|
pure virtual |
Trains an SVM with optimal parameters.
samples | training samples |
layout | See ml::SampleTypes. |
responses | vector of responses associated with the training samples. |
kFold | Cross-validation parameter. The training set is divided into kFold subsets. One subset is used to test the model, the others form the train set. So, the SVM algorithm is |
Cgrid | grid for C |
gammaGrid | grid for gamma |
pGrid | grid for p |
nuGrid | grid for nu |
coeffGrid | grid for coeff |
degreeGrid | grid for degree |
balanced | If true and the problem is 2-class classification then the method creates more balanced cross-validation subsets that is proportions between classes in subsets are close to such proportion in the whole train dataset. |
The method trains the SVM model automatically by choosing the optimal parameters C, gamma, p, nu, coef0, degree. Parameters are considered optimal when the cross-validation estimate of the test set error is minimal.
This function only makes use of SVM::getDefaultGrid for parameter optimization and thus only offers rudimentary parameter options.
This function works for the classification (SVM::C_SVC or SVM::NU_SVC) as well as for the regression (SVM::EPS_SVR or SVM::NU_SVR). If it is SVM::ONE_CLASS, no optimization is made and the usual SVM with parameters specified in params is executed.
|
inlinevirtualinherited |
Stores algorithm parameters in a file storage.
Reimplemented in cv::FlannBasedMatcher, cv::DescriptorMatcher, and cv::Feature2D.
References CV_WRAP.
Referenced by cv::Feature2D::write(), and cv::DescriptorMatcher::write().
|
inherited |
simplified API for language bindings This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.
|
protectedinherited |
