cv::gapi::wip::draw::Text Struct Reference

A structure to represent parameters for drawing a text string. More...

#include <opencv2/gapi/render.hpp>

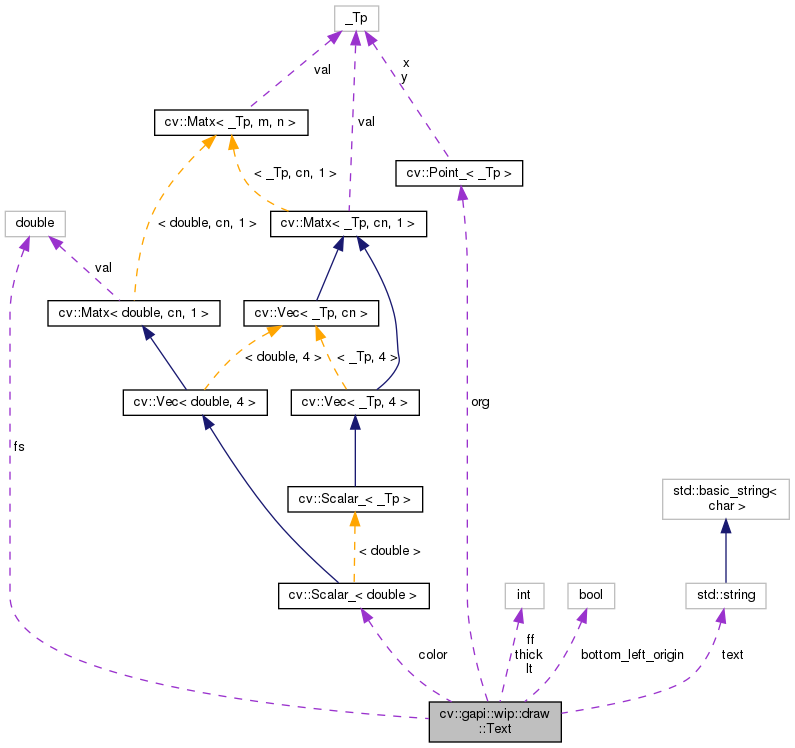

Collaboration diagram for cv::gapi::wip::draw::Text:

Public Attributes
std::string	text
	The text string to be drawn. More...
cv::Point	org
	The bottom-left corner of the text string in the image. More...
int	ff
	The font type, see HersheyFonts. More...
double	fs
	The font scale factor that is multiplied by the font-specific base size. More...
cv::Scalar	color
	The text color. More...
int	thick
	The thickness of the lines used to draw a text. More...
int	lt
	The line type. More...
bool	bottom_left_origin
	When true, the image data origin is at the bottom-left corner. More...

Detailed Description

A structure to represent parameters for drawing a text string.

Member Data Documentation

bottom_left_origin

bool cv::gapi::wip::draw::Text::bottom_left_origin

When true, the image data origin is at the bottom-left corner.

Otherwise, it is at the top-left corner

color

cv::Scalar cv::gapi::wip::draw::Text::color

The text color.

ff

int cv::gapi::wip::draw::Text::ff

The font type, see HersheyFonts.

fs

double cv::gapi::wip::draw::Text::fs

The font scale factor that is multiplied by the font-specific base size.

lt

int cv::gapi::wip::draw::Text::lt

The line type.

See LineTypes

org

cv::Point cv::gapi::wip::draw::Text::org

The bottom-left corner of the text string in the image.

text

std::string cv::gapi::wip::draw::Text::text

The text string to be drawn.

thick

int cv::gapi::wip::draw::Text::thick

The thickness of the lines used to draw a text.

---

The documentation for this struct was generated from the following file:

• opencv2/gapi/render.hpp
