cv::SparseMatConstIterator Class Reference

Read-Only Sparse Matrix Iterator. More...

#include "mat.hpp"

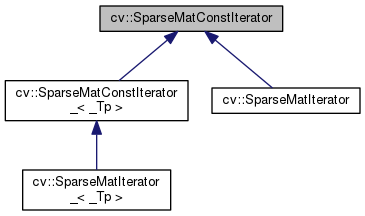

Inheritance diagram for cv::SparseMatConstIterator:

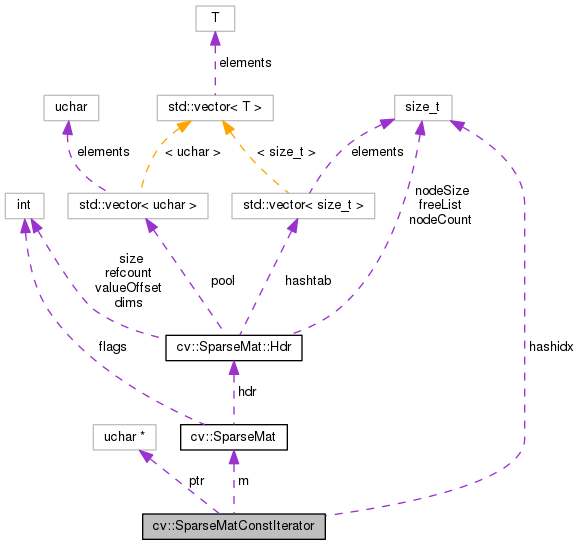

Collaboration diagram for cv::SparseMatConstIterator:

Public Member Functions
	SparseMatConstIterator ()
	the default constructor More...
	SparseMatConstIterator (const SparseMat *_m)
	the full constructor setting the iterator to the first sparse matrix element More...
	SparseMatConstIterator (const SparseMatConstIterator &it)
	the copy constructor More...
const SparseMat::Node *	node () const
	returns the current node of the sparse matrix. it.node->idx is the current element index More...
SparseMatConstIterator &	operator++ ()
	moves iterator to the next element More...
SparseMatConstIterator	operator++ (int)
	moves iterator to the next element More...
SparseMatConstIterator &	operator-- ()
	moves iterator to the previous element More...
SparseMatConstIterator	operator-- (int)
	moves iterator to the previous element More...
SparseMatConstIterator &	operator= (const SparseMatConstIterator &it)
	the assignment operator More...
void	seekEnd ()
	moves iterator to the element after the last element More...
template<typename _Tp >
const _Tp &	value () const
	template method returning the current matrix element More...

Public Attributes
size_t	hashidx
const SparseMat *	m
uchar *	ptr

Detailed Description

Read-Only Sparse Matrix Iterator.

Here is how to use the iterator to compute the sum of floating-point sparse matrix elements:

SparseMatConstIterator it = m.begin(), it_end = m.end();
double s = 0;
CV_Assert( m.type() == CV_32F );
for( ; it != it_end; ++it )
   s += it.value<float>();

Constructor & Destructor Documentation

cv::SparseMatConstIterator::SparseMatConstIterator

(

)

the default constructor

cv::SparseMatConstIterator::SparseMatConstIterator

(

const SparseMat *

_m

)

the full constructor setting the iterator to the first sparse matrix element

cv::SparseMatConstIterator::SparseMatConstIterator

(

const SparseMatConstIterator &

it

)

the copy constructor

Member Function Documentation

const SparseMat::Node* cv::SparseMatConstIterator::node

(

)

const

returns the current node of the sparse matrix. it.node->idx is the current element index

SparseMatConstIterator& cv::SparseMatConstIterator::operator++

(

)

moves iterator to the next element

SparseMatConstIterator cv::SparseMatConstIterator::operator++

(

int

)

moves iterator to the next element

SparseMatConstIterator& cv::SparseMatConstIterator::operator--

(

)

moves iterator to the previous element

SparseMatConstIterator cv::SparseMatConstIterator::operator--

(

int

)

moves iterator to the previous element

SparseMatConstIterator& cv::SparseMatConstIterator::operator=

(

const SparseMatConstIterator &

it

)

the assignment operator

void cv::SparseMatConstIterator::seekEnd

(

)

moves iterator to the element after the last element

template<typename _Tp >

const _Tp& cv::SparseMatConstIterator::value

(

)

const

template method returning the current matrix element

Member Data Documentation

size_t cv::SparseMatConstIterator::hashidx

const SparseMat* cv::SparseMatConstIterator::m

uchar* cv::SparseMatConstIterator::ptr

---

The documentation for this class was generated from the following file:

• core/include/opencv2/core/mat.hpp
