cv::viz::MouseEvent Class Reference
3D Visualizer

This class represents a mouse event. More...

#include "types.hpp"

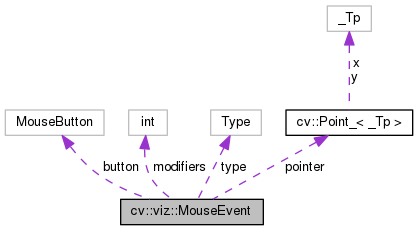

Collaboration diagram for cv::viz::MouseEvent:
Collaboration graph
[legend]

Public Types

enum  MouseButton {
  NoButton = 0,
  LeftButton,
  MiddleButton,
  RightButton,
  VScroll
}

enum  Type {
  MouseMove = 1,
  MouseButtonPress,
  MouseButtonRelease,
  MouseScrollDown,
  MouseScrollUp,
  MouseDblClick
}


Public Member Functions

 MouseEvent (const Type &type, const MouseButton &button, const Point &pointer, int modifiers)
 Constructs a MouseEvent. More...


Public Attributes

MouseButton button

int modifiers

Point pointer

Type type


Detailed Description

This class represents a mouse event.

Member Enumeration Documentation

enum cv::viz::MouseEvent::MouseButton
Enumerator
NoButton
LeftButton
MiddleButton
RightButton
VScroll
enum cv::viz::MouseEvent::Type
Enumerator
MouseMove
MouseButtonPress
MouseButtonRelease
MouseScrollDown
MouseScrollUp
MouseDblClick

Constructor & Destructor Documentation

cv::viz::MouseEvent::MouseEvent ( const Type &  type,
const MouseButton &  button,
const Point &  pointer,
int  modifiers
)

Constructs a MouseEvent.

Parameters
typeType of the event. This can be MouseMove, MouseButtonPress, MouseButtonRelease**, MouseScrollDown, MouseScrollUp, MouseDblClick.
buttonMouse button. This can be NoButton, LeftButton, MiddleButton, RightButton**, VScroll.
pointerPosition of the event.
modifiersSignals if alt, ctrl or shift are pressed or their combination.

Member Data Documentation

MouseButton cv::viz::MouseEvent::button
int cv::viz::MouseEvent::modifiers
Point cv::viz::MouseEvent::pointer
Type cv::viz::MouseEvent::type
The documentation for this class was generated from the following file:
