cv::GFluidKernel Class Reference

#include <opencv2/gapi/fluid/gfluidkernel.hpp>

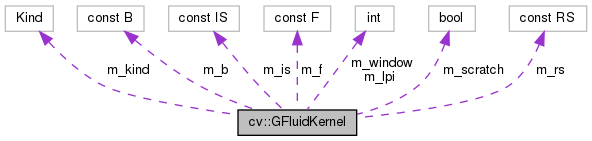

Collaboration diagram for cv::GFluidKernel:

Public Types
using	B = std::function< gapi::fluid::BorderOpt(const GMetaArgs &, const GArgs &)>
using	F = std::function< void(const cv::GArgs &, const std::vector< gapi::fluid::Buffer * > &)>
using	IS = std::function< void(const cv::GMetaArgs &, const cv::GArgs &, gapi::fluid::Buffer &)>
enum	Kind {   Kind::Filter,   Kind::Resize,   Kind::NV12toRGB }
using	M = std::function< GMetaArgs(const GMetaArgs &, const GArgs &)>
using	RS = std::function< void(gapi::fluid::Buffer &)>

Public Member Functions
	GFluidKernel ()
	GFluidKernel (int w, Kind k, int l, bool scratch, const F &f, const IS &is, const RS &rs, const B &b)

Public Attributes
const B	m_b
const F	m_f
const IS	m_is
Kind	m_kind
const int	m_lpi = -1
const RS	m_rs
const bool	m_scratch = false
int	m_window = -1

Member Typedef Documentation

B

using cv::GFluidKernel::B = std::function<gapi::fluid::BorderOpt(const GMetaArgs&, const GArgs&)>

F

using cv::GFluidKernel::F = std::function<void(const cv::GArgs&, const std::vector<gapi::fluid::Buffer*> &)>

IS

using cv::GFluidKernel::IS = std::function<void(const cv::GMetaArgs &, const cv::GArgs&, gapi::fluid::Buffer &)>

M

using cv::GFluidKernel::M = std::function<GMetaArgs(const GMetaArgs &, const GArgs &)>

RS

using cv::GFluidKernel::RS = std::function<void(gapi::fluid::Buffer &)>

Member Enumeration Documentation

Kind

enum cv::GFluidKernel::Kind

strong

Enumerator
Filter
Resize
NV12toRGB

Constructor & Destructor Documentation

GFluidKernel() [1/2]

cv::GFluidKernel::GFluidKernel ( )

inline

GFluidKernel() [2/2]

cv::GFluidKernel::GFluidKernel ( int  w, Kind  k, int  l, bool  scratch, const F &  f, const IS &  is, const RS &  rs, const B &  b  )

inline

Member Data Documentation

m_b

const B cv::GFluidKernel::m_b

m_f

const F cv::GFluidKernel::m_f

m_is

const IS cv::GFluidKernel::m_is

m_kind

Kind cv::GFluidKernel::m_kind

m_lpi

const int cv::GFluidKernel::m_lpi = -1

m_rs

const RS cv::GFluidKernel::m_rs

m_scratch

const bool cv::GFluidKernel::m_scratch = false

m_window

int cv::GFluidKernel::m_window = -1

---

The documentation for this class was generated from the following file:

• opencv2/gapi/fluid/gfluidkernel.hpp
