#include <opencv2/gapi/own/mat.hpp>

Inheritance diagram for cv::gapi::own::Mat:

Collaboration diagram for cv::gapi::own::Mat:

Public Types
enum	{ AUTO_STEP = 0 }

enum	{ TYPE_MASK = 0x00000FFF }

Public Member Functions
	Mat ()=default

	Mat (int _rows, int _cols, int _type, void *_data, size_t _step=AUTO_STEP)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

	Mat (Mat const &src, const Rect &roi)

	Mat (Mat const &src)=default

	Mat (Mat &&src)=default

int	channels () const
	Returns the number of matrix channels. More...

void	copyTo (Mat &dst) const
	Copies the matrix to another one. More...

void	create (int _rows, int _cols, int _type)

void	create (Size _size, int _type)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

int	depth () const
	Returns the depth of a matrix element. More...

size_t	elemSize () const
	Returns the matrix element size in bytes. More...

bool	empty () const
	Returns true if the array has no elements. More...

Mat	operator() (const Rect &roi) const
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...

Mat &	operator= (Mat const &src)=default

Mat &	operator= (Mat &&src)=default

Mat &	operator= (const Scalar &s)
	Sets all or some of the array elements to the specified value. More...

uchar *	ptr (int row, int col=0)
	Returns a pointer to the specified matrix row. More...

const uchar *	ptr (int row, int col=0) const

size_t	total () const
	Returns the total number of array elements. More...

int	type () const
	Returns the type of a matrix element. More...

Public Attributes
int	cols = 0

uchar *	data = nullptr
	pointer to the data More...

int	flags = 0
	includes several bit-fields: More...

int	rows = 0
	the number of rows and columns or (-1, -1) when the matrix has more than 2 dimensions More...

size_t	step = 0

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

inherited

Enumerator
AUTO_STEP

◆ anonymous enum

anonymous enum

inherited

Enumerator
TYPE_MASK

Constructor & Destructor Documentation

◆ Mat() [1/5]

cv::gapi::own::Mat::Mat ( )

default

◆ Mat() [2/5]

cv::gapi::own::Mat::Mat	(	int	_rows,
		int	_cols,
		int	_type,
		void *	_data,
		size_t	_step = `AUTO_STEP`
	)

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

_rows	Number of rows in a 2D array.
_cols	Number of columns in a 2D array.
_type	Array type. Use CV_8UC1, ..., CV_64FC4 to create 1-4 channel matrices, or CV_8UC(n), ..., CV_64FC(n) to create multi-channel (up to CV_CN_MAX channels) matrices.
_data	Pointer to the user data. Matrix constructors that take data and step parameters do not allocate matrix data. Instead, they just initialize the matrix header that points to the specified data, which means that no data is copied. This operation is very efficient and can be used to process external data using OpenCV functions. The external data is not automatically deallocated, so you should take care of it.
_step	Number of bytes each matrix row occupies. The value should include the padding bytes at the end of each row, if any. If the parameter is missing (set to AUTO_STEP ), no padding is assumed and the actual step is calculated as cols*elemSize(). See Mat::elemSize.

◆ Mat() [3/5]

cv::gapi::own::Mat::Mat	(	Mat const &	src,
		const Rect &	roi
	)

inline

References cv::gapi::own::detail::MatHeader::cols, cv::gapi::own::detail::MatHeader::data, cv::gapi::own::Rect::height, cv::gapi::own::detail::MatHeader::operator=(), cv::gapi::own::detail::MatHeader::rows, cv::gapi::own::Rect::width, cv::gapi::own::Rect::x, and cv::gapi::own::Rect::y.

Here is the call graph for this function:

◆ Mat() [4/5]

cv::gapi::own::Mat::Mat ( Mat const & src )

default

◆ Mat() [5/5]

cv::gapi::own::Mat::Mat ( Mat && src )

default

Member Function Documentation

◆ channels()

int cv::gapi::own::Mat::channels ( ) const

inline

Returns the number of matrix channels.

The method returns the number of matrix channels.

References CV_MAT_CN, and cv::gapi::own::detail::MatHeader::flags.

◆ copyTo()

void cv::gapi::own::Mat::copyTo ( Mat & dst ) const

inline

Copies the matrix to another one.

The method copies the matrix data to another matrix. Before copying the data, the method invokes :

m.create(this->size(), this->type());

so that the destination matrix is reallocated if needed. While m.copyTo(m); works flawlessly, the function does not handle the case of a partial overlap between the source and the destination matrices.

References cv::gapi::own::detail::MatHeader::cols, create(), cv::gapi::own::detail::default_step(), ptr(), and cv::gapi::own::detail::MatHeader::rows.

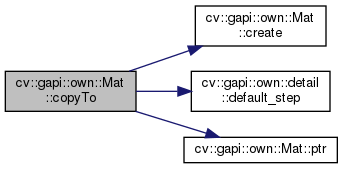

Here is the call graph for this function:

◆ create() [1/2]

void cv::gapi::own::Mat::create	(	int	_rows,
		int	_cols,
		int	_type
	)

inline

Parameters

_rows	New number of rows.
_cols	New number of columns.
_type	New matrix type.

Referenced by copyTo().

Here is the caller graph for this function:

◆ create() [2/2]

void cv::gapi::own::Mat::create	(	Size	_size,
		int	_type
	)

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

_size	Alternative new matrix size specification: Size(cols, rows)
_type	New matrix type.

References cv::gapi::own::detail::MatHeader::cols, cv::gapi::own::Size::height, cv::gapi::own::detail::MatHeader::rows, and cv::gapi::own::Size::width.

◆ depth()

int cv::gapi::own::Mat::depth ( ) const

inline

Returns the depth of a matrix element.

The method returns the identifier of the matrix element depth (the type of each individual channel). For example, for a 16-bit signed element array, the method returns CV_16S . A complete list of matrix types contains the following values:

CV_8U - 8-bit unsigned integers ( 0..255 )
CV_8S - 8-bit signed integers ( -128..127 )
CV_16U - 16-bit unsigned integers ( 0..65535 )
CV_16S - 16-bit signed integers ( -32768..32767 )
CV_32S - 32-bit signed integers ( -2147483648..2147483647 )
CV_32F - 32-bit floating-point numbers ( -FLT_MAX..FLT_MAX, INF, NAN )
CV_64F - 64-bit floating-point numbers ( -DBL_MAX..DBL_MAX, INF, NAN )

References CV_MAT_DEPTH, and cv::gapi::own::detail::MatHeader::flags.

◆ elemSize()

size_t cv::gapi::own::Mat::elemSize ( ) const

inline

Returns the matrix element size in bytes.

The method returns the matrix element size in bytes. For example, if the matrix type is CV_16SC3 , the method returns 3*sizeof(short) or 6.

References CV_ELEM_SIZE.

◆ empty()

bool cv::gapi::own::Mat::empty ( ) const

Returns true if the array has no elements.

The method returns true if Mat::total() is 0 or if Mat::data is NULL. Because of pop_back() and resize() methods M.total() == 0 does not imply that M.data == NULL.

◆ operator()()

Mat cv::gapi::own::Mat::operator() ( const Rect & roi ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

roi	Extracted submatrix specified as a rectangle.

◆ operator=() [1/3]

Mat& cv::gapi::own::Mat::operator= ( Mat const & src )

default

◆ operator=() [2/3]

Mat& cv::gapi::own::Mat::operator= ( Mat && src )

default

◆ operator=() [3/3]

Mat& cv::gapi::own::Mat::operator= ( const Scalar & s )

inline

Sets all or some of the array elements to the specified value.

Parameters

s	Assigned scalar converted to the actual array type.

References cv::gapi::own::detail::assign_row(), cv::gapi::own::detail::MatHeader::cols, CV_16S, CV_16U, CV_32F, CV_32S, CV_64F, CV_8S, CV_8U, and cv::gapi::own::detail::MatHeader::rows.

Here is the call graph for this function:

◆ ptr() [1/2]

uchar* cv::gapi::own::Mat::ptr	(	int	row,
		int	col = `0`
	)

inline

Returns a pointer to the specified matrix row.

The methods return uchar* or typed pointer to the specified matrix row. See the sample in Mat::isContinuous to know how to use these methods.

Parameters

row	Index along the dimension 0
col	Index along the dimension 1

Referenced by copyTo().

Here is the caller graph for this function:

◆ ptr() [2/2]

const uchar* cv::gapi::own::Mat::ptr	(	int	row,
		int	col = `0`
	)		const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

References CV_ELEM_SIZE, cv::gapi::own::detail::MatHeader::data, and cv::gapi::own::detail::MatHeader::step.

◆ total()

size_t cv::gapi::own::Mat::total ( ) const

inline

Returns the total number of array elements.

The method returns the number of array elements (a number of pixels if the array represents an image).

References cv::gapi::own::detail::MatHeader::cols, and cv::gapi::own::detail::MatHeader::rows.

◆ type()

int cv::gapi::own::Mat::type ( ) const

inline

Returns the type of a matrix element.

The method returns a matrix element type. This is an identifier compatible with the CvMat type system, like CV_16SC3 or 16-bit signed 3-channel array, and so on.

References CV_MAT_TYPE, and cv::gapi::own::detail::MatHeader::flags.

Referenced by cv::gapi::own::to_ocv().

Here is the caller graph for this function:

Member Data Documentation

◆ cols

int cv::gapi::own::detail::MatHeader::cols = 0

inherited

Referenced by copyTo(), create(), Mat(), operator=(), cv::gapi::own::to_ocv(), and total().

◆ data

uchar* cv::gapi::own::detail::MatHeader::data = nullptr

inherited

pointer to the data

Referenced by Mat(), ptr(), and cv::gapi::own::to_ocv().

◆ flags

int cv::gapi::own::detail::MatHeader::flags = 0

inherited

includes several bit-fields:

depth
number of channels

Referenced by channels(), depth(), and type().

◆ rows

int cv::gapi::own::detail::MatHeader::rows = 0

inherited

the number of rows and columns or (-1, -1) when the matrix has more than 2 dimensions

Referenced by copyTo(), create(), Mat(), operator=(), cv::gapi::own::to_ocv(), and total().

◆ step

size_t cv::gapi::own::detail::MatHeader::step = 0

inherited

Referenced by ptr(), and cv::gapi::own::to_ocv().

The documentation for this class was generated from the following file:

opencv2/gapi/own/mat.hpp
