Creating Bounding rotated boxes and ellipses for contours

Prev Tutorial: Creating Bounding boxes and circles for contours

Next Tutorial: Image Moments

Goal

In this tutorial you will learn how to:

• Use the OpenCV function cv::minAreaRect
• Use the OpenCV function cv::fitEllipse

Theory

Code

C++JavaPython

C++

This tutorial code's is shown lines below. You can also download it from here

#include "opencv2/imgcodecs.hpp"
#include "opencv2/highgui.hpp"
#include "opencv2/imgproc.hpp"
#include <iostream>

using namespace cv;
using namespace std;

Mat src_gray;
int thresh = 100;
RNG rng(12345);

void thresh_callback(int, void* );

int main( int argc, char** argv )
{
    CommandLineParser parser( argc, argv, "{@input | ../data/stuff.jpg | input image}" );
    Mat src = imread( parser.get<String>( "@input" ) );
    if( src.empty() )
    {
        cout << "Could not open or find the image!\n" << endl;
        cout << "Usage: " << argv[0] << " <Input image>" << endl;
        return -1;
    }

    cvtColor( src, src_gray, COLOR_BGR2GRAY );
    blur( src_gray, src_gray, Size(3,3) );

    const char* source_window = "Source";
    namedWindow( source_window );
    imshow( source_window, src );

    const int max_thresh = 255;
    createTrackbar( "Canny thresh:", source_window, &thresh, max_thresh, thresh_callback );
    thresh_callback( 0, 0 );

    waitKey();
    return 0;
}

void thresh_callback(int, void* )
{
    Mat canny_output;
    Canny( src_gray, canny_output, thresh, thresh*2 );
    vector<vector<Point> > contours;
    findContours( canny_output, contours, RETR_TREE, CHAIN_APPROX_SIMPLE, Point(0, 0) );

    vector<RotatedRect> minRect( contours.size() );
    vector<RotatedRect> minEllipse( contours.size() );
    for( size_t i = 0; i < contours.size(); i++ )
    {
        minRect[i] = minAreaRect( contours[i] );
        if( contours[i].size() > 5 )
        {
            minEllipse[i] = fitEllipse( contours[i] );
        }
    }

    Mat drawing = Mat::zeros( canny_output.size(), CV_8UC3 );
    for( size_t i = 0; i< contours.size(); i++ )
    {
        Scalar color = Scalar( rng.uniform(0, 256), rng.uniform(0,256), rng.uniform(0,256) );
        // contour
        drawContours( drawing, contours, (int)i, color );
        // ellipse
        ellipse( drawing, minEllipse[i], color, 2 );
        // rotated rectangle
        Point2f rect_points[4];
        minRect[i].points( rect_points );
        for ( int j = 0; j < 4; j++ )
        {
            line( drawing, rect_points[j], rect_points[(j+1)%4], color );
        }
    }

    imshow( "Contours", drawing );
}

Java

This tutorial code's is shown lines below. You can also download it from here

import java.awt.BorderLayout;
import java.awt.Container;
import java.awt.Image;
import java.util.ArrayList;
import java.util.List;
import java.util.Random;

import javax.swing.BoxLayout;
import javax.swing.ImageIcon;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JSlider;
import javax.swing.event.ChangeEvent;
import javax.swing.event.ChangeListener;

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint;
import org.opencv.core.MatOfPoint2f;
import org.opencv.core.Point;
import org.opencv.core.RotatedRect;
import org.opencv.core.Scalar;
import org.opencv.core.Size;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class GeneralContours2 {
    private Mat srcGray = new Mat();
    private JFrame frame;
    private JLabel imgSrcLabel;
    private JLabel imgContoursLabel;
    private static final int MAX_THRESHOLD = 255;
    private int threshold = 100;
    private Random rng = new Random(12345);

    public GeneralContours2(String[] args) {
        String filename = args.length > 0 ? args[0] : "../data/stuff.jpg";
        Mat src = Imgcodecs.imread(filename);
        if (src.empty()) {
            System.err.println("Cannot read image: " + filename);
            System.exit(0);
        }

        Imgproc.cvtColor(src, srcGray, Imgproc.COLOR_BGR2GRAY);
        Imgproc.blur(srcGray, srcGray, new Size(3, 3));

        // Create and set up the window.
        frame = new JFrame("Creating Bounding rotated boxes and ellipses for contours demo");
        frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        // Set up the content pane.
        Image img = HighGui.toBufferedImage(src);
        addComponentsToPane(frame.getContentPane(), img);
        // Use the content pane's default BorderLayout. No need for
        // setLayout(new BorderLayout());
        // Display the window.
        frame.pack();
        frame.setVisible(true);
        update();
    }

    private void addComponentsToPane(Container pane, Image img) {
        if (!(pane.getLayout() instanceof BorderLayout)) {
            pane.add(new JLabel("Container doesn't use BorderLayout!"));
            return;
        }

        JPanel sliderPanel = new JPanel();
        sliderPanel.setLayout(new BoxLayout(sliderPanel, BoxLayout.PAGE_AXIS));

        sliderPanel.add(new JLabel("Canny threshold: "));
        JSlider slider = new JSlider(0, MAX_THRESHOLD, threshold);
        slider.setMajorTickSpacing(20);
        slider.setMinorTickSpacing(10);
        slider.setPaintTicks(true);
        slider.setPaintLabels(true);
        slider.addChangeListener(new ChangeListener() {
            @Override
            public void stateChanged(ChangeEvent e) {
                JSlider source = (JSlider) e.getSource();
                threshold = source.getValue();
                update();
            }
        });
        sliderPanel.add(slider);
        pane.add(sliderPanel, BorderLayout.PAGE_START);

        JPanel imgPanel = new JPanel();
        imgSrcLabel = new JLabel(new ImageIcon(img));
        imgPanel.add(imgSrcLabel);

        Mat blackImg = Mat.zeros(srcGray.size(), CvType.CV_8U);
        imgContoursLabel = new JLabel(new ImageIcon(HighGui.toBufferedImage(blackImg)));
        imgPanel.add(imgContoursLabel);

        pane.add(imgPanel, BorderLayout.CENTER);
    }

    private void update() {
        Mat cannyOutput = new Mat();
        Imgproc.Canny(srcGray, cannyOutput, threshold, threshold * 2);

        List<MatOfPoint> contours = new ArrayList<>();
        Mat hierarchy = new Mat();
        Imgproc.findContours(cannyOutput, contours, hierarchy, Imgproc.RETR_TREE, Imgproc.CHAIN_APPROX_SIMPLE);

        RotatedRect[] minRect = new RotatedRect[contours.size()];
        RotatedRect[] minEllipse = new RotatedRect[contours.size()];
        for (int i = 0; i < contours.size(); i++) {
            minRect[i] = Imgproc.minAreaRect(new MatOfPoint2f(contours.get(i).toArray()));
            minEllipse[i] = new RotatedRect();
            if (contours.get(i).rows() > 5) {
                minEllipse[i] = Imgproc.fitEllipse(new MatOfPoint2f(contours.get(i).toArray()));
            }
        }

        Mat drawing = Mat.zeros(cannyOutput.size(), CvType.CV_8UC3);
        for (int i = 0; i < contours.size(); i++) {
            Scalar color = new Scalar(rng.nextInt(256), rng.nextInt(256), rng.nextInt(256));
            // contour
            Imgproc.drawContours(drawing, contours, i, color);
            // ellipse
            Imgproc.ellipse(drawing, minEllipse[i], color, 2);
            // rotated rectangle
            Point[] rectPoints = new Point[4];
            minRect[i].points(rectPoints);
            for (int j = 0; j < 4; j++) {
                Imgproc.line(drawing, rectPoints[j], rectPoints[(j+1) % 4], color);
            }
        }

        imgContoursLabel.setIcon(new ImageIcon(HighGui.toBufferedImage(drawing)));
        frame.repaint();
    }
}

public class GeneralContoursDemo2 {
    public static void main(String[] args) {
        // Load the native OpenCV library
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

        // Schedule a job for the event dispatch thread:
        // creating and showing this application's GUI.
        javax.swing.SwingUtilities.invokeLater(new Runnable() {
            @Override
            public void run() {
                new GeneralContours2(args);
            }
        });
    }
}

Python

This tutorial code's is shown lines below. You can also download it from here

from __future__ import print_function
import cv2 as cv
import numpy as np
import argparse
import random as rng

rng.seed(12345)

def thresh_callback(val):
    threshold = val


    canny_output = cv.Canny(src_gray, threshold, threshold * 2)



    contours, _ = cv.findContours(canny_output, cv.RETR_TREE, cv.CHAIN_APPROX_SIMPLE)


    # Find the rotated rectangles and ellipses for each contour
    minRect = [None]*len(contours)
    minEllipse = [None]*len(contours)
    for i, c in enumerate(contours):
        minRect[i] = cv.minAreaRect(c)
        if c.shape[0] > 5:
            minEllipse[i] = cv.fitEllipse(c)

    # Draw contours + rotated rects + ellipses

    drawing = np.zeros((canny_output.shape[0], canny_output.shape[1], 3), dtype=np.uint8)

    for i, c in enumerate(contours):
        color = (rng.randint(0,256), rng.randint(0,256), rng.randint(0,256))
        # contour
        cv.drawContours(drawing, contours, i, color)
        # ellipse
        if c.shape[0] > 5:
            cv.ellipse(drawing, minEllipse[i], color, 2)
        # rotated rectangle
        box = cv.boxPoints(minRect[i])
        box = np.intp(box) #np.intp: Integer used for indexing (same as C ssize_t; normally either int32 or int64)
        cv.drawContours(drawing, [box], 0, color)



    cv.imshow('Contours', drawing)



parser = argparse.ArgumentParser(description='Code for Creating Bounding rotated boxes and ellipses for contours tutorial.')
parser.add_argument('--input', help='Path to input image.', default='stuff.jpg')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None:
    print('Could not open or find the image:', args.input)
    exit(0)

# Convert image to gray and blur it
src_gray = cv.cvtColor(src, cv.COLOR_BGR2GRAY)
src_gray = cv.blur(src_gray, (3,3))



source_window = 'Source'
cv.namedWindow(source_window)
cv.imshow(source_window, src)

max_thresh = 255
thresh = 100 # initial threshold
cv.createTrackbar('Canny Thresh:', source_window, thresh, max_thresh, thresh_callback)
thresh_callback(thresh)


cv.waitKey()

Explanation

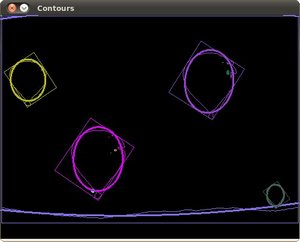

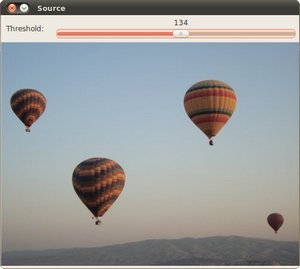

Result

Here it is:
