Namespaces | Classes | Typedefs | Enumerations | Functions
Basic structures
Core functionality

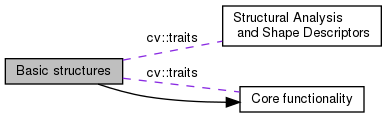

Collaboration diagram for Basic structures:

Namespaces

 cv::traits


Classes

class  cv::_InputArray
 This is the proxy class for passing read-only input arrays into OpenCV functions. More...

class  cv::_InputOutputArray

class  cv::_OutputArray
 This type is very similar to InputArray except that it is used for input/output and output function parameters. More...

class  cv::Algorithm
 This is a base class for all more or less complex algorithms in OpenCV. More...

class  cv::Complex< _Tp >
 A complex number class. More...

class  cv::DataDepth< _Tp >
 A helper class for cv::DataType. More...

class  cv::DataType< _Tp >
 Template "trait" class for OpenCV primitive data types. More...

class  cv::DMatch
 Class for matching keypoint descriptors. More...

class  cv::Formatted

class  cv::Formatter

class  cv::KeyPoint
 Data structure for salient point detectors. More...

class  cv::Mat
 n-dimensional dense array class More...

class  cv::Mat_< _Tp >
 Template matrix class derived from Mat. More...

class  cv::MatAllocator
 Custom array allocator. More...

class  cv::MatCommaInitializer_< _Tp >
 Comma-separated Matrix Initializer. More...

class  cv::MatConstIterator

class  cv::MatConstIterator_< _Tp >
 Matrix read-only iterator. More...

class  cv::MatExpr
 Matrix expression representation. More...

class  cv::MatIterator_< _Tp >
 Matrix read-write iterator. More...

class  cv::MatOp

struct  cv::MatSize

struct  cv::MatStep

class  cv::Matx< _Tp, m, n >
 Template class for small matrices whose type and size are known at compilation time. More...

class  cv::MatxCommaInitializer< _Tp, m, n >
 Comma-separated Matrix Initializer. More...

class  cv::NAryMatIterator
 n-ary multi-dimensional array iterator. More...

struct  cv::ParamType< _Tp, _EnumTp >

struct  cv::ParamType< _Tp, typename std::enable_if< std::is_enum< _Tp >::value >::type >

struct  cv::ParamType< Algorithm >

struct  cv::ParamType< bool >

struct  cv::ParamType< double >

struct  cv::ParamType< float >

struct  cv::ParamType< Mat >

struct  cv::ParamType< Scalar >

struct  cv::ParamType< std::vector< Mat > >

struct  cv::ParamType< String >

struct  cv::ParamType< uchar >

struct  cv::ParamType< uint64 >

struct  cv::ParamType< unsigned >

class  cv::Point3_< _Tp >
 Template class for 3D points specified by its coordinates x, y and z. More...

class  cv::Point_< _Tp >
 Template class for 2D points specified by its coordinates x and y. More...

class  cv::Range
 Template class specifying a continuous subsequence (slice) of a sequence. More...

class  cv::Rect_< _Tp >
 Template class for 2D rectangles. More...

class  cv::RotatedRect
 The class represents rotated (i.e. More...

class  cv::Scalar_< _Tp >
 Template class for a 4-element vector derived from Vec. More...

class  cv::Size_< _Tp >
 Template class for specifying the size of an image or rectangle. More...

class  cv::SparseMat
 The class SparseMat represents multi-dimensional sparse numerical arrays. More...

class  cv::SparseMat_< _Tp >
 Template sparse n-dimensional array class derived from SparseMat. More...

class  cv::SparseMatConstIterator
 Read-Only Sparse Matrix Iterator. More...

class  cv::SparseMatConstIterator_< _Tp >
 Template Read-Only Sparse Matrix Iterator Class. More...

class  cv::SparseMatIterator
 Read-write Sparse Matrix Iterator. More...

class  cv::SparseMatIterator_< _Tp >
 Template Read-Write Sparse Matrix Iterator Class. More...

class  cv::TermCriteria
 The class defining termination criteria for iterative algorithms. More...

class  cv::UMat

struct  cv::UMatData

class  cv::Vec< _Tp, cn >
 Template class for short numerical vectors, a partial case of Matx. More...

class  cv::VecCommaInitializer< _Tp, m >
 Comma-separated Vec Initializer. More...


Typedefs

typedef Complex< double > cv::Complexd

typedef Complex< float > cv::Complexf

typedef const _InputArray & cv::InputArray

typedef InputArray cv::InputArrayOfArrays

typedef const _InputOutputArray & cv::InputOutputArray

typedef InputOutputArray cv::InputOutputArrayOfArrays

typedef Mat_< uchar > cv::Mat1b

typedef Mat_< double > cv::Mat1d

typedef Mat_< float > cv::Mat1f

typedef Mat_< int > cv::Mat1i

typedef Mat_< short > cv::Mat1s

typedef Mat_< ushort > cv::Mat1w

typedef Mat_< Vec2b > cv::Mat2b

typedef Mat_< Vec2d > cv::Mat2d

typedef Mat_< Vec2f > cv::Mat2f

typedef Mat_< Vec2i > cv::Mat2i

typedef Mat_< Vec2s > cv::Mat2s

typedef Mat_< Vec2w > cv::Mat2w

typedef Mat_< Vec3b > cv::Mat3b

typedef Mat_< Vec3d > cv::Mat3d

typedef Mat_< Vec3f > cv::Mat3f

typedef Mat_< Vec3i > cv::Mat3i

typedef Mat_< Vec3s > cv::Mat3s

typedef Mat_< Vec3w > cv::Mat3w

typedef Mat_< Vec4b > cv::Mat4b

typedef Mat_< Vec4d > cv::Mat4d

typedef Mat_< Vec4f > cv::Mat4f

typedef Mat_< Vec4i > cv::Mat4i

typedef Mat_< Vec4s > cv::Mat4s

typedef Mat_< Vec4w > cv::Mat4w

typedef Matx< double, 1, 2 > cv::Matx12d

typedef Matx< float, 1, 2 > cv::Matx12f

typedef Matx< double, 1, 3 > cv::Matx13d

typedef Matx< float, 1, 3 > cv::Matx13f

typedef Matx< double, 1, 4 > cv::Matx14d

typedef Matx< float, 1, 4 > cv::Matx14f

typedef Matx< double, 1, 6 > cv::Matx16d

typedef Matx< float, 1, 6 > cv::Matx16f

typedef Matx< double, 2, 1 > cv::Matx21d

typedef Matx< float, 2, 1 > cv::Matx21f

typedef Matx< double, 2, 2 > cv::Matx22d

typedef Matx< float, 2, 2 > cv::Matx22f

typedef Matx< double, 2, 3 > cv::Matx23d

typedef Matx< float, 2, 3 > cv::Matx23f

typedef Matx< double, 3, 1 > cv::Matx31d

typedef Matx< float, 3, 1 > cv::Matx31f

typedef Matx< double, 3, 2 > cv::Matx32d

typedef Matx< float, 3, 2 > cv::Matx32f

typedef Matx< double, 3, 3 > cv::Matx33d

typedef Matx< float, 3, 3 > cv::Matx33f

typedef Matx< double, 3, 4 > cv::Matx34d

typedef Matx< float, 3, 4 > cv::Matx34f

typedef Matx< double, 4, 1 > cv::Matx41d

typedef Matx< float, 4, 1 > cv::Matx41f

typedef Matx< double, 4, 3 > cv::Matx43d

typedef Matx< float, 4, 3 > cv::Matx43f

typedef Matx< double, 4, 4 > cv::Matx44d

typedef Matx< float, 4, 4 > cv::Matx44f

typedef Matx< double, 6, 1 > cv::Matx61d

typedef Matx< float, 6, 1 > cv::Matx61f

typedef Matx< double, 6, 6 > cv::Matx66d

typedef Matx< float, 6, 6 > cv::Matx66f

typedef const _OutputArray & cv::OutputArray

typedef OutputArray cv::OutputArrayOfArrays

typedef Point2i cv::Point

typedef Point_< double > cv::Point2d

typedef Point_< float > cv::Point2f

typedef Point_< int > cv::Point2i

typedef Point_< int64 > cv::Point2l

typedef Point3_< double > cv::Point3d

typedef Point3_< float > cv::Point3f

typedef Point3_< int > cv::Point3i

template<typename _Tp >
using cv::Ptr = std::shared_ptr< _Tp >

typedef Rect2i cv::Rect

typedef Rect_< double > cv::Rect2d

typedef Rect_< float > cv::Rect2f

typedef Rect_< int > cv::Rect2i

typedef Scalar_< double > cv::Scalar

typedef Size2i cv::Size

typedef Size_< double > cv::Size2d

typedef Size_< float > cv::Size2f

typedef Size_< int > cv::Size2i

typedef Size_< int64 > cv::Size2l

typedef std::string cv::String


Enumerations

enum  cv::AccessFlag {
  cv::ACCESS_READ =1<<24,
  cv::ACCESS_WRITE =1<<25,
  cv::ACCESS_RW =3<<24,
  cv::ACCESS_MASK =ACCESS_RW,
  cv::ACCESS_FAST =1<<26
}

enum  cv::Param {
  cv::Param::INT =0,
  cv::Param::BOOLEAN =1,
  cv::Param::REAL =2,
  cv::Param::STRING =3,
  cv::Param::MAT =4,
  cv::Param::MAT_VECTOR =5,
  cv::Param::ALGORITHM =6,
  cv::Param::FLOAT =7,
  cv::Param::UNSIGNED_INT =8,
  cv::Param::UINT64 =9,
  cv::Param::UCHAR =11,
  cv::Param::SCALAR =12
}

enum  cv::UMatUsageFlags {
  cv::USAGE_DEFAULT = 0,
  cv::USAGE_ALLOCATE_HOST_MEMORY = 1 << 0,
  cv::USAGE_ALLOCATE_DEVICE_MEMORY = 1 << 1,
  cv::USAGE_ALLOCATE_SHARED_MEMORY = 1 << 2,
  cv::__UMAT_USAGE_FLAGS_32BIT = 0x7fffffff
}
 Usage flags for allocator. More...


Functions

template<typename _Tp , int m>
static double cv::determinant (const Matx< _Tp, m, m > &a)

template<typename _Tp , typename ... A1>
static Ptr< _Tp > cv::makePtr (const A1 &... a1)

InputOutputArray cv::noArray ()

template<typename _Tp , int m, int n>
static double cv::norm (const Matx< _Tp, m, n > &M)

template<typename _Tp , int m, int n>
static double cv::norm (const Matx< _Tp, m, n > &M, int normType)

template<typename _Tp , int cn>

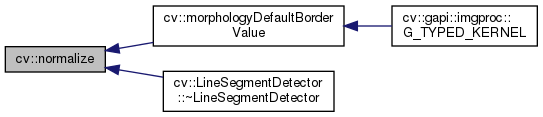

static Vec< _Tp, cn > cv::normalize (const Vec< _Tp, cn > &v)

static String & cv::operator<< (String &out, Ptr< Formatted > fmtd)

static String & cv::operator<< (String &out, const Mat &mtx)

template<typename _Tp >
static _InputArray cv::rawIn (_Tp &v)
 Helper to wrap custom types. More...

template<typename _Tp >
static _InputOutputArray cv::rawInOut (_Tp &v)
 Helper to wrap custom types. More...

template<typename _Tp >
static _OutputArray cv::rawOut (_Tp &v)
 Helper to wrap custom types. More...

static std::string cv::toLowerCase (const std::string &str)

static std::string cv::toUpperCase (const std::string &str)

template<typename _Tp , int m, int n>
static double cv::trace (const Matx< _Tp, m, n > &a)


Shorter aliases for the most popular specializations of Vec<T,n>

typedef Vec< uchar, 2 > cv::Vec2b

typedef Vec< uchar, 3 > cv::Vec3b

typedef Vec< uchar, 4 > cv::Vec4b

typedef Vec< short, 2 > cv::Vec2s

typedef Vec< short, 3 > cv::Vec3s

typedef Vec< short, 4 > cv::Vec4s

typedef Vec< ushort, 2 > cv::Vec2w

typedef Vec< ushort, 3 > cv::Vec3w

typedef Vec< ushort, 4 > cv::Vec4w

typedef Vec< int, 2 > cv::Vec2i

typedef Vec< int, 3 > cv::Vec3i

typedef Vec< int, 4 > cv::Vec4i

typedef Vec< int, 6 > cv::Vec6i

typedef Vec< int, 8 > cv::Vec8i

typedef Vec< float, 2 > cv::Vec2f

typedef Vec< float, 3 > cv::Vec3f

typedef Vec< float, 4 > cv::Vec4f

typedef Vec< float, 6 > cv::Vec6f

typedef Vec< double, 2 > cv::Vec2d

typedef Vec< double, 3 > cv::Vec3d

typedef Vec< double, 4 > cv::Vec4d

typedef Vec< double, 6 > cv::Vec6d


Detailed Description

Typedef Documentation

◆ Complexd

typedef Complex<double> cv::Complexd

#include <opencv2/core/types.hpp>

◆ Complexf

typedef Complex<float> cv::Complexf

#include <opencv2/core/types.hpp>

◆ InputArray

typedef const _InputArray& cv::InputArray

#include <opencv2/core/mat.hpp>

◆ InputArrayOfArrays

typedef InputArray cv::InputArrayOfArrays

#include <opencv2/core/mat.hpp>

◆ InputOutputArray

typedef const _InputOutputArray& cv::InputOutputArray

#include <opencv2/core/mat.hpp>

◆ InputOutputArrayOfArrays

typedef InputOutputArray cv::InputOutputArrayOfArrays

#include <opencv2/core/mat.hpp>

◆ Mat1b

typedef Mat_<uchar> cv::Mat1b

#include <opencv2/core/mat.hpp>

◆ Mat1d

typedef Mat_<double> cv::Mat1d

#include <opencv2/core/mat.hpp>

◆ Mat1f

typedef Mat_<float> cv::Mat1f

#include <opencv2/core/mat.hpp>

◆ Mat1i

typedef Mat_<int> cv::Mat1i

#include <opencv2/core/mat.hpp>

◆ Mat1s

typedef Mat_<short> cv::Mat1s

#include <opencv2/core/mat.hpp>

◆ Mat1w

typedef Mat_<ushort> cv::Mat1w

#include <opencv2/core/mat.hpp>

◆ Mat2b

typedef Mat_<Vec2b> cv::Mat2b

#include <opencv2/core/mat.hpp>

◆ Mat2d

typedef Mat_<Vec2d> cv::Mat2d

#include <opencv2/core/mat.hpp>

◆ Mat2f

typedef Mat_<Vec2f> cv::Mat2f

#include <opencv2/core/mat.hpp>

◆ Mat2i

typedef Mat_<Vec2i> cv::Mat2i

#include <opencv2/core/mat.hpp>

◆ Mat2s

typedef Mat_<Vec2s> cv::Mat2s

#include <opencv2/core/mat.hpp>

◆ Mat2w

typedef Mat_<Vec2w> cv::Mat2w

#include <opencv2/core/mat.hpp>

◆ Mat3b

typedef Mat_<Vec3b> cv::Mat3b

#include <opencv2/core/mat.hpp>

◆ Mat3d

typedef Mat_<Vec3d> cv::Mat3d

#include <opencv2/core/mat.hpp>

◆ Mat3f

typedef Mat_<Vec3f> cv::Mat3f

#include <opencv2/core/mat.hpp>

◆ Mat3i

typedef Mat_<Vec3i> cv::Mat3i

#include <opencv2/core/mat.hpp>

◆ Mat3s

typedef Mat_<Vec3s> cv::Mat3s

#include <opencv2/core/mat.hpp>

◆ Mat3w

typedef Mat_<Vec3w> cv::Mat3w

#include <opencv2/core/mat.hpp>

◆ Mat4b

typedef Mat_<Vec4b> cv::Mat4b

#include <opencv2/core/mat.hpp>

◆ Mat4d

typedef Mat_<Vec4d> cv::Mat4d

#include <opencv2/core/mat.hpp>

◆ Mat4f

typedef Mat_<Vec4f> cv::Mat4f

#include <opencv2/core/mat.hpp>

◆ Mat4i

typedef Mat_<Vec4i> cv::Mat4i

#include <opencv2/core/mat.hpp>

◆ Mat4s

typedef Mat_<Vec4s> cv::Mat4s

#include <opencv2/core/mat.hpp>

◆ Mat4w

typedef Mat_<Vec4w> cv::Mat4w

#include <opencv2/core/mat.hpp>

◆ Matx12d

typedef Matx<double, 1, 2> cv::Matx12d

#include <opencv2/core/matx.hpp>

◆ Matx12f

typedef Matx<float, 1, 2> cv::Matx12f

#include <opencv2/core/matx.hpp>

◆ Matx13d

typedef Matx<double, 1, 3> cv::Matx13d

#include <opencv2/core/matx.hpp>

◆ Matx13f

typedef Matx<float, 1, 3> cv::Matx13f

#include <opencv2/core/matx.hpp>

◆ Matx14d

typedef Matx<double, 1, 4> cv::Matx14d

#include <opencv2/core/matx.hpp>

◆ Matx14f

typedef Matx<float, 1, 4> cv::Matx14f

#include <opencv2/core/matx.hpp>

◆ Matx16d

typedef Matx<double, 1, 6> cv::Matx16d

#include <opencv2/core/matx.hpp>

◆ Matx16f

typedef Matx<float, 1, 6> cv::Matx16f

#include <opencv2/core/matx.hpp>

◆ Matx21d

typedef Matx<double, 2, 1> cv::Matx21d

#include <opencv2/core/matx.hpp>

◆ Matx21f

typedef Matx<float, 2, 1> cv::Matx21f

#include <opencv2/core/matx.hpp>

◆ Matx22d

typedef Matx<double, 2, 2> cv::Matx22d

#include <opencv2/core/matx.hpp>

◆ Matx22f

typedef Matx<float, 2, 2> cv::Matx22f

#include <opencv2/core/matx.hpp>

◆ Matx23d

typedef Matx<double, 2, 3> cv::Matx23d

#include <opencv2/core/matx.hpp>

◆ Matx23f

typedef Matx<float, 2, 3> cv::Matx23f

#include <opencv2/core/matx.hpp>

◆ Matx31d

typedef Matx<double, 3, 1> cv::Matx31d

#include <opencv2/core/matx.hpp>

◆ Matx31f

typedef Matx<float, 3, 1> cv::Matx31f

#include <opencv2/core/matx.hpp>

◆ Matx32d

typedef Matx<double, 3, 2> cv::Matx32d

#include <opencv2/core/matx.hpp>

◆ Matx32f

typedef Matx<float, 3, 2> cv::Matx32f

#include <opencv2/core/matx.hpp>

◆ Matx33d

typedef Matx<double, 3, 3> cv::Matx33d

#include <opencv2/core/matx.hpp>

◆ Matx33f

typedef Matx<float, 3, 3> cv::Matx33f

#include <opencv2/core/matx.hpp>

◆ Matx34d

typedef Matx<double, 3, 4> cv::Matx34d

#include <opencv2/core/matx.hpp>

◆ Matx34f

typedef Matx<float, 3, 4> cv::Matx34f

#include <opencv2/core/matx.hpp>

◆ Matx41d

typedef Matx<double, 4, 1> cv::Matx41d

#include <opencv2/core/matx.hpp>

◆ Matx41f

typedef Matx<float, 4, 1> cv::Matx41f

#include <opencv2/core/matx.hpp>

◆ Matx43d

typedef Matx<double, 4, 3> cv::Matx43d

#include <opencv2/core/matx.hpp>

◆ Matx43f

typedef Matx<float, 4, 3> cv::Matx43f

#include <opencv2/core/matx.hpp>

◆ Matx44d

typedef Matx<double, 4, 4> cv::Matx44d

#include <opencv2/core/matx.hpp>

◆ Matx44f

typedef Matx<float, 4, 4> cv::Matx44f

#include <opencv2/core/matx.hpp>

◆ Matx61d

typedef Matx<double, 6, 1> cv::Matx61d

#include <opencv2/core/matx.hpp>

◆ Matx61f

typedef Matx<float, 6, 1> cv::Matx61f

#include <opencv2/core/matx.hpp>

◆ Matx66d

typedef Matx<double, 6, 6> cv::Matx66d

#include <opencv2/core/matx.hpp>

◆ Matx66f

typedef Matx<float, 6, 6> cv::Matx66f

#include <opencv2/core/matx.hpp>

◆ OutputArray

typedef const _OutputArray& cv::OutputArray

#include <opencv2/core/mat.hpp>

◆ OutputArrayOfArrays

typedef OutputArray cv::OutputArrayOfArrays

#include <opencv2/core/mat.hpp>

◆ Point

typedef Point2i cv::Point

#include <opencv2/core/types.hpp>

Examples:
samples/cpp/camshiftdemo.cpp, samples/cpp/contours2.cpp, samples/cpp/create_mask.cpp, samples/cpp/demhist.cpp, samples/cpp/facedetect.cpp, samples/cpp/falsecolor.cpp, samples/cpp/ffilldemo.cpp, samples/cpp/fitellipse.cpp, samples/cpp/grabcut.cpp, samples/cpp/peopledetect.cpp, samples/cpp/polar_transforms.cpp, samples/cpp/segment_objects.cpp, samples/cpp/squares.cpp, samples/cpp/tutorial_code/Histograms_Matching/MatchTemplate_Demo.cpp, samples/cpp/tutorial_code/ImgProc/basic_drawing/Drawing_1.cpp, samples/cpp/tutorial_code/ImgProc/Morphology_1.cpp, samples/cpp/tutorial_code/ImgProc/Morphology_2.cpp, samples/cpp/tutorial_code/ImgProc/Smoothing/Smoothing.cpp, samples/cpp/tutorial_code/ImgTrans/houghcircles.cpp, samples/cpp/tutorial_code/ImgTrans/houghlines.cpp, samples/cpp/tutorial_code/ml/introduction_to_pca/introduction_to_pca.cpp, samples/cpp/watershed.cpp, samples/dnn/classification.cpp, samples/dnn/object_detection.cpp, samples/dnn/segmentation.cpp, samples/dnn/text_detection.cpp, samples/tapi/hog.cpp, and samples/tapi/squares.cpp.

◆ Point2d

typedef Point_<double> cv::Point2d

#include <opencv2/core/types.hpp>

Examples:
samples/cpp/tutorial_code/ml/introduction_to_pca/introduction_to_pca.cpp.

◆ Point2f

typedef Point_<float> cv::Point2f

#include <opencv2/core/types.hpp>

Examples:
samples/cpp/cout_mat.cpp, samples/cpp/fitellipse.cpp, samples/cpp/kalman.cpp, samples/cpp/lkdemo.cpp, samples/cpp/tutorial_code/features2D/Homography/pose_from_homography.cpp, samples/cpp/warpPerspective_demo.cpp, and samples/dnn/text_detection.cpp.

◆ Point2i

typedef Point_<int> cv::Point2i

#include <opencv2/core/types.hpp>

◆ Point2l

typedef Point_<int64> cv::Point2l

#include <opencv2/core/types.hpp>

◆ Point3d

typedef Point3_<double> cv::Point3d

#include <opencv2/core/types.hpp>

◆ Point3f

typedef Point3_<float> cv::Point3f

#include <opencv2/core/types.hpp>

◆ Point3i

typedef Point3_<int> cv::Point3i

#include <opencv2/core/types.hpp>

◆ Ptr

template<typename _Tp >
using cv::Ptr = typedef std::shared_ptr<_Tp>

#include <opencv2/core/cvstd_wrapper.hpp>

◆ Rect

typedef Rect2i cv::Rect

#include <opencv2/core/types.hpp>

Examples:
samples/cpp/camshiftdemo.cpp, samples/cpp/facedetect.cpp, samples/cpp/falsecolor.cpp, samples/cpp/grabcut.cpp, samples/cpp/train_HOG.cpp, and samples/dnn/object_detection.cpp.

◆ Rect2d

typedef Rect_<double> cv::Rect2d

#include <opencv2/core/types.hpp>

◆ Rect2f

typedef Rect_<float> cv::Rect2f

#include <opencv2/core/types.hpp>

◆ Rect2i

typedef Rect_<int> cv::Rect2i

#include <opencv2/core/types.hpp>

◆ Scalar

typedef Scalar_<double> cv::Scalar

#include <opencv2/core/types.hpp>

Examples:
samples/cpp/camshiftdemo.cpp, samples/cpp/contours2.cpp, samples/cpp/convexhull.cpp, samples/cpp/create_mask.cpp, samples/cpp/distrans.cpp, samples/cpp/facedetect.cpp, samples/cpp/falsecolor.cpp, samples/cpp/ffilldemo.cpp, samples/cpp/fitellipse.cpp, samples/cpp/grabcut.cpp, samples/cpp/image_alignment.cpp, samples/cpp/kalman.cpp, samples/cpp/kmeans.cpp, samples/cpp/lkdemo.cpp, samples/cpp/minarea.cpp, samples/cpp/peopledetect.cpp, samples/cpp/polar_transforms.cpp, samples/cpp/squares.cpp, samples/cpp/train_HOG.cpp, samples/cpp/tutorial_code/features2D/Homography/decompose_homography.cpp, samples/cpp/tutorial_code/features2D/Homography/homography_from_camera_displacement.cpp, samples/cpp/tutorial_code/ImgProc/basic_drawing/Drawing_1.cpp, samples/cpp/tutorial_code/ImgProc/basic_drawing/Drawing_2.cpp, samples/cpp/tutorial_code/ImgTrans/houghcircles.cpp, samples/cpp/tutorial_code/ImgTrans/houghlines.cpp, samples/cpp/tutorial_code/ml/introduction_to_pca/introduction_to_pca.cpp, samples/cpp/warpPerspective_demo.cpp, samples/dnn/classification.cpp, samples/dnn/colorization.cpp, samples/dnn/object_detection.cpp, samples/dnn/openpose.cpp, samples/dnn/segmentation.cpp, samples/dnn/text_detection.cpp, samples/tapi/hog.cpp, and samples/tapi/squares.cpp.

◆ Size

typedef Size2i cv::Size

#include <opencv2/core/types.hpp>

Examples:
samples/cpp/contours2.cpp, samples/cpp/edge.cpp, samples/cpp/facedetect.cpp, samples/cpp/falsecolor.cpp, samples/cpp/image_alignment.cpp, samples/cpp/laplace.cpp, samples/cpp/lkdemo.cpp, samples/cpp/peopledetect.cpp, samples/cpp/polar_transforms.cpp, samples/cpp/squares.cpp, samples/cpp/stitching_detailed.cpp, samples/cpp/train_HOG.cpp, samples/cpp/tutorial_code/ImgProc/basic_drawing/Drawing_1.cpp, samples/cpp/tutorial_code/ImgProc/Morphology_1.cpp, samples/cpp/tutorial_code/ImgProc/Morphology_2.cpp, samples/cpp/tutorial_code/ImgProc/Pyramids/Pyramids.cpp, samples/cpp/tutorial_code/ImgProc/Smoothing/Smoothing.cpp, samples/cpp/tutorial_code/ImgTrans/Sobel_Demo.cpp, samples/cpp/tutorial_code/videoio/video-write/video-write.cpp, samples/cpp/warpPerspective_demo.cpp, samples/dnn/classification.cpp, samples/dnn/colorization.cpp, samples/dnn/object_detection.cpp, samples/dnn/openpose.cpp, samples/dnn/segmentation.cpp, samples/dnn/text_detection.cpp, samples/tapi/hog.cpp, and samples/tapi/squares.cpp.

◆ Size2d

typedef Size_<double> cv::Size2d

#include <opencv2/core/types.hpp>

◆ Size2f

typedef Size_<float> cv::Size2f

#include <opencv2/core/types.hpp>

Examples:
samples/dnn/text_detection.cpp.

◆ Size2i

typedef Size_<int> cv::Size2i

#include <opencv2/core/types.hpp>

◆ Size2l

typedef Size_<int64> cv::Size2l

#include <opencv2/core/types.hpp>

◆ String

typedef std::string cv::String

#include <opencv2/core/cvstd.hpp>

Examples:
samples/cpp/stitching_detailed.cpp.

◆ Vec2b

typedef Vec<uchar, 2> cv::Vec2b

#include <opencv2/core/matx.hpp>

◆ Vec2d

typedef Vec<double, 2> cv::Vec2d

#include <opencv2/core/matx.hpp>

◆ Vec2f

typedef Vec<float, 2> cv::Vec2f

#include <opencv2/core/matx.hpp>

◆ Vec2i

typedef Vec<int, 2> cv::Vec2i

#include <opencv2/core/matx.hpp>

◆ Vec2s

typedef Vec<short, 2> cv::Vec2s

#include <opencv2/core/matx.hpp>

◆ Vec2w

typedef Vec<ushort, 2> cv::Vec2w

#include <opencv2/core/matx.hpp>

◆ Vec3b

typedef Vec<uchar, 3> cv::Vec3b

#include <opencv2/core/matx.hpp>

Examples:
samples/cpp/camshiftdemo.cpp, samples/cpp/connected_components.cpp, samples/cpp/watershed.cpp, and samples/dnn/segmentation.cpp.

◆ Vec3d

typedef Vec<double, 3> cv::Vec3d

#include <opencv2/core/matx.hpp>

◆ Vec3f

typedef Vec<float, 3> cv::Vec3f

#include <opencv2/core/matx.hpp>

◆ Vec3i

typedef Vec<int, 3> cv::Vec3i

#include <opencv2/core/matx.hpp>

◆ Vec3s

typedef Vec<short, 3> cv::Vec3s

#include <opencv2/core/matx.hpp>

◆ Vec3w

typedef Vec<ushort, 3> cv::Vec3w

#include <opencv2/core/matx.hpp>

◆ Vec4b

typedef Vec<uchar, 4> cv::Vec4b

#include <opencv2/core/matx.hpp>

◆ Vec4d

typedef Vec<double, 4> cv::Vec4d

#include <opencv2/core/matx.hpp>

◆ Vec4f

typedef Vec<float, 4> cv::Vec4f

#include <opencv2/core/matx.hpp>

◆ Vec4i

typedef Vec<int, 4> cv::Vec4i

#include <opencv2/core/matx.hpp>

◆ Vec4s

typedef Vec<short, 4> cv::Vec4s

#include <opencv2/core/matx.hpp>

◆ Vec4w

typedef Vec<ushort, 4> cv::Vec4w

#include <opencv2/core/matx.hpp>

◆ Vec6d

typedef Vec<double, 6> cv::Vec6d

#include <opencv2/core/matx.hpp>

◆ Vec6f

typedef Vec<float, 6> cv::Vec6f

#include <opencv2/core/matx.hpp>

◆ Vec6i

typedef Vec<int, 6> cv::Vec6i

#include <opencv2/core/matx.hpp>

◆ Vec8i

typedef Vec<int, 8> cv::Vec8i

#include <opencv2/core/matx.hpp>

Enumeration Type Documentation

◆ AccessFlag

enum cv::AccessFlag

#include <opencv2/core/mat.hpp>

Enumerator
ACCESS_READ
ACCESS_WRITE
ACCESS_RW
ACCESS_MASK
ACCESS_FAST

◆ Param

enum cv::Param
strong

#include <opencv2/core.hpp>

Enumerator
INT
BOOLEAN
REAL
STRING
MAT
MAT_VECTOR
ALGORITHM
FLOAT
UNSIGNED_INT
UINT64
UCHAR
SCALAR

◆ UMatUsageFlags

enum cv::UMatUsageFlags

#include <opencv2/core/mat.hpp>

Usage flags for allocator.

Enumerator
USAGE_DEFAULT
USAGE_ALLOCATE_HOST_MEMORY
USAGE_ALLOCATE_DEVICE_MEMORY
USAGE_ALLOCATE_SHARED_MEMORY
__UMAT_USAGE_FLAGS_32BIT

Function Documentation

◆ determinant()

template<typename _Tp , int m>
static double cv::determinant ( const Matx< _Tp, m, m > &  a)
static

#include <opencv2/core/matx.hpp>

Examples:
samples/cpp/tutorial_code/features2D/Homography/pose_from_homography.cpp.

◆ makePtr()

template<typename _Tp , typename ... A1>
static Ptr<_Tp> cv::makePtr ( const A1 &...  a1)
inlinestatic

#include <opencv2/core/cvstd_wrapper.hpp>

References CV_CONSTEXPR, CV_NOEXCEPT, and cv::operator*().

Here is the call graph for this function:

◆ noArray()

InputOutputArray cv::noArray ( )

#include <opencv2/core/mat.hpp>

Referenced by cv::detail::ImageFeatures::getKeypoints(), cv::initWideAngleProjMap(), cv::BFMatcher::isMaskSupported(), cv::ml::TrainData::missingValue(), cv::morphologyDefaultBorderValue(), cv::Stitcher::setBlender(), and cv::LMSolver::Callback::~Callback().

Here is the caller graph for this function:

◆ norm() [1/2]

template<typename _Tp , int m, int n>
static double cv::norm ( const Matx< _Tp, m, n > &  M)
static

#include <opencv2/core/matx.hpp>

Examples:
samples/cpp/lkdemo.cpp, samples/cpp/tutorial_code/features2D/Homography/pose_from_homography.cpp, and samples/cpp/warpPerspective_demo.cpp.

◆ norm() [2/2]

template<typename _Tp , int m, int n>
static double cv::norm ( const Matx< _Tp, m, n > &  M,
int  normType
)
static

#include <opencv2/core/matx.hpp>

◆ normalize()

template<typename _Tp , int cn>
static Vec<_Tp, cn> cv::normalize ( const Vec< _Tp, cn > &  v)
static

#include <opencv2/core/matx.hpp>

Examples:
samples/cpp/camshiftdemo.cpp, samples/cpp/demhist.cpp, samples/cpp/pca.cpp, and samples/cpp/tutorial_code/Histograms_Matching/MatchTemplate_Demo.cpp.

Referenced by cv::morphologyDefaultBorderValue(), and cv::LineSegmentDetector::~LineSegmentDetector().

Here is the caller graph for this function:

◆ operator<<() [1/2]

static String& cv::operator<< ( String &  out,
Ptr< Formatted >  fmtd
)
inlinestatic

#include <opencv2/core.hpp>

◆ operator<<() [2/2]

static String& cv::operator<< ( String &  out,
const Mat &  mtx
)
inlinestatic

#include <opencv2/core.hpp>

References cv::Formatter::get().

Here is the call graph for this function:

◆ rawIn()

template<typename _Tp >
static _InputArray cv::rawIn ( _Tp &  v)
inlinestatic

#include <opencv2/core/mat.hpp>

Helper to wrap custom types.

See also
InputArray

◆ rawInOut()

template<typename _Tp >
static _InputOutputArray cv::rawInOut ( _Tp &  v)
inlinestatic

#include <opencv2/core/mat.hpp>

Helper to wrap custom types.

See also
InputArray

◆ rawOut()

template<typename _Tp >
static _OutputArray cv::rawOut ( _Tp &  v)
inlinestatic

#include <opencv2/core/mat.hpp>

Helper to wrap custom types.

See also
InputArray

◆ toLowerCase()

static std::string cv::toLowerCase ( const std::string &  str)
inlinestatic

#include <opencv2/core/cvstd.hpp>

References cv::transform().

Here is the call graph for this function:

◆ toUpperCase()

static std::string cv::toUpperCase ( const std::string &  str)
inlinestatic

#include <opencv2/core/cvstd.hpp>

References cv::transform().

Here is the call graph for this function:

◆ trace()

template<typename _Tp , int m, int n>
static double cv::trace ( const Matx< _Tp, m, n > &  a)
static

#include <opencv2/core/matx.hpp>
