cv::LMSolver::Callback Class Reference

#include <opencv2/calib3d.hpp>

Public Member Functions
virtual	~Callback ()
virtual bool	compute (InputArray param, OutputArray err, OutputArray J) const =0
	computes error and Jacobian for the specified vector of parameters More...

Constructor & Destructor Documentation

~Callback()

virtual cv::LMSolver::Callback::~Callback ( )

inlinevirtual

References cv::CALIB_CB_ADAPTIVE_THRESH, cv::CALIB_CB_NORMALIZE_IMAGE, cv::checkChessboard(), cv::composeRT(), cv::TermCriteria::COUNT, CV_EXPORTS_W, cv::decomposeProjectionMatrix(), cv::drawChessboardCorners(), cv::drawFrameAxes(), cv::TermCriteria::EPS, cv::find4QuadCornerSubpix(), cv::findChessboardCorners(), cv::findChessboardCornersSB(), cv::findHomography(), cv::initCameraMatrix2D(), cv::gapi::mask(), cv::matMulDeriv(), cv::noArray(), cv::projectPoints(), cv::RQDecomp3x3(), cv::solveP3P(), cv::solvePnP(), cv::SOLVEPNP_ITERATIVE, cv::solvePnPGeneric(), cv::solvePnPRansac(), cv::solvePnPRefineLM(), and cv::solvePnPRefineVVS().

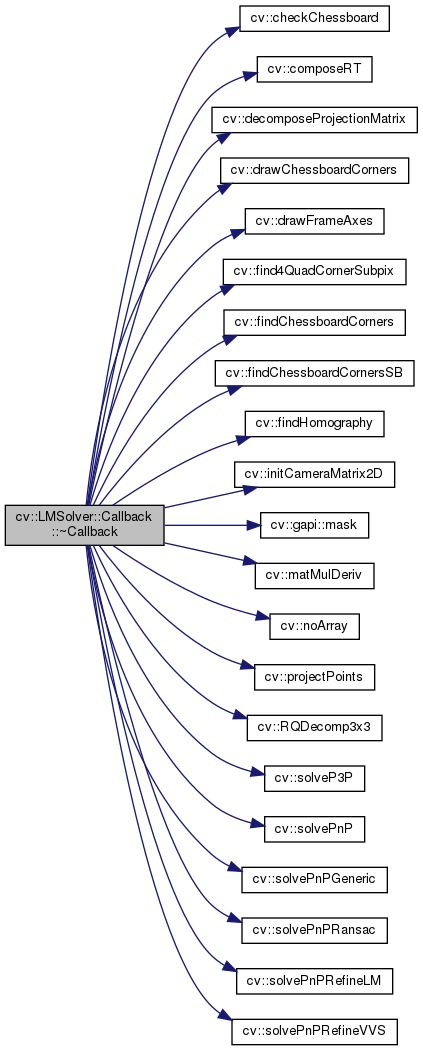

Here is the call graph for this function:

Member Function Documentation

compute()

virtual bool cv::LMSolver::Callback::compute ( InputArray  param, OutputArray  err, OutputArray  J  ) const

pure virtual

computes error and Jacobian for the specified vector of parameters

Parameters

param	the current vector of parameters
err	output vector of errors: err_i = actual_f_i - ideal_f_i
J	output Jacobian: J_ij = d(err_i)/d(param_j)

when J=noArray(), it means that it does not need to be computed. Dimensionality of error vector and param vector can be different. The callback should explicitly allocate (with "create" method) each output array (unless it's noArray()).

---

The documentation for this class was generated from the following file:

• opencv2/calib3d.hpp
