Image Segmentation with Distance Transform and Watershed Algorithm

Prev Tutorial: Point Polygon Test

Next Tutorial: Out-of-focus Deblur Filter

Goal

In this tutorial you will learn how to:

• Use the OpenCV function cv::filter2D in order to perform some laplacian filtering for image sharpening
• Use the OpenCV function cv::distanceTransform in order to obtain the derived representation of a binary image, where the value of each pixel is replaced by its distance to the nearest background pixel
• Use the OpenCV function cv::watershed in order to isolate objects in the image from the background

Theory

Code

C++

This tutorial code's is shown lines below. You can also download it from here.

#include <opencv2/core.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/highgui.hpp>
#include <iostream>

using namespace std;
using namespace cv;

int main(int argc, char *argv[])
{
    // Load the image
    CommandLineParser parser( argc, argv, "{@input | ../data/cards.png | input image}" );
    Mat src = imread( parser.get<String>( "@input" ) );
    if( src.empty() )
    {
        cout << "Could not open or find the image!\n" << endl;
        cout << "Usage: " << argv[0] << " <Input image>" << endl;
        return -1;
    }

    // Show source image

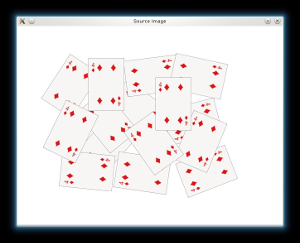

    imshow("Source Image", src);

    // Change the background from white to black, since that will help later to extract
    // better results during the use of Distance Transform
    for ( int i = 0; i < src.rows; i++ ) {
        for ( int j = 0; j < src.cols; j++ ) {
            if ( src.at<Vec3b>(i, j) == Vec3b(255,255,255) )
            {
                src.at<Vec3b>(i, j)[0] = 0;
                src.at<Vec3b>(i, j)[1] = 0;
                src.at<Vec3b>(i, j)[2] = 0;
            }
        }
    }

    // Show output image

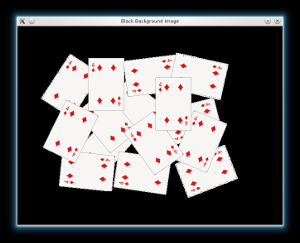

    imshow("Black Background Image", src);

    // Create a kernel that we will use to sharpen our image
    Mat kernel = (Mat_<float>(3,3) <<
                  1,  1, 1,
                  1, -8, 1,
                  1,  1, 1); // an approximation of second derivative, a quite strong kernel

    // do the laplacian filtering as it is
    // well, we need to convert everything in something more deeper then CV_8U
    // because the kernel has some negative values,
    // and we can expect in general to have a Laplacian image with negative values
    // BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
    // so the possible negative number will be truncated
    Mat imgLaplacian;
    filter2D(src, imgLaplacian, CV_32F, kernel);
    Mat sharp;
    src.convertTo(sharp, CV_32F);
    Mat imgResult = sharp - imgLaplacian;

    // convert back to 8bits gray scale
    imgResult.convertTo(imgResult, CV_8UC3);
    imgLaplacian.convertTo(imgLaplacian, CV_8UC3);

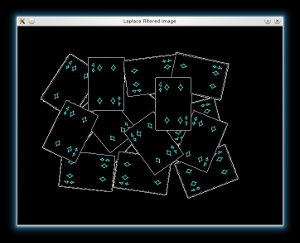

    // imshow( "Laplace Filtered Image", imgLaplacian );
    imshow( "New Sharped Image", imgResult );

    // Create binary image from source image
    Mat bw;
    cvtColor(imgResult, bw, COLOR_BGR2GRAY);
    threshold(bw, bw, 40, 255, THRESH_BINARY | THRESH_OTSU);
    imshow("Binary Image", bw);

    // Perform the distance transform algorithm
    Mat dist;
    distanceTransform(bw, dist, DIST_L2, 3);

    // Normalize the distance image for range = {0.0, 1.0}
    // so we can visualize and threshold it
    normalize(dist, dist, 0, 1.0, NORM_MINMAX);

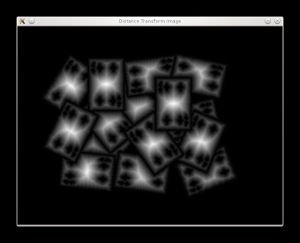

    imshow("Distance Transform Image", dist);

    // Threshold to obtain the peaks
    // This will be the markers for the foreground objects
    threshold(dist, dist, 0.4, 1.0, THRESH_BINARY);

    // Dilate a bit the dist image
    Mat kernel1 = Mat::ones(3, 3, CV_8U);
    dilate(dist, dist, kernel1);

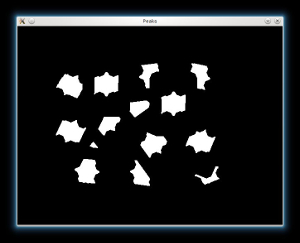

    imshow("Peaks", dist);

    // Create the CV_8U version of the distance image
    // It is needed for findContours()
    Mat dist_8u;
    dist.convertTo(dist_8u, CV_8U);

    // Find total markers
    vector<vector<Point> > contours;
    findContours(dist_8u, contours, RETR_EXTERNAL, CHAIN_APPROX_SIMPLE);

    // Create the marker image for the watershed algorithm
    Mat markers = Mat::zeros(dist.size(), CV_32S);

    // Draw the foreground markers
    for (size_t i = 0; i < contours.size(); i++)
    {
        drawContours(markers, contours, static_cast<int>(i), Scalar(static_cast<int>(i)+1), -1);
    }

    // Draw the background marker
    circle(markers, Point(5,5), 3, Scalar(255), -1);

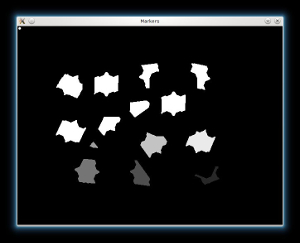

    imshow("Markers", markers*10000);

    // Perform the watershed algorithm
    watershed(imgResult, markers);

    Mat mark;
    markers.convertTo(mark, CV_8U);
    bitwise_not(mark, mark);
    //    imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
    // image looks like at that point

    // Generate random colors
    vector<Vec3b> colors;
    for (size_t i = 0; i < contours.size(); i++)
    {
        int b = theRNG().uniform(0, 256);
        int g = theRNG().uniform(0, 256);
        int r = theRNG().uniform(0, 256);

        colors.push_back(Vec3b((uchar)b, (uchar)g, (uchar)r));
    }

    // Create the result image
    Mat dst = Mat::zeros(markers.size(), CV_8UC3);

    // Fill labeled objects with random colors
    for (int i = 0; i < markers.rows; i++)
    {
        for (int j = 0; j < markers.cols; j++)
        {
            int index = markers.at<int>(i,j);
            if (index > 0 && index <= static_cast<int>(contours.size()))
            {
                dst.at<Vec3b>(i,j) = colors[index-1];
            }
        }
    }

    // Visualize the final image

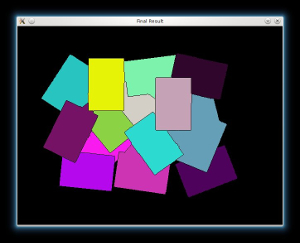

    imshow("Final Result", dst);

    waitKey();
    return 0;
}

Java

This tutorial code's is shown lines below. You can also download it from here

import java.util.ArrayList;
import java.util.List;
import java.util.Random;

import org.opencv.core.Core;
import org.opencv.core.CvType;
import org.opencv.core.Mat;
import org.opencv.core.MatOfPoint;
import org.opencv.core.Point;
import org.opencv.core.Scalar;
import org.opencv.highgui.HighGui;
import org.opencv.imgcodecs.Imgcodecs;
import org.opencv.imgproc.Imgproc;

class ImageSegmentation {
    public void run(String[] args) {
        // Load the image
        String filename = args.length > 0 ? args[0] : "../data/cards.png";
        Mat srcOriginal = Imgcodecs.imread(filename);
        if (srcOriginal.empty()) {
            System.err.println("Cannot read image: " + filename);
            System.exit(0);
        }

        // Show source image
        HighGui.imshow("Source Image", srcOriginal);

        // Change the background from white to black, since that will help later to
        // extract
        // better results during the use of Distance Transform
        Mat src = srcOriginal.clone();
        byte[] srcData = new byte[(int) (src.total() * src.channels())];
        src.get(0, 0, srcData);
        for (int i = 0; i < src.rows(); i++) {
            for (int j = 0; j < src.cols(); j++) {
                if (srcData[(i * src.cols() + j) * 3] == (byte) 255 && srcData[(i * src.cols() + j) * 3 + 1] == (byte) 255
                        && srcData[(i * src.cols() + j) * 3 + 2] == (byte) 255) {
                    srcData[(i * src.cols() + j) * 3] = 0;
                    srcData[(i * src.cols() + j) * 3 + 1] = 0;
                    srcData[(i * src.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        src.put(0, 0, srcData);

        // Show output image
        HighGui.imshow("Black Background Image", src);

        // Create a kernel that we will use to sharpen our image
        Mat kernel = new Mat(3, 3, CvType.CV_32F);
        // an approximation of second derivative, a quite strong kernel
        float[] kernelData = new float[(int) (kernel.total() * kernel.channels())];
        kernelData[0] = 1; kernelData[1] = 1; kernelData[2] = 1;
        kernelData[3] = 1; kernelData[4] = -8; kernelData[5] = 1;
        kernelData[6] = 1; kernelData[7] = 1; kernelData[8] = 1;
        kernel.put(0, 0, kernelData);

        // do the laplacian filtering as it is
        // well, we need to convert everything in something more deeper then CV_8U
        // because the kernel has some negative values,
        // and we can expect in general to have a Laplacian image with negative values
        // BUT a 8bits unsigned int (the one we are working with) can contain values
        // from 0 to 255
        // so the possible negative number will be truncated
        Mat imgLaplacian = new Mat();
        Imgproc.filter2D(src, imgLaplacian, CvType.CV_32F, kernel);
        Mat sharp = new Mat();
        src.convertTo(sharp, CvType.CV_32F);
        Mat imgResult = new Mat();
        Core.subtract(sharp, imgLaplacian, imgResult);

        // convert back to 8bits gray scale
        imgResult.convertTo(imgResult, CvType.CV_8UC3);
        imgLaplacian.convertTo(imgLaplacian, CvType.CV_8UC3);

        // imshow( "Laplace Filtered Image", imgLaplacian );
        HighGui.imshow("New Sharped Image", imgResult);

        // Create binary image from source image
        Mat bw = new Mat();
        Imgproc.cvtColor(imgResult, bw, Imgproc.COLOR_BGR2GRAY);
        Imgproc.threshold(bw, bw, 40, 255, Imgproc.THRESH_BINARY | Imgproc.THRESH_OTSU);
        HighGui.imshow("Binary Image", bw);

        // Perform the distance transform algorithm
        Mat dist = new Mat();
        Imgproc.distanceTransform(bw, dist, Imgproc.DIST_L2, 3);

        // Normalize the distance image for range = {0.0, 1.0}
        // so we can visualize and threshold it
        Core.normalize(dist, dist, 0.0, 1.0, Core.NORM_MINMAX);
        Mat distDisplayScaled = new Mat();
        Core.multiply(dist, new Scalar(255), distDisplayScaled);
        Mat distDisplay = new Mat();
        distDisplayScaled.convertTo(distDisplay, CvType.CV_8U);
        HighGui.imshow("Distance Transform Image", distDisplay);

        // Threshold to obtain the peaks
        // This will be the markers for the foreground objects
        Imgproc.threshold(dist, dist, 0.4, 1.0, Imgproc.THRESH_BINARY);

        // Dilate a bit the dist image
        Mat kernel1 = Mat.ones(3, 3, CvType.CV_8U);
        Imgproc.dilate(dist, dist, kernel1);
        Mat distDisplay2 = new Mat();
        dist.convertTo(distDisplay2, CvType.CV_8U);
        Core.multiply(distDisplay2, new Scalar(255), distDisplay2);
        HighGui.imshow("Peaks", distDisplay2);

        // Create the CV_8U version of the distance image
        // It is needed for findContours()
        Mat dist_8u = new Mat();
        dist.convertTo(dist_8u, CvType.CV_8U);

        // Find total markers
        List<MatOfPoint> contours = new ArrayList<>();
        Mat hierarchy = new Mat();
        Imgproc.findContours(dist_8u, contours, hierarchy, Imgproc.RETR_EXTERNAL, Imgproc.CHAIN_APPROX_SIMPLE);

        // Create the marker image for the watershed algorithm
        Mat markers = Mat.zeros(dist.size(), CvType.CV_32S);

        // Draw the foreground markers
        for (int i = 0; i < contours.size(); i++) {
            Imgproc.drawContours(markers, contours, i, new Scalar(i + 1), -1);
        }

        // Draw the background marker
        Mat markersScaled = new Mat();
        markers.convertTo(markersScaled, CvType.CV_32F);
        Core.normalize(markersScaled, markersScaled, 0.0, 255.0, Core.NORM_MINMAX);
        Imgproc.circle(markersScaled, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);
        Mat markersDisplay = new Mat();
        markersScaled.convertTo(markersDisplay, CvType.CV_8U);
        HighGui.imshow("Markers", markersDisplay);
        Imgproc.circle(markers, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);

        // Perform the watershed algorithm
        Imgproc.watershed(imgResult, markers);

        Mat mark = Mat.zeros(markers.size(), CvType.CV_8U);
        markers.convertTo(mark, CvType.CV_8UC1);
        Core.bitwise_not(mark, mark);
        // imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
        // image looks like at that point

        // Generate random colors
        Random rng = new Random(12345);
        List<Scalar> colors = new ArrayList<>(contours.size());
        for (int i = 0; i < contours.size(); i++) {
            int b = rng.nextInt(256);
            int g = rng.nextInt(256);
            int r = rng.nextInt(256);

            colors.add(new Scalar(b, g, r));
        }

        // Create the result image
        Mat dst = Mat.zeros(markers.size(), CvType.CV_8UC3);
        byte[] dstData = new byte[(int) (dst.total() * dst.channels())];
        dst.get(0, 0, dstData);

        // Fill labeled objects with random colors
        int[] markersData = new int[(int) (markers.total() * markers.channels())];
        markers.get(0, 0, markersData);
        for (int i = 0; i < markers.rows(); i++) {
            for (int j = 0; j < markers.cols(); j++) {
                int index = markersData[i * markers.cols() + j];
                if (index > 0 && index <= contours.size()) {
                    dstData[(i * dst.cols() + j) * 3 + 0] = (byte) colors.get(index - 1).val[0];
                    dstData[(i * dst.cols() + j) * 3 + 1] = (byte) colors.get(index - 1).val[1];
                    dstData[(i * dst.cols() + j) * 3 + 2] = (byte) colors.get(index - 1).val[2];
                } else {
                    dstData[(i * dst.cols() + j) * 3 + 0] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 1] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        dst.put(0, 0, dstData);

        // Visualize the final image
        HighGui.imshow("Final Result", dst);

        HighGui.waitKey();
        System.exit(0);
    }
}

public class ImageSegmentationDemo {
    public static void main(String[] args) {
        // Load the native OpenCV library
        System.loadLibrary(Core.NATIVE_LIBRARY_NAME);

        new ImageSegmentation().run(args);
    }
}

Python

This tutorial code's is shown lines below. You can also download it from here

from __future__ import print_function
import cv2 as cv
import numpy as np
import argparse
import random as rng

rng.seed(12345)


parser = argparse.ArgumentParser(description='Code for Image Segmentation with Distance Transform and Watershed Algorithm.\
    Sample code showing how to segment overlapping objects using Laplacian filtering, \
    in addition to Watershed and Distance Transformation')
parser.add_argument('--input', help='Path to input image.', default='cards.png')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None:
    print('Could not open or find the image:', args.input)
    exit(0)

# Show source image
cv.imshow('Source Image', src)



src[np.all(src == 255, axis=2)] = 0

# Show output image
cv.imshow('Black Background Image', src)



kernel = np.array([[1, 1, 1], [1, -8, 1], [1, 1, 1]], dtype=np.float32)

# do the laplacian filtering as it is
# well, we need to convert everything in something more deeper then CV_8U
# because the kernel has some negative values,
# and we can expect in general to have a Laplacian image with negative values
# BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
# so the possible negative number will be truncated
imgLaplacian = cv.filter2D(src, cv.CV_32F, kernel)
sharp = np.float32(src)
imgResult = sharp - imgLaplacian

# convert back to 8bits gray scale
imgResult = np.clip(imgResult, 0, 255)
imgResult = imgResult.astype('uint8')
imgLaplacian = np.clip(imgLaplacian, 0, 255)
imgLaplacian = np.uint8(imgLaplacian)

#cv.imshow('Laplace Filtered Image', imgLaplacian)
cv.imshow('New Sharped Image', imgResult)



bw = cv.cvtColor(imgResult, cv.COLOR_BGR2GRAY)
_, bw = cv.threshold(bw, 40, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)
cv.imshow('Binary Image', bw)



dist = cv.distanceTransform(bw, cv.DIST_L2, 3)

# Normalize the distance image for range = {0.0, 1.0}
# so we can visualize and threshold it
cv.normalize(dist, dist, 0, 1.0, cv.NORM_MINMAX)
cv.imshow('Distance Transform Image', dist)



_, dist = cv.threshold(dist, 0.4, 1.0, cv.THRESH_BINARY)

# Dilate a bit the dist image
kernel1 = np.ones((3,3), dtype=np.uint8)
dist = cv.dilate(dist, kernel1)
cv.imshow('Peaks', dist)



dist_8u = dist.astype('uint8')

# Find total markers
contours, _ = cv.findContours(dist_8u, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)

# Create the marker image for the watershed algorithm
markers = np.zeros(dist.shape, dtype=np.int32)

# Draw the foreground markers
for i in range(len(contours)):
    cv.drawContours(markers, contours, i, (i+1), -1)

# Draw the background marker
cv.circle(markers, (5,5), 3, (255,255,255), -1)
cv.imshow('Markers', markers*10000)



cv.watershed(imgResult, markers)

#mark = np.zeros(markers.shape, dtype=np.uint8)
mark = markers.astype('uint8')
mark = cv.bitwise_not(mark)
# uncomment this if you want to see how the mark
# image looks like at that point
#cv.imshow('Markers_v2', mark)

# Generate random colors
colors = []
for contour in contours:
    colors.append((rng.randint(0,256), rng.randint(0,256), rng.randint(0,256)))

# Create the result image
dst = np.zeros((markers.shape[0], markers.shape[1], 3), dtype=np.uint8)

# Fill labeled objects with random colors
for i in range(markers.shape[0]):
    for j in range(markers.shape[1]):
        index = markers[i,j]
        if index > 0 and index <= len(contours):
            dst[i,j,:] = colors[index-1]

# Visualize the final image
cv.imshow('Final Result', dst)


cv.waitKey()

Explanation / Result

• Load the source image and check if it is loaded without any problem, then show it:

C++

    // Load the image
    CommandLineParser parser( argc, argv, "{@input | ../data/cards.png | input image}" );
    Mat src = imread( parser.get<String>( "@input" ) );
    if( src.empty() )
    {
        cout << "Could not open or find the image!\n" << endl;
        cout << "Usage: " << argv[0] << " <Input image>" << endl;
        return -1;
    }

    // Show source image
    imshow("Source Image", src);

Java

        // Load the image
        String filename = args.length > 0 ? args[0] : "../data/cards.png";
        Mat srcOriginal = Imgcodecs.imread(filename);
        if (srcOriginal.empty()) {
            System.err.println("Cannot read image: " + filename);
            System.exit(0);
        }

        // Show source image
        HighGui.imshow("Source Image", srcOriginal);

Python

# Load the image
parser = argparse.ArgumentParser(description='Code for Image Segmentation with Distance Transform and Watershed Algorithm.\
    Sample code showing how to segment overlapping objects using Laplacian filtering, \
    in addition to Watershed and Distance Transformation')
parser.add_argument('--input', help='Path to input image.', default='cards.png')
args = parser.parse_args()

src = cv.imread(cv.samples.findFile(args.input))
if src is None:
    print('Could not open or find the image:', args.input)
    exit(0)

# Show source image
cv.imshow('Source Image', src)

• Then if we have an image with a white background, it is good to transform it to black. This will help us to discriminate the foreground objects easier when we will apply the Distance Transform:

C++

    // Change the background from white to black, since that will help later to extract
    // better results during the use of Distance Transform
    for ( int i = 0; i < src.rows; i++ ) {
        for ( int j = 0; j < src.cols; j++ ) {
            if ( src.at<Vec3b>(i, j) == Vec3b(255,255,255) )
            {
                src.at<Vec3b>(i, j)[0] = 0;
                src.at<Vec3b>(i, j)[1] = 0;
                src.at<Vec3b>(i, j)[2] = 0;
            }
        }
    }

    // Show output image
    imshow("Black Background Image", src);

Java

        // Change the background from white to black, since that will help later to
        // extract
        // better results during the use of Distance Transform
        Mat src = srcOriginal.clone();
        byte[] srcData = new byte[(int) (src.total() * src.channels())];
        src.get(0, 0, srcData);
        for (int i = 0; i < src.rows(); i++) {
            for (int j = 0; j < src.cols(); j++) {
                if (srcData[(i * src.cols() + j) * 3] == (byte) 255 && srcData[(i * src.cols() + j) * 3 + 1] == (byte) 255
                        && srcData[(i * src.cols() + j) * 3 + 2] == (byte) 255) {
                    srcData[(i * src.cols() + j) * 3] = 0;
                    srcData[(i * src.cols() + j) * 3 + 1] = 0;
                    srcData[(i * src.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        src.put(0, 0, srcData);

        // Show output image
        HighGui.imshow("Black Background Image", src);

Python

# Change the background from white to black, since that will help later to extract
# better results during the use of Distance Transform
src[np.all(src == 255, axis=2)] = 0

# Show output image
cv.imshow('Black Background Image', src)

• Afterwards we will sharpen our image in order to acute the edges of the foreground objects. We will apply a laplacian filter with a quite strong filter (an approximation of second derivative):

C++

    // Create a kernel that we will use to sharpen our image
    Mat kernel = (Mat_<float>(3,3) <<
                  1,  1, 1,
                  1, -8, 1,
                  1,  1, 1); // an approximation of second derivative, a quite strong kernel

    // do the laplacian filtering as it is
    // well, we need to convert everything in something more deeper then CV_8U
    // because the kernel has some negative values,
    // and we can expect in general to have a Laplacian image with negative values
    // BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
    // so the possible negative number will be truncated
    Mat imgLaplacian;
    filter2D(src, imgLaplacian, CV_32F, kernel);
    Mat sharp;
    src.convertTo(sharp, CV_32F);
    Mat imgResult = sharp - imgLaplacian;

    // convert back to 8bits gray scale
    imgResult.convertTo(imgResult, CV_8UC3);
    imgLaplacian.convertTo(imgLaplacian, CV_8UC3);

    // imshow( "Laplace Filtered Image", imgLaplacian );
    imshow( "New Sharped Image", imgResult );

Java

        // Create a kernel that we will use to sharpen our image
        Mat kernel = new Mat(3, 3, CvType.CV_32F);
        // an approximation of second derivative, a quite strong kernel
        float[] kernelData = new float[(int) (kernel.total() * kernel.channels())];
        kernelData[0] = 1; kernelData[1] = 1; kernelData[2] = 1;
        kernelData[3] = 1; kernelData[4] = -8; kernelData[5] = 1;
        kernelData[6] = 1; kernelData[7] = 1; kernelData[8] = 1;
        kernel.put(0, 0, kernelData);

        // do the laplacian filtering as it is
        // well, we need to convert everything in something more deeper then CV_8U
        // because the kernel has some negative values,
        // and we can expect in general to have a Laplacian image with negative values
        // BUT a 8bits unsigned int (the one we are working with) can contain values
        // from 0 to 255
        // so the possible negative number will be truncated
        Mat imgLaplacian = new Mat();
        Imgproc.filter2D(src, imgLaplacian, CvType.CV_32F, kernel);
        Mat sharp = new Mat();
        src.convertTo(sharp, CvType.CV_32F);
        Mat imgResult = new Mat();
        Core.subtract(sharp, imgLaplacian, imgResult);

        // convert back to 8bits gray scale
        imgResult.convertTo(imgResult, CvType.CV_8UC3);
        imgLaplacian.convertTo(imgLaplacian, CvType.CV_8UC3);

        // imshow( "Laplace Filtered Image", imgLaplacian );
        HighGui.imshow("New Sharped Image", imgResult);

Python

# Create a kernel that we will use to sharpen our image
# an approximation of second derivative, a quite strong kernel
kernel = np.array([[1, 1, 1], [1, -8, 1], [1, 1, 1]], dtype=np.float32)

# do the laplacian filtering as it is
# well, we need to convert everything in something more deeper then CV_8U
# because the kernel has some negative values,
# and we can expect in general to have a Laplacian image with negative values
# BUT a 8bits unsigned int (the one we are working with) can contain values from 0 to 255
# so the possible negative number will be truncated
imgLaplacian = cv.filter2D(src, cv.CV_32F, kernel)
sharp = np.float32(src)
imgResult = sharp - imgLaplacian

# convert back to 8bits gray scale
imgResult = np.clip(imgResult, 0, 255)
imgResult = imgResult.astype('uint8')
imgLaplacian = np.clip(imgLaplacian, 0, 255)
imgLaplacian = np.uint8(imgLaplacian)

#cv.imshow('Laplace Filtered Image', imgLaplacian)
cv.imshow('New Sharped Image', imgResult)

• Now we transform our new sharpened source image to a grayscale and a binary one, respectively:

C++

    // Create binary image from source image
    Mat bw;
    cvtColor(imgResult, bw, COLOR_BGR2GRAY);
    threshold(bw, bw, 40, 255, THRESH_BINARY | THRESH_OTSU);
    imshow("Binary Image", bw);

Java

        // Create binary image from source image
        Mat bw = new Mat();
        Imgproc.cvtColor(imgResult, bw, Imgproc.COLOR_BGR2GRAY);
        Imgproc.threshold(bw, bw, 40, 255, Imgproc.THRESH_BINARY | Imgproc.THRESH_OTSU);
        HighGui.imshow("Binary Image", bw);

Python

# Create binary image from source image
bw = cv.cvtColor(imgResult, cv.COLOR_BGR2GRAY)
_, bw = cv.threshold(bw, 40, 255, cv.THRESH_BINARY | cv.THRESH_OTSU)
cv.imshow('Binary Image', bw)

• We are ready now to apply the Distance Transform on the binary image. Moreover, we normalize the output image in order to be able visualize and threshold the result:

C++

    // Perform the distance transform algorithm
    Mat dist;
    distanceTransform(bw, dist, DIST_L2, 3);

    // Normalize the distance image for range = {0.0, 1.0}
    // so we can visualize and threshold it
    normalize(dist, dist, 0, 1.0, NORM_MINMAX);
    imshow("Distance Transform Image", dist);

Java

        // Perform the distance transform algorithm
        Mat dist = new Mat();
        Imgproc.distanceTransform(bw, dist, Imgproc.DIST_L2, 3);

        // Normalize the distance image for range = {0.0, 1.0}
        // so we can visualize and threshold it
        Core.normalize(dist, dist, 0.0, 1.0, Core.NORM_MINMAX);
        Mat distDisplayScaled = new Mat();
        Core.multiply(dist, new Scalar(255), distDisplayScaled);
        Mat distDisplay = new Mat();
        distDisplayScaled.convertTo(distDisplay, CvType.CV_8U);
        HighGui.imshow("Distance Transform Image", distDisplay);

Python

# Perform the distance transform algorithm
dist = cv.distanceTransform(bw, cv.DIST_L2, 3)

# Normalize the distance image for range = {0.0, 1.0}
# so we can visualize and threshold it
cv.normalize(dist, dist, 0, 1.0, cv.NORM_MINMAX)
cv.imshow('Distance Transform Image', dist)

• We threshold the dist image and then perform some morphology operation (i.e. dilation) in order to extract the peaks from the above image:

C++

    // Threshold to obtain the peaks
    // This will be the markers for the foreground objects
    threshold(dist, dist, 0.4, 1.0, THRESH_BINARY);

    // Dilate a bit the dist image
    Mat kernel1 = Mat::ones(3, 3, CV_8U);
    dilate(dist, dist, kernel1);
    imshow("Peaks", dist);

Java

        // Threshold to obtain the peaks
        // This will be the markers for the foreground objects
        Imgproc.threshold(dist, dist, 0.4, 1.0, Imgproc.THRESH_BINARY);

        // Dilate a bit the dist image
        Mat kernel1 = Mat.ones(3, 3, CvType.CV_8U);
        Imgproc.dilate(dist, dist, kernel1);
        Mat distDisplay2 = new Mat();
        dist.convertTo(distDisplay2, CvType.CV_8U);
        Core.multiply(distDisplay2, new Scalar(255), distDisplay2);
        HighGui.imshow("Peaks", distDisplay2);

Python

# Threshold to obtain the peaks
# This will be the markers for the foreground objects
_, dist = cv.threshold(dist, 0.4, 1.0, cv.THRESH_BINARY)

# Dilate a bit the dist image
kernel1 = np.ones((3,3), dtype=np.uint8)
dist = cv.dilate(dist, kernel1)
cv.imshow('Peaks', dist)

• From each blob then we create a seed/marker for the watershed algorithm with the help of the cv::findContours function:

C++

    // Create the CV_8U version of the distance image
    // It is needed for findContours()
    Mat dist_8u;
    dist.convertTo(dist_8u, CV_8U);

    // Find total markers
    vector<vector<Point> > contours;
    findContours(dist_8u, contours, RETR_EXTERNAL, CHAIN_APPROX_SIMPLE);

    // Create the marker image for the watershed algorithm
    Mat markers = Mat::zeros(dist.size(), CV_32S);

    // Draw the foreground markers
    for (size_t i = 0; i < contours.size(); i++)
    {
        drawContours(markers, contours, static_cast<int>(i), Scalar(static_cast<int>(i)+1), -1);
    }

    // Draw the background marker
    circle(markers, Point(5,5), 3, Scalar(255), -1);
    imshow("Markers", markers*10000);

Java

        // Create the CV_8U version of the distance image
        // It is needed for findContours()
        Mat dist_8u = new Mat();
        dist.convertTo(dist_8u, CvType.CV_8U);

        // Find total markers
        List<MatOfPoint> contours = new ArrayList<>();
        Mat hierarchy = new Mat();
        Imgproc.findContours(dist_8u, contours, hierarchy, Imgproc.RETR_EXTERNAL, Imgproc.CHAIN_APPROX_SIMPLE);

        // Create the marker image for the watershed algorithm
        Mat markers = Mat.zeros(dist.size(), CvType.CV_32S);

        // Draw the foreground markers
        for (int i = 0; i < contours.size(); i++) {
            Imgproc.drawContours(markers, contours, i, new Scalar(i + 1), -1);
        }

        // Draw the background marker
        Mat markersScaled = new Mat();
        markers.convertTo(markersScaled, CvType.CV_32F);
        Core.normalize(markersScaled, markersScaled, 0.0, 255.0, Core.NORM_MINMAX);
        Imgproc.circle(markersScaled, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);
        Mat markersDisplay = new Mat();
        markersScaled.convertTo(markersDisplay, CvType.CV_8U);
        HighGui.imshow("Markers", markersDisplay);
        Imgproc.circle(markers, new Point(5, 5), 3, new Scalar(255, 255, 255), -1);

Python

# Create the CV_8U version of the distance image
# It is needed for findContours()
dist_8u = dist.astype('uint8')

# Find total markers
contours, _ = cv.findContours(dist_8u, cv.RETR_EXTERNAL, cv.CHAIN_APPROX_SIMPLE)

# Create the marker image for the watershed algorithm
markers = np.zeros(dist.shape, dtype=np.int32)

# Draw the foreground markers
for i in range(len(contours)):
    cv.drawContours(markers, contours, i, (i+1), -1)

# Draw the background marker
cv.circle(markers, (5,5), 3, (255,255,255), -1)
cv.imshow('Markers', markers*10000)

• Finally, we can apply the watershed algorithm, and visualize the result:

C++

    // Perform the watershed algorithm
    watershed(imgResult, markers);

    Mat mark;
    markers.convertTo(mark, CV_8U);
    bitwise_not(mark, mark);
    //    imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
    // image looks like at that point

    // Generate random colors
    vector<Vec3b> colors;
    for (size_t i = 0; i < contours.size(); i++)
    {
        int b = theRNG().uniform(0, 256);
        int g = theRNG().uniform(0, 256);
        int r = theRNG().uniform(0, 256);

        colors.push_back(Vec3b((uchar)b, (uchar)g, (uchar)r));
    }

    // Create the result image
    Mat dst = Mat::zeros(markers.size(), CV_8UC3);

    // Fill labeled objects with random colors
    for (int i = 0; i < markers.rows; i++)
    {
        for (int j = 0; j < markers.cols; j++)
        {
            int index = markers.at<int>(i,j);
            if (index > 0 && index <= static_cast<int>(contours.size()))
            {
                dst.at<Vec3b>(i,j) = colors[index-1];
            }
        }
    }

    // Visualize the final image
    imshow("Final Result", dst);

Java

        // Perform the watershed algorithm
        Imgproc.watershed(imgResult, markers);

        Mat mark = Mat.zeros(markers.size(), CvType.CV_8U);
        markers.convertTo(mark, CvType.CV_8UC1);
        Core.bitwise_not(mark, mark);
        // imshow("Markers_v2", mark); // uncomment this if you want to see how the mark
        // image looks like at that point

        // Generate random colors
        Random rng = new Random(12345);
        List<Scalar> colors = new ArrayList<>(contours.size());
        for (int i = 0; i < contours.size(); i++) {
            int b = rng.nextInt(256);
            int g = rng.nextInt(256);
            int r = rng.nextInt(256);

            colors.add(new Scalar(b, g, r));
        }

        // Create the result image
        Mat dst = Mat.zeros(markers.size(), CvType.CV_8UC3);
        byte[] dstData = new byte[(int) (dst.total() * dst.channels())];
        dst.get(0, 0, dstData);

        // Fill labeled objects with random colors
        int[] markersData = new int[(int) (markers.total() * markers.channels())];
        markers.get(0, 0, markersData);
        for (int i = 0; i < markers.rows(); i++) {
            for (int j = 0; j < markers.cols(); j++) {
                int index = markersData[i * markers.cols() + j];
                if (index > 0 && index <= contours.size()) {
                    dstData[(i * dst.cols() + j) * 3 + 0] = (byte) colors.get(index - 1).val[0];
                    dstData[(i * dst.cols() + j) * 3 + 1] = (byte) colors.get(index - 1).val[1];
                    dstData[(i * dst.cols() + j) * 3 + 2] = (byte) colors.get(index - 1).val[2];
                } else {
                    dstData[(i * dst.cols() + j) * 3 + 0] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 1] = 0;
                    dstData[(i * dst.cols() + j) * 3 + 2] = 0;
                }
            }
        }
        dst.put(0, 0, dstData);

        // Visualize the final image
        HighGui.imshow("Final Result", dst);

Python

# Perform the watershed algorithm
cv.watershed(imgResult, markers)

#mark = np.zeros(markers.shape, dtype=np.uint8)
mark = markers.astype('uint8')
mark = cv.bitwise_not(mark)
# uncomment this if you want to see how the mark
# image looks like at that point
#cv.imshow('Markers_v2', mark)

# Generate random colors
colors = []
for contour in contours:
    colors.append((rng.randint(0,256), rng.randint(0,256), rng.randint(0,256)))

# Create the result image
dst = np.zeros((markers.shape[0], markers.shape[1], 3), dtype=np.uint8)

# Fill labeled objects with random colors
for i in range(markers.shape[0]):
    for j in range(markers.shape[1]):
        index = markers[i,j]
        if index > 0 and index <= len(contours):
            dst[i,j,:] = colors[index-1]

# Visualize the final image
cv.imshow('Final Result', dst)
