Imagination objects are used to perform simple and common image manipulations, as well as act as an image cache to store variations on an image. More...

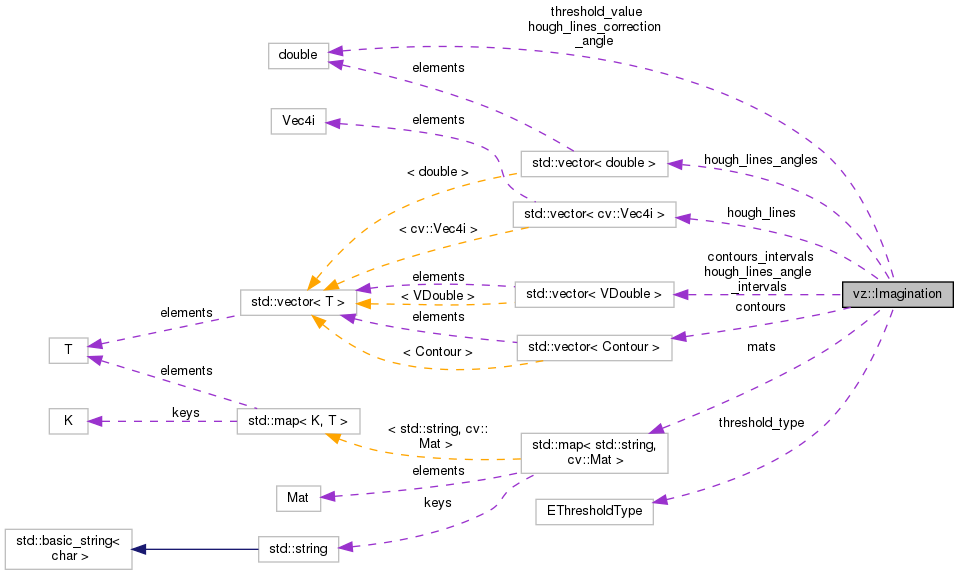

Collaboration diagram for vz::Imagination:

[legend]

Public Types
enum	EMatType { EMatType::kInvalid = 0, EMatType::kOriginalImage, EMatType::kO2Greyscale, EMatType::kO2GaussianBlur, EMatType::kO2BlurGreyscale, EMatType::kO2SimpleColourBalance, EMatType::kO2Invert, EMatType::kThreshold, EMatType::kErode, EMatType::kErodeAndDilate, EMatType::kCannyEdgeDetection, EMatType::kFindContours, EMatType::kFindContoursIntervals, EMatType::kO2Histogram, EMatType::kHoughLines, EMatType::kO2AngleCorrected, EMatType::kMosaic, EMatType::kO2DoG, EMatType::kThresholdOtsu, EMatType::kThresholdTriangle, EMatType::kThresholdGaussian, EMatType::kThresholdMeanC, EMatType::kThresholdDoG, EMatType::kUserDefined, EMatType::kMax }
	The `EMatType` represents the numerous variations of an image that can be created using `Imagination`. More...

enum	EThresholdType { EThresholdType::kInvalid = 0, EThresholdType::kOther, EThresholdType::kOtsu, EThresholdType::kTriangle, EThresholdType::kAutoGaussian, EThresholdType::kAutoMeanC, EThresholdType::kDifferenceOfGaussian, EThresholdType::kMax }

Public Member Functions
	Imagination ()
	Empty constructor. Use set_original(), an assignment, or one of the other explicit constructors to set the original image. More...

	Imagination (const std::string &original_image_filename)
	Constructor with an existing image file. More...

	Imagination (const cv::Mat &original_image)
	Constructor with an existing OpenCV image. More...

virtual	~Imagination ()
	Destructor. More...

virtual EMatType	to_type (const std::string &name) const
	Convert the given name to EMatType. If the name is not an exact match, will return EMatType::kInvalid. More...

virtual std::string	to_string (const EMatType type) const
	Provide a simple text name for the given mat image type. This is also used as the key to store images in mats. More...

virtual std::string	to_string (const EThresholdType type) const
	Provide a simple text name for the given threshold type. More...

virtual bool	operator== (const Imagination &rhs) const
	Deep comparison of the original image only. More...

bool	operator!= (const Imagination &rhs) const
	Similar to operator==(). More...

virtual Imagination &	clear ()
	Clear all of the image `cv::Mat` objects cached in mats. More...

bool	empty () const
	Determine if an image has been set. More...

size_t	size () const
	Determine the number of images that currently exist in the mats image cache. More...

virtual cv::Mat &	get (const EMatType type, const int parm)
	Similar to the other get() method, but with the ability to pass in a single integer parameter. More...

virtual Imagination &	reset ()
	Clears the object and resets the original image. More...

virtual VStr	save_all (const std::string &prefix="")
	Save all of the image files to disk by repeatedly calling save() with all the image types. More...

virtual vz::VContours	find_contours ()
	Find the contours of an image using EMatType::kCannyEdgeDetection and vz::find_contours(). More...

virtual cv::Mat	create_threshold ()
	Get a decent binary image. More...

virtual cv::Mat	create_hough_lines_and_angles ()
	Find the Hough lines, and make the necessary calculations to determine the angle of each line. More...

virtual cv::Mat	create_mosaic (const bool show_labels=true)
	Create a mosaic using a thumbnail of all the images in mats. This is mostly for debug or logging purposes. More...

virtual cv::Mat	create_threshold (const EThresholdType type)


virtual Imagination &	clear (const EMatType type)
	Clear a specific image type from mats. The image will be re-created the next time it is requested. More...

virtual Imagination &	clear (const std::string &name)
	Clear a specific image type from mats. The image will be re-created the next time it is requested. More...


bool	exists (const EMatType type) const
	Determine if the given image has been created. More...

bool	exists (const std::string &name) const
	Determine if the given image has been created. More...


virtual Imagination &	set_original (const std::string &original_image_filename)
	Reset this object and use the given image. All previous images in mats are cleared prior to the new image being set. More...

virtual Imagination &	set_original (const cv::Mat &original_image)

virtual Imagination &	set_original (const EMatType type)
	Reset this object and use the given image. All previous images in mats are cleared prior to the new image being set. More...


virtual cv::Mat &	get (const EMatType type=EMatType::kOriginalImage)
	Get the specified image from cache. More...

virtual cv::Mat &	get (const std::string &name)


cv::Mat &	operator[] (const EMatType type)
	Alias for get(). More...

cv::Mat &	operator[] (const std::string &name)
	Alias for get(). More...


virtual Imagination &	replace (const EMatType type, cv::Mat &image)
	Replace the given image type. More...

virtual Imagination &	replace (const std::string &name, cv::Mat &image)
	Replace the given image type. More...


virtual Imagination &	reset_using (const EMatType type)
	Clears the object and resets the original image to the given image type. More...

virtual Imagination &	reset_using (const std::string &name)
	Clears the object and resets the original image to the given image type. More...


cv::Mat	resize (const EMatType type, int width, int height=0)
	Resize (scale) the given image. More...

cv::Mat	resize (const std::string &name, int width, int height=0)
	Resize (scale) the given image. More...


cv::Mat	resize (const EMatType type, const double scale)
	Resize (scale) the given image. More...

cv::Mat	resize (const std::string &name, const double scale)
	Resize (scale) the given image. More...


virtual std::string	save (const EMatType type, const std::string &prefix="")
	Save the given image to disk. More...

virtual std::string	save (const std::string &name, const std::string &prefix="")
	Save the given image to disk. More...

Public Attributes
double	threshold_value
	Auto-detected threshold value. This is only set once the EMatType::kThreshold image is created. More...

EThresholdType	threshold_type
	The threshold type that was used. This is only set once the EMatType::kThreshold image is created. More...

vz::VContours	contours
	A vector of contours. More...

vz::VVDouble	contours_intervals
	Contour intervals. This is only set once the EMatType::kFindContoursIntervals image is created. More...


vz::VV4i	hough_lines
	The Hough lines, angles, angle intervals, and the correction angle are automatically calculated by create_hough_lines_and_angles() once get() is called with a parameter of EMatType::kHoughLines. More...

vz::VDouble	hough_lines_angles
	A vector of all angles for all lines in hough_lines. More...

vz::VVDouble	hough_lines_angle_intervals
	The interval composed of all angles in hough_lines_angles. More...

double	hough_lines_correction_angle
	The best angle according to hough_lines_angle_intervals. More...

typedef std::map< std::string, cv::Mat >	Mats
	Map where the key is an image type description, and the value is a OpenCV `cv::Mat` object. More...

Mats	mats
	Map where the key is an image type description, and the value is a OpenCV `cv::Mat` object. More...

Detailed Description

Imagination objects are used to perform simple and common image manipulations, as well as act as an image cache to store variations on an image.

This way, if a variation is requested multiple times, it is retrieved from cache instead of performing the same calculations multiple times.

Methods to note include the multiple constructors, get(), and save().

Member Typedef Documentation

◆ Mats

typedef std::map<std::string, cv::Mat> vz::Imagination::Mats

Map where the key is an image type description, and the value is a OpenCV cv::Mat object.

While the map may be referenced directly, is is preferable to use get() or operator[] to ensure the requested image is built and cached correctly.

Example:

vz::Imagination img("capture.jpg");
cv::Mat mat = img.get(vz::Imagination::EMatType::kO2Greyscale);
process(mat);

Since: 2019-04 Even though the key is now a std::string instead of EMatType, the enum is still the preferred way to access the images stored within an Imagination object.

Member Enumeration Documentation

◆ EMatType

enum vz::Imagination::EMatType

strong

The EMatType represents the numerous variations of an image that can be created using Imagination.

See also: get()

Enumerator
kInvalid	Empty `cv::Mat`. Should never come up.

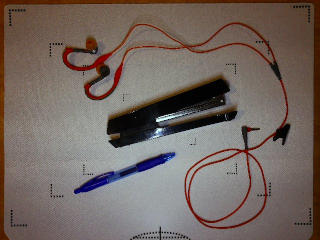

kOriginalImage	The original unmodified image.
kO2Greyscale	The original image converted to greyscale. See also vz::to_greyscale()
kO2GaussianBlur	The original image with a Gaussian blur (default kernel size is 3x3). See also vz::apply_gaussian_blur()
kO2BlurGreyscale	The original image with a Gaussian blur and then converted to greyscale. See also vz::apply_blur_and_convert_to_greyscale()

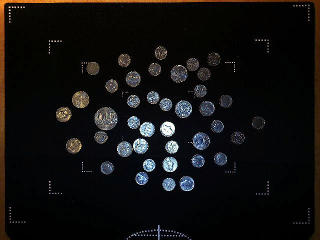

kO2SimpleColourBalance	The original image with a simple colour balance applied. See also vz::apply_simple_colour_balance()

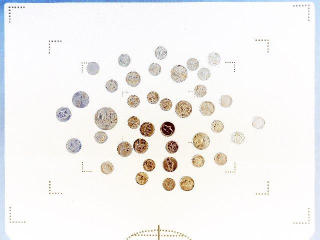

kO2Invert	The original image inverted. See also vz::invert()

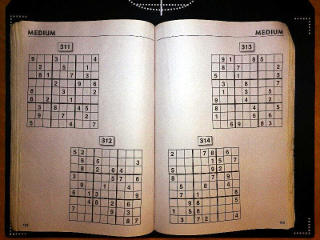

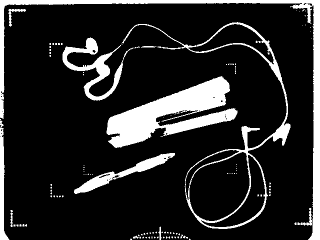

kThreshold	The EMatType::kO2SimpleColourBalance image converted to black-and-white. See also vz::Imagination::threshold vz::Imagination::create_threshold()

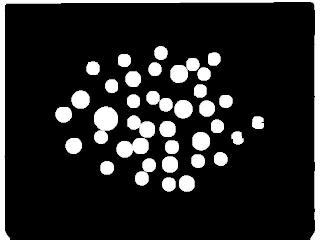

kErode	The EMatType::kThreshold image eroded. See also vz::erode()
kErodeAndDilate	The EMatType::kThreshold image both eroded then dilated. See also vz::erode() vz::dilate()

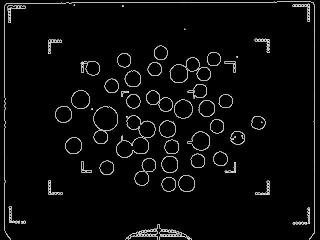

kCannyEdgeDetection	The EMatType::kThreshold image with edge detection. See also vz::apply_canny_edge_detection()

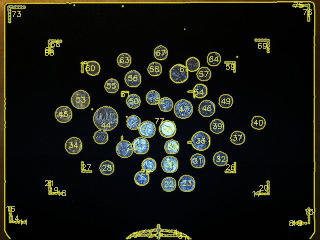

kFindContours	Contour detection with contours drawn over EMatType::kOriginalImage. See also vz::Imagination::contours vz::find_contours() vz::add_contours_to_image()

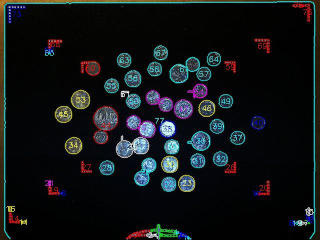

kFindContoursIntervals	Similar to EMatType::kFindContours but includes intervals. See also vz::Imagination::contours_intervals vz::intervals()

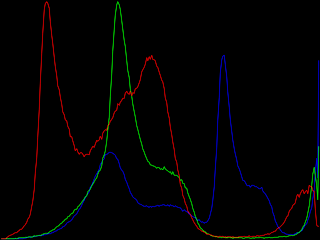

kO2Histogram	Histogram of the original image. See also vz::plot_histogram()

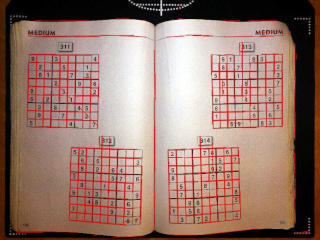

kHoughLines	Hough lines transform. See also vz::Imagination::hough_lines vz::find_hough_lines()
kO2AngleCorrected	The original image with an angle correction. See also vz::Imagination::hough_lines_correction_angle
kMosaic	Combines thumbnails of the other images into a single large mosaic. vz::Imagination::create_mosaic()
kO2DoG	Difference of Gaussian.
kThresholdOtsu

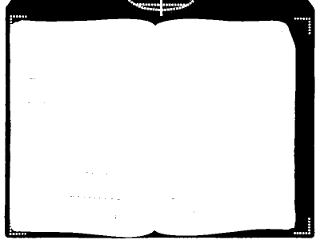

kThresholdTriangle

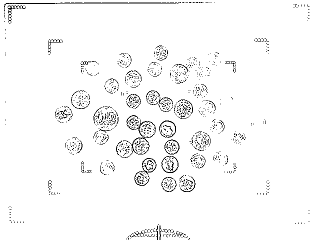

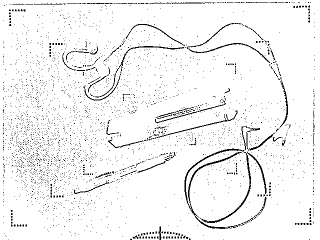

kThresholdGaussian
kThresholdMeanC
kThresholdDoG	Threshold based on EMatType::kO2DoG.
kUserDefined	Any custom image added to the map will come back as "user defined". This may apply to multiple images, while the other enums apply to a single image.
kMax

◆ EThresholdType

enum vz::Imagination::EThresholdType

strong

Enumerator
kInvalid
kOther
kOtsu
kTriangle
kAutoGaussian
kAutoMeanC
kDifferenceOfGaussian	aka DoG
kMax

Constructor & Destructor Documentation

◆ Imagination() [1/3]

vz::Imagination::Imagination ( )

Empty constructor. Use set_original(), an assignment, or one of the other explicit constructors to set the original image.

References clear().

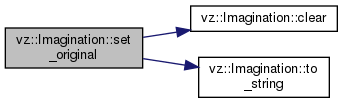

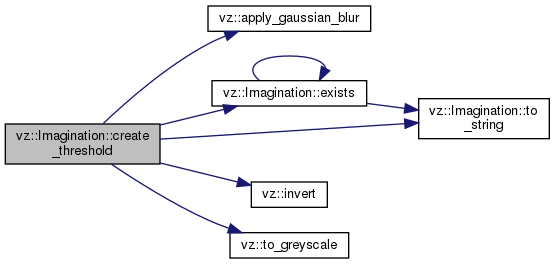

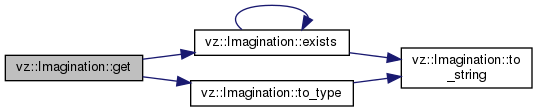

Here is the call graph for this function:

◆ Imagination() [2/3]

vz::Imagination::Imagination ( const std::string & original_image_filename )

Constructor with an existing image file.

References set_original().

Here is the call graph for this function:

◆ Imagination() [3/3]

vz::Imagination::Imagination ( const cv::Mat & original_image )

Constructor with an existing OpenCV image.

References set_original().

Here is the call graph for this function:

◆ ~Imagination()

vz::Imagination::~Imagination ( )

virtual

Destructor.

Member Function Documentation

◆ to_type()

vz::Imagination::EMatType vz::Imagination::to_type ( const std::string & name ) const

virtual

Convert the given name to EMatType. If the name is not an exact match, will return EMatType::kInvalid.

References kMax, kUserDefined, and to_string().

Referenced by create_mosaic(), get(), replace(), and save().

Here is the call graph for this function:

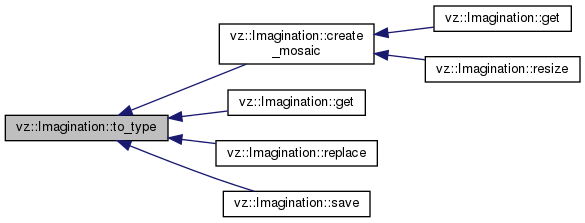

Here is the caller graph for this function:

◆ to_string() [1/2]

std::string vz::Imagination::to_string ( const EMatType type ) const

virtual

Provide a simple text name for the given mat image type. This is also used as the key to store images in mats.

References kCannyEdgeDetection, kErode, kErodeAndDilate, kFindContours, kFindContoursIntervals, kHoughLines, kInvalid, kMax, kMosaic, kO2AngleCorrected, kO2BlurGreyscale, kO2DoG, kO2GaussianBlur, kO2Greyscale, kO2Histogram, kO2Invert, kO2SimpleColourBalance, kOriginalImage, kThreshold, kThresholdDoG, kThresholdGaussian, kThresholdMeanC, kThresholdOtsu, kThresholdTriangle, and kUserDefined.

Referenced by create_hough_lines_and_angles(), create_threshold(), exists(), get(), operator==(), replace(), resize(), save(), set_original(), and to_type().

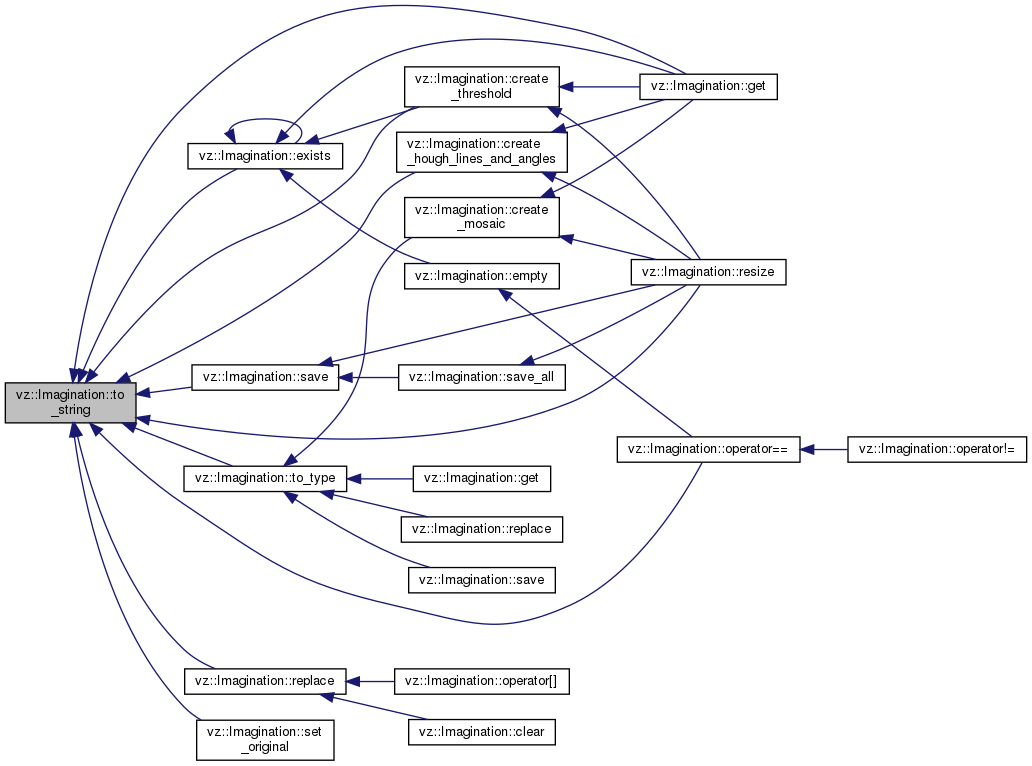

Here is the caller graph for this function:

◆ to_string() [2/2]

std::string vz::Imagination::to_string ( const EThresholdType type ) const

virtual

Provide a simple text name for the given threshold type.

References kAutoGaussian, kAutoMeanC, kDifferenceOfGaussian, kInvalid, kMax, kOther, kOtsu, and kTriangle.

◆ operator==()

bool vz::Imagination::operator== ( const Imagination & rhs ) const

virtual

Deep comparison of the original image only.

The rest of the images can always be derived from the original which is why we only need to verify that the original images are the same. The comparison is pixel-by-pixel, so any image difference will be detected.

References vz::compare_exact(), empty(), kOriginalImage, mats, and to_string().

Referenced by operator!=().

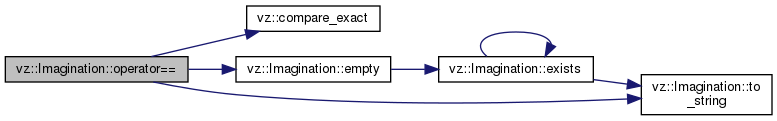

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator!=()

bool vz::Imagination::operator!= ( const Imagination & rhs ) const

inline

Similar to operator==().

References clear(), and operator==().

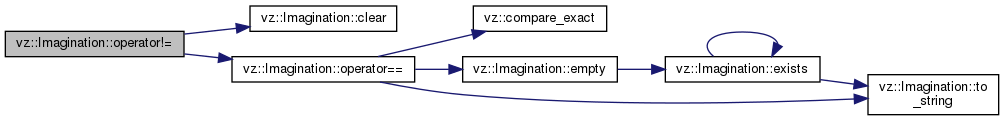

Here is the call graph for this function:

◆ clear() [1/3]

vz::Imagination & vz::Imagination::clear ( )

virtual

Clear all of the image cv::Mat objects cached in mats.

References contours, contours_intervals, hough_lines, hough_lines_angle_intervals, hough_lines_angles, hough_lines_correction_angle, kInvalid, mats, threshold_type, and threshold_value.

Referenced by Imagination(), operator!=(), and set_original().

Here is the caller graph for this function:

◆ clear() [2/3]

vz::Imagination & vz::Imagination::clear ( const EMatType type )

virtual

Clear a specific image type from mats. The image will be re-created the next time it is requested.

References replace().

Here is the call graph for this function:

◆ clear() [3/3]

vz::Imagination & vz::Imagination::clear ( const std::string & name )

virtual

Clear a specific image type from mats. The image will be re-created the next time it is requested.

References replace().

Here is the call graph for this function:

◆ exists() [1/2]

bool vz::Imagination::exists ( const EMatType type ) const

inline

Determine if the given image has been created.

References exists(), and to_string().

Referenced by create_threshold(), empty(), exists(), and get().

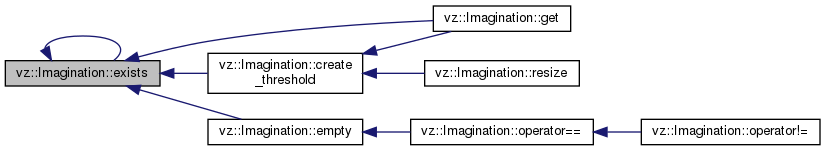

Here is the call graph for this function:

Here is the caller graph for this function:

◆ exists() [2/2]

bool vz::Imagination::exists ( const std::string & name ) const

inline

Determine if the given image has been created.

◆ empty()

bool vz::Imagination::empty ( ) const

inline

Determine if an image has been set.

See also: set_original(); clear()

References exists(), and kOriginalImage.

Referenced by operator==().

Here is the call graph for this function:

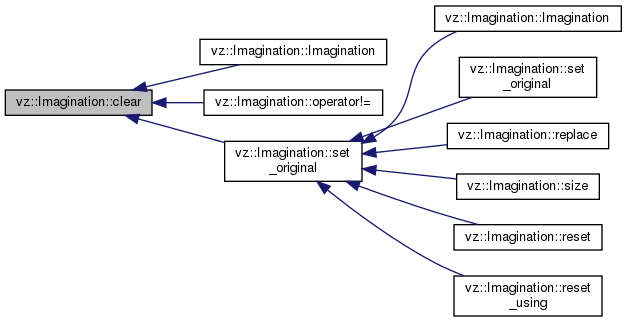

Here is the caller graph for this function:

◆ size()

size_t vz::Imagination::size ( ) const

inline

Determine the number of images that currently exist in the mats image cache.

This includes the original image.

Note: This is not the pixel dimensions of the image!

References kOriginalImage, and set_original().

Here is the call graph for this function:

◆ set_original() [1/3]

vz::Imagination & vz::Imagination::set_original ( const std::string & original_image_filename )

virtual

Reset this object and use the given image. All previous images in mats are cleared prior to the new image being set.

Exceptions

std::runtime_error if the image fails to load (file does not exist?)

References clear().

Referenced by Imagination(), replace(), reset(), reset_using(), set_original(), and size().

Here is the call graph for this function:

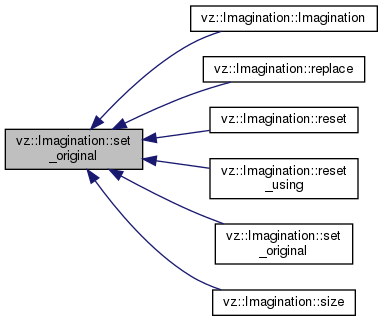

Here is the caller graph for this function:

◆ set_original() [2/3]

vz::Imagination & vz::Imagination::set_original ( const cv::Mat & original_image )

virtual

Note: If the cv::Mat is empty, then this is equivalent to calling clear().

References clear(), kOriginalImage, mats, and to_string().

Here is the call graph for this function:

◆ set_original() [3/3]

vz::Imagination & vz::Imagination::set_original ( const EMatType type )

virtual

Reset this object and use the given image. All previous images in mats are cleared prior to the new image being set.

Exceptions

std::runtime_error if the image fails to load (file does not exist?)

References set_original().

Here is the call graph for this function:

◆ get() [1/3]

cv::Mat & vz::Imagination::get ( const EMatType type = EMatType::kOriginalImage )

virtual

Get the specified image from cache.

If the requested image does not exist, it is created from the original image and cached. Example:

vz::Imagination img("capture.jpg");

process(img.get(vz::Imagination::EMatType::kO2Greyscale));

Exceptions

std::out_of_range	if the type is invalid
std::logic_error	if the original image has not been set
std::logic_error	if the specified image type failed to load

References vz::add_contours_and_limits_to_image(), vz::add_contours_to_image(), vz::apply_canny_edge_detection(), vz::apply_DoG(), vz::apply_gaussian_blur(), vz::apply_simple_colour_balance(), contours, create_hough_lines_and_angles(), create_mosaic(), create_threshold(), vz::dilate(), vz::erode(), exists(), find_contours(), hough_lines_correction_angle, vz::invert(), kAutoGaussian, kAutoMeanC, kCannyEdgeDetection, kDifferenceOfGaussian, kErode, kErodeAndDilate, kFindContours, kFindContoursIntervals, kHoughLines, kInvalid, kMax, kMosaic, kO2AngleCorrected, kO2BlurGreyscale, kO2DoG, kO2GaussianBlur, kO2Greyscale, kO2Histogram, kO2Invert, kO2SimpleColourBalance, kOriginalImage, kOtsu, kThreshold, kThresholdDoG, kThresholdGaussian, kThresholdMeanC, kThresholdOtsu, kThresholdTriangle, kTriangle, kUserDefined, mats, vz::plot_histogram(), vz::rotate(), threshold_value, vz::to_greyscale(), and to_string().

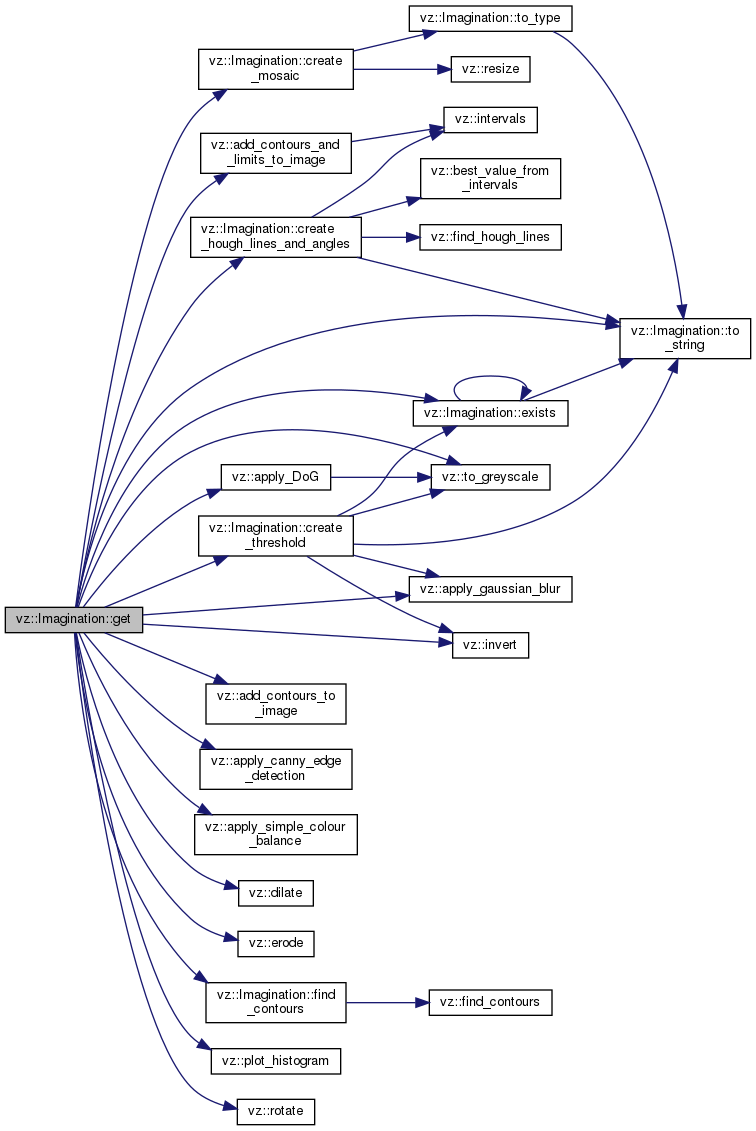

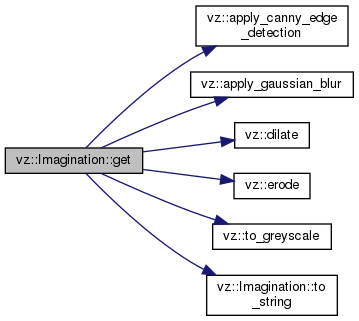

Here is the call graph for this function:

◆ get() [2/3]

cv::Mat & vz::Imagination::get ( const std::string & name )

virtual

Exceptions

std::logic_error if the specified image type does not exist

References exists(), kInvalid, kUserDefined, mats, and to_type().

Here is the call graph for this function:

◆ get() [3/3]

cv::Mat & vz::Imagination::get	(	const EMatType	type,
		const int	parm
	)

virtual

Similar to the other get() method, but with the ability to pass in a single integer parameter.

This is used by several specific types to alter the default behaviour. Other types that don't use a parameter will fall through to the original get() method.

Note: For the types named in table below, the image will be cleared from cache (if it exists) and re-created with the specified parameter.

Types that support a parameter:

type	parameter
EMatType::kO2GaussianBlur	kernel_size for vz::apply_gaussian_blur()
EMatType::kO2BlurGreyscale	kernel_size for vz::apply_gaussian_blur()
EMatType::kErode	number of iterations for vz::erode()
EMatType::kErodeAndDilate	number of iterations for both vz::erode() and vz::dilate()
EMatType::kCannyEdgeDetection	canny threshold for vz::apply_canny_edge_detection()

References vz::apply_canny_edge_detection(), vz::apply_gaussian_blur(), vz::dilate(), vz::erode(), kCannyEdgeDetection, kErode, kErodeAndDilate, kO2BlurGreyscale, kO2GaussianBlur, kOriginalImage, kThreshold, mats, vz::to_greyscale(), and to_string().

Here is the call graph for this function:

◆ operator[]() [1/2]

cv::Mat& vz::Imagination::operator[] ( const EMatType type )

inline

Alias for get().

Example:

vz::Imagination img("capture.jpg");

cv::Mat mat = img[vz::Imagination::EMatType::kO2Greyscale];

◆ operator[]() [2/2]

cv::Mat& vz::Imagination::operator[] ( const std::string & name )

inline

Alias for get().

Example:

vz::Imagination img("capture.jpg");

cv::Mat mat = img[vz::Imagination::EMatType::kO2Greyscale];

References replace().

Here is the call graph for this function:

◆ replace() [1/2]

vz::Imagination & vz::Imagination::replace	(	const EMatType	type,
		cv::Mat &	image
	)

virtual

Replace the given image type.

If an image already exists for this type, then it is replaced. If an image type does not yet exist, then it is inserted into the map. If the image is empty, then the type is completely removed from mats.

See also: set_original()

References to_string().

Referenced by clear(), and operator[]().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ replace() [2/2]

vz::Imagination & vz::Imagination::replace	(	const std::string &	name,
		cv::Mat &	image
	)

virtual

Replace the given image type.

If an image already exists for this type, then it is replaced. If an image type does not yet exist, then it is inserted into the map. If the image is empty, then the type is completely removed from mats.

See also: set_original()

References kOriginalImage, kOther, kThreshold, mats, set_original(), threshold_type, threshold_value, and to_type().

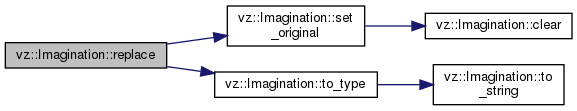

Here is the call graph for this function:

◆ reset()

virtual Imagination& vz::Imagination::reset ( )

inlinevirtual

Clears the object and resets the original image.

All of the image types (except for EMatType::kOriginalImage) will need to be re-calculated. This used to be a separate function but is now an alias for set_original().

References kOriginalImage, and set_original().

Here is the call graph for this function:

◆ reset_using() [1/2]

virtual Imagination& vz::Imagination::reset_using ( const EMatType type )

inlinevirtual

Clears the object and resets the original image to the given image type.

This used to be a separate function but is now an alias for set_original().

References set_original().

Here is the call graph for this function:

◆ reset_using() [2/2]

virtual Imagination& vz::Imagination::reset_using ( const std::string & name )

inlinevirtual

Clears the object and resets the original image to the given image type.

This used to be a separate function but is now an alias for set_original().

References set_original().

Here is the call graph for this function:

◆ resize() [1/4]

cv::Mat vz::Imagination::resize	(	const EMatType	type,
		int	width,
		int	height = `0`
	)

inline

Resize (scale) the given image.

Either the width or the height (but not both) should be specified as zero, in which case it will be calculated using the other dimension to maintain the original aspect ratio.

References vz::resize().

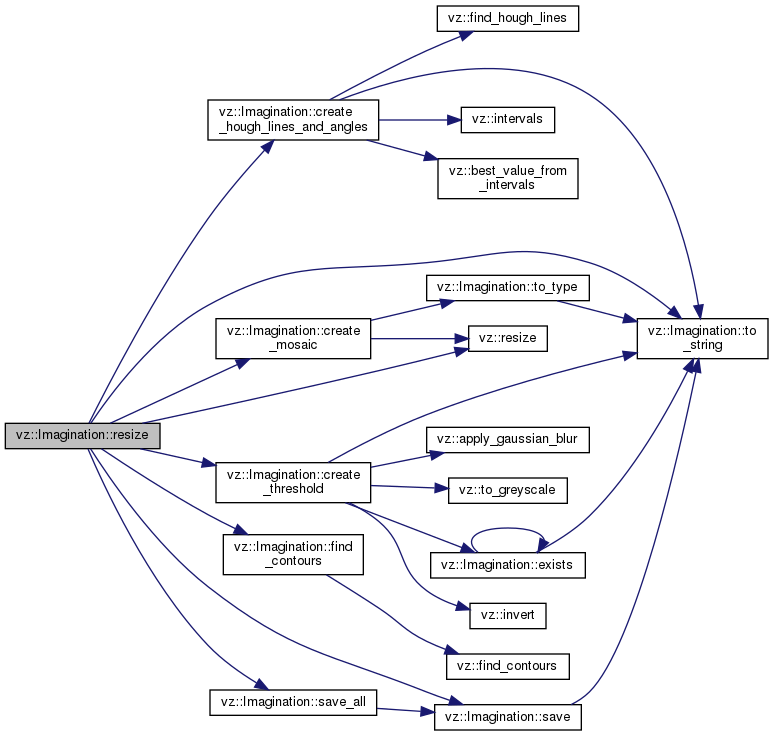

Here is the call graph for this function:

◆ resize() [2/4]

cv::Mat vz::Imagination::resize	(	const std::string &	name,
		int	width,
		int	height = `0`
	)

inline

Resize (scale) the given image.

Either the width or the height (but not both) should be specified as zero, in which case it will be calculated using the other dimension to maintain the original aspect ratio.

References vz::resize().

Here is the call graph for this function:

◆ resize() [3/4]

cv::Mat vz::Imagination::resize	(	const EMatType	type,
		const double	scale
	)

inline

Resize (scale) the given image.

A scale less than 1.0 makes the image smaller, while a scale greater than 1.0 makes the image larger.

References vz::resize().

Here is the call graph for this function:

◆ resize() [4/4]

cv::Mat vz::Imagination::resize	(	const std::string &	name,
		const double	scale
	)

inline

Resize (scale) the given image.

A scale less than 1.0 makes the image smaller, while a scale greater than 1.0 makes the image larger.

References create_hough_lines_and_angles(), create_mosaic(), create_threshold(), find_contours(), vz::resize(), save(), save_all(), and to_string().

Here is the call graph for this function:

◆ save() [1/2]

std::string vz::Imagination::save	(	const EMatType	type,
		const std::string &	prefix = `""`
	)

virtual

Save the given image to disk.

Returns the filename used, which is based on to_string(). The image filename will be appended to the prefix (if any is specified), and unless the prefix includes an absolute or relative path, will be saved into the current working directory.

References to_string().

Referenced by resize(), and save_all().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ save() [2/2]

std::string vz::Imagination::save	(	const std::string &	name,
		const std::string &	prefix = `""`
	)

virtual

Save the given image to disk.

Returns the filename used, which is based on to_string(). The image filename will be appended to the prefix (if any is specified), and unless the prefix includes an absolute or relative path, will be saved into the current working directory.

References to_type().

Here is the call graph for this function:

◆ save_all()

vz::VStr vz::Imagination::save_all ( const std::string & prefix = "" )

virtual

Save all of the image files to disk by repeatedly calling save() with all the image types.

Returns a vector of all the files that were saved.

See also: save()

References kInvalid, kMax, kMosaic, kUserDefined, mats, and save().

Referenced by resize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ find_contours()

vz::VContours vz::Imagination::find_contours ( )

virtual

Find the contours of an image using EMatType::kCannyEdgeDetection and vz::find_contours().

The results are cached as Imagination::contours for later use. This method is called when get() is invoked with a parameter of EMatType::kFindContours or EMatType::kFindContoursIntervals.

References contours, vz::find_contours(), and kCannyEdgeDetection.

Referenced by get(), and resize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_threshold() [1/2]

cv::Mat vz::Imagination::create_threshold ( void )

virtual

Get a decent binary image.

This will try 2 different methods of creating a binary image, automatically return the best image, and discard the other.

This method is called when get() is invoked with a parameter of EMatType::kThreshold.

Note: If the resulting image seems to have a white background, the binary image will be inverted so that objects appear as white-on-black.

Examples of binary threshold images created by this method:

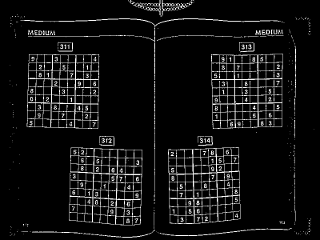

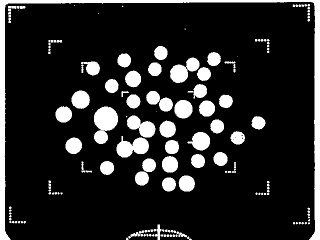

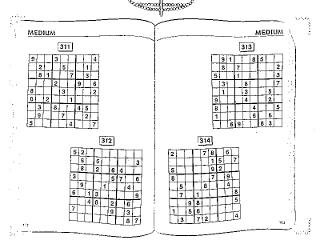

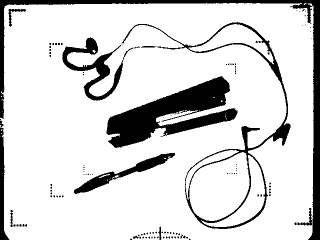

original image	triangle threshold	gaussian threshold	output

References vz::apply_gaussian_blur(), exists(), vz::invert(), kAutoGaussian, kO2BlurGreyscale, kO2GaussianBlur, kO2SimpleColourBalance, kThreshold, kThresholdDoG, kThresholdGaussian, kThresholdMeanC, kThresholdOtsu, kThresholdTriangle, kTriangle, mats, threshold_type, vz::to_greyscale(), and to_string().

Referenced by get(), and resize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_hough_lines_and_angles()

cv::Mat vz::Imagination::create_hough_lines_and_angles ( )

virtual

Find the Hough lines, and make the necessary calculations to determine the angle of each line.

This method is called when get() is invoked with a parameter of EMatType::kHoughLines.

The lines, angles, intervals, and best angle are stored in hough_lines, hough_lines_angles, hough_lines_angle_intervals, and hough_lines_correction_angle.

References vz::best_value_from_intervals(), vz::find_hough_lines(), hough_lines, hough_lines_angle_intervals, hough_lines_angles, hough_lines_correction_angle, vz::intervals(), kHoughLines, kThreshold, mats, and to_string().

Referenced by get(), and resize().

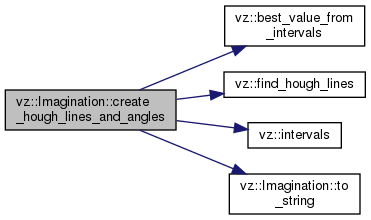

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_mosaic()

cv::Mat vz::Imagination::create_mosaic ( const bool show_labels = true )

virtual

Create a mosaic using a thumbnail of all the images in mats. This is mostly for debug or logging purposes.

References kMosaic, kOriginalImage, mats, vz::resize(), and to_type().

Referenced by get(), and resize().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ create_threshold() [2/2]

cv::Mat vz::Imagination::create_threshold ( const EThresholdType type )

virtual

Exceptions

std::invalid_argument	if the threshold type is invalid
std::logic_error	if the threshold image wasn't created (internal error)

References vz::apply_DoG_threshold(), kAutoGaussian, kAutoMeanC, kDifferenceOfGaussian, kInvalid, kMax, kO2BlurGreyscale, kOriginalImage, kOther, kOtsu, kTriangle, threshold_value, and to_string().

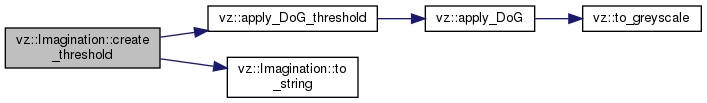

Here is the call graph for this function:

Member Data Documentation

◆ mats

Mats vz::Imagination::mats

Map where the key is an image type description, and the value is a OpenCV cv::Mat object.

While the map may be referenced directly, is is preferable to use get() or operator[] to ensure the requested image is built and cached correctly.

Example:

vz::Imagination img("capture.jpg");
cv::Mat mat = img.get(vz::Imagination::EMatType::kO2Greyscale);
process(mat);

Since: 2019-04 Even though the key is now a std::string instead of EMatType, the enum is still the preferred way to access the images stored within an Imagination object.

Referenced by clear(), create_hough_lines_and_angles(), create_mosaic(), create_threshold(), get(), operator==(), replace(), save_all(), and set_original().

◆ threshold_value

double vz::Imagination::threshold_value

Auto-detected threshold value. This is only set once the EMatType::kThreshold image is created.

Referenced by clear(), create_threshold(), get(), and replace().

◆ threshold_type

EThresholdType vz::Imagination::threshold_type

The threshold type that was used. This is only set once the EMatType::kThreshold image is created.

Referenced by clear(), create_threshold(), and replace().

◆ contours

vz::VContours vz::Imagination::contours

A vector of contours.

This is only set once the EMatType::kFindContours image is created. This can then be used with functions such as cv::contourArea() and vz::add_contours_to_image().

Referenced by clear(), find_contours(), and get().

◆ contours_intervals

vz::VVDouble vz::Imagination::contours_intervals

Contour intervals. This is only set once the EMatType::kFindContoursIntervals image is created.

Referenced by clear().

◆ hough_lines

vz::VV4i vz::Imagination::hough_lines

The Hough lines, angles, angle intervals, and the correction angle are automatically calculated by create_hough_lines_and_angles() once get() is called with a parameter of EMatType::kHoughLines.

All detected Hough lines.

See also: vz::find_hough_lines()

Referenced by clear(), and create_hough_lines_and_angles().

◆ hough_lines_angles

vz::VDouble vz::Imagination::hough_lines_angles

A vector of all angles for all lines in hough_lines.

Referenced by clear(), and create_hough_lines_and_angles().

◆ hough_lines_angle_intervals

vz::VVDouble vz::Imagination::hough_lines_angle_intervals

The interval composed of all angles in hough_lines_angles.

See also: vz::intervals()

Referenced by clear(), and create_hough_lines_and_angles().

◆ hough_lines_correction_angle

double vz::Imagination::hough_lines_correction_angle

The best angle according to hough_lines_angle_intervals.

Referenced by clear(), create_hough_lines_and_angles(), and get().

The documentation for this class was generated from the following files:

Imagination.hpp
Imagination.cpp

Public Types

Public Member Functions

Public Attributes

Detailed Description

Member Typedef Documentation

◆ Mats

Member Enumeration Documentation

◆ EMatType

◆ EThresholdType

Constructor & Destructor Documentation

◆ Imagination() [1/3]

◆ Imagination() [2/3]

◆ Imagination() [3/3]

◆ ~Imagination()

Member Function Documentation

◆ to_type()

◆ to_string() [1/2]

◆ to_string() [2/2]

◆ operator==()

◆ operator!=()

◆ clear() [1/3]

◆ clear() [2/3]

◆ clear() [3/3]

◆ exists() [1/2]

◆ exists() [2/2]

◆ empty()

◆ size()

◆ set_original() [1/3]

◆ set_original() [2/3]

◆ set_original() [3/3]

◆ get() [1/3]

◆ get() [2/3]

◆ get() [3/3]

◆ operator[]() [1/2]

◆ operator[]() [2/2]

◆ replace() [1/2]

◆ replace() [2/2]

◆ reset()

◆ reset_using() [1/2]

◆ reset_using() [2/2]

◆ resize() [1/4]

◆ resize() [2/4]

◆ resize() [3/4]

◆ resize() [4/4]

◆ save() [1/2]

◆ save() [2/2]

◆ save_all()

◆ find_contours()

◆ create_threshold() [1/2]

◆ create_hough_lines_and_angles()

◆ create_mosaic()

◆ create_threshold() [2/2]

Member Data Documentation

◆ mats

◆ threshold_value

◆ threshold_type

◆ contours

◆ contours_intervals

◆ hough_lines

◆ hough_lines_angles

◆ hough_lines_angle_intervals

◆ hough_lines_correction_angle
