vz Namespace Reference

vz namespace for C Code Run's "Vision" tools and libraries. More...

Classes
class	Imagination
	Imagination objects are used to perform simple and common image manipulations, as well as act as an image cache to store variations on an image. More...

Typedefs
typedef std::vector< cv::Mat >	VMats
	Vector of OpenCV cv::Mat. More...
typedef std::vector< std::string >	VStr
	Vector of text strings. More...
typedef std::vector< cv::Point >	Contour
	A single contour is a vector of many points. More...
typedef std::vector< Contour >	VContours
	Many contours are then combined to create a vector of contours. More...
typedef std::vector< cv::RotatedRect >	VRotatedRects
	Vector of rotated rectangles. More...
typedef std::vector< cv::Vec4i >	VV4i
	Vector of Vec4i. More...
typedef std::vector< int >	VInt
	Vector of int. More...
typedef std::set< double >	SDouble
	Set of doubles. More...
typedef std::vector< double >	VDouble
	Vector of doubles. More...
typedef std::vector< VDouble >	VVDouble
	Vector of vz::VDouble. More...
typedef std::vector< size_t >	VSizet
	Vector of size_t. More...
typedef std::map< std::string, std::string >	MStr
	Map of strings where both the key and the value are strings. More...

Functions
VVDouble	intervals (VDouble &data, const double threshold_multiplier=2.0)
	Automatically determine some intervals in a vector of double values. More...
VDouble	popular_values_from_intervals (const VVDouble &vv, const double threshold=0.5)
	Find one or more possible values based on the given intervals. More...
double	best_value_from_intervals (const VVDouble &vv)
	Returns the average of the largest grouping within the intervals. More...
std::string	to_string (const VVDouble &vv)
	Convert the given interval to a text string. More...
size_t	k_means (const VDouble &data, size_t k, VSizet &assignments, VDouble &centroids)
	Perform k-means clustering on a vector of doubles. More...
size_t	k_means_vector (const VDouble &data, size_t k, vz::VVDouble &results, VDouble &centroids)
	Similar to vz::k_means(), but the results that would have been returned in assignments are de-referenced and formatted as a vector of clusters. More...
bool	compare_exact (const cv::Mat &lhs, const cv::Mat &rhs)
	Compare two images. This will only return true if the images are exactly the same. More...
cv::Mat	to_greyscale (const cv::Mat &src)
	Convert the source cv::Mat image to single-channel grey. More...
cv::Mat	apply_gaussian_blur (const cv::Mat &src, const int kernel_size=3)
	Apply a Gaussian blur to the image. More...
cv::Mat	apply_blur_and_convert_to_greyscale (const cv::Mat &src, const int kernel_size=3)
	Apply a Gaussian blur to the image and then convert the result to single-channel greyscale. More...
cv::Mat	apply_simple_colour_balance (const cv::Mat &src)
	Apply a simple colour balance to the image. More...
cv::Mat	erode (const cv::Mat &src, const int iterations=1)
	Erode the image. More...
cv::Mat	dilate (const cv::Mat &src, const int iterations=1)
	Dilate the image. More...
cv::Mat	invert (const cv::Mat &src)
	Invert the image. More...
cv::Mat	apply_canny_edge_detection (const cv::Mat &src, const double canny_threshold)
	Apply canny edge detection. More...
VContours	find_contours (const cv::Mat &src)
	Find the contours in the given source image. More...
cv::Mat	add_contours_to_image (const cv::Mat &src, const VContours &contours, const cv::Scalar &colour=cv::Scalar(0, 255, 255))
	Add the given contours (if any) to the image. More...
cv::Mat	add_contours_and_limits_to_image (const cv::Mat &src, const VContours &contours)
	Very similar to add_contours_to_image(), but colours the contours based on groupings/limits of the contour areas. More...
cv::Mat	plot_histogram (const cv::Mat &src, const int width=640, const int height=480, const cv::Scalar background_colour=cv::Scalar(0, 0, 0))
	Plot the image's histogram. More...
cv::Mat	find_hough_lines (const cv::Mat &src, VV4i &lines)
	Apply the Hough Lines transform. More...
cv::Mat	rotate (const cv::Mat &src, double degrees)
	Rotate an image an arbitrary number of degrees around the exact center of the image. More...
cv::Mat	resize (const cv::Mat &src, int width, int height=0)
	Resize the given image, while maintaining the original aspect ratio. More...
cv::Mat	resize (const cv::Mat &src, const double scale)
	Resize the given image, keeping the same aspect ratio. More...
cv::Mat	letterbox (const cv::Mat &src, int width, int height, const cv::Scalar &colour=cv::Scalar(0, 0, 0))
	Resize the image to fit within the given dimensions and apply a border to pad the size until the desired size is achieved. More...
cv::Mat	apply_DoG (const cv::Mat &src, const double k=1.6, const double sigma=0.5, const double gamma=1.0)
	Perform 2 Gaussian blurs of different size, and subtract the 2nd from the 1st. More...
cv::Mat	apply_DoG_threshold (const cv::Mat &src, const double k=200.0, const double sigma=0.5, const double gamma=1.0)
	Obtain the DoG (Difference of Gaussian) by calling apply_DoG(), then find a threshold image from the result. More...
VRotatedRects	convert_contours_to_rotated_rects (const VContours &contours)
	Convert all of the contours to rotated rectangles. More...

Detailed Description

vz namespace for C Code Run's "Vision" tools and libraries.

Typedef Documentation

VMats

typedef std::vector<cv::Mat> vz::VMats

Vector of OpenCV cv::Mat.

VStr

typedef std::vector<std::string> vz::VStr

Vector of text strings.

Contour

typedef std::vector<cv::Point> vz::Contour

A single contour is a vector of many points.

See also

vz::find_contours()

VContours

typedef std::vector<Contour> vz::VContours

Many contours are then combined to create a vector of contours.

See also

vz::find_contours()

VRotatedRects

typedef std::vector<cv::RotatedRect> vz::VRotatedRects

Vector of rotated rectangles.

See also

vz::convert_contours_to_rotated_rects()

VV4i

typedef std::vector<cv::Vec4i> vz::VV4i

Vector of Vec4i.

See also

vz::find_hough_lines()

VInt

typedef std::vector<int> vz::VInt

Vector of int.

SDouble

typedef std::set<double> vz::SDouble

Set of doubles.

VDouble

typedef std::vector<double> vz::VDouble

Vector of doubles.

See also

vz::k_means()

VVDouble

typedef std::vector<VDouble> vz::VVDouble

Vector of vz::VDouble.

See also

vz::k_means_vector()

VSizet

typedef std::vector<size_t> vz::VSizet

Vector of size_t.

See also

vz::k_means()

MStr

typedef std::map<std::string, std::string> vz::MStr

Map of strings where both the key and the value are strings.

Function Documentation

intervals()

vz::VVDouble vz::intervals	(	VDouble &	data,
		const double	threshold_multiplier = 2.0
	)

Automatically determine some intervals in a vector of double values.

Based on some example code discovered at https://stackoverflow.com/questions/17479944/partitioning-an-float-array-into-similar-segments-clustering while looking into segmentation and natural break optimizations.

Note

This should produce better results than attempting to use vz::k_means() on 1-D data.

Parameters

[in,out]	data	The input data vector is sorted by intervals().
[in]	threshold_multiplier	Used to calculate the threshold when determining where to start a new interval. The larger the threshold, the smaller the number of intervals. A threshold multiplier near 0.0 will cause every value to be in a new interval.

For example, given this data:

vz::VDouble data = { 1.1, 1.2, 1.3, 5.7, 5.8, 5.9, 12.0 };

Calling vz::intervals() might return something similar to this:

results == { {1.1, 1.2, 1.3}, {5.7, 5.8, 5.9}, {12.0} );

See also

vz::k_means()

Jenks Natural Breaks Optimization

Kernel Density Estimation (KDE)

Exceptions

std::invalid_argument

if threshold_multiplier is <= 0

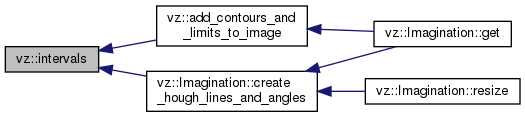

Referenced by add_contours_and_limits_to_image(), and vz::Imagination::create_hough_lines_and_angles().

Here is the caller graph for this function:

popular_values_from_intervals()

vz::VDouble vz::popular_values_from_intervals	(	const VVDouble &	vv,
		const double	threshold = 0.5
	)

Find one or more possible values based on the given intervals.

If multiple values are returned, they will be sorted from most-likely to least-likely as determined by the size of the interval groupings.

Parameters

[in]	vv	The intervals returned by vz::intervals().
[in]	threshold	Helps determine how many groupings to consider. If set to 1.0, then only the largest grouping will be considered, while a value of 0.5 will take into consideration any grouping that is at least 1/2 the size of the largest interval.

For example, given this data:

?

Calling vz::popular_values_from_intervals() might return something similar to this:

?

best_value_from_intervals()

double vz::best_value_from_intervals

(

const VVDouble &

vv

)

Returns the average of the largest grouping within the intervals.

For example, given this data:

?

Calling vz::best_value_from_intervals() might return something similar to this:

?

Referenced by vz::Imagination::create_hough_lines_and_angles().

Here is the caller graph for this function:

to_string()

std::string vz::to_string

(

const VVDouble &

vv

)

Convert the given interval to a text string.

The resulting string is meant for debug purposes, not serialization.

For example:

6 intervals
-> interval #1/6: 6 values, average=1.35, midrange=1.35, median=1.4, values: 1.1 1.2 1.3 1.4 1.5 1.6
-> interval #2/6: 3 values, average=5.8, midrange=5.8, median=5.8, values: 5.7 5.8 5.9
-> interval #3/6: 4 values, average=9.5, midrange=9.5, median=9.6, values: 9.2 9.4 9.6 9.8
-> interval #4/6: 27 values, average=15.05, midrange=15.05, median=15.05, values: 15.01 15.01 15.01 15.02 15.02 15.02 15.03 15.03 15.03 15.04 15.04 15.04 15.05 15.05 15.05 15.06 15.06 15.06 15.07 15.07 15.07 15.08 15.08 15.08 15.09 15.09 15.09
-> interval #5/6: 5 values, average=32, midrange=32, median=32, values: 30 31 32 33 34
-> interval #6/6: 1 values, average=99, midrange=99, median=99, values: 99

• average is the arithmetic mean (sum of every value divided by the number of values)
• midrange is the sum of the largest and smallest values divided by 2
• median is the central point of the data set

k_means()

size_t vz::k_means	(	const VDouble &	data,
		size_t	k,
		VSizet &	assignments,
		VDouble &	centroids
	)

Perform k-means clustering on a vector of doubles.

Unfortunately, k-means requires the caller to know the exact number of clusters.

Warning

Running k-means on single dimension data (such as a vector of doubles) is not the recommended way to use k-means cluster detection. Especially with a data set that contains wide gaps between the data, or data with a large number of entries at one end of the range, the results are unlikely to be very useful. Instead, you probably want to use vz::intervals().

Note

This implementation is based on two tutorials about k-means:

• John McCullock:
  • http://mnemstudio.org/clustering-k-means-introduction.htm
  • http://mnemstudio.org/clustering-k-means-example-1.htm
  • http://mnemstudio.org/clustering-k-means-example-2.htm
• Peter Goldsborough (peter at goldsborough.me):
  • http://www.goldsborough.me/c++/python/cuda/2017/09/10/20-32-46-exploring_k-means_in_python,_c++_and_cuda/
  • https://github.com/goldsborough/k-means

Parameters

[in]	data	Vector of doubles.
[in]	k	The number of clusters. The result may have fewer than this if there isn't enough input data.
[out]	assignments	A vector of indexes indicating the cluster into which a data point was assigned. Indexes will range from zero to k - 1.
[out]	centroids	The final centroids as determined by k-means – the location of each cluster.

Returns

Returns the number of iterations required.

For example, given this data:

vz::VDouble data = { 1.1, 1.2, 1.3, 5.7, 5.8, 5.9 };

Calling vz::k_means() with k=2 might return something similar to the following after 2 iterations:

assignments == { 0, 0, 0, 1, 1, 1 };
centroids   == { 1.2, 5.8 };

See also

vz::k_means_vector()

Exceptions

std::invalid_argument

if k (number of clusters) is invalid

Referenced by k_means_vector().

Here is the caller graph for this function:

k_means_vector()

size_t vz::k_means_vector	(	const VDouble &	data,
		size_t	k,
		vz::VVDouble &	results,
		VDouble &	centroids
	)

Similar to vz::k_means(), but the results that would have been returned in assignments are de-referenced and formatted as a vector of clusters.

For example, given this data:

vz::VDouble data = { 1.1, 1.2, 1.3, 5.7, 5.8, 5.9 };

Calling k_means_split() with k=2 might return something similar to the following after 2 iterations:

results   == { {1.1, 1.2, 1.3}, {5.7, 5.8, 5.9} };
centroids == { 1.2, 5.8 };

See also

vz::k_means()

References k_means().

Here is the call graph for this function:

compare_exact()

bool vz::compare_exact	(	const cv::Mat &	lhs,
		const cv::Mat &	rhs
	)

Compare two images. This will only return true if the images are exactly the same.

Referenced by vz::Imagination::operator==().

Here is the caller graph for this function:

to_greyscale()

cv::Mat vz::to_greyscale

(

const cv::Mat &

src

)

Convert the source cv::Mat image to single-channel grey.

If the source is already greyscale, then returns a clone of the source image.

Examples:

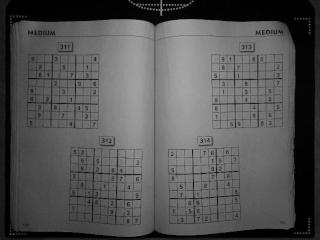

original image	result image

See also

vz::Imagination::EMatType::kO2Greyscale

Exceptions

std::invalid_argument	if the image is empty
std::invalid_argument	if the image has an unsupported number of channels

Referenced by apply_blur_and_convert_to_greyscale(), apply_DoG(), vz::Imagination::create_threshold(), and vz::Imagination::get().

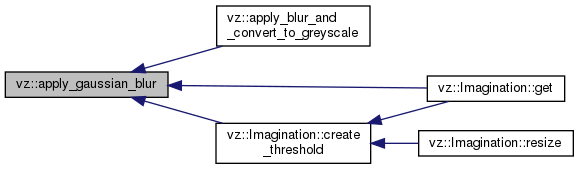

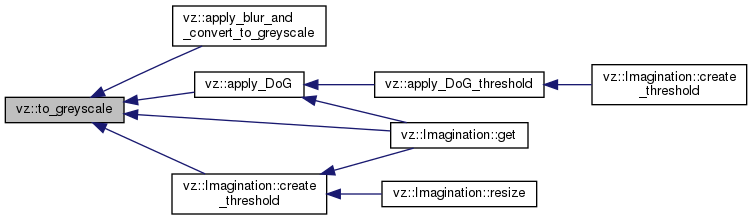

Here is the caller graph for this function:

apply_gaussian_blur()

cv::Mat vz::apply_gaussian_blur	(	const cv::Mat &	src,
		const int	kernel_size = 3
	)

Apply a Gaussian blur to the image.

Parameters

[in]	src	The input image. This can be a colour, greyscale, or binary image.
[in]	kernel_size	The kernel size must be positive, and an odd number. The larger the kernel size, the larger the blur area. A kernel of size 1 does not blur.

Examples:

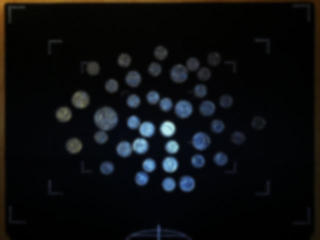

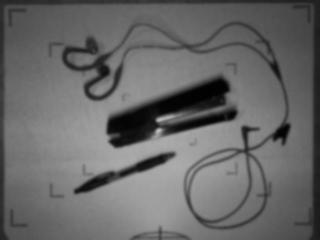

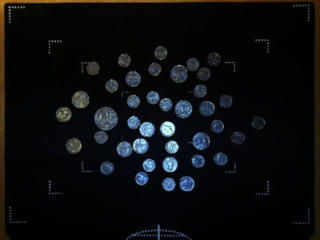

original image	kernel_size=3	kernel_size=9	kernel_size=15

See also

vz::Imagination::EMatType::kO2GaussianBlur

Exceptions

std::invalid_argument	if the image is empty
std::invalid_argument	if the kernel size is < 1 or an even number

Referenced by apply_blur_and_convert_to_greyscale(), vz::Imagination::create_threshold(), and vz::Imagination::get().

Here is the caller graph for this function:

apply_blur_and_convert_to_greyscale()

cv::Mat vz::apply_blur_and_convert_to_greyscale	(	const cv::Mat &	src,
		const int	kernel_size = 3
	)

Apply a Gaussian blur to the image and then convert the result to single-channel greyscale.

This is equivalent to calling both apply_gaussian_blur() and to_greyscale().

Parameters

[in]	src	The input image. This can be a colour, greyscale, or binary image.
[in]	kernel_size	The kernel size must be positive, and an odd number. The larger the kernel size, the larger the blur area. A kernel of size 1 does not blur.

Returns

The output image will be single-channel greyscale, regardless of the input image.

Examples:

original image	kernel_size=3	kernel_size=9	kernel_size=15

See also

vz::Imagination::EMatType::kO2BlurGreyscale

References apply_gaussian_blur(), and to_greyscale().

Here is the call graph for this function:

apply_simple_colour_balance()

cv::Mat vz::apply_simple_colour_balance

(

const cv::Mat &

src

)

Apply a simple colour balance to the image.

This is the color balancing technique used in Adobe Photoshop's "auto levels" command. The idea is that in a well balanced photo, the brightest color should be white and the darkest black. Thus, we can remove the color cast from an image by scaling the histograms of each of the R, G, and B channels so that they span the complete 0-255 scale.

Note

Source: http://www.morethantechnical.com/2015/01/14/simplest-color-balance-with-opencv-wcode/

Source: http://web.stanford.edu/~sujason/ColorBalancing/simplestcb.html

Examples:

original image	result image

See also

vz::Imagination::EMatType::kO2SimpleColourBalance

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::get().

Here is the caller graph for this function:

erode()

cv::Mat vz::erode	(	const cv::Mat &	src,
		const int	iterations = 1
	)

Erode the image.

Dark area in the image are "grown" to erode lighter area. Reverses the changes done by vz::dilate().

Parameters

[in]	src	The input image.
[in]	iterations	The number of erosion iterations to run. Must be a positive number.

Examples:

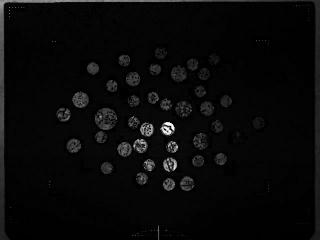

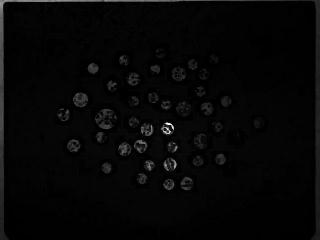

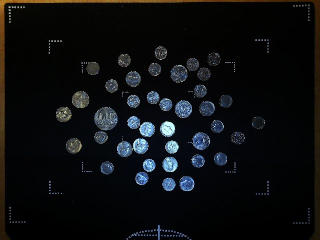

original image	iterations=1	iterations=2	iterations=3

The results are typically better when the source is a binary image:

original image	iterations=1	iterations=2	iterations=3

See also

vz::Imagination::EMatType::kErode

vz::Imagination::EMatType::kThreshold

vz::dilate()

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::get().

Here is the caller graph for this function:

dilate()

cv::Mat vz::dilate	(	const cv::Mat &	src,
		const int	iterations = 1
	)

Dilate the image.

This works best on black-and-white threshold images. Does the opposite as vz::erode(), meaning that white areas of the image are "grown".

Parameters

[in]	src	The input image.
[in]	iterations	The number of dilation iterations to run. Must be a positive number.

Examples:

original image	erode iterations=3	erode + dilate iterations=3

See also

vz::Imagination::EMatType::kErodeAndDilate

vz::to_greyscale()

vz::erode()

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::get().

Here is the caller graph for this function:

invert()

cv::Mat vz::invert

(

const cv::Mat &

src

)

Invert the image.

Examples:

original image	result image

See also

vz::Imagination::EMatType::kO2Invert

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::create_threshold(), and vz::Imagination::get().

Here is the caller graph for this function:

apply_canny_edge_detection()

cv::Mat vz::apply_canny_edge_detection	(	const cv::Mat &	src,
		const double	canny_threshold
	)

Apply canny edge detection.

The result of canny edge detection is a black-and-white image, and the output can differ significantly depending on the input source.

Parameters

[in]	src	The input image.
[in]	canny_threshold	A threshold to apply when converting the input image to black-and-white. This must be a positive number.

Examples:

input image description	input image	output image
original colour image
gaussian blur image (3x3 kernel size) See also vz::apply_gaussian_blur() vz::Imagination::EMatType::kO2GaussianBlur

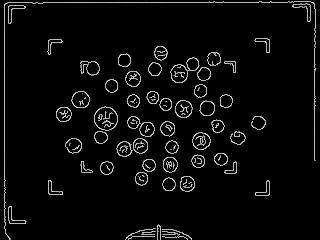

gaussian blur image (15x15 kernel size) See also vz::apply_gaussian_blur() vz::Imagination::EMatType::kO2GaussianBlur
threshold image See also vz::Imagination::EMatType::kThreshold

See also

vz::Imagination::EMatType::kCannyEdgeDetection

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::get().

Here is the caller graph for this function:

find_contours()

vz::VContours vz::find_contours

(

const cv::Mat &

src

)

Find the contours in the given source image.

Unlike most other functions in the vz namespace, the output of this function is not a visual image. Instead, the output is a vector of contours, each of which is a vector of points.

To get a visual representation of the contours, call vz::add_contours_to_image().

Parameters

[in]

src

The input image should be a black-and-white image, such as those produced by apply_canny_edge_detection().

Note

For a visual representation of what find_contours() detects, see the output of add_contours_to_image().

See also

vz::Imagination::EMatType::kFindContours

vz::add_contours_to_image().

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::find_contours().

Here is the caller graph for this function:

add_contours_to_image()

cv::Mat vz::add_contours_to_image	(	const cv::Mat &	src,
		const VContours &	contours,
		const cv::Scalar &	colour = cv::Scalar(0, 255, 255)
	)

Add the given contours (if any) to the image.

Parameters

[in]	src	Input image which is cloned prior to drawing the contours.
[in]	contours	The vector of contours to draw. This is obtained via vz::find_contours().
[in]	colour	The RGB colour to use when drawing the contours. The default colour is yellow.

Example:

input image	output image

See also

vz::Imagination::EMatType::kFindContours

vz::find_contours().

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::get().

Here is the caller graph for this function:

add_contours_and_limits_to_image()

cv::Mat vz::add_contours_and_limits_to_image	(	const cv::Mat &	src,
		const VContours &	contours
	)

Very similar to add_contours_to_image(), but colours the contours based on groupings/limits of the contour areas.

Exceptions

std::invalid_argument

if the image is empty

References intervals().

Referenced by vz::Imagination::get().

Here is the call graph for this function:

Here is the caller graph for this function:

plot_histogram()

cv::Mat vz::plot_histogram	(	const cv::Mat &	src,
		const int	width = 640,
		const int	height = 480,
		const cv::Scalar	background_colour = cv::Scalar(0, 0, 0)
	)

Plot the image's histogram.

Parameters

[in]	src	Input must be either 3-channel (BGR) or 1-channel (greyscale) image.
[in]	width	Width of output histogram plot.
[in]	height	Height of output histogram plot.
[in]	background_colour	Defaults to black, but also common would be cv::Scalar(255,255,255) to get a white background.

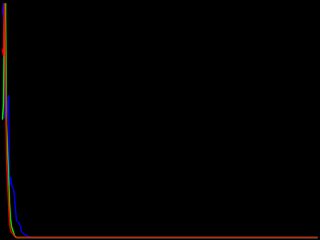

Examples of histograms on colour images:

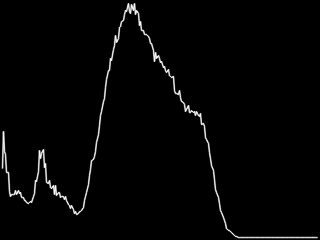

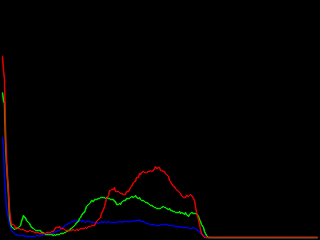

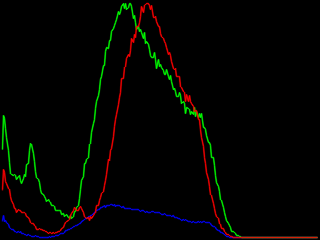

original image	histogram

Examples of histograms on greyscale images:

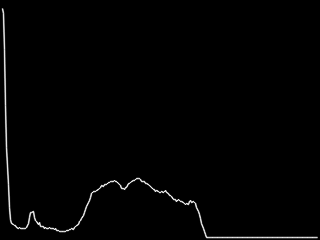

original image	histogram

Exceptions

std::invalid_argument	if the image is empty
std::invalid_argument	if the image is neither greyscale nor 3-channel RGB
std::invalid_argument	if the output dimensions are out of range

Referenced by vz::Imagination::get().

Here is the caller graph for this function:

find_hough_lines()

cv::Mat vz::find_hough_lines	(	const cv::Mat &	src,
		vz::VV4i &	lines
	)

Apply the Hough Lines transform.

Parameters

[in]	src	Input image must be canny edge detection.
[out]	lines	Vector of 4 integer endpoints, where: lines[i][0] is x1 lines[i][1] is y1 lines[i][2] is x2 lines[i][3] is y2.

Example:

original image	input image (canny edge)	output image

See also

vz::Imagination::EMatType::kHoughLines

Referenced by vz::Imagination::create_hough_lines_and_angles().

Here is the caller graph for this function:

rotate()

cv::Mat vz::rotate	(	const cv::Mat &	src,
		double	degrees
	)

Rotate an image an arbitrary number of degrees around the exact center of the image.

The image may be extended to ensure it isn't truncated during the rotation. New areas will be filled in as black.

Mathematical degrees are used, meaning the rotation is performed counter-clockwise. Specifying negative degrees will result in a clockwise rotation. Angles greater than 360.0 and lesser than -360.0 are valid, and are automatically normalized to 0-360.

Note

This function has optimizations to deal with rotations for exact multiples of 90.0 degrees (..., -180, -90, 0, 90, 180, ...).

Example:

cv::Mat dst = vz::rotate(src, 45.0);
// which is equivalent to:
dst = vz::rotate(src, -315.0);



input image	output image

Exceptions

std::invalid_argument

if the image is empty

Referenced by vz::Imagination::get().

Here is the caller graph for this function:

resize() [1/2]

cv::Mat vz::resize	(	const cv::Mat &	src,
		int	width,
		int	height = 0
	)

Resize the given image, while maintaining the original aspect ratio.

Either the width or the height must be specified as non-zero to indicate the desired image size. The other measurement will be calculated to keep the correct aspect ratio. If both the width and height have been specified, then it is up to the caller to maintain the correct aspect ratio.

See also

letterbox()

Exceptions

std::invalid_argument	if the image is empty
std::invalid_argument	if either the width or the height is negative
std::invalid_argument	if both width and hight are invalid

Referenced by vz::Imagination::create_mosaic(), letterbox(), vz::Imagination::resize(), and resize().

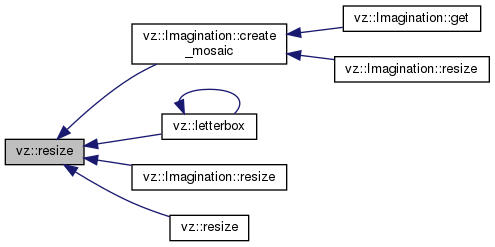

Here is the caller graph for this function:

resize() [2/2]

cv::Mat vz::resize	(	const cv::Mat &	src,
		const double	scale
	)

Resize the given image, keeping the same aspect ratio.

A scale of 1.0 will return an image of the same size, while 0.5 will be 1/2 the size, and 2.0 will be twice as large as the original.

See also

letterbox()

Exceptions

std::invalid_argument	if the image is empty
std::invalid_argument	if the scale is less than zero

References resize().

Here is the call graph for this function:

letterbox()

cv::Mat vz::letterbox	(	const cv::Mat &	src,
		int	width,
		int	height,
		const cv::Scalar &	colour = cv::Scalar(0, 0, 0)
	)

Resize the image to fit within the given dimensions and apply a border to pad the size until the desired size is achieved.

The aspect ratio will be maintained. If the image does not fit perfectly within the given dimensions, apply letterboxing (black bars on top and bottom or left and right sides) to achieve the desired final dimensions. Default colour for the letterboxing is black.

Example:

cv::Mat dst = vz::letterbox(src, 320, 200);



input image	output image

See also

resize()

Exceptions

std::invalid_argument	if the image is empty
std::invalid_argument	if either the width or the height is less than 1

References letterbox(), and resize().

Referenced by letterbox().

Here is the call graph for this function:

Here is the caller graph for this function:

apply_DoG()

cv::Mat vz::apply_DoG	(	const cv::Mat &	src,
		const double	k = 1.6,
		const double	sigma = 0.5,
		const double	gamma = 1.0
	)

Perform 2 Gaussian blurs of different size, and subtract the 2nd from the 1st.

See also

apply_DoG_threshold()

Exceptions

std::invalid_argument

if the image is empty

References to_greyscale().

Referenced by apply_DoG_threshold(), and vz::Imagination::get().

Here is the call graph for this function:

Here is the caller graph for this function:

apply_DoG_threshold()

cv::Mat vz::apply_DoG_threshold	(	const cv::Mat &	src,
		const double	k = 200.0,
		const double	sigma = 0.5,
		const double	gamma = 1.0
	)

Obtain the DoG (Difference of Gaussian) by calling apply_DoG(), then find a threshold image from the result.

References apply_DoG().

Referenced by vz::Imagination::create_threshold().

Here is the call graph for this function:

Here is the caller graph for this function:

convert_contours_to_rotated_rects()

vz::VRotatedRects vz::convert_contours_to_rotated_rects

(

const VContours &

contours

)

Convert all of the contours to rotated rectangles.
