I2C 1.12" rectangular OLED display. More...

#include <sg_104030008_OLED112.hpp>

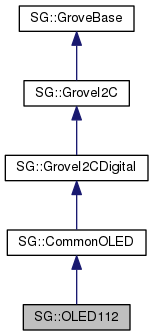

Inheritance diagram for SG::OLED112:

[legend]

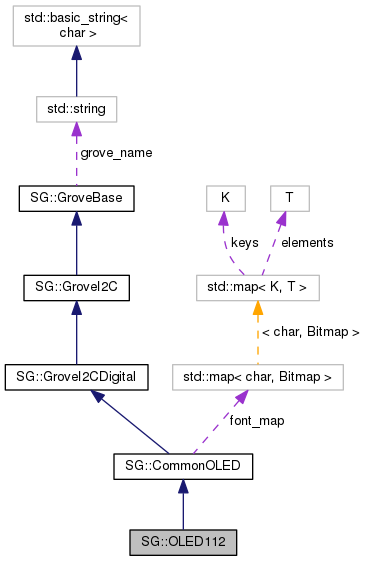

Collaboration diagram for SG::OLED112:

[legend]

Public Types
enum	EOrientation { EOrientation::kInvalid = 0, EOrientation::kLandscape, EOrientation::kPortrait, EOrientation::kLandscape180, EOrientation::kPortrait180 }
	Orientation for the display. More...

typedef uint8_t	I2CBus
	I2C bus. More...

typedef uint8_t	I2CAddress
	I2C addresses. More...

typedef uint8_t	I2CRegister
	I2C register. More...

typedef std::vector< uint8_t >	I2CBlock
	Block of sequential bytes to read or write. More...

Public Member Functions
virtual	~OLED112 (void)
	Destructor. More...

	OLED112 (const std::string &name="", const SG::GroveI2CDigital::I2CAddress addr=0)
	Constructor. If not specified, the I2C address will be obtained using get_address_from_type(). More...

virtual size_t	pixel_width (void) const
	Get the width in pixels. This always returns `128` for the 1.12" OLED. More...

virtual size_t	pixel_height (void) const
	Get the height in pixels. This always returns `64` for the 1.12" OLED. More...

virtual size_t	pixel_depth (void) const
	Get the number of bits per pixel. This always returns `1` (meaning each pixel is either `on` or `off`) for the 1.12" OLED. More...

virtual size_t	memory_width (void) const
	Get the number of pixels that can be stored in memory. This always returns `128` for the 1.12" OLED. More...

virtual size_t	memory_height (void) const
	Get the number of pixels that can be stored in memory. This always returns `64` for the 1.12" OLED. More...

virtual size_t	memory_depth (void) const
	Get the number of bits each pixel occupies in memory. This always returns `1` for the 1.12" OLED. More...

virtual OLED112 &	reset (void)
	Reset the OLED. More...

virtual OLED112 &	clear_screen (void)
	Set all of the GDDRAM to 0x00 to clear the screen. More...

virtual CommonOLED &	turn_on (void)
	Turn `ON` the OLED. More...

virtual CommonOLED &	turn_off (void)
	turn `OFF` the OLED. More...

virtual CommonOLED &	set_contrast (const uint8_t level=0x7f)
	Set the contrast level to a value between 0 and 255. More...

virtual CommonOLED &	lock (void)
	Lock the OLED driver IC MCU. Once locked, the only command that will be accepted is unlock(). All other commands and memory access are ignored. More...

virtual CommonOLED &	unlock (void)
	Unlock the OLED driver IC MCU. More...

virtual CommonOLED &	start_scrolling (void)
	Start horizontal scrolling. Multiple calls can be made to start_scrolling() and stop_scrolling() to start and stop scrolling multiple times. More...

virtual CommonOLED &	stop_scrolling (void)

virtual CommonOLED &	send_command (const uint8_t cmd)
	Stop horizontal scrolling. More...

virtual CommonOLED &	send_command (const uint8_t cmd, const uint8_t value)
	Send a command with an additional 1-byte parameter. More...

virtual CommonOLED &	set_XY (const uint8_t x=0, const uint8_t y=0)

virtual CommonOLED &	flood (const I2CBlock &pattern)
	Repeat the given pattern until it fills up the entire OLED. More...

virtual CommonOLED &	fade_white_to_black (const size_t milliseconds_between_transitions=500)
	Fade from white to black. More...

virtual CommonOLED &	fade_black_to_white (const size_t milliseconds_between_transitions=500)
	Fade from black to white. More...

virtual I2CBlock	get_display_bitmap (void)
	Get the full display bitmap. More...

virtual CommonOLED &	set_display_bitmap (const I2CBlock &block)
	Set the full display bitmap. More...

virtual EOrientation	get_orientation (void) const
	Return the current orientation. The default after reset() is EOrientation::kLandscape. More...

virtual bool	is_analog (void) const
	This is always `false` for GroveI2CDigital. More...

virtual bool	is_digital (void) const
	This is always `true` for GroveI2CDigital. More...

I2CAddress	get_address_from_type (void) const
	Get the address for this Grove type. More...

virtual uint8_t	read8 (const I2CRegister reg)
	Read a byte (8 bits) from the specificed register. More...

virtual uint16_t	read16 (const I2CRegister reg)
	Read a 16-bit word from the specified register. More...

virtual uint16_t	read12 (const I2CRegister reg)
	Read a 16-bit word from the specified register, but only keep the bottom 12 bits. More...

virtual I2CBlock	read_block (const I2CRegister reg)
	Read a consecutive block of bytes, anywhere between 1 and 32 bytes in length. More...

virtual GroveI2CDigital &	write_byte (const uint8_t value)
	Write a single byte to the I2C bus. More...

virtual GroveI2CDigital &	write_block (const I2CRegister reg, const I2CBlock &v)
	Write a consecutive block of bytes, anywhere between 1 and 32 bytes in length. More...

virtual GroveI2CDigital &	write_block (const I2CBlock &v)
	Write a consecutive block of bytes directly to the I2C file handle. More...

virtual bool	is_grove_uart (void) const
	This is always `false` for GroveI2C. More...

virtual bool	is_grove_i2c (void) const
	This is always `true` for GroveI2C. More...

virtual bool	is_grove_gpio (void) const
	This is always `false` for GroveI2C. More...

virtual uint32_t	get_sku (void) const
	Return a guess as to the Seeed SKU number based on the grove type. More...

virtual std::string	get_type_name (void) const
	Return a short text string representing the grove type. More...

virtual EGroveType	get_type (void) const
	Return the grove type. More...

virtual std::string	get_name (void) const
	Return the user-supplied name. More...

virtual std::string	get_description (void) const
	Return a multi-word 1-line description of this object. More...


virtual OLED112 &	normal_display (void)
	Toggle the various display modes. More...

virtual OLED112 &	all_on_display (void)
	All pixels set `ON`. More...

virtual OLED112 &	all_off_display (void)
	All pixels set `OFF`. More...

virtual OLED112 &	do_not_invert_display (void)
	Do not invert display. More...

virtual OLED112 &	invert_display (void)
	Invert display mode. More...


virtual CommonOLED &	set_font (const Font::EType type=SG::Font::EType::k8x8CapRouge)
	Set a font to use when writing text to the OLED. By default, if not explicitely set, the font used will be SG::Font::CapRouge. More...

virtual CommonOLED &	set_font (std::shared_ptr< SG::Font::Monospace > font_to_use)


virtual CommonOLED &	show (const char c)
	Display the given text. More...

virtual CommonOLED &	show (const std::string &str)
	Display the given text. More...


bool	is_portrait (void) const
	Quickly determine if the OLED is in portrait or landscape mode. More...

bool	is_landscape (void) const
	Quickly determine if the OLED is in portrait or landscape mode. More...


virtual CommonOLED &	rotate_90 (void)
	Set the orientation for the display. More...

virtual CommonOLED &	rotate_180 (void)
	Set the orientation for the display. More...

virtual CommonOLED &	rotate_270 (void)
	Set the orientation for the display. More...

virtual CommonOLED &	set_orientation (const EOrientation new_orientation=EOrientation::kLandscape)


virtual GroveI2CDigital &	write8 (const I2CRegister reg, const uint8_t value)
	Write the given value to the specified register. More...

virtual GroveI2CDigital &	write16 (const I2CRegister reg, const uint16_t value)


bool	operator== (const GroveBase &rhs) const
	Test object equality. More...

bool	operator!= (const GroveBase &rhs) const
	Test object equality. More...

Static Public Member Functions
static I2CBus	detect_i2c_bus_number (const bool force_detect=false, const int force_bus_number=-1)
	Detect the I2C bus to use to talk to Grove I2C devices. More...

static I2CAddress	get_address_from_type (const EGroveType &type)
	Get the default I2C address for a given type. More...

Public Attributes
I2CBus	i2c_bus_number
	The bus number to use for I2C Grove twigs. More...

I2CAddress	i2c_address
	The I2C address used to communicate with the Grove device. More...

int	i2c_file_handle
	The file handle to /dev/i2c-* used to communicate with the Grove device. More...

EGroveType	grove_type
	Grove type. More...

std::string	grove_name
	User-supplied name. More...

Protected Attributes
EOrientation	orientation
	Landscape or portrait mode. More...


std::shared_ptr< Font::Monospace >	font
	Font used when writing text to the OLED. Default is SG::Font::CapRouge. More...

Font::Monospace::Fontmap	font_map
	Font used when writing text to the OLED. Default is SG::Font::CapRouge. More...

Detailed Description

I2C 1.12" rectangular OLED display.

This I2C Grove twig has 128 pixels across and 64 pixels in height, each of which is exactly 1 bit in depth. With a typical 8x8 font, this means you can display 8 lines of text, each one with 16 characters, for a total of 128 characters of text. This OLED is exactly half the height of OLED096.

The following measurements are approximate:

Description	Dimension (Imperial)	Dimension (Metric)
total width	1.5"	3.8 cm
total height	0.75"	1.9 cm
display width	1"	2.5 cm
display height	0.5"	1.3 cm

Warning: The Seeed web site and wiki has conflicting and/or confusing information on this device, including some wiki links to the wrong device image. The SSD1308 driver IC has a 128 x 64 bit memory buffer, for a total of 1 KiB of memory, and this Grove twig has a display with exactly 8192 pixels (128 x 64). It is rectangular in shape, not square.

Description	Image

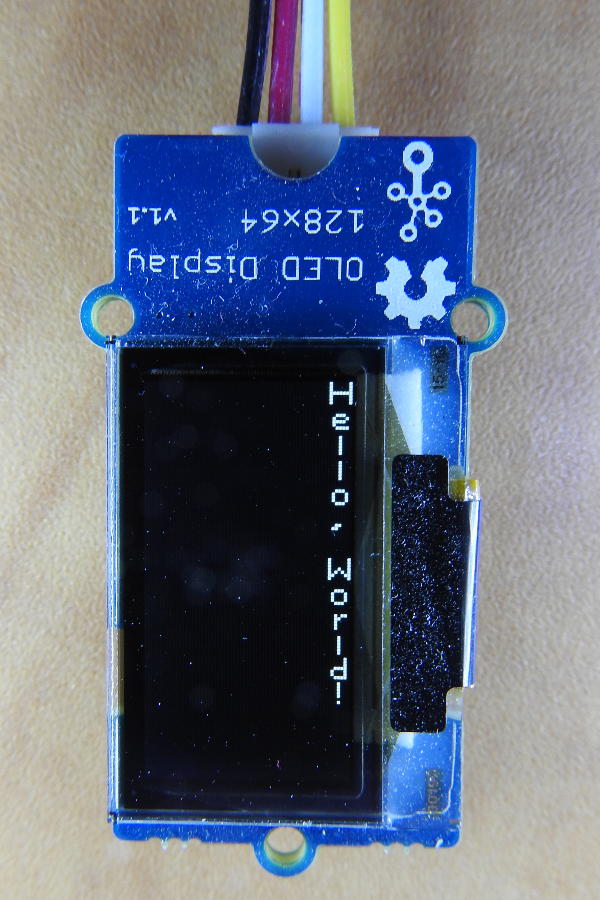

OLED with sample text.

Connect the OLED display to the left-hand-side I2C interface. The I2C address for this I2C device is 0x3c.

i2cdetect -y -r 2
1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
         -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- 3c -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- UU UU UU UU -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- --

See also: SG::OLED096; http://www.seeedstudio.com/wiki/Grove_-_OLED_Display_128%2A64; http://www.seeedstudio.com/depot/grove-oled-display-12864-p-781.html; http://garden.seeedstudio.com/images/4/46/SSD1308_1.0.pdf; http://garden.seeedstudio.com/images/c/c4/LY190-128064.pdf

Member Typedef Documentation

◆ I2CAddress

typedef uint8_t SG::GroveI2CDigital::I2CAddress

inherited

I2C addresses.

See also: get_address_from_type()

◆ I2CBlock

typedef std::vector<uint8_t> SG::GroveI2CDigital::I2CBlock

inherited

Block of sequential bytes to read or write.

◆ I2CBus

typedef uint8_t SG::GroveI2CDigital::I2CBus

inherited

I2C bus.

See also: detect_i2c_bus_number()

◆ I2CRegister

typedef uint8_t SG::GroveI2CDigital::I2CRegister

inherited

I2C register.

Member Enumeration Documentation

◆ EOrientation

enum SG::CommonOLED::EOrientation

stronginherited

Orientation for the display.

Enumerator
kInvalid
kLandscape
kPortrait
kLandscape180	"upside-down" landscape
kPortrait180	"upside-down" portrait

Constructor & Destructor Documentation

◆ ~OLED112()

SG::OLED112::~OLED112 ( void )

virtual

Destructor.

◆ OLED112()

SG::OLED112::OLED112	(	const std::string &	name = `""`,
		const SG::GroveI2CDigital::I2CAddress	addr = `0`
	)

Constructor. If not specified, the I2C address will be obtained using get_address_from_type().

Member Function Documentation

◆ all_off_display()

virtual OLED112& SG::OLED112::all_off_display ( void )

inlinevirtual

All pixels set OFF.

Warning: This command is not supported by the 1.12" OLED.

Implements SG::CommonOLED.

◆ all_on_display()

virtual OLED112& SG::OLED112::all_on_display ( void )

inlinevirtual

All pixels set ON.

See also: normal_display()

Implements SG::CommonOLED.

References SG::CommonOLED::send_command().

Here is the call graph for this function:

◆ clear_screen()

SG::OLED112 & SG::OLED112::clear_screen ( void )

virtual

Set all of the GDDRAM to 0x00 to clear the screen.

Implements SG::CommonOLED.

References SG::CommonOLED::flood(), pixel_height(), pixel_width(), and SG::CommonOLED::stop_scrolling().

Referenced by invert_display(), and reset().

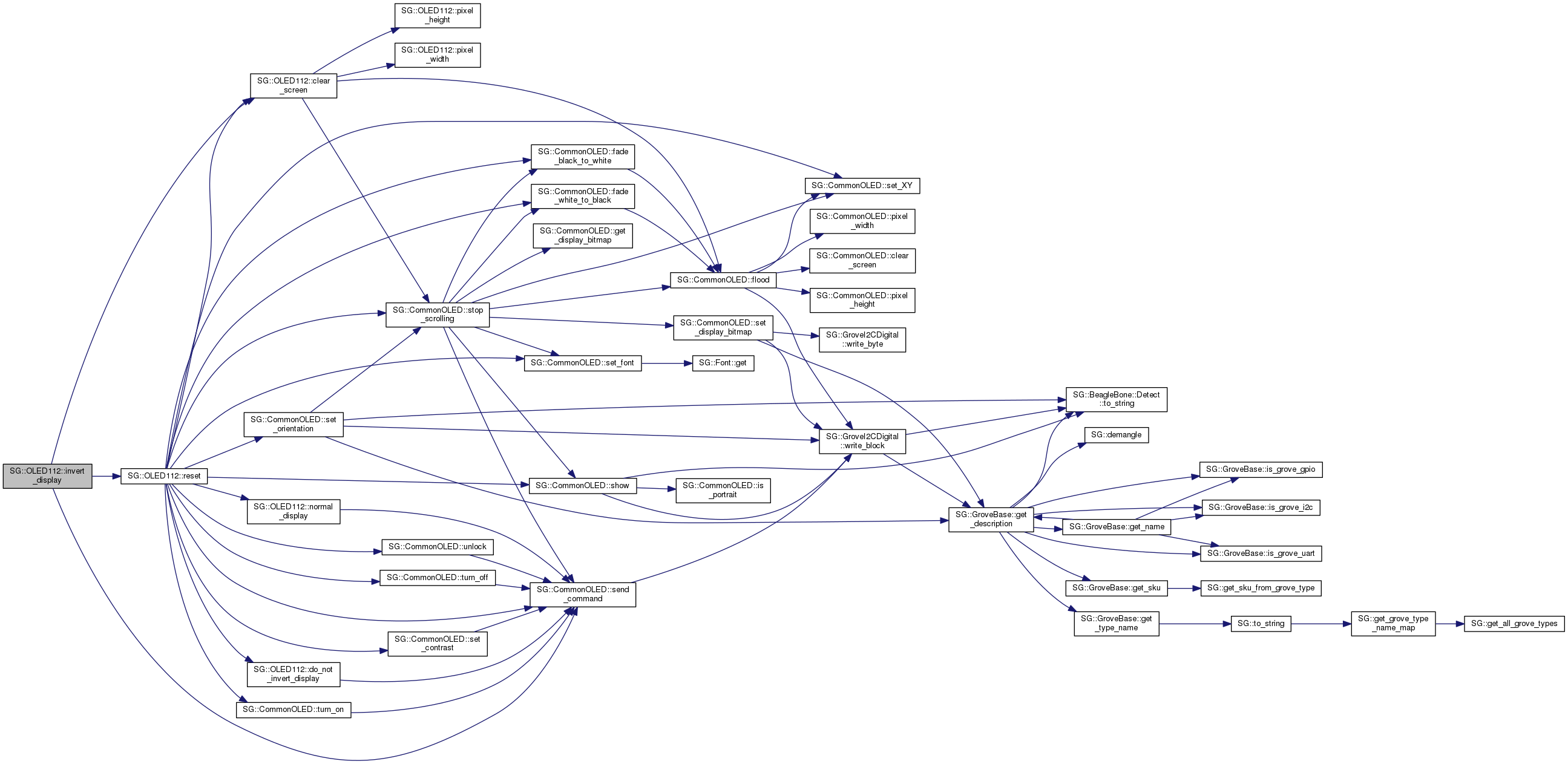

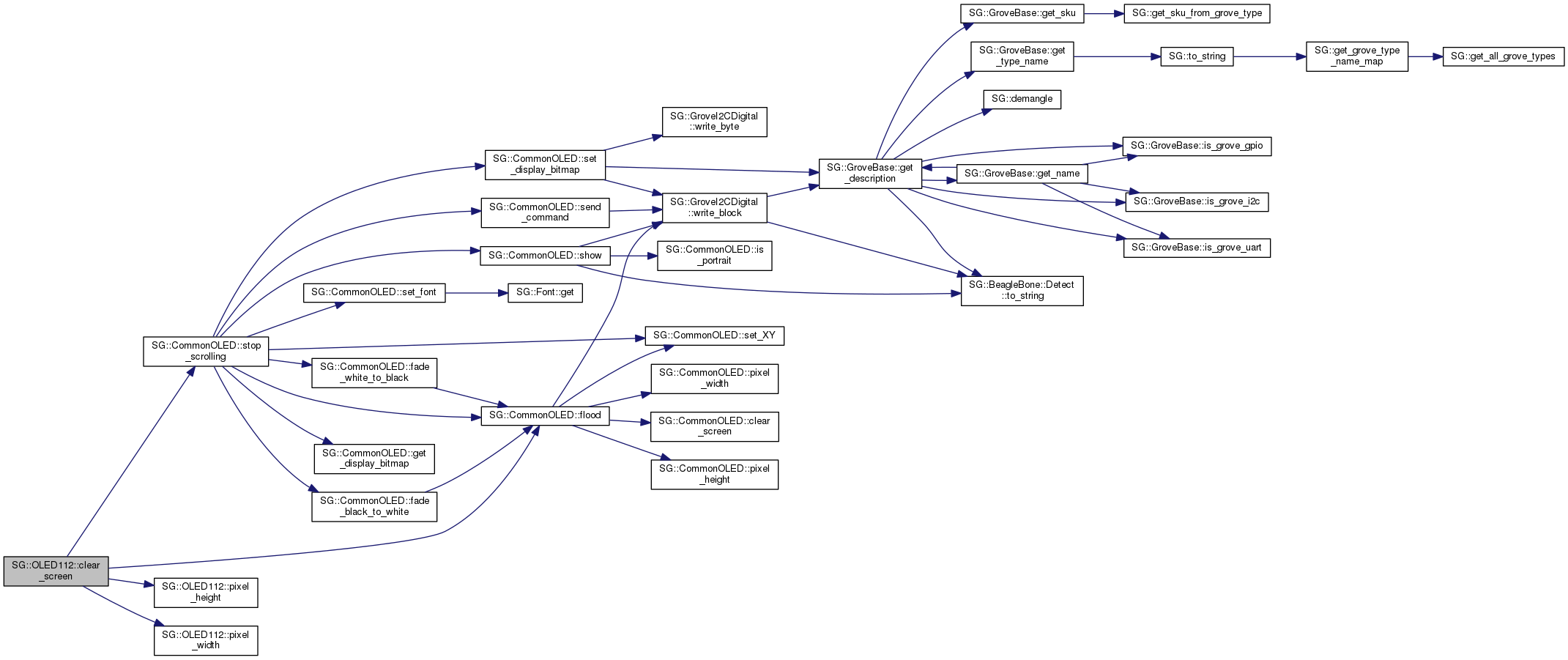

Here is the call graph for this function:

Here is the caller graph for this function:

◆ detect_i2c_bus_number()

SG::GroveI2CDigital::I2CBus SG::GroveI2CDigital::detect_i2c_bus_number	(	const bool	force_detect = `false`,
		const int	force_bus_number = `-1`
	)

staticinherited

Detect the I2C bus to use to talk to Grove I2C devices.

This is normally 1 or 2. The detection consists of looking at /dev/i2c* devices.

Parameters

[in]	force_detect	The detected bus number is usually remembered to prevent having to re-detect it every time a new GroveI2C object is instantiated. If `force_detect` is set to `true`, then this will force GroveI2C to ignore the previously cached bus number and re-detect the I2C bus.
[in]	force_bus_number	If an explicit bus number should be used, then `force_bus_number` can be set to the correct bus value. This will prevent calls to `detect_i2c_bus_number()` from attempting to auto-detect the I2C bus. Setting the I2C bus number this way wont change existing GroveI2C objects that have already been instantiated. Only new objects will use the new bus number. The actual bus number used by specific objects is i2c_bus_number.

Exceptions

std::system_error	if /dev cannot be opened.
std::runtime_error	if the I2C bus cannot be found in /dev.

Referenced by SG::GroveI2CDigital::is_digital().

Here is the caller graph for this function:

◆ do_not_invert_display()

virtual OLED112& SG::OLED112::do_not_invert_display ( void )

inlinevirtual

Do not invert display.

See also: invert_display()

References SG::CommonOLED::send_command().

Referenced by reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fade_black_to_white()

SG::CommonOLED & SG::CommonOLED::fade_black_to_white ( const size_t milliseconds_between_transitions = 500 )

virtualinherited

Fade from black to white.

There are 4 transitions, so the default 500 millisecond pause between each transition means a total time of 2 seconds before this function returns.

See also: fade_white_to_black()

References SG::CommonOLED::flood().

Referenced by reset(), and SG::CommonOLED::stop_scrolling().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ fade_white_to_black()

SG::CommonOLED & SG::CommonOLED::fade_white_to_black ( const size_t milliseconds_between_transitions = 500 )

virtualinherited

Fade from white to black.

There are 4 transitions, so the default 500 millisecond pause between each transition means a total time of 2 seconds before this function returns.

See also: fade_black_to_white()

References SG::CommonOLED::flood().

Referenced by reset(), and SG::CommonOLED::stop_scrolling().

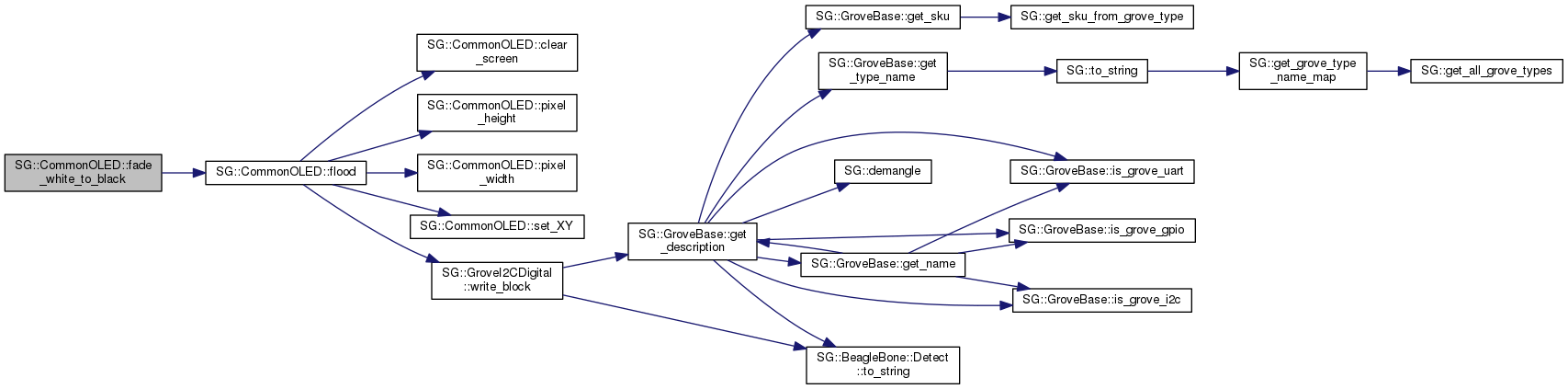

Here is the call graph for this function:

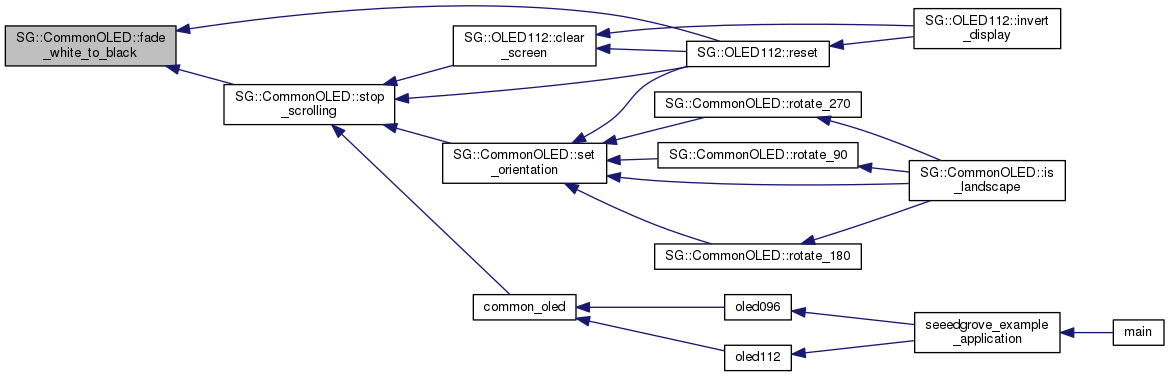

Here is the caller graph for this function:

◆ flood()

SG::CommonOLED & SG::CommonOLED::flood ( const I2CBlock & pattern )

virtualinherited

Repeat the given pattern until it fills up the entire OLED.

References SG::CommonOLED::clear_screen(), SG::CommonOLED::pixel_height(), SG::CommonOLED::pixel_width(), SG::CommonOLED::set_XY(), and SG::GroveI2CDigital::write_block().

Referenced by clear_screen(), SG::CommonOLED::fade_black_to_white(), SG::CommonOLED::fade_white_to_black(), and SG::CommonOLED::stop_scrolling().

Here is the call graph for this function:

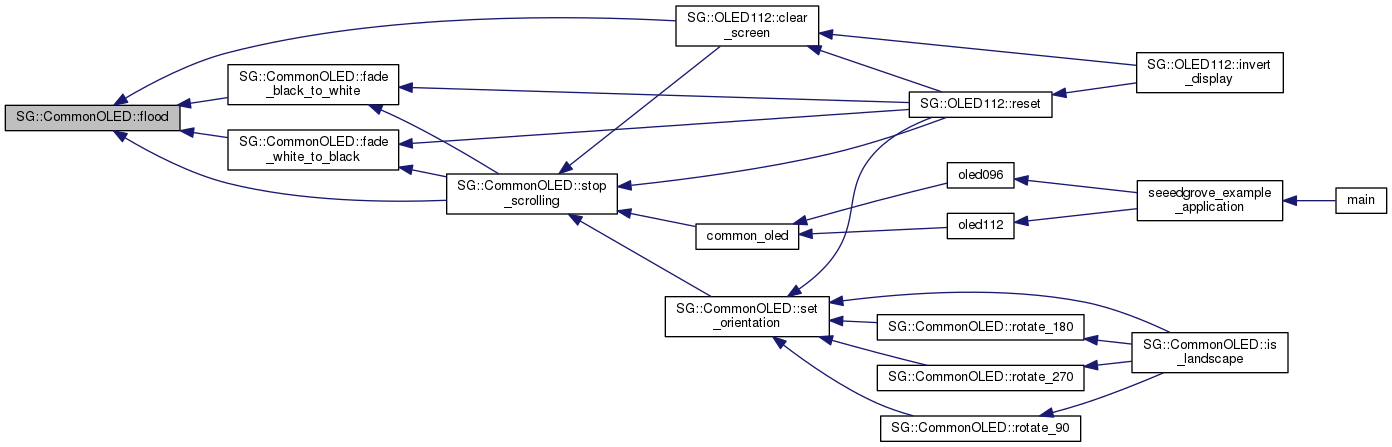

Here is the caller graph for this function:

◆ get_address_from_type() [1/2]

SG::GroveI2CDigital::I2CAddress SG::GroveI2CDigital::get_address_from_type ( const EGroveType & type )

staticinherited

Get the default I2C address for a given type.

Note that several Grove types have multiple addresses. This only returns the first address.

See also: http://www.seeedstudio.com/wiki/I2C_And_I2C_Address_of_Seeed_Product

References SG::k3AxisDigitalAccelerometer16g, SG::k3AxisDigitalAccelerometer1_5g, SG::k3AxisDigitalAccelerometer400g, SG::k3AxisDigitalCompass, SG::k3AxisDigitalGyro, SG::k6AxisAccelerometerAndCompassV1, SG::k6AxisAccelerometerAndCompassV2, SG::kBarometerHighAccuracy, SG::kBarometerSensor, SG::kBarometerSensorBMP180, SG::kDigitalInfraredTemperatureSensor, SG::kDigitalLightSensor, SG::kGestureV1, SG::kI2CADC, SG::kI2CColorSensor, SG::kI2CFMReceiver, SG::kI2CMotorDriverV10, SG::kI2CMotorDriverV12, SG::kIMU10DOF, SG::kIMU9DOFV1, SG::kIMU9DOFV2, SG::kLCDRGBBacklight, SG::kMultichannelGasSensor, SG::kNFCTag, SG::kOLEDDisplay0_96, SG::kOLEDDisplay1_12, SG::kQTouchSensor, SG::kRTC, SG::kTemperatureAndHumiditySensor, and SG::kTouchSensor.

◆ get_address_from_type() [2/2]

I2CAddress SG::GroveI2CDigital::get_address_from_type ( void ) const

inlineinherited

Get the address for this Grove type.

References SG::GroveI2CDigital::get_address_from_type(), SG::GroveBase::get_type(), SG::GroveI2CDigital::read16(), and SG::GroveI2CDigital::read8().

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::GroveI2CDigital::GroveI2CDigital(), and SG::GroveI2CDigital::is_digital().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_description()

std::string SG::GroveBase::get_description ( void ) const

virtualinherited

Return a multi-word 1-line description of this object.

References SG::demangle(), SG::GroveBase::get_name(), SG::GroveBase::get_sku(), SG::GroveBase::get_type_name(), SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), SG::GroveBase::is_grove_uart(), and SG::BeagleBone::Detect::to_string().

Referenced by buzzer(), chainable_rgb_led(), common_oled(), SG::GroveBase::get_name(), SG::GroveI2CDigital::GroveI2CDigital(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), temperature(), variable_led(), and SG::GroveI2CDigital::write_block().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_display_bitmap()

SG::GroveI2CDigital::I2CBlock SG::CommonOLED::get_display_bitmap ( void )

virtualinherited

Get the full display bitmap.

The display contains 128 x 128 pixels, and each pixels has 4 bits, for a total of 65536 bits, or 8192 bytes (8 KiB).

Todo:: TODO BOOOO booooo

Referenced by SG::CommonOLED::stop_scrolling().

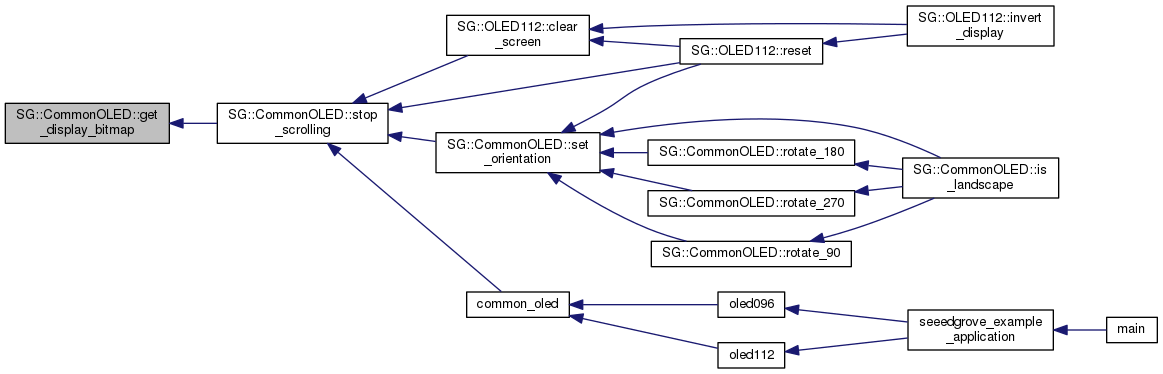

Here is the caller graph for this function:

◆ get_name()

virtual std::string SG::GroveBase::get_name ( void ) const

inlinevirtualinherited

Return the user-supplied name.

References SG::GroveBase::get_description(), SG::GroveBase::grove_name, SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), and SG::GroveBase::is_grove_uart().

Referenced by SG::GroveBase::get_description(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_orientation()

virtual EOrientation SG::CommonOLED::get_orientation ( void ) const

inlinevirtualinherited

Return the current orientation. The default after reset() is EOrientation::kLandscape.

References SG::CommonOLED::orientation.

◆ get_sku()

virtual uint32_t SG::GroveBase::get_sku ( void ) const

inlinevirtualinherited

Return a guess as to the Seeed SKU number based on the grove type.

References SG::get_sku_from_grove_type(), and SG::GroveBase::grove_type.

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_type()

virtual EGroveType SG::GroveBase::get_type ( void ) const

inlinevirtualinherited

Return the grove type.

References SG::GroveBase::grove_type.

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the caller graph for this function:

◆ get_type_name()

virtual std::string SG::GroveBase::get_type_name ( void ) const

inlinevirtualinherited

Return a short text string representing the grove type.

References SG::GroveBase::grove_type, and SG::to_string().

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ invert_display()

virtual OLED112& SG::OLED112::invert_display ( void )

inlinevirtual

Invert display mode.

See also: do_not_invert_display()

Implements SG::CommonOLED.

References clear_screen(), reset(), and SG::CommonOLED::send_command().

Here is the call graph for this function:

◆ is_analog()

virtual bool SG::GroveI2CDigital::is_analog ( void ) const

inlinevirtualinherited

This is always false for GroveI2CDigital.

Implements SG::GroveI2C.

◆ is_digital()

virtual bool SG::GroveI2CDigital::is_digital ( void ) const

inlinevirtualinherited

This is always true for GroveI2CDigital.

Implements SG::GroveI2C.

References SG::GroveI2CDigital::detect_i2c_bus_number(), and SG::GroveI2CDigital::get_address_from_type().

Here is the call graph for this function:

◆ is_grove_gpio()

virtual bool SG::GroveI2C::is_grove_gpio ( void ) const

inlinevirtualinherited

This is always false for GroveI2C.

Implements SG::GroveBase.

References SG::GroveI2C::is_analog(), and SG::GroveI2C::is_digital().

Here is the call graph for this function:

◆ is_grove_i2c()

virtual bool SG::GroveI2C::is_grove_i2c ( void ) const

inlinevirtualinherited

This is always true for GroveI2C.

Implements SG::GroveBase.

◆ is_grove_uart()

virtual bool SG::GroveI2C::is_grove_uart ( void ) const

inlinevirtualinherited

This is always false for GroveI2C.

Implements SG::GroveBase.

◆ is_landscape()

bool SG::CommonOLED::is_landscape ( void ) const

inlineinherited

Quickly determine if the OLED is in portrait or landscape mode.

References SG::CommonOLED::kLandscape, SG::CommonOLED::kLandscape180, SG::CommonOLED::orientation, SG::CommonOLED::rotate_180(), SG::CommonOLED::rotate_270(), SG::CommonOLED::rotate_90(), and SG::CommonOLED::set_orientation().

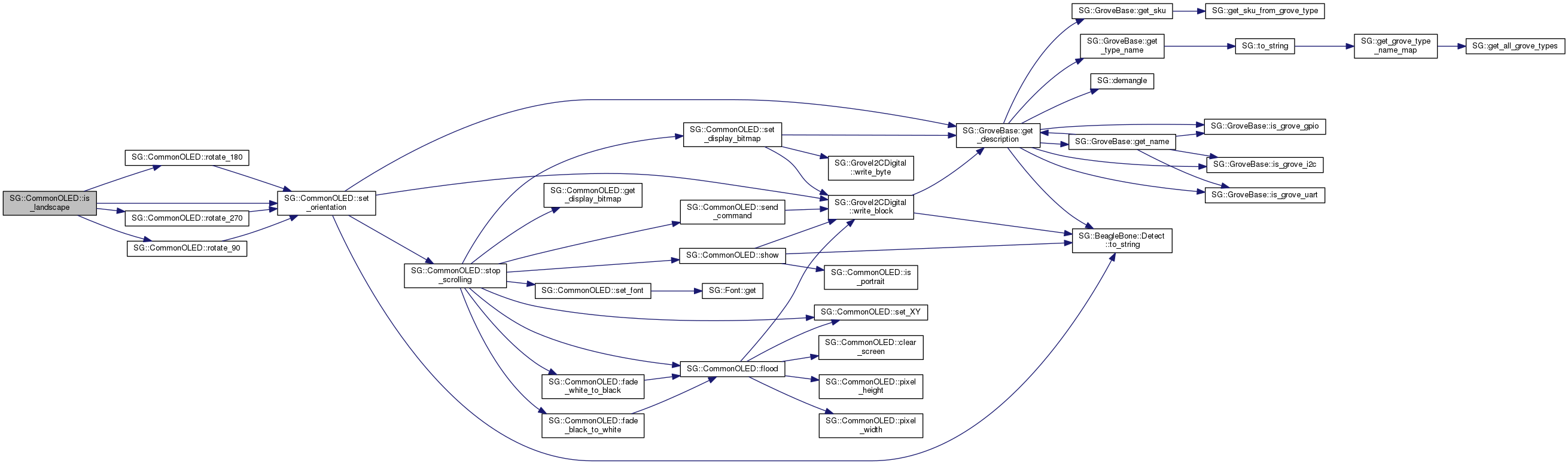

Here is the call graph for this function:

◆ is_portrait()

bool SG::CommonOLED::is_portrait ( void ) const

inlineinherited

Quickly determine if the OLED is in portrait or landscape mode.

References SG::CommonOLED::kPortrait, SG::CommonOLED::kPortrait180, and SG::CommonOLED::orientation.

Referenced by SG::CommonOLED::show().

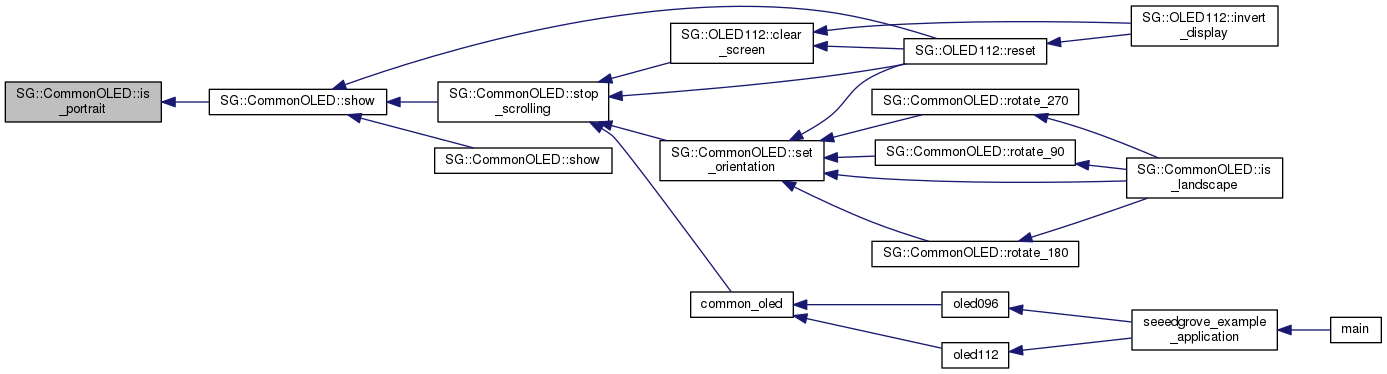

Here is the caller graph for this function:

◆ lock()

virtual CommonOLED& SG::CommonOLED::lock ( void )

inlinevirtualinherited

Lock the OLED driver IC MCU. Once locked, the only command that will be accepted is unlock(). All other commands and memory access are ignored.

References SG::CommonOLED::send_command().

Referenced by common_oled().

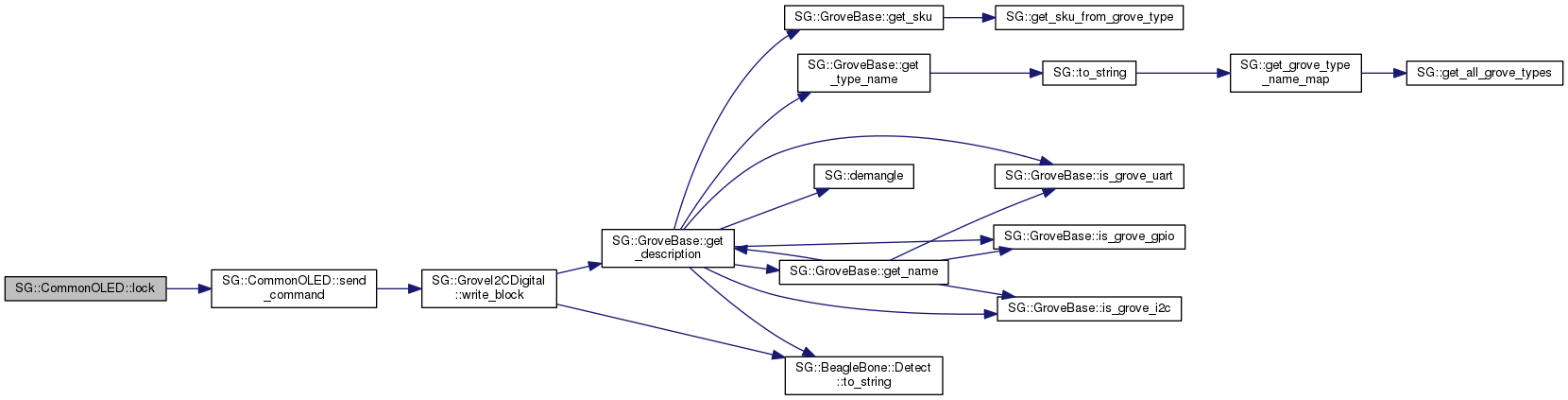

Here is the call graph for this function:

Here is the caller graph for this function:

◆ memory_depth()

virtual size_t SG::OLED112::memory_depth ( void ) const

inlinevirtual

Get the number of bits each pixel occupies in memory. This always returns 1 for the 1.12" OLED.

Implements SG::CommonOLED.

◆ memory_height()

virtual size_t SG::OLED112::memory_height ( void ) const

inlinevirtual

Get the number of pixels that can be stored in memory. This always returns 64 for the 1.12" OLED.

Implements SG::CommonOLED.

◆ memory_width()

virtual size_t SG::OLED112::memory_width ( void ) const

inlinevirtual

Get the number of pixels that can be stored in memory. This always returns 128 for the 1.12" OLED.

Implements SG::CommonOLED.

◆ normal_display()

virtual OLED112& SG::OLED112::normal_display ( void )

inlinevirtual

Toggle the various display modes.

Normal display mode.

Implements SG::CommonOLED.

References SG::CommonOLED::send_command().

Referenced by reset().

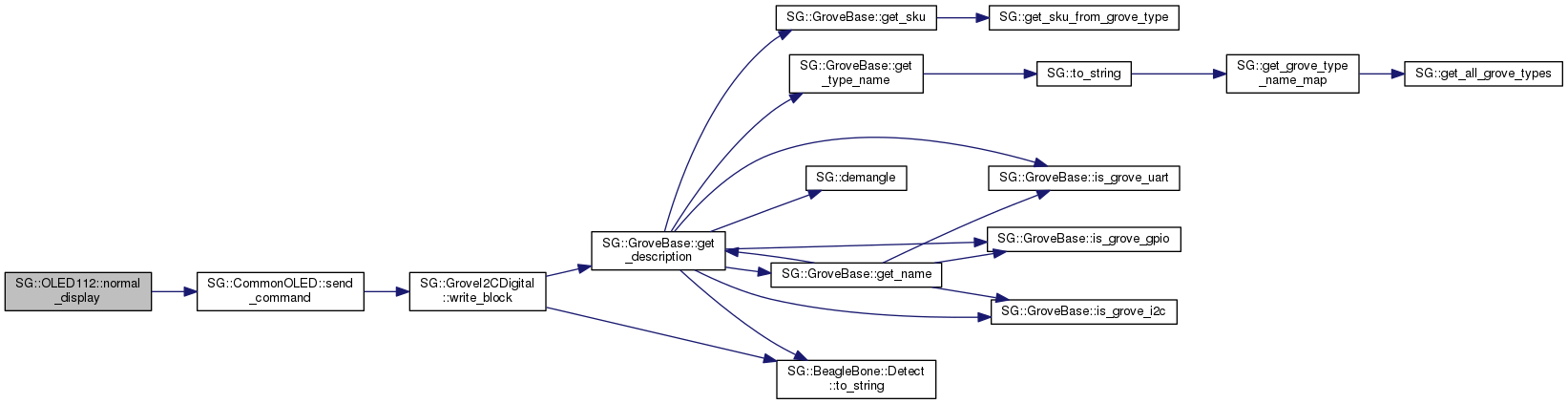

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator!=()

bool SG::GroveBase::operator!= ( const GroveBase & rhs ) const

inlineinherited

Test object equality.

References SG::GroveBase::operator==().

Here is the call graph for this function:

◆ operator==()

bool SG::GroveBase::operator== ( const GroveBase & rhs ) const

inherited

Test object equality.

References SG::GroveBase::get_name(), and SG::GroveBase::get_type().

Referenced by SG::GroveBase::operator!=(), SG::Buzzer::operator==(), SG::TemperatureAndHumiditySensor::operator==(), SG::TemperatureSensor::operator==(), and SG::I2CADC::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ pixel_depth()

virtual size_t SG::OLED112::pixel_depth ( void ) const

inlinevirtual

Get the number of bits per pixel. This always returns 1 (meaning each pixel is either on or off) for the 1.12" OLED.

Implements SG::CommonOLED.

◆ pixel_height()

virtual size_t SG::OLED112::pixel_height ( void ) const

inlinevirtual

Get the height in pixels. This always returns 64 for the 1.12" OLED.

Implements SG::CommonOLED.

Referenced by clear_screen().

Here is the caller graph for this function:

◆ pixel_width()

virtual size_t SG::OLED112::pixel_width ( void ) const

inlinevirtual

Get the width in pixels. This always returns 128 for the 1.12" OLED.

Implements SG::CommonOLED.

Referenced by clear_screen().

Here is the caller graph for this function:

◆ read12()

virtual uint16_t SG::GroveI2CDigital::read12 ( const I2CRegister reg )

inlinevirtualinherited

Read a 16-bit word from the specified register, but only keep the bottom 12 bits.

Some devices such as the I2CADC return 12-bit values.

References SG::GroveI2CDigital::read16(), SG::GroveI2CDigital::read_block(), SG::GroveI2CDigital::write16(), SG::GroveI2CDigital::write8(), SG::GroveI2CDigital::write_block(), and SG::GroveI2CDigital::write_byte().

Referenced by SG::I2CADC::read12().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read16()

uint16_t SG::GroveI2CDigital::read16 ( const I2CRegister reg )

virtualinherited

Read a 16-bit word from the specified register.

Exceptions

std::system_error if the register cannot be read.

Note: The high/low bytes in the 16-bit word are swapped after reading.

Referenced by SG::GroveI2CDigital::get_address_from_type(), and SG::GroveI2CDigital::read12().

Here is the caller graph for this function:

◆ read8()

uint8_t SG::GroveI2CDigital::read8 ( const I2CRegister reg )

virtualinherited

Read a byte (8 bits) from the specificed register.

Exceptions

std::system_error if the register cannot be read.

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::ThreeAxisDigitalCompass::get_config(), SG::ThreeAxisDigitalCompass::get_data(), SG::ThreeAxisDigitalCompass::get_mode(), SG::ThreeAxisDigitalCompass::get_status(), and SG::I2CADC::read8().

Here is the caller graph for this function:

◆ read_block()

SG::GroveI2CDigital::I2CBlock SG::GroveI2CDigital::read_block ( const I2CRegister reg )

virtualinherited

Read a consecutive block of bytes, anywhere between 1 and 32 bytes in length.

See also: write_block()

Exceptions

std::system_error if the register cannot be read.

Referenced by SG::GroveI2CDigital::read12().

Here is the caller graph for this function:

◆ reset()

SG::OLED112 & SG::OLED112::reset ( void )

virtual

Reset the OLED.

The OLED112 uses the Solomon Systech SSD1308 (128x64 dot matrix). Inspiration for the commands in reset() came from LY190-128064.pdf section 9.4. Additional details came from SSD1308_1.0.pdf sections 8-9, pages 27-44.

Implements SG::CommonOLED.

References clear_screen(), do_not_invert_display(), SG::CommonOLED::fade_black_to_white(), SG::CommonOLED::fade_white_to_black(), SG::Font::k8x8CapRouge, SG::Font::k8x8CourierNew, SG::CommonOLED::kLandscape, normal_display(), SG::CommonOLED::send_command(), SG::CommonOLED::set_contrast(), SG::CommonOLED::set_font(), SG::CommonOLED::set_orientation(), SG::CommonOLED::set_XY(), SG::CommonOLED::show(), SG::CommonOLED::stop_scrolling(), SG::CommonOLED::turn_off(), SG::CommonOLED::turn_on(), and SG::CommonOLED::unlock().

Referenced by invert_display().

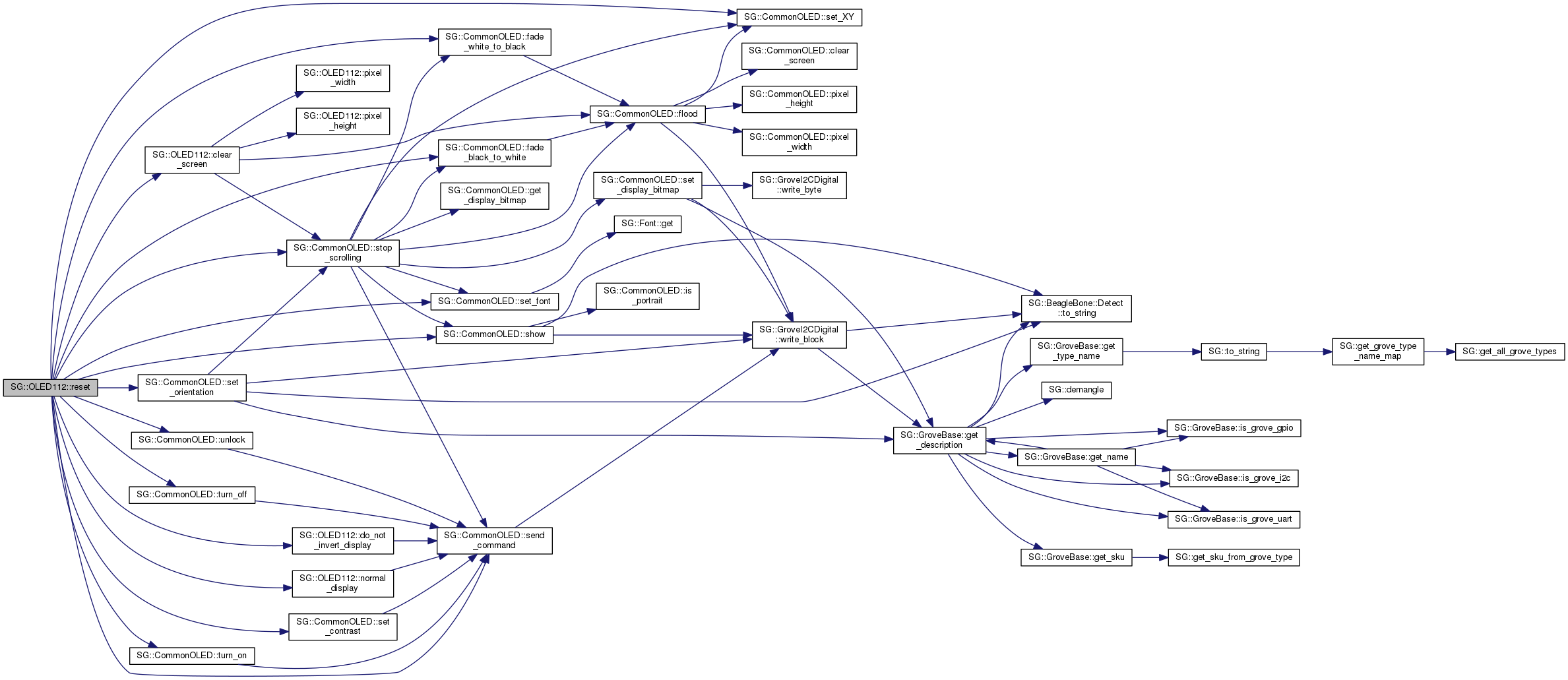

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotate_180()

SG::CommonOLED & SG::CommonOLED::rotate_180 ( void )

virtualinherited

Set the orientation for the display.

References SG::CommonOLED::kLandscape, SG::CommonOLED::kLandscape180, SG::CommonOLED::kPortrait, SG::CommonOLED::kPortrait180, SG::CommonOLED::orientation, and SG::CommonOLED::set_orientation().

Referenced by SG::CommonOLED::is_landscape().

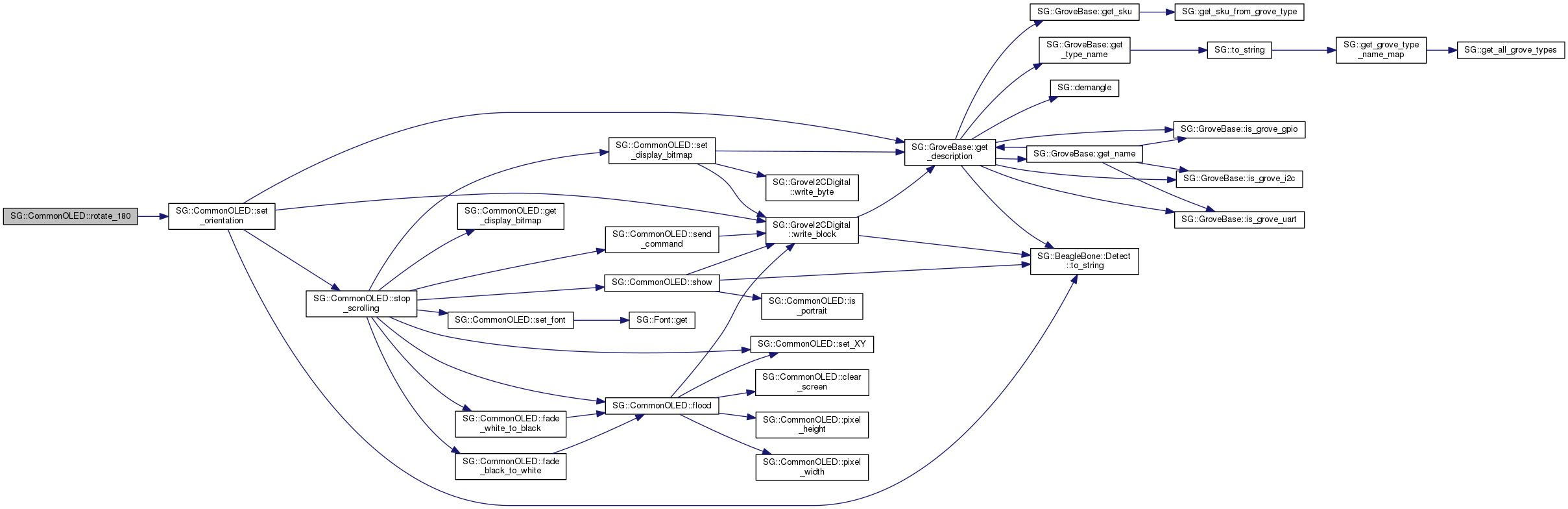

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotate_270()

SG::CommonOLED & SG::CommonOLED::rotate_270 ( void )

virtualinherited

Set the orientation for the display.

References SG::CommonOLED::kLandscape, SG::CommonOLED::kLandscape180, SG::CommonOLED::kPortrait, SG::CommonOLED::kPortrait180, SG::CommonOLED::orientation, and SG::CommonOLED::set_orientation().

Referenced by SG::CommonOLED::is_landscape().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ rotate_90()

SG::CommonOLED & SG::CommonOLED::rotate_90 ( void )

virtualinherited

Set the orientation for the display.

References SG::CommonOLED::kLandscape, SG::CommonOLED::kLandscape180, SG::CommonOLED::kPortrait, SG::CommonOLED::kPortrait180, SG::CommonOLED::orientation, and SG::CommonOLED::set_orientation().

Referenced by SG::CommonOLED::is_landscape().

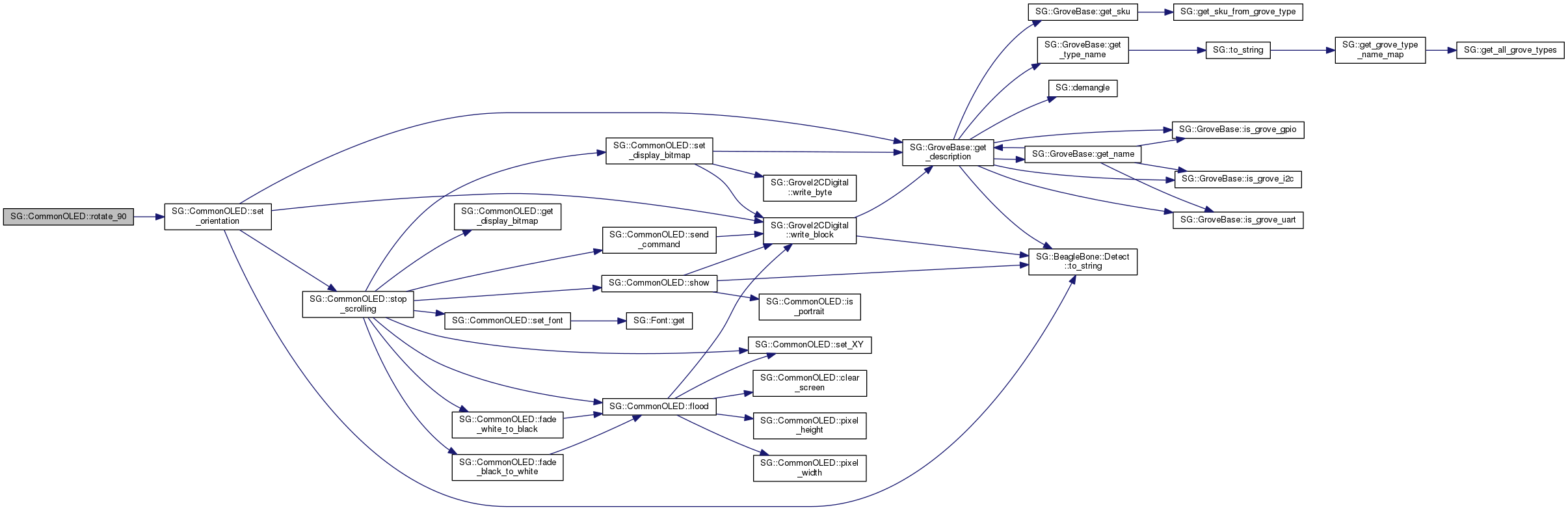

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_command() [1/2]

SG::CommonOLED & SG::CommonOLED::send_command ( const uint8_t cmd )

virtualinherited

Stop horizontal scrolling.

See also: setup_scrolling(); start_scrolling() Send a single-byte command that doesn't have any parameters.

References SG::GroveI2CDigital::write_block().

Referenced by all_on_display(), do_not_invert_display(), invert_display(), SG::CommonOLED::lock(), normal_display(), reset(), SG::CommonOLED::set_contrast(), SG::CommonOLED::start_scrolling(), SG::CommonOLED::stop_scrolling(), SG::CommonOLED::turn_off(), SG::CommonOLED::turn_on(), and SG::CommonOLED::unlock().

Here is the call graph for this function:

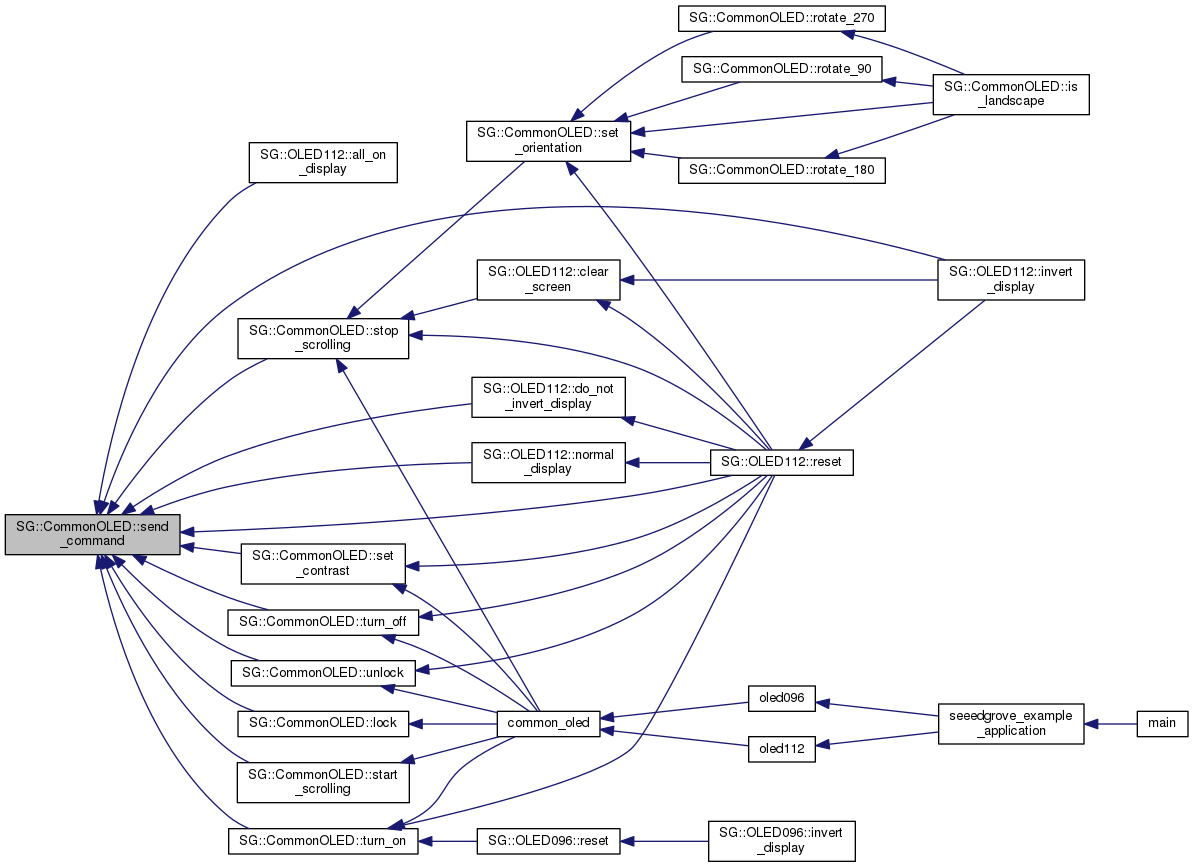

Here is the caller graph for this function:

◆ send_command() [2/2]

SG::CommonOLED & SG::CommonOLED::send_command	(	const uint8_t	cmd,
		const uint8_t	value
	)

virtualinherited

Send a command with an additional 1-byte parameter.

References SG::GroveI2CDigital::write_block().

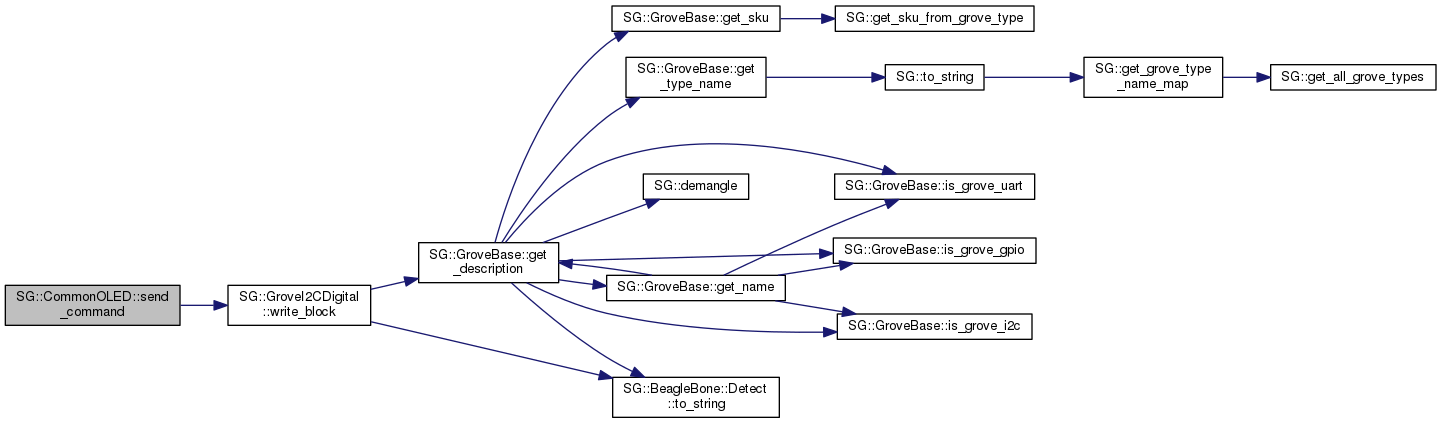

Here is the call graph for this function:

◆ set_contrast()

virtual CommonOLED& SG::CommonOLED::set_contrast ( const uint8_t level = 0x7f )

inlinevirtualinherited

Set the contrast level to a value between 0 and 255.

Parameters

[in] level Default level is 127 (0x7f). 0 is dark, and 255 is bright.

References SG::CommonOLED::send_command().

Referenced by common_oled(), and reset().

Here is the call graph for this function:

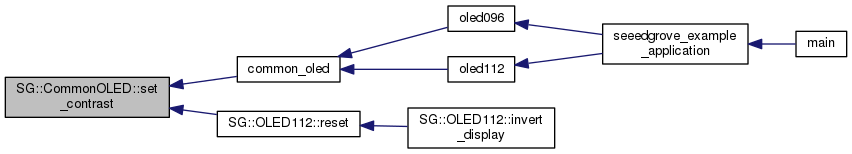

Here is the caller graph for this function:

◆ set_display_bitmap()

SG::CommonOLED & SG::CommonOLED::set_display_bitmap ( const I2CBlock & block )

virtualinherited

Set the full display bitmap.

Parameters

[in] block Must be exactly 8192 bytes to represent 128 x 128 pixels x 4 bits grayscale.

References SG::GroveBase::get_description(), SG::GroveI2CDigital::write_block(), and SG::GroveI2CDigital::write_byte().

Referenced by SG::CommonOLED::stop_scrolling().

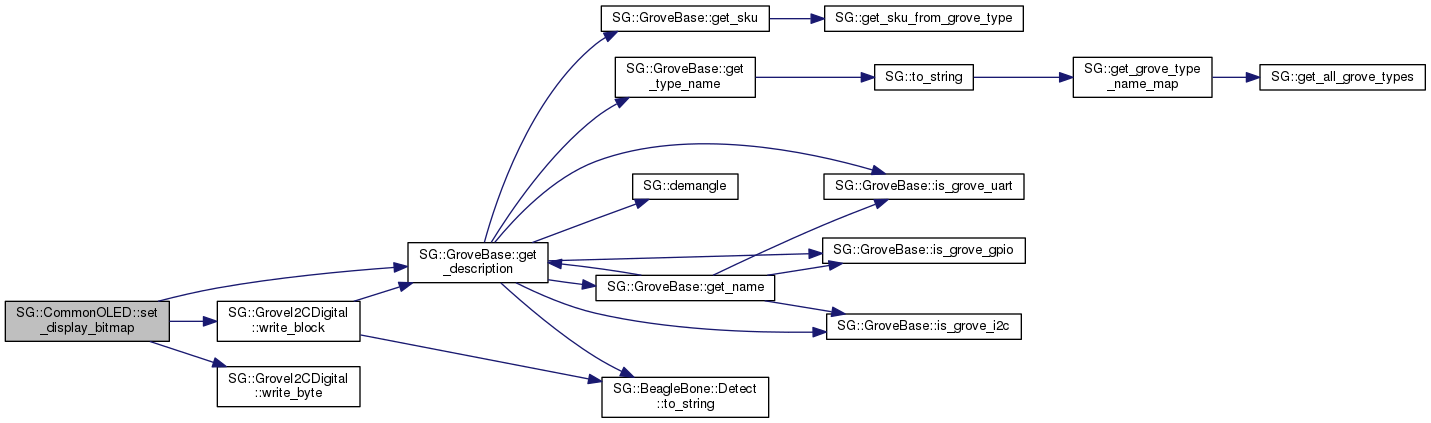

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_font() [1/2]

SG::CommonOLED & SG::CommonOLED::set_font ( const Font::EType type = SG::Font::EType::k8x8CapRouge )

virtualinherited

Set a font to use when writing text to the OLED. By default, if not explicitely set, the font used will be SG::Font::CapRouge.

Fonts included with SG++:

8x8 Cap Rouge

8x8 Courier New

8x8 DejaVu Sans

8x8 Ubuntu Mono

See also: SG::Font::EType; SG::Font::get()

References SG::Font::get().

Referenced by SG::CommonOLED::CommonOLED(), reset(), and SG::CommonOLED::stop_scrolling().

Here is the call graph for this function:

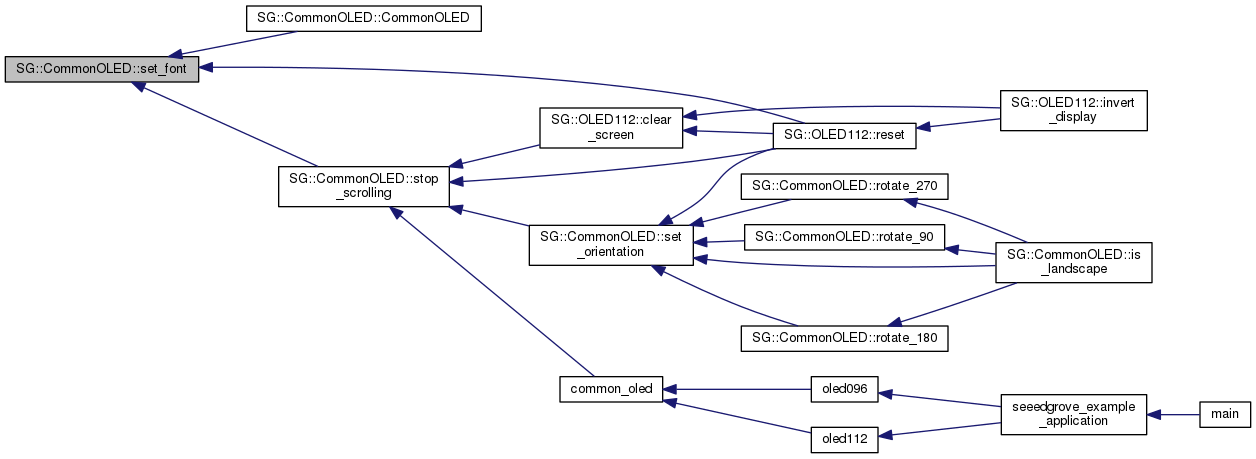

Here is the caller graph for this function:

◆ set_font() [2/2]

SG::CommonOLED & SG::CommonOLED::set_font ( std::shared_ptr< SG::Font::Monospace > font_to_use )

virtualinherited

For example:

SG::OLED112 oled( "test grove" );
oled.reset();
set_font( user_supplied_font );
oled.show( "hello" );

References SG::CommonOLED::font, and SG::CommonOLED::font_map.

◆ set_orientation()

SG::CommonOLED & SG::CommonOLED::set_orientation ( const EOrientation new_orientation = EOrientation::kLandscape )

virtualinherited

Exceptions

std::invalid_argument if the orientation is invalid.

References SG::GroveBase::get_description(), SG::CommonOLED::kLandscape, SG::CommonOLED::kLandscape180, SG::CommonOLED::kPortrait, SG::CommonOLED::kPortrait180, SG::CommonOLED::orientation, SG::CommonOLED::stop_scrolling(), SG::BeagleBone::Detect::to_string(), and SG::GroveI2CDigital::write_block().

Referenced by SG::CommonOLED::is_landscape(), reset(), SG::CommonOLED::rotate_180(), SG::CommonOLED::rotate_270(), and SG::CommonOLED::rotate_90().

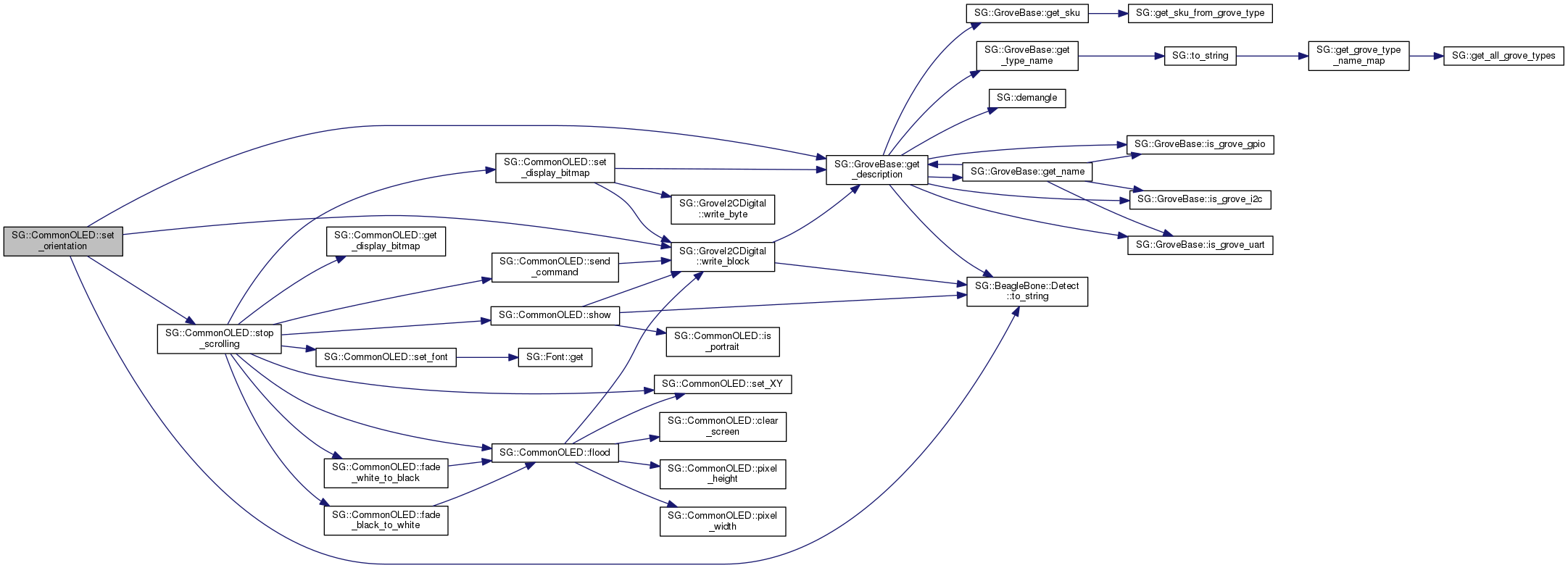

Here is the call graph for this function:

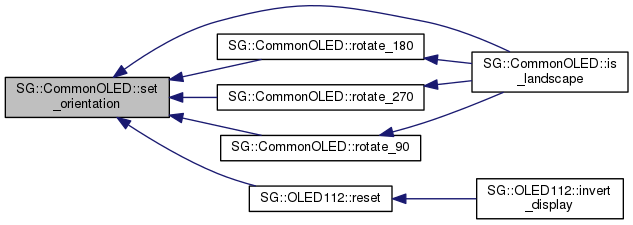

Here is the caller graph for this function:

◆ set_XY()

SG::CommonOLED & SG::CommonOLED::set_XY	(	const uint8_t	x = `0`,
		const uint8_t	y = `0`
	)

virtualinherited

Referenced by SG::CommonOLED::flood(), reset(), and SG::CommonOLED::stop_scrolling().

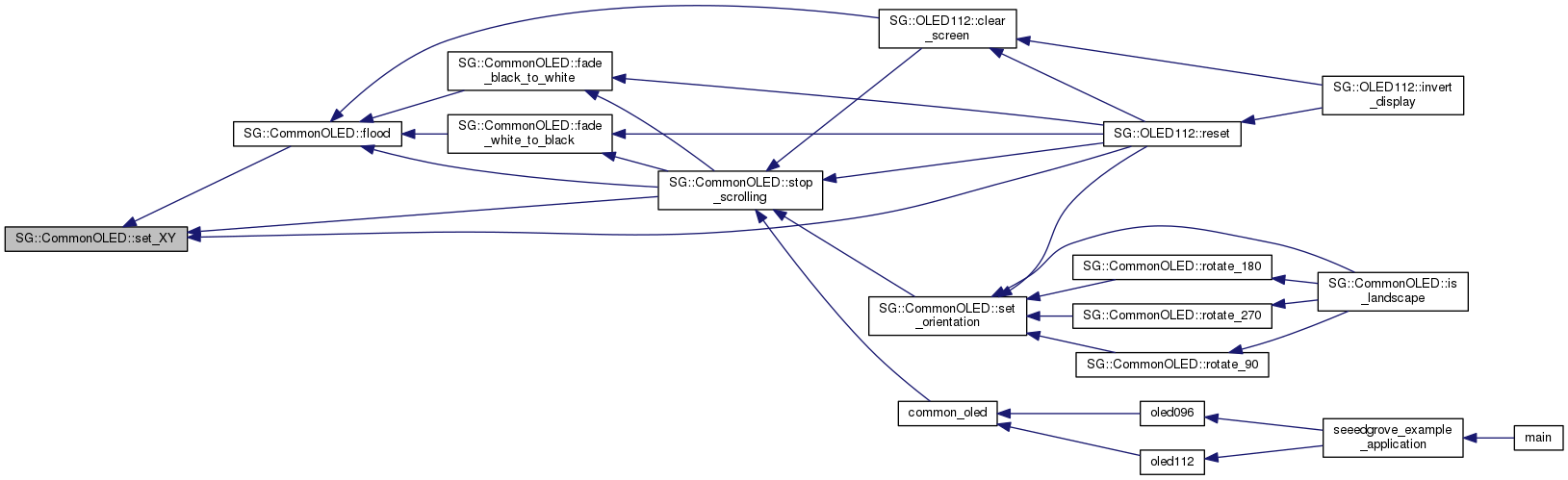

Here is the caller graph for this function:

◆ show() [1/2]

SG::CommonOLED & SG::CommonOLED::show ( const char c )

virtualinherited

Display the given text.

Exceptions

std::runtime_error if the font bitmap is the wrong size.

References SG::CommonOLED::font, SG::CommonOLED::font_map, SG::CommonOLED::is_portrait(), SG::BeagleBone::Detect::to_string(), and SG::GroveI2CDigital::write_block().

Referenced by reset(), SG::CommonOLED::show(), and SG::CommonOLED::stop_scrolling().

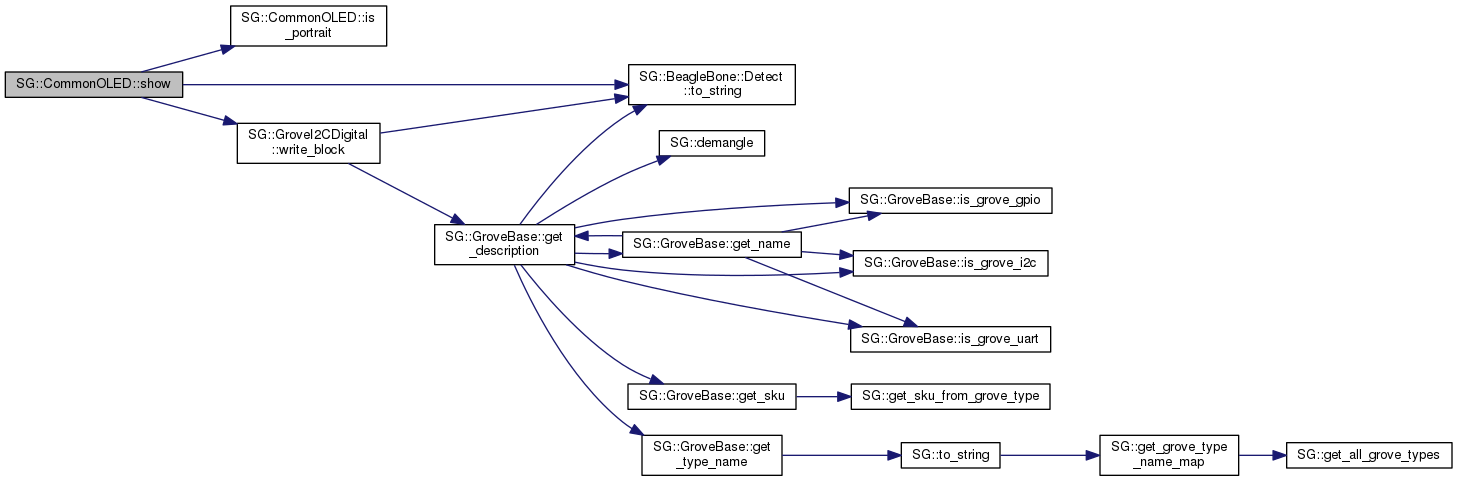

Here is the call graph for this function:

Here is the caller graph for this function:

◆ show() [2/2]

SG::CommonOLED & SG::CommonOLED::show ( const std::string & str )

virtualinherited

Display the given text.

Exceptions

std::runtime_error if the font bitmap is the wrong size.

References SG::CommonOLED::show().

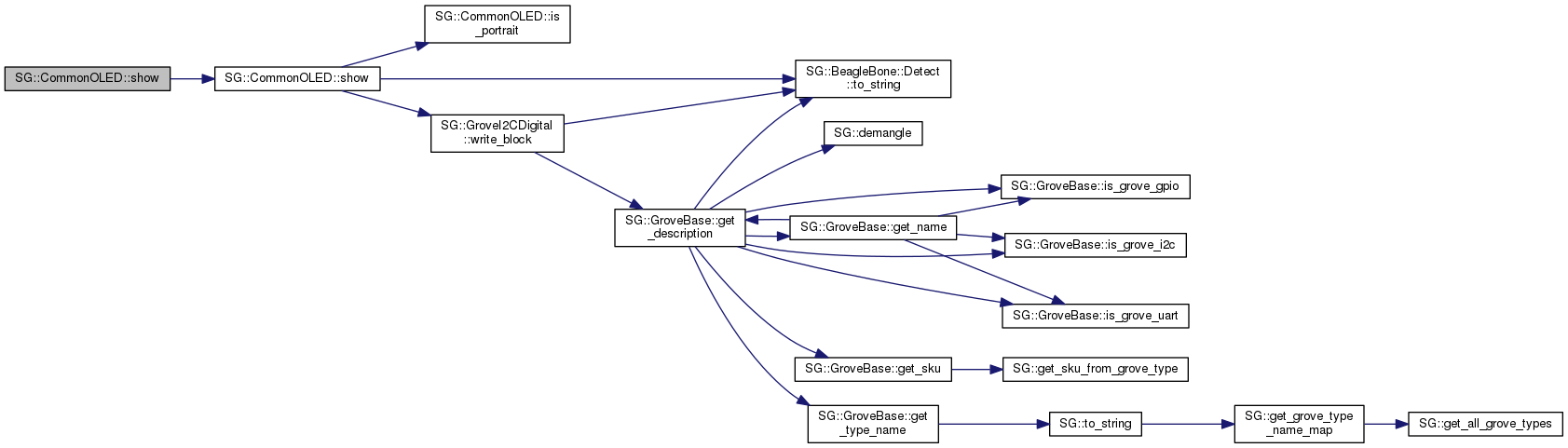

Here is the call graph for this function:

◆ start_scrolling()

virtual CommonOLED& SG::CommonOLED::start_scrolling ( void )

inlinevirtualinherited

Start horizontal scrolling. Multiple calls can be made to start_scrolling() and stop_scrolling() to start and stop scrolling multiple times.

See also: setup_scrolling(); stop_scrolling()

References SG::CommonOLED::send_command().

Referenced by common_oled().

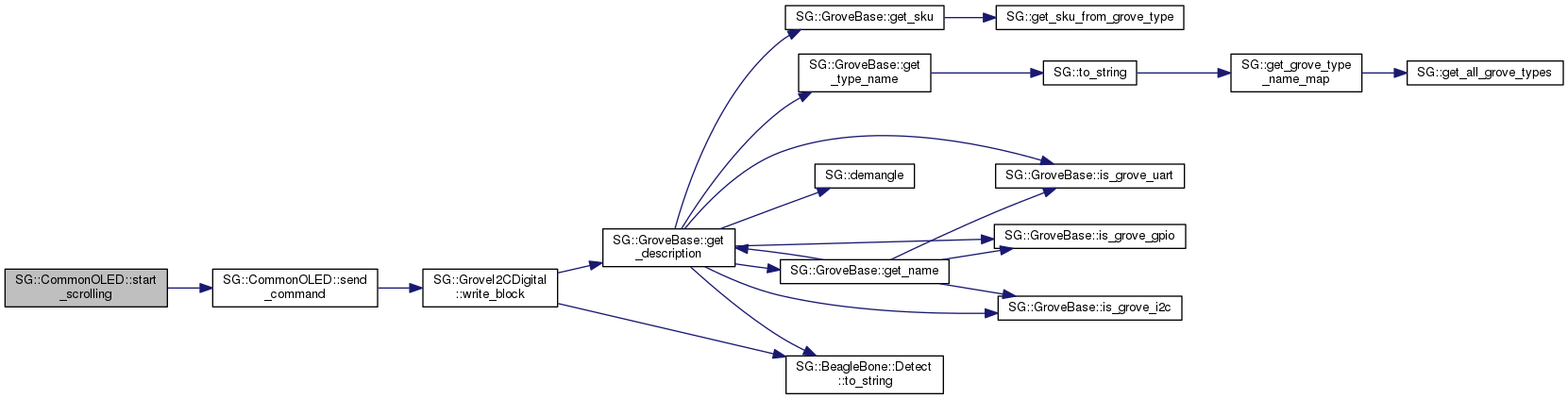

Here is the call graph for this function:

Here is the caller graph for this function:

◆ stop_scrolling()

virtual CommonOLED& SG::CommonOLED::stop_scrolling ( void )

inlinevirtualinherited

References SG::CommonOLED::fade_black_to_white(), SG::CommonOLED::fade_white_to_black(), SG::CommonOLED::flood(), SG::CommonOLED::get_display_bitmap(), SG::Font::k8x8CapRouge, SG::CommonOLED::send_command(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_font(), SG::CommonOLED::set_XY(), and SG::CommonOLED::show().

Referenced by clear_screen(), common_oled(), reset(), and SG::CommonOLED::set_orientation().

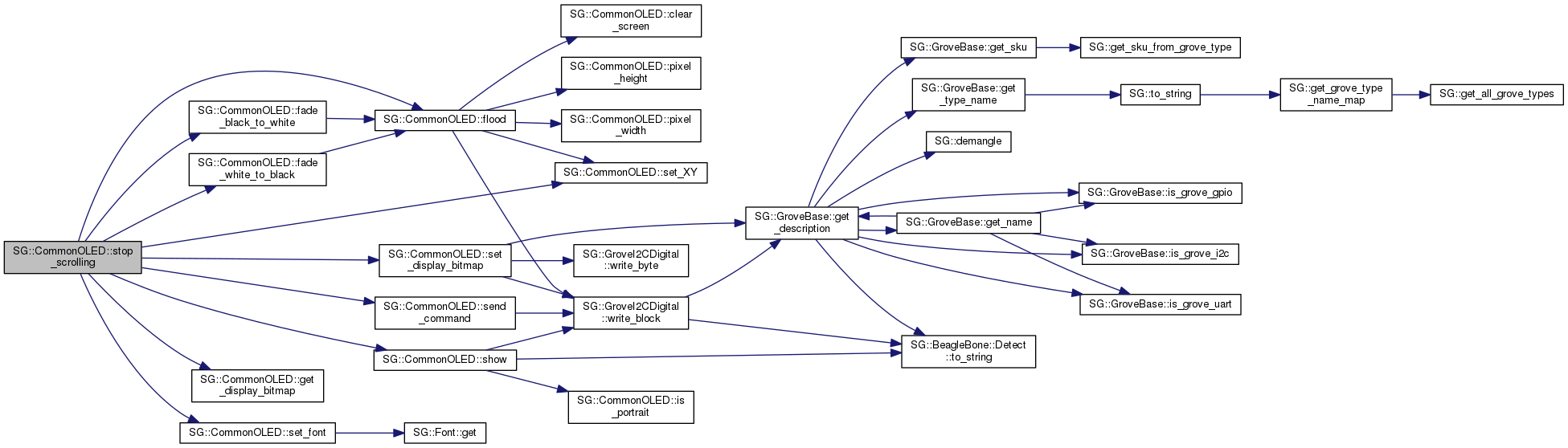

Here is the call graph for this function:

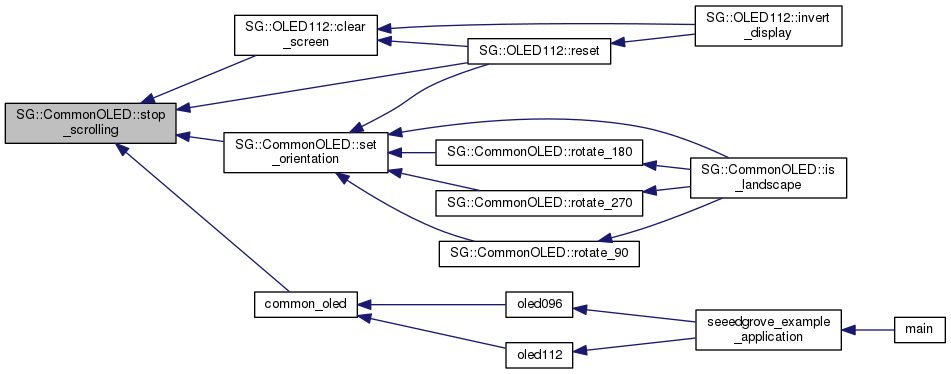

Here is the caller graph for this function:

◆ turn_off()

virtual CommonOLED& SG::CommonOLED::turn_off ( void )

inlinevirtualinherited

turn OFF the OLED.

References SG::CommonOLED::send_command().

Referenced by common_oled(), and reset().

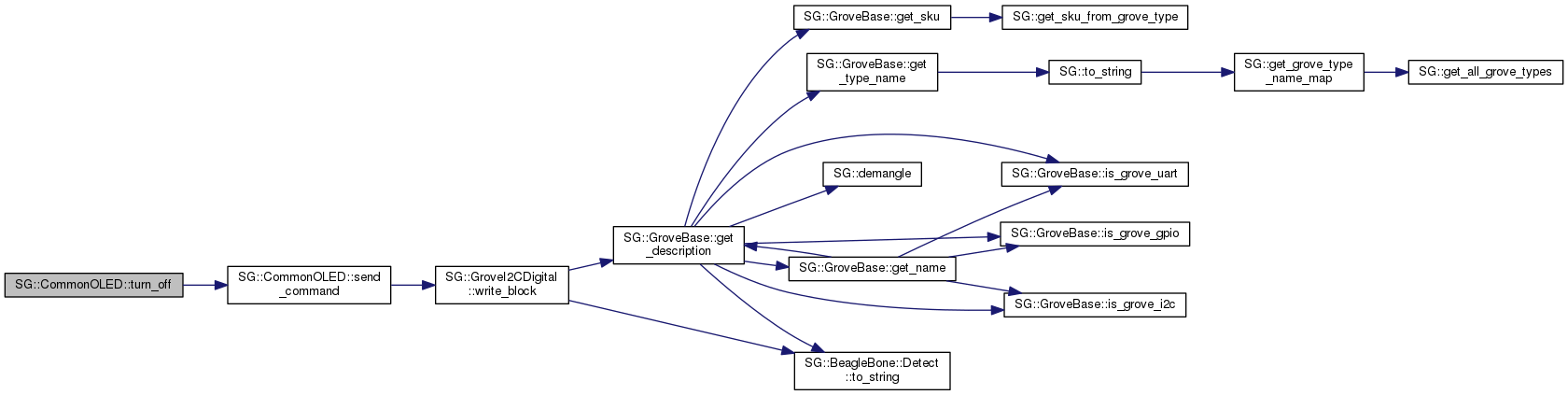

Here is the call graph for this function:

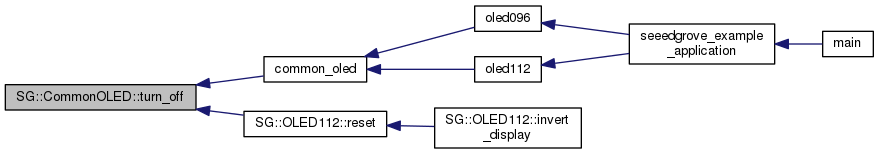

Here is the caller graph for this function:

◆ turn_on()

virtual CommonOLED& SG::CommonOLED::turn_on ( void )

inlinevirtualinherited

Turn ON the OLED.

References SG::CommonOLED::send_command().

Referenced by common_oled(), SG::OLED096::reset(), and reset().

Here is the call graph for this function:

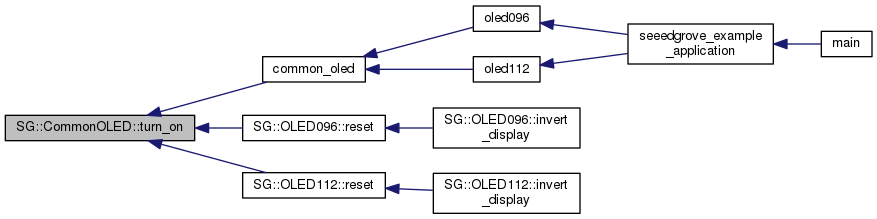

Here is the caller graph for this function:

◆ unlock()

virtual CommonOLED& SG::CommonOLED::unlock ( void )

inlinevirtualinherited

Unlock the OLED driver IC MCU.

See also: lock()

References SG::CommonOLED::send_command().

Referenced by common_oled(), and reset().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write16()

SG::GroveI2CDigital & SG::GroveI2CDigital::write16	(	const I2CRegister	reg,
		const uint16_t	value
	)

virtualinherited

Note: The high/low bytes in the 16-bit word are swapped prior to writting.

Exceptions

std::system_error if the value cannot be written.

Referenced by SG::GroveI2CDigital::read12(), and SG::I2CADC::write16().

Here is the caller graph for this function:

◆ write8()

SG::GroveI2CDigital & SG::GroveI2CDigital::write8	(	const I2CRegister	reg,
		const uint8_t	value
	)

virtualinherited

Write the given value to the specified register.

Exceptions

std::system_error if the value cannot be written.

Referenced by SG::GroveI2CDigital::read12(), SG::ThreeAxisDigitalCompass::set_config(), SG::ThreeAxisDigitalCompass::set_mode(), and SG::I2CADC::write8().

Here is the caller graph for this function:

◆ write_block() [1/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write_block	(	const I2CRegister	reg,
		const I2CBlock &	v
	)

virtualinherited

Write a consecutive block of bytes, anywhere between 1 and 32 bytes in length.

See also: read_block()

Exceptions

std::length_error	if the block is too long to write.
std::system_error	if the block failed to write.

References SG::GroveBase::get_description(), SG::GroveI2CDigital::i2c_address, and SG::BeagleBone::Detect::to_string().

Referenced by SG::CommonOLED::flood(), SG::GroveI2CDigital::read12(), SG::OLED096::reset(), SG::CommonOLED::send_command(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), and SG::CommonOLED::show().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_block() [2/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write_block ( const I2CBlock & v )

virtualinherited

Write a consecutive block of bytes directly to the I2C file handle.

Exceptions

std::system_error if the block failed to write.

References SG::GroveBase::get_description(), SG::GroveI2CDigital::i2c_address, SG::GroveI2CDigital::i2c_file_handle, and SG::BeagleBone::Detect::to_string().

Here is the call graph for this function:

◆ write_byte()

SG::GroveI2CDigital & SG::GroveI2CDigital::write_byte ( const uint8_t value )

virtualinherited

Write a single byte to the I2C bus.

Exceptions

std::system_error if the value cannot be writen.

Referenced by SG::OLED096::all_off_display(), SG::OLED096::all_on_display(), SG::OLED096::invert_display(), SG::OLED096::normal_display(), SG::GroveI2CDigital::read12(), and SG::CommonOLED::set_display_bitmap().

Here is the caller graph for this function:

Member Data Documentation

◆ font

std::shared_ptr<Font::Monospace> SG::CommonOLED::font

protectedinherited

Font used when writing text to the OLED. Default is SG::Font::CapRouge.

See also: set_font()

Referenced by SG::CommonOLED::set_font(), and SG::CommonOLED::show().

◆ font_map

Font::Monospace::Fontmap SG::CommonOLED::font_map

protectedinherited

Font used when writing text to the OLED. Default is SG::Font::CapRouge.

See also: set_font()

Referenced by SG::CommonOLED::set_font(), and SG::CommonOLED::show().

◆ grove_name

std::string SG::GroveBase::grove_name

inherited

User-supplied name.

Referenced by SG::GroveBase::get_name(), and SG::GroveBase::operator=().

◆ grove_type

EGroveType SG::GroveBase::grove_type

inherited

Grove type.

Referenced by SG::GroveBase::get_sku(), SG::GroveBase::get_type(), SG::GroveBase::get_type_name(), and SG::GroveBase::operator=().

◆ i2c_address

I2CAddress SG::GroveI2CDigital::i2c_address

inherited

The I2C address used to communicate with the Grove device.

Referenced by SG::GroveI2CDigital::GroveI2CDigital(), SG::I2CADC::operator==(), and SG::GroveI2CDigital::write_block().

◆ i2c_bus_number

I2CBus SG::GroveI2CDigital::i2c_bus_number

inherited

The bus number to use for I2C Grove twigs.

The exposed I2C bus is usually 1 or 2. This is normally auto-detected by detect_i2c_bus_number() called by the constructor, and doesn't need to be manually set.

Referenced by SG::GroveI2CDigital::GroveI2CDigital().

◆ i2c_file_handle

int SG::GroveI2CDigital::i2c_file_handle

inherited

The file handle to /dev/i2c-* used to communicate with the Grove device.

Referenced by SG::GroveI2CDigital::GroveI2CDigital(), SG::GroveI2CDigital::write_block(), and SG::GroveI2CDigital::~GroveI2CDigital().

◆ orientation

EOrientation SG::CommonOLED::orientation

protectedinherited

Landscape or portrait mode.

Referenced by SG::CommonOLED::get_orientation(), SG::CommonOLED::is_landscape(), SG::CommonOLED::is_portrait(), SG::CommonOLED::rotate_180(), SG::CommonOLED::rotate_270(), SG::CommonOLED::rotate_90(), and SG::CommonOLED::set_orientation().

The documentation for this class was generated from the following files:

src-groves/sg_104030008_OLED112.hpp
src-groves/sg_104030008_OLED112.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Attributes

Detailed Description

Member Typedef Documentation

◆ I2CAddress

◆ I2CBlock

◆ I2CBus

◆ I2CRegister

Member Enumeration Documentation

◆ EOrientation

Constructor & Destructor Documentation

◆ ~OLED112()

◆ OLED112()

Member Function Documentation

◆ all_off_display()

◆ all_on_display()

◆ clear_screen()

◆ detect_i2c_bus_number()

◆ do_not_invert_display()

◆ fade_black_to_white()

◆ fade_white_to_black()

◆ flood()

◆ get_address_from_type() [1/2]

◆ get_address_from_type() [2/2]

◆ get_description()

◆ get_display_bitmap()

◆ get_name()

◆ get_orientation()

◆ get_sku()

◆ get_type()

◆ get_type_name()

◆ invert_display()

◆ is_analog()

◆ is_digital()

◆ is_grove_gpio()

◆ is_grove_i2c()

◆ is_grove_uart()

◆ is_landscape()

◆ is_portrait()

◆ lock()

◆ memory_depth()

◆ memory_height()

◆ memory_width()

◆ normal_display()

◆ operator!=()

◆ operator==()

◆ pixel_depth()

◆ pixel_height()

◆ pixel_width()

◆ read12()

◆ read16()

◆ read8()

◆ read_block()

◆ reset()

◆ rotate_180()

◆ rotate_270()

◆ rotate_90()

◆ send_command() [1/2]

◆ send_command() [2/2]

◆ set_contrast()

◆ set_display_bitmap()

◆ set_font() [1/2]

◆ set_font() [2/2]

◆ set_orientation()

◆ set_XY()

◆ show() [1/2]

◆ show() [2/2]

◆ start_scrolling()

◆ stop_scrolling()

◆ turn_off()

◆ turn_on()

◆ unlock()

◆ write16()

◆ write8()

◆ write_block() [1/2]

◆ write_block() [2/2]

◆ write_byte()
