juce::SingleThreadedIIRFilter Class Reference

An IIR filter that can perform low, high, or band-pass filtering on an audio signal, with no thread-safety guarantees. More...

#include <juce_IIRFilter.h>

Inheritance diagram for juce::SingleThreadedIIRFilter:

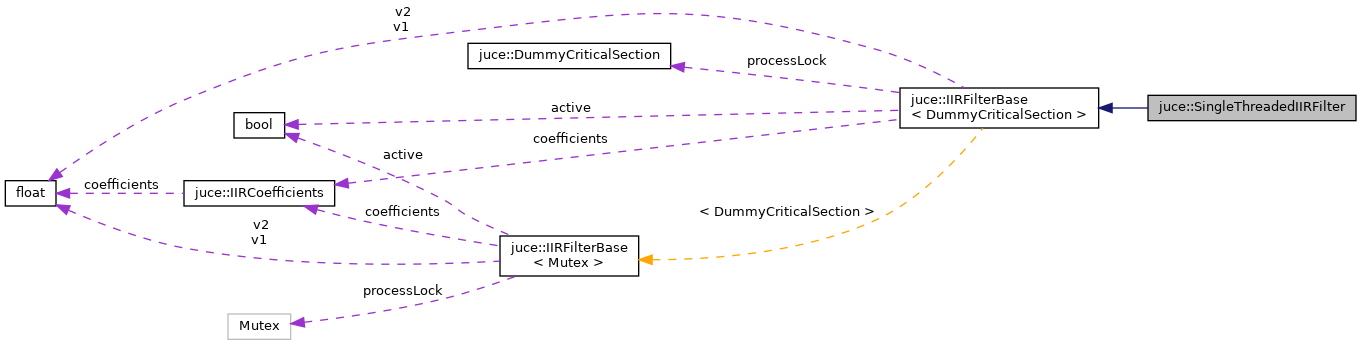

Collaboration diagram for juce::SingleThreadedIIRFilter:

Public Member Functions

IIRCoefficients getCoefficients () const noexcept
 Returns the coefficients that this filter is using. More...

 IIRFilterBase () noexcept
 Creates a filter. More...

 IIRFilterBase (const IIRFilterBase &) noexcept
 Creates a copy of another filter. More...

void makeInactive () noexcept
 Clears the filter so that any incoming data passes through unchanged. More...

void processSamples (float *samples, int numSamples) noexcept
 Performs the filter operation on the given set of samples. More...

float processSingleSampleRaw (float sample) noexcept
 Processes a single sample, without any locking or checking. More...

void reset () noexcept
 Resets the filter's processing pipeline, ready to start a new stream of data. More...

void setCoefficients (const IIRCoefficients &newCoefficients) noexcept
 Applies a set of coefficients to this filter. More...


Protected Attributes

bool active

IIRCoefficients coefficients

DummyCriticalSection processLock

float v1

float v2


Detailed Description

An IIR filter that can perform low, high, or band-pass filtering on an audio signal, with no thread-safety guarantees.

You should use this class if you need an IIR filter, and don't plan to call its member functions from multiple threads at once.

See also
IIRFilter, IIRCoefficient, IIRFilterAudioSource

@tags{Audio}

Member Function Documentation

◆ getCoefficients()

IIRCoefficients juce::IIRFilterBase< DummyCriticalSection >::getCoefficients
inlinenoexceptinherited

Returns the coefficients that this filter is using.

◆ IIRFilterBase() [1/2]

juce::IIRFilterBase< Mutex >::IIRFilterBase
noexcept

Creates a filter.

Initially the filter is inactive, so will have no effect on samples that you process with it. Use the setCoefficients() method to turn it into the type of filter needed.

◆ IIRFilterBase() [2/2]

juce::IIRFilterBase< Mutex >::IIRFilterBase
noexcept

Creates a copy of another filter.

◆ makeInactive()

void juce::IIRFilterBase< DummyCriticalSection >::makeInactive
noexceptinherited

Clears the filter so that any incoming data passes through unchanged.

◆ processSamples()

void juce::IIRFilterBase< DummyCriticalSection >::processSamples ( float samples,
int  numSamples
)
noexceptinherited

Performs the filter operation on the given set of samples.

◆ processSingleSampleRaw()

float juce::IIRFilterBase< DummyCriticalSection >::processSingleSampleRaw ( float  sample)
noexceptinherited

Processes a single sample, without any locking or checking.

Use this if you need fast processing of a single value, but be aware that this isn't thread-safe in the way that processSamples() is.

◆ reset()

void juce::IIRFilterBase< DummyCriticalSection >::reset
noexceptinherited

Resets the filter's processing pipeline, ready to start a new stream of data.

Note that this clears the processing state, but the type of filter and its coefficients aren't changed. To put a filter into an inactive state, use the makeInactive() method.

◆ setCoefficients()

void juce::IIRFilterBase< DummyCriticalSection >::setCoefficients ( const IIRCoefficients newCoefficients)
noexceptinherited

Applies a set of coefficients to this filter.

Member Data Documentation

◆ active

bool juce::IIRFilterBase< DummyCriticalSection >::active
protectedinherited

◆ coefficients

IIRCoefficients juce::IIRFilterBase< DummyCriticalSection >::coefficients
protectedinherited

◆ processLock

◆ v1

float juce::IIRFilterBase< DummyCriticalSection >::v1
protectedinherited

◆ v2

float juce::IIRFilterBase< DummyCriticalSection >::v2
protectedinherited

The documentation for this class was generated from the following file:
