juce::dsp::ProcessorChain< Processors > Class Template Reference

This variadically-templated class lets you join together any number of processor classes into a single processor which will call process() on them all in sequence. More...

#include <juce_ProcessorChain.h>

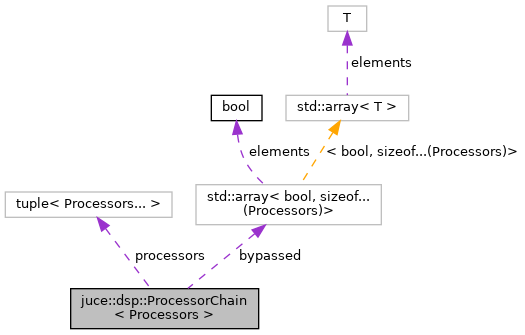

Collaboration diagram for juce::dsp::ProcessorChain< Processors >:

Public Member Functions
template<int Index>
const auto &	get () const noexcept
	Get a reference to the processor at index Index. More...
template<int Index>
auto &	get () noexcept
	Get a reference to the processor at index Index. More...
template<int Index>
bool	isBypassed () const noexcept
	Query whether the processor at index Index is bypassed. More...
void	prepare (const ProcessSpec &spec)
	Prepare all inner processors with the provided ProcessSpec. More...
template<typename ProcessContext >
void	process (const ProcessContext &context) noexcept
	Process context through all inner processors in sequence. More...
void	reset ()
	Reset all inner processors. More...
template<int Index>
void	setBypassed (bool b) noexcept
	Set the processor at index Index to be bypassed or enabled. More...

Private Member Functions
template<typename Context , typename Proc , size_t Ix, std::enable_if_t<! detail::UseContextDirectly< Context, Ix >::value, int > = 0>
void	processOne (const Context &context, Proc &proc, std::integral_constant< size_t, Ix >) noexcept
template<typename Context , typename Proc , size_t Ix, std::enable_if_t< detail::UseContextDirectly< Context, Ix >::value, int > = 0>
void	processOne (const Context &context, Proc &proc, std::integral_constant< size_t, Ix >) noexcept

Private Attributes
std::array< bool, sizeof...(Processors)>	bypassed { {} }
std::tuple< Processors... >	processors

Detailed Description

template<typename... Processors>
class juce::dsp::ProcessorChain< Processors >

This variadically-templated class lets you join together any number of processor classes into a single processor which will call process() on them all in sequence.

@tags{DSP}

Member Function Documentation

get() [1/2]

template<typename... Processors>

template<int Index>

const auto& juce::dsp::ProcessorChain< Processors >::get ( ) const

inlinenoexcept

Get a reference to the processor at index Index.

References juce::dsp::ProcessorChain< Processors >::processors.

get() [2/2]

template<typename... Processors>

template<int Index>

auto& juce::dsp::ProcessorChain< Processors >::get ( )

inlinenoexcept

Get a reference to the processor at index Index.

References juce::dsp::ProcessorChain< Processors >::processors.

isBypassed()

template<typename... Processors>

template<int Index>

bool juce::dsp::ProcessorChain< Processors >::isBypassed ( ) const

inlinenoexcept

Query whether the processor at index Index is bypassed.

References juce::dsp::ProcessorChain< Processors >::bypassed.

prepare()

template<typename... Processors>

void juce::dsp::ProcessorChain< Processors >::prepare ( const ProcessSpec &  spec )

inline

Prepare all inner processors with the provided ProcessSpec.

References juce::dsp::ProcessorChain< Processors >::processors.

process()

template<typename... Processors>

template<typename ProcessContext >

void juce::dsp::ProcessorChain< Processors >::process ( const ProcessContext &  context )

inlinenoexcept

Process context through all inner processors in sequence.

References juce::gl::index, juce::dsp::ProcessorChain< Processors >::processOne(), and juce::dsp::ProcessorChain< Processors >::processors.

processOne() [1/2]

template<typename... Processors>

template<typename Context , typename Proc , size_t Ix, std::enable_if_t<! detail::UseContextDirectly< Context, Ix >::value, int > = 0>

void juce::dsp::ProcessorChain< Processors >::processOne ( const Context &  context, Proc &  proc, std::integral_constant< size_t, Ix >    )

inlineprivatenoexcept

References juce::dsp::ProcessorChain< Processors >::bypassed, juce::dsp::ProcessContextReplacing< ContextSampleType >::isBypassed, and jassert.

Referenced by juce::dsp::ProcessorChain< Processors >::process().

processOne() [2/2]

template<typename... Processors>

template<typename Context , typename Proc , size_t Ix, std::enable_if_t< detail::UseContextDirectly< Context, Ix >::value, int > = 0>

void juce::dsp::ProcessorChain< Processors >::processOne ( const Context &  context, Proc &  proc, std::integral_constant< size_t, Ix >    )

inlineprivatenoexcept

References juce::dsp::ProcessorChain< Processors >::bypassed.

reset()

template<typename... Processors>

void juce::dsp::ProcessorChain< Processors >::reset ( )

inline

Reset all inner processors.

References juce::dsp::ProcessorChain< Processors >::processors.

setBypassed()

template<typename... Processors>

template<int Index>

void juce::dsp::ProcessorChain< Processors >::setBypassed ( bool  b )

inlinenoexcept

Set the processor at index Index to be bypassed or enabled.

References juce::gl::b, and juce::dsp::ProcessorChain< Processors >::bypassed.

Member Data Documentation

bypassed

template<typename... Processors>

std::array<bool, sizeof...(Processors)> juce::dsp::ProcessorChain< Processors >::bypassed { {} }

private

Referenced by juce::dsp::ProcessorChain< Processors >::isBypassed(), juce::dsp::ProcessorChain< Processors >::processOne(), and juce::dsp::ProcessorChain< Processors >::setBypassed().

processors

template<typename... Processors>

std::tuple<Processors...> juce::dsp::ProcessorChain< Processors >::processors

private

Referenced by juce::dsp::ProcessorChain< Processors >::get(), juce::dsp::ProcessorChain< Processors >::prepare(), juce::dsp::ProcessorChain< Processors >::process(), and juce::dsp::ProcessorChain< Processors >::reset().

---

The documentation for this class was generated from the following file:

• juce_ProcessorChain.h
