Represents the component object. More...

#include "message.h"

Inheritance diagram for dpp::component:

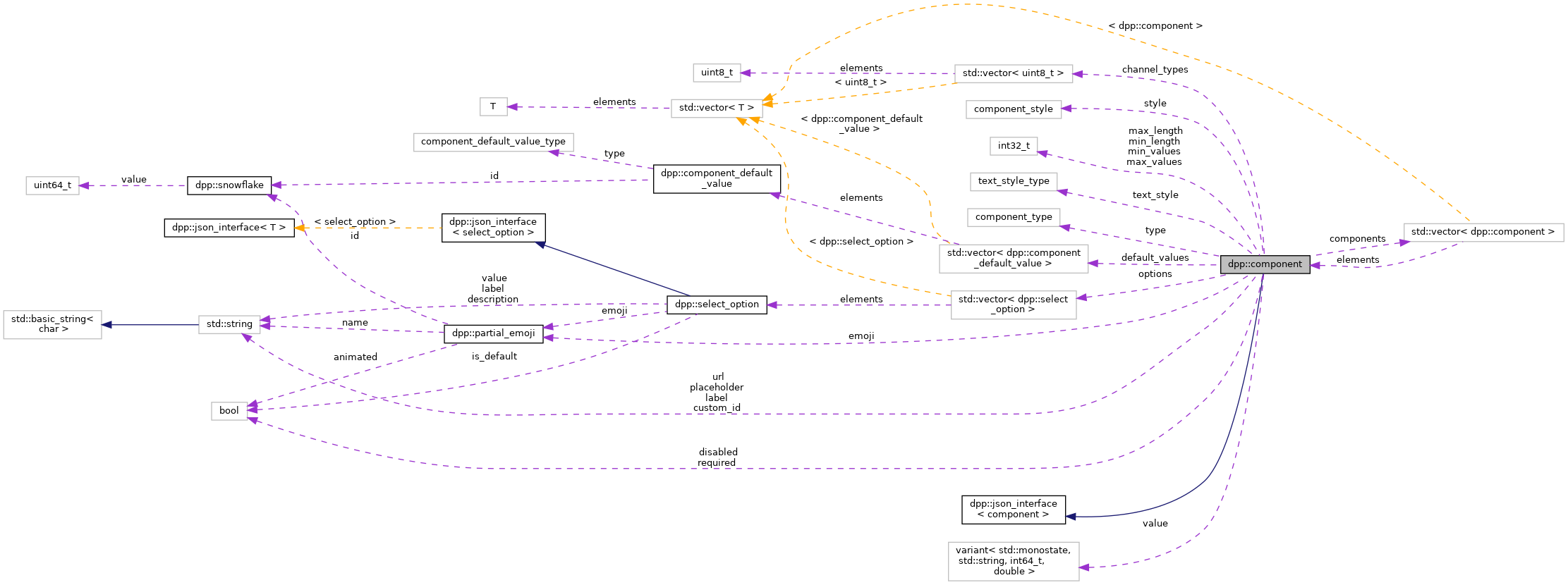

Collaboration diagram for dpp::component:

[legend]

Public Member Functions
	component ()
	Constructor. More...

virtual	~component ()=default
	Destructor. More...

component &	add_channel_type (uint8_t ct)
	Add a channel type to include in the channel select component (dpp::cot_channel_selectmenu) More...

component &	add_component (const component &c)
	Add a sub-component, only valid for action rows. More...

component &	add_default_value (const snowflake id, const component_default_value_type type)
	Add a default value. More...

component &	add_select_option (const select_option &option)
	Add a select option. More...

template<typename U = T, typename = decltype(std::declval<U&>().to_json_impl(bool{}))>
std::string	build_json (bool with_id=false) const
	Convert object to json string. More...

template<typename U = T, typename = decltype(std::declval<U&>().fill_from_json_impl(std::declval<nlohmann::json*>()))>
T &	fill_from_json (nlohmann::json *j)
	Convert object from nlohmann::json. More...

component &	set_default_value (const std::string &val)
	Set the default value of the text input component. More...

component &	set_disabled (bool disable)
	Set the component to disabled. More...

component &	set_emoji (const std::string &name, dpp::snowflake id=0, bool animated=false)
	Set the emoji of the current sub-component. More...

component &	set_id (const std::string &id)
	Set the id of the component. More...

component &	set_label (const std::string &label)
	Set the label of the component, e.g. More...

component &	set_max_length (uint32_t max_l)
	Set the maximum input length for a text input. More...

component &	set_max_values (uint32_t max_values)
	Set the maximum number of items that can be chosen for a select menu. More...

component &	set_min_length (uint32_t min_l)
	Set the minimum input length for a text input. More...

component &	set_min_values (uint32_t min_values)
	Set the minimum number of items that must be chosen for a select menu. More...

component &	set_placeholder (const std::string &placeholder)
	Set the placeholder. More...

component &	set_required (bool require)
	Set if this component is required. More...

component &	set_style (component_style cs)
	Set the style of the component, e.g. More...

component &	set_text_style (text_style_type ts)
	Set the text style of a text component. More...

component &	set_type (component_type ct)
	Set the type of the component. More...

component &	set_url (const std::string &url)
	Set the url for dpp::cos_link types. More...

template<typename U = T, typename = decltype(std::declval<U&>().to_json_impl(bool{}))>
auto	to_json (bool with_id=false) const
	Convert object to nlohmann::json. More...

Public Attributes
std::vector< uint8_t >	channel_types
	List of channel types (dpp::channel_type) to include in the channel select component (dpp::cot_channel_selectmenu) More...

std::vector< component >	components
	Sub components, buttons on an action row. More...

std::string	custom_id
	Component id (for buttons, menus, text inputs). More...

std::vector< component_default_value >	default_values
	List of default values for auto-populated select menu components. More...

bool	disabled
	Disabled flag (for buttons) More...

partial_emoji	emoji
	The emoji for this component. More...

std::string	label
	Component label (for buttons, text inputs). More...

int32_t	max_length
	Maximum length for text input (1-4000) More...

int32_t	max_values
	Maximum number of items that can be chosen for a select menu (0-25). More...

int32_t	min_length
	Minimum length for text input (0-4000) More...

int32_t	min_values
	Minimum number of items that must be chosen for a select menu (0-25). More...

std::vector< select_option >	options
	Select options for select menus. More...

std::string	placeholder
	Placeholder text for select menus and text inputs (max 150 characters) More...

bool	required
	Whether the text input is required to be filled. More...

component_style	style
	Component style (for buttons). More...

text_style_type	text_style
	Text style (for text inputs). More...

component_type	type
	Component type, either a button or action row. More...

std::string	url
	URL for link types (dpp::cos_link). More...

std::variant< std::monostate, std::string, int64_t, double >	value
	Value of the modal. More...

Protected Member Functions
component &	fill_from_json_impl (nlohmann::json *j)
	Read class values from json object. More...

Friends
struct	json_interface< component >

Detailed Description

Represents the component object.

A component is a clickable button or drop down list within a discord message, where the buttons emit on_button_click events when the user interacts with them.

You should generally define one component object and then insert one or more additional components into it using component::add_component(), so that the parent object is an action row and the child objects are buttons.

Constructor & Destructor Documentation

◆ component()

dpp::component::component ( )

Constructor.

References max_values.

◆ ~component()

virtual dpp::component::~component ( )

virtualdefault

Destructor.

Member Function Documentation

◆ add_channel_type()

component & dpp::component::add_channel_type ( uint8_t ct )

Add a channel type to include in the channel select component (dpp::cot_channel_selectmenu)

Parameters

ct	The dpp::channel_type

Returns: component& reference to self

◆ add_component()

component & dpp::component::add_component ( const component & c )

Add a sub-component, only valid for action rows.

Adding subcomponents to a component will automatically set this component's type to dpp::cot_action_row.

Parameters

c	The sub-component to add

Returns: component& reference to self

◆ add_default_value()

component & dpp::component::add_default_value	(	const snowflake	id,
		const component_default_value_type	type
	)

Add a default value.

Parameters

id	Default value. ID of a user, role, or channel
type	The type this default value represents

◆ add_select_option()

component & dpp::component::add_select_option ( const select_option & option )

Add a select option.

Parameters

option option to add

Returns: component& Reference to self

References dpp::string_not_null(), and dpp::poll_media::text.

Here is the call graph for this function:

◆ build_json()

template<typename T >

template<typename U = T, typename = decltype(std::declval<U&>().to_json_impl(bool{}))>

std::string dpp::json_interface< T >::build_json ( bool with_id = false ) const

inlineinherited

Convert object to json string.

Parameters

with_id Whether to include the ID or not

Note: Some fields are conditionally filled, do not rely on all fields being present

Returns: std::string Json built from the structure

Referenced by dpp::cluster::create_webhook(), dpp::cluster::guild_ban_add(), dpp::cluster::guild_ban_delete(), dpp::cluster::guild_command_edit_permissions(), dpp::cluster::guild_create(), dpp::cluster::guild_get_integrations(), dpp::cluster::guild_get_preview(), dpp::cluster::guild_get_vanity(), and dpp::cluster::roles_get().

Here is the caller graph for this function:

◆ fill_from_json()

template<typename T >

template<typename U = T, typename = decltype(std::declval<U&>().fill_from_json_impl(std::declval<nlohmann::json*>()))>

T& dpp::json_interface< T >::fill_from_json ( nlohmann::json * j )

inlineinherited

Convert object from nlohmann::json.

Parameters

j	nlohmann::json object

Returns: T& Reference to self for fluent calling

Referenced by dpp::invite::fill_from_json_impl(), dpp::thread::fill_from_json_impl(), dpp::scheduled_event::fill_from_json_impl(), dpp::from_json(), dpp::message::get_url(), and dpp::interaction_response::interaction_response().

Here is the caller graph for this function:

◆ fill_from_json_impl()

component & dpp::component::fill_from_json_impl ( nlohmann::json * j )

protected

Read class values from json object.

Parameters

j	A json object to read from

Returns: A reference to self

◆ set_default_value()

component & dpp::component::set_default_value ( const std::string & val )

Set the default value of the text input component.

For action rows, this field is ignored. Setting the value will auto-set the type to dpp::cot_text.

Parameters

val	Value text to set. It will be truncated to the maximum length of 4000 UTF-8 characters.

Returns: component& Reference to self

◆ set_disabled()

component & dpp::component::set_disabled ( bool disable )

Set the component to disabled.

Defaults to false on all created components.

Parameters

disable True to disable, false to disable.

Returns: component& Reference to self

References dpp::cot_action_row, dpp::cot_button, dpp::managed::id, dpp::unicode_emoji::id, dpp::emoji::name, set_type(), and type.

Here is the call graph for this function:

◆ set_emoji()

component & dpp::component::set_emoji	(	const std::string &	name,
		dpp::snowflake	id = `0`,
		bool	animated = `false`
	)

Set the emoji of the current sub-component.

Only valid for buttons. Adding an emoji to a component will automatically set this components type to dpp::cot_button. One or both of name and id must be set. For a built in unicode emoji, you only need set name, and should set it to a unicode character e.g. "😄". For custom emojis, set the name to the name of the emoji on the guild, and the id to the emoji's ID. Setting the animated boolean is only valid for custom emojis.

Parameters

name	Emoji name, or unicode character to use
id	Emoji id, for custom emojis only.
animated	True if the custom emoji is animated.

Returns: component& Reference to self

◆ set_id()

component & dpp::component::set_id ( const std::string & id )

Set the id of the component.

For action rows, this field is ignored. Setting the id will auto-set the type to dpp::cot_button.

Parameters

id	Custom ID string to set. This ID will be sent for any on_button_click events related to the button.

Note: The maximum length of the Custom ID is 100 UTF-8 codepoints. If your Custom ID is longer than this, it will be truncated.

Returns: component& Reference to self

References dpp::cot_action_row, dpp::cot_button, required, set_type(), and type.

Here is the call graph for this function:

◆ set_label()

component & dpp::component::set_label ( const std::string & label )

Set the label of the component, e.g.

button text. For action rows, this field is ignored. Setting the label will auto-set the type to dpp::cot_button.

Parameters

label Label text to set. It will be truncated to the maximum length of 80 UTF-8 characters.

Returns: component& Reference to self

◆ set_max_length()

component & dpp::component::set_max_length ( uint32_t max_l )

Set the maximum input length for a text input.

Parameters

max_l max length to set (1-4000)

Returns: component& Reference to self

◆ set_max_values()

component & dpp::component::set_max_values ( uint32_t max_values )

Set the maximum number of items that can be chosen for a select menu.

Parameters

max_values max value to set (0-25)

Returns: component& Reference to self

References dpp::anonymous_namespace{message.cpp}::get_poll_media(), and dpp::unicode_emoji::key.

Here is the call graph for this function:

◆ set_min_length()

component & dpp::component::set_min_length ( uint32_t min_l )

Set the minimum input length for a text input.

Parameters

min_l min length to set (0-4000)

Returns: component& Reference to self

References dpp::unicode_emoji::a.

◆ set_min_values()

component & dpp::component::set_min_values ( uint32_t min_values )

Set the minimum number of items that must be chosen for a select menu.

Parameters

min_values min value to set (0-25)

Returns: component& Reference to self

◆ set_placeholder()

component & dpp::component::set_placeholder ( const std::string & placeholder )

Set the placeholder.

Parameters

placeholder placeholder string. It will be truncated to the maximum length of 150 UTF-8 characters for select menus, and 100 UTF-8 characters for modals.

Returns: component& Reference to self

◆ set_required()

component & dpp::component::set_required ( bool require )

Set if this component is required.

Defaults to false on all created components.

Parameters

require True to require this, false to make it optional.

Returns: component& Reference to self

References min_length.

◆ set_style()

component & dpp::component::set_style ( component_style cs )

Set the style of the component, e.g.

button colour. For action rows, this field is ignored. Setting the style will auto-set the type to dpp::cot_button.

Parameters

cs	Component style to set

Returns: component& reference to self

◆ set_text_style()

component & dpp::component::set_text_style ( text_style_type ts )

Set the text style of a text component.

Note: Sets type to cot_text

Parameters

ts	Text style type to set

Returns: component& reference to self

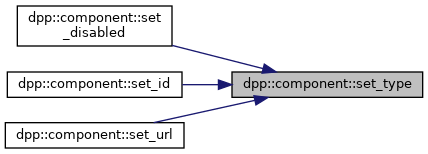

◆ set_type()

component & dpp::component::set_type ( component_type ct )

Set the type of the component.

Button components (type dpp::cot_button) should always be contained within an action row (type dpp::cot_action_row). As described below, many of the other methods automatically set this to the correct type so usually you should not need to manually call component::set_type().

Parameters

ct	The component type

Returns: component& reference to self

Referenced by set_disabled(), set_id(), and set_url().

Here is the caller graph for this function:

◆ set_url()

component & dpp::component::set_url ( const std::string & url )

Set the url for dpp::cos_link types.

Calling this function sets the style to dpp::cos_link and the type to dpp::cot_button.

Parameters

url	URL to set. It will be truncated to the maximum length of 512 UTF-8 characters.

Returns: component& reference to self.

References dpp::cot_button, and set_type().

Here is the call graph for this function:

◆ to_json()

template<typename T >

template<typename U = T, typename = decltype(std::declval<U&>().to_json_impl(bool{}))>

auto dpp::json_interface< T >::to_json ( bool with_id = false ) const

inlineinherited

Convert object to nlohmann::json.

Parameters

with_id Whether to include the ID or not

Note: Some fields are conditionally filled, do not rely on all fields being present

Returns: json Json built from the structure

Referenced by dpp::cluster::delete_webhook_with_token(), and dpp::onboarding_prompt::onboarding_prompt().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ json_interface< component >

friend struct json_interface< component >

friend

Member Data Documentation

◆ channel_types

std::vector<uint8_t> dpp::component::channel_types

List of channel types (dpp::channel_type) to include in the channel select component (dpp::cot_channel_selectmenu)

◆ components

std::vector<component> dpp::component::components

Sub components, buttons on an action row.

◆ custom_id

std::string dpp::component::custom_id

Component id (for buttons, menus, text inputs).

Maximum of 100 characters.

◆ default_values

std::vector<component_default_value> dpp::component::default_values

List of default values for auto-populated select menu components.

Note: The amount of default values must be in the range defined by dpp::component::min_values and dpp::component::max_values.

Warning: Only available for auto-populated select menu components, which include dpp::cot_user_selectmenu, dpp::cot_role_selectmenu, dpp::cot_mentionable_selectmenu, and dpp::cot_channel_selectmenu components.

◆ disabled

bool dpp::component::disabled

Disabled flag (for buttons)

◆ emoji

partial_emoji dpp::component::emoji

The emoji for this component.

◆ label

std::string dpp::component::label

Component label (for buttons, text inputs).

Maximum of 80 characters.

◆ max_length

int32_t dpp::component::max_length

Maximum length for text input (1-4000)

◆ max_values

int32_t dpp::component::max_values

Maximum number of items that can be chosen for a select menu (0-25).

Note: Use -1 to not set this. This is done by default.

Referenced by component().

◆ min_length

int32_t dpp::component::min_length

Minimum length for text input (0-4000)

Referenced by set_required().

◆ min_values

int32_t dpp::component::min_values

Minimum number of items that must be chosen for a select menu (0-25).

Note: Use -1 to not set this. This is done by default.

◆ options

std::vector<select_option> dpp::component::options

Select options for select menus.

Warning: Only required and available for select menus of type dpp::cot_selectmenu

◆ placeholder

std::string dpp::component::placeholder

Placeholder text for select menus and text inputs (max 150 characters)

◆ required

bool dpp::component::required

Whether the text input is required to be filled.

Referenced by set_id().

◆ style

component_style dpp::component::style

Component style (for buttons).

◆ text_style

text_style_type dpp::component::text_style

Text style (for text inputs).

◆ type

component_type dpp::component::type

Component type, either a button or action row.

Referenced by set_disabled(), and set_id().

◆ url

std::string dpp::component::url

URL for link types (dpp::cos_link).

Maximum of 512 characters.

◆ value

std::variant<std::monostate, std::string, int64_t, double> dpp::component::value

Value of the modal.

Filled or valid when populated from an on_form_submit event, or from the set_value function.

The documentation for this class was generated from the following files:

Public Member Functions

Public Attributes

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

◆ component()

◆ ~component()

Member Function Documentation

◆ add_channel_type()

◆ add_component()

◆ add_default_value()

◆ add_select_option()

◆ build_json()

◆ fill_from_json()

◆ fill_from_json_impl()

◆ set_default_value()

◆ set_disabled()

◆ set_emoji()

◆ set_id()

◆ set_label()

◆ set_max_length()

◆ set_max_values()

◆ set_min_length()

◆ set_min_values()

◆ set_placeholder()

◆ set_required()

◆ set_style()

◆ set_text_style()

◆ set_type()

◆ set_url()

◆ to_json()

Friends And Related Function Documentation

◆ json_interface< component >

Member Data Documentation

◆ channel_types

◆ components

◆ custom_id

◆ default_values

◆ disabled

◆ emoji

◆ label

◆ max_length

◆ max_values

◆ min_length

◆ min_values

◆ options

◆ placeholder

◆ required

◆ style

◆ text_style

◆ type

◆ url

◆ value
