juce::OpenGLShaderProgram::Uniform Struct Reference

Represents an openGL uniform value. More...

#include <juce_OpenGLShaderProgram.h>

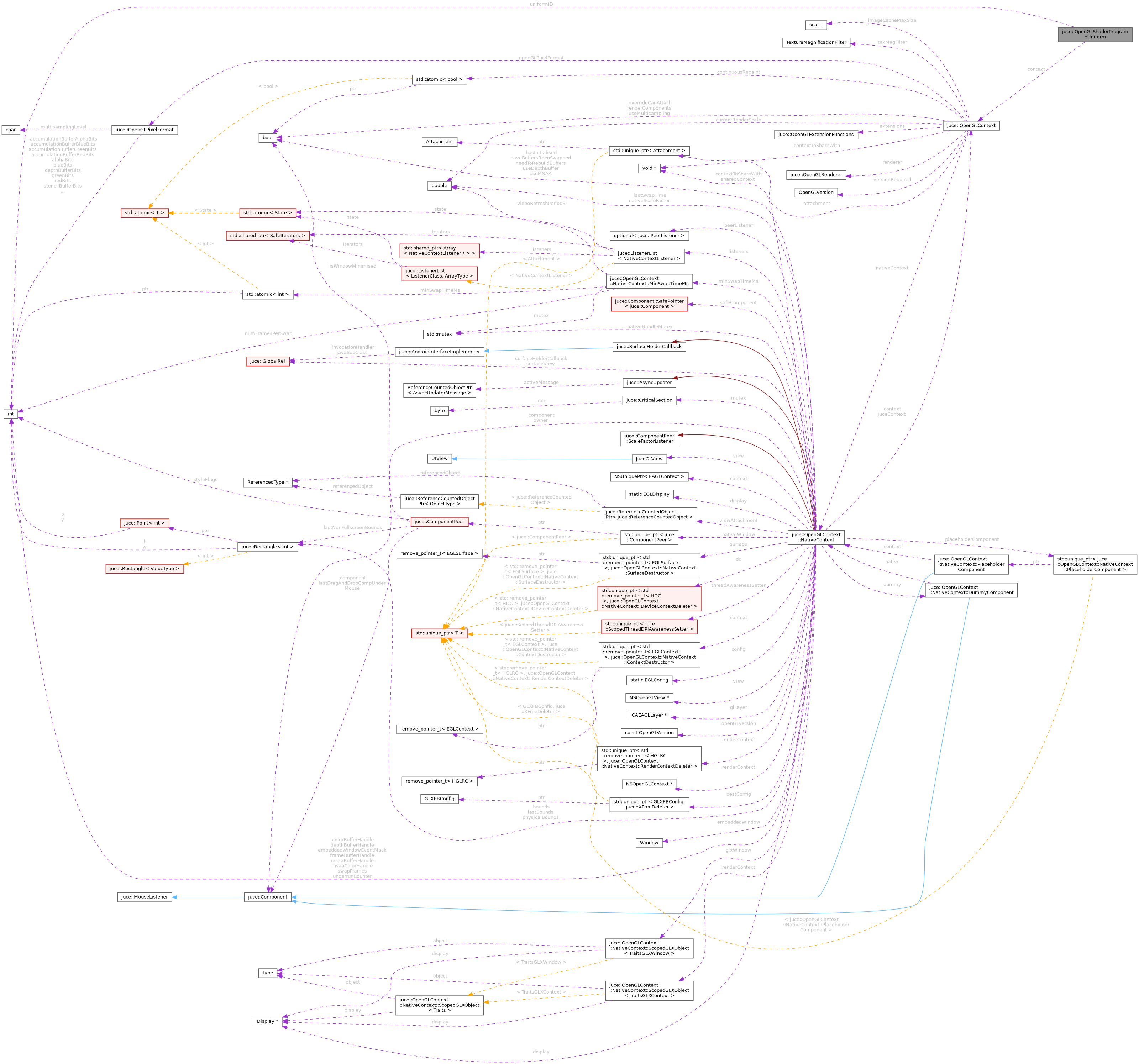

Collaboration diagram for juce::OpenGLShaderProgram::Uniform:

Public Member Functions
	Uniform (const OpenGLShaderProgram &program, const char *uniformName)
	Initialises a uniform. More...
void	set (const GLfloat *values, int numValues) const noexcept
	Sets a vector float uniform. More...
void	set (GLfloat n1) const noexcept
	Sets a float uniform. More...
void	set (GLfloat n1, GLfloat n2) const noexcept
	Sets a vec2 uniform. More...
void	set (GLfloat n1, GLfloat n2, GLfloat n3) const noexcept
	Sets a vec3 uniform. More...
void	set (GLfloat n1, GLfloat n2, GLfloat n3, GLfloat n4) const noexcept
	Sets a vec4 uniform. More...
void	set (GLint n1) const noexcept
	Sets an int uniform. More...
void	set (GLint n1, GLint n2, GLint n3, GLint n4) const noexcept
	Sets an ivec4 uniform. More...
void	setMatrix2 (const GLfloat *values, GLint count, GLboolean transpose) const noexcept
	Sets a 2x2 matrix float uniform. More...
void	setMatrix3 (const GLfloat *values, GLint count, GLboolean transpose) const noexcept
	Sets a 3x3 matrix float uniform. More...
void	setMatrix4 (const GLfloat *values, GLint count, GLboolean transpose) const noexcept
	Sets a 4x4 matrix float uniform. More...

Public Attributes
GLint	uniformID
	The uniform's ID number. More...

Private Attributes
const OpenGLContext &	context

Detailed Description

Represents an openGL uniform value.

After a program has been linked, you can create Uniform objects to let you set the uniforms that your shaders use.

Be careful not to call the set() functions unless the appropriate program is loaded into the current context.

Constructor & Destructor Documentation

Uniform()

juce::OpenGLShaderProgram::Uniform::Uniform	(	const OpenGLShaderProgram &	program,
		const char *	uniformName
	)

Initialises a uniform.

The program must have been successfully linked when this constructor is called.

Member Function Documentation

set() [1/7]

void juce::OpenGLShaderProgram::Uniform::set ( const GLfloat *  values, int  numValues  ) const

noexcept

Sets a vector float uniform.

set() [2/7]

void juce::OpenGLShaderProgram::Uniform::set ( GLfloat  n1 ) const

noexcept

Sets a float uniform.

set() [3/7]

void juce::OpenGLShaderProgram::Uniform::set ( GLfloat  n1, GLfloat  n2  ) const

noexcept

Sets a vec2 uniform.

set() [4/7]

void juce::OpenGLShaderProgram::Uniform::set ( GLfloat  n1, GLfloat  n2, GLfloat  n3  ) const

noexcept

Sets a vec3 uniform.

set() [5/7]

void juce::OpenGLShaderProgram::Uniform::set ( GLfloat  n1, GLfloat  n2, GLfloat  n3, GLfloat  n4  ) const

noexcept

Sets a vec4 uniform.

set() [6/7]

void juce::OpenGLShaderProgram::Uniform::set ( GLint  n1 ) const

noexcept

Sets an int uniform.

set() [7/7]

void juce::OpenGLShaderProgram::Uniform::set ( GLint  n1, GLint  n2, GLint  n3, GLint  n4  ) const

noexcept

Sets an ivec4 uniform.

setMatrix2()

void juce::OpenGLShaderProgram::Uniform::setMatrix2 ( const GLfloat *  values, GLint  count, GLboolean  transpose  ) const

noexcept

Sets a 2x2 matrix float uniform.

setMatrix3()

void juce::OpenGLShaderProgram::Uniform::setMatrix3 ( const GLfloat *  values, GLint  count, GLboolean  transpose  ) const

noexcept

Sets a 3x3 matrix float uniform.

setMatrix4()

void juce::OpenGLShaderProgram::Uniform::setMatrix4 ( const GLfloat *  values, GLint  count, GLboolean  transpose  ) const

noexcept

Sets a 4x4 matrix float uniform.

Member Data Documentation

context

const OpenGLContext& juce::OpenGLShaderProgram::Uniform::context

private

uniformID

GLint juce::OpenGLShaderProgram::Uniform::uniformID

The uniform's ID number.

If the uniform couldn't be found, this value will be < 0.

---

The documentation for this struct was generated from the following file:

• juce_OpenGLShaderProgram.h
