cv::FileNodeIterator Class Reference

used to iterate through sequences and mappings. More...

#include "persistence.hpp"

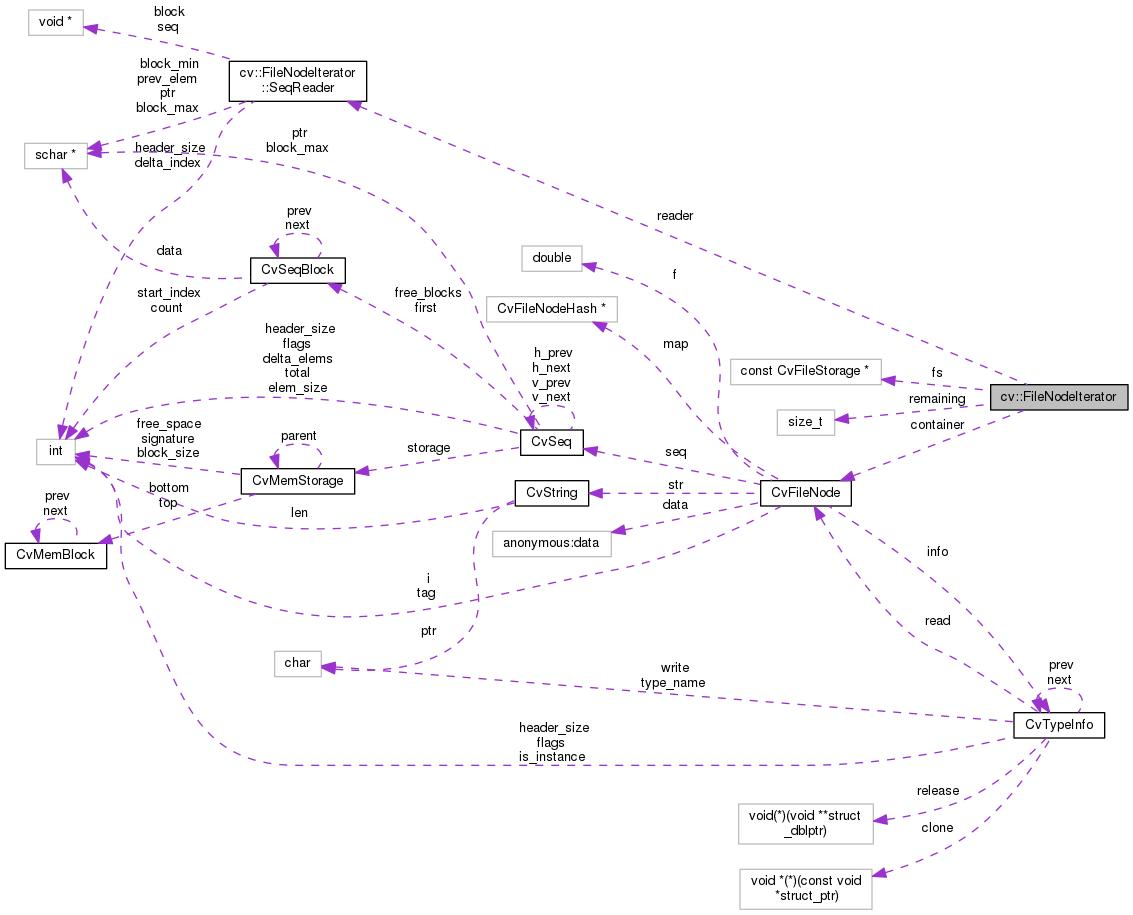

Collaboration diagram for cv::FileNodeIterator:

Classes
struct	SeqReader

Public Member Functions
	FileNodeIterator ()
	The constructors. More...
	FileNodeIterator (const CvFileStorage *fs, const CvFileNode *node, size_t ofs=0)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
	FileNodeIterator (const FileNodeIterator &it)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
FileNode	operator* () const
	returns the currently observed element More...
FileNodeIterator &	operator++ ()
	moves iterator to the next node More...
FileNodeIterator	operator++ (int)
	moves iterator to the next node More...
FileNodeIterator &	operator+= (int ofs)
	moves iterator forward by the specified offset (possibly negative) More...
FileNodeIterator &	operator-- ()
	moves iterator to the previous node More...
FileNodeIterator	operator-- (int)
	moves iterator to the previous node More...
FileNodeIterator &	operator-= (int ofs)
	moves iterator backward by the specified offset (possibly negative) More...
FileNode	operator-> () const
	accesses the currently observed element methods More...
FileNodeIterator &	readRaw (const String &fmt, uchar *vec, size_t maxCount=(size_t) INT_MAX)
	Reads node elements to the buffer with the specified format. More...

Public Attributes
const CvFileNode *	container
const CvFileStorage *	fs
SeqReader	reader
size_t	remaining

Related Functions
(Note that these are not member functions.)
void	cvStartWriteRawData_Base64 (::CvFileStorage *fs, const char *name, int len, const char *dt)
template<typename _Tp >
static FileNodeIterator &	operator>> (FileNodeIterator &it, _Tp &value)
	Reads data from a file storage. More...
template<typename _Tp >
static FileNodeIterator &	operator>> (FileNodeIterator &it, std::vector< _Tp > &vec)
	Reads data from a file storage. More...
static bool	operator== (const FileNodeIterator &it1, const FileNodeIterator &it2)
static bool	operator!= (const FileNodeIterator &it1, const FileNodeIterator &it2)
static ptrdiff_t	operator- (const FileNodeIterator &it1, const FileNodeIterator &it2)
static bool	operator< (const FileNodeIterator &it1, const FileNodeIterator &it2)

Detailed Description

used to iterate through sequences and mappings.

A standard STL notation, with node.begin(), node.end() denoting the beginning and the end of a sequence, stored in node. See the data reading sample in the beginning of the section.

Examples:

filestorage.cpp.

Constructor & Destructor Documentation

cv::FileNodeIterator::FileNodeIterator

(

)

The constructors.

These constructors are used to create a default iterator, set it to specific element in a file node or construct it from another iterator.

cv::FileNodeIterator::FileNodeIterator	(	const CvFileStorage *	fs,
		const CvFileNode *	node,
		size_t	ofs = 0
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

fs	File storage for the iterator.
node	File node for the iterator.
ofs	Index of the element in the node. The created iterator will point to this element.

cv::FileNodeIterator::FileNodeIterator

(

const FileNodeIterator &

it

)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

it	Iterator to be used as initialization for the created iterator.

Member Function Documentation

FileNode cv::FileNodeIterator::operator*

(

)

const

returns the currently observed element

Referenced by operator<().

Here is the caller graph for this function:

FileNodeIterator& cv::FileNodeIterator::operator++

(

)

moves iterator to the next node

FileNodeIterator cv::FileNodeIterator::operator++

(

int

)

moves iterator to the next node

FileNodeIterator& cv::FileNodeIterator::operator+=

(

int

ofs

)

moves iterator forward by the specified offset (possibly negative)

FileNodeIterator& cv::FileNodeIterator::operator--

(

)

moves iterator to the previous node

FileNodeIterator cv::FileNodeIterator::operator--

(

int

)

moves iterator to the previous node

FileNodeIterator& cv::FileNodeIterator::operator-=

(

int

ofs

)

moves iterator backward by the specified offset (possibly negative)

FileNode cv::FileNodeIterator::operator->

(

)

const

accesses the currently observed element methods

Referenced by operator<().

Here is the caller graph for this function:

FileNodeIterator& cv::FileNodeIterator::readRaw	(	const String &	fmt,
		uchar *	vec,
		size_t	maxCount = (size_t) INT_MAX
	)

Reads node elements to the buffer with the specified format.

Usually it is more convenient to use operator >> instead of this method.

Parameters

fmt	Specification of each array element. See format specification
vec	Pointer to the destination array.
maxCount	Number of elements to read. If it is greater than number of remaining elements then all of them will be read.

Friends And Related Function Documentation

void cvStartWriteRawData_Base64 ( ::CvFileStorage *  fs, const char *  name, int  len, const char *  dt  )

related

static bool operator!= ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

static ptrdiff_t operator- ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

References remaining.

static bool operator< ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

References cv::FileNode::begin(), CV_EXPORTS, cv::cvEndWriteRawData_Base64(), cv::cvWriteMat_Base64(), cv::cvWriteMatND_Base64(), cv::cvWriteRawData_Base64(), cv::FileNode::empty(), cv::FileNode::end(), cv::FileNode::FileNode(), cv::FileNode::fs, cv::FileStorage::getFirstTopLevelNode(), cv::FileNode::isInt(), cv::FileNode::isMap(), cv::FileNode::isNone(), cv::FileNode::isReal(), cv::FileNode::isSeq(), cv::FileNode::isString(), cv::FileNode::mat(), cv::FileNode::node, cv::FileNode::operator*(), operator*(), operator->(), cv::FileNode::readRaw(), cv::FileNode::real(), remaining, cv::String::String(), and cv::FileNode::string().

Here is the call graph for this function:

static bool operator== ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

References container, fs, cv::FileNodeIterator::SeqReader::ptr, reader, and remaining.

template<typename _Tp >

static FileNodeIterator & operator>> ( FileNodeIterator &  it, _Tp &  value  )

related

Reads data from a file storage.

template<typename _Tp >

static FileNodeIterator & operator>> ( FileNodeIterator &  it, std::vector< _Tp > &  vec  )

related

Reads data from a file storage.

Member Data Documentation

const CvFileNode* cv::FileNodeIterator::container

Referenced by operator==().

const CvFileStorage* cv::FileNodeIterator::fs

Referenced by operator==().

SeqReader cv::FileNodeIterator::reader

Referenced by operator==().

size_t cv::FileNodeIterator::remaining

Referenced by operator-(), operator<(), and operator==().

---

The documentation for this class was generated from the following file:

• core/include/opencv2/core/persistence.hpp
