cv::FileStorage Class Reference

XML/YAML/JSON file storage class that encapsulates all the information necessary for writing or reading data to/from a file. More...

#include "persistence.hpp"

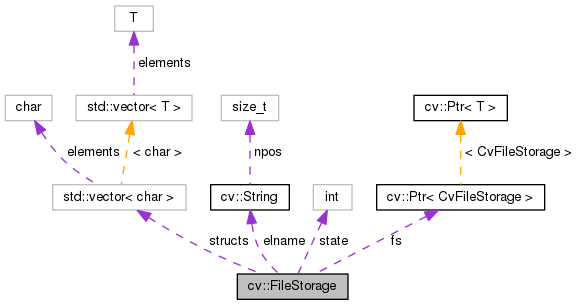

Collaboration diagram for cv::FileStorage:

Public Types
enum	{   UNDEFINED = 0,   VALUE_EXPECTED = 1,   NAME_EXPECTED = 2,   INSIDE_MAP = 4 }
enum	Mode {   READ = 0,   WRITE = 1,   APPEND = 2,   MEMORY = 4,   FORMAT_MASK = (7<<3),   FORMAT_AUTO = 0,   FORMAT_XML = (1<<3),   FORMAT_YAML = (2<<3),   FORMAT_JSON = (3<<3),   BASE64 = 64,   WRITE_BASE64 = BASE64 | WRITE }
	file storage mode More...

Public Member Functions
	FileStorage ()
	The constructors. More...
	FileStorage (const String &source, int flags, const String &encoding=String())
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
	FileStorage (CvFileStorage *fs, bool owning=true)
virtual	~FileStorage ()
	the destructor. calls release() More...
FileNode	getFirstTopLevelNode () const
	Returns the first element of the top-level mapping. More...
virtual bool	isOpened () const
	Checks whether the file is opened. More...
virtual bool	open (const String &filename, int flags, const String &encoding=String())
	Opens a file. More...
CvFileStorage *	operator* ()
	Returns the obsolete C FileStorage structure. More...
const CvFileStorage *	operator* () const
FileNode	operator[] (const String &nodename) const
	Returns the specified element of the top-level mapping. More...
FileNode	operator[] (const char *nodename) const
virtual void	release ()
	Closes the file and releases all the memory buffers. More...
virtual String	releaseAndGetString ()
	Closes the file and releases all the memory buffers. More...
FileNode	root (int streamidx=0) const
	Returns the top-level mapping. More...
void	write (const String &name, double val)
	Simplified writing API to use with bindings. More...
void	write (const String &name, const String &val)
void	write (const String &name, InputArray val)
void	writeComment (const String &comment, bool append=false)
	Writes a comment. More...
void	writeObj (const String &name, const void *obj)
	Writes the registered C structure (CvMat, CvMatND, CvSeq). More...
void	writeRaw (const String &fmt, const uchar *vec, size_t len)
	Writes multiple numbers. More...

Static Public Member Functions
static String	getDefaultObjectName (const String &filename)
	Returns the normalized object name for the specified name of a file. More...

Public Attributes
String	elname
	the currently written element More...
Ptr< CvFileStorage >	fs
	the underlying C FileStorage structure More...
int	state
	the writer state More...
std::vector< char >	structs
	the stack of written structures More...

Related Functions
(Note that these are not member functions.)
FileStorage &	operator<< (FileStorage &fs, const String &str)
	Writes string to a file storage. More...
void	write (FileStorage &fs, const String &name, int value)
void	write (FileStorage &fs, const String &name, float value)
void	write (FileStorage &fs, const String &name, double value)
void	write (FileStorage &fs, const String &name, const String &value)
void	write (FileStorage &fs, const String &name, const Mat &value)
void	write (FileStorage &fs, const String &name, const SparseMat &value)
void	write (FileStorage &fs, const String &name, const std::vector< KeyPoint > &value)
void	write (FileStorage &fs, const String &name, const std::vector< DMatch > &value)
void	writeScalar (FileStorage &fs, int value)
void	writeScalar (FileStorage &fs, float value)
void	writeScalar (FileStorage &fs, double value)
void	writeScalar (FileStorage &fs, const String &value)
template<typename _Tp >
static void	write (FileStorage &fs, const _Tp &value)
template<>
void	write (FileStorage &fs, const int &value)
template<>
void	write (FileStorage &fs, const float &value)
template<>
void	write (FileStorage &fs, const double &value)
template<>
void	write (FileStorage &fs, const String &value)
template<typename _Tp >
static void	write (FileStorage &fs, const Point_< _Tp > &pt)
template<typename _Tp >
static void	write (FileStorage &fs, const Point3_< _Tp > &pt)
template<typename _Tp >
static void	write (FileStorage &fs, const Size_< _Tp > &sz)
template<typename _Tp >
static void	write (FileStorage &fs, const Complex< _Tp > &c)
template<typename _Tp >
static void	write (FileStorage &fs, const Rect_< _Tp > &r)
template<typename _Tp , int cn>
static void	write (FileStorage &fs, const Vec< _Tp, cn > &v)
template<typename _Tp >
static void	write (FileStorage &fs, const Scalar_< _Tp > &s)
static void	write (FileStorage &fs, const Range &r)
template<typename _Tp >
static void	write (FileStorage &fs, const std::vector< _Tp > &vec)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const Point_< _Tp > &pt)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const Point3_< _Tp > &pt)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const Size_< _Tp > &sz)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const Complex< _Tp > &c)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const Rect_< _Tp > &r)
template<typename _Tp , int cn>
static void	write (FileStorage &fs, const String &name, const Vec< _Tp, cn > &v)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const Scalar_< _Tp > &s)
static void	write (FileStorage &fs, const String &name, const Range &r)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const std::vector< _Tp > &vec)
template<typename _Tp >
static void	write (FileStorage &fs, const String &name, const std::vector< std::vector< _Tp > > &vec)
template<typename _Tp >
static FileStorage &	operator<< (FileStorage &fs, const _Tp &value)
	Writes data to a file storage. More...
static FileStorage &	operator<< (FileStorage &fs, const char *str)
	Writes data to a file storage. More...
static FileStorage &	operator<< (FileStorage &fs, char *value)
	Writes data to a file storage. More...

Detailed Description

XML/YAML/JSON file storage class that encapsulates all the information necessary for writing or reading data to/from a file.

Examples:

filestorage.cpp.

Member Enumeration Documentation

anonymous enum

Enumerator
UNDEFINED
VALUE_EXPECTED
NAME_EXPECTED
INSIDE_MAP

enum cv::FileStorage::Mode

file storage mode

Enumerator
READ	value, open the file for reading
WRITE	value, open the file for writing
APPEND	value, open the file for appending
MEMORY	flag, read data from source or write data to the internal buffer (which is returned by FileStorage::release)
FORMAT_MASK	mask for format flags
FORMAT_AUTO	flag, auto format
FORMAT_XML	flag, XML format
FORMAT_YAML	flag, YAML format
FORMAT_JSON	flag, JSON format
BASE64	flag, write rawdata in Base64 by default. (consider using WRITE_BASE64)
WRITE_BASE64	flag, enable both WRITE and BASE64

Constructor & Destructor Documentation

cv::FileStorage::FileStorage

(

)

The constructors.

The full constructor opens the file. Alternatively you can use the default constructor and then call FileStorage::open.

cv::FileStorage::FileStorage	(	const String &	source,
		int	flags,
		const String &	encoding = String()
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

source	Name of the file to open or the text string to read the data from. Extension of the file (.xml, .yml/.yaml, or .json) determines its format (XML, YAML or JSON respectively). Also you can append .gz to work with compressed files, for example myHugeMatrix.xml.gz. If both FileStorage::WRITE and FileStorage::MEMORY flags are specified, source is used just to specify the output file format (e.g. mydata.xml, .yml etc.).
flags	Mode of operation. See FileStorage::Mode
encoding	Encoding of the file. Note that UTF-16 XML encoding is not supported currently and you should use 8-bit encoding instead of it.

cv::FileStorage::FileStorage	(	CvFileStorage *	fs,
		bool	owning = true
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

virtual cv::FileStorage::~FileStorage ( )

virtual

the destructor. calls release()

Member Function Documentation

static String cv::FileStorage::getDefaultObjectName ( const String &  filename )

static

Returns the normalized object name for the specified name of a file.

Parameters

filename

Name of a file

Returns

The normalized object name.

FileNode cv::FileStorage::getFirstTopLevelNode

(

)

const

Returns the first element of the top-level mapping.

Returns

The first element of the top-level mapping.

Referenced by cv::Algorithm::load(), cv::Algorithm::loadFromString(), and cv::FileNodeIterator::operator<().

Here is the caller graph for this function:

virtual bool cv::FileStorage::isOpened ( ) const

virtual

Checks whether the file is opened.

Returns

true if the object is associated with the current file and false otherwise. It is a good practice to call this method after you tried to open a file.

Examples:

filestorage.cpp.

Referenced by operator<<().

Here is the caller graph for this function:

virtual bool cv::FileStorage::open ( const String &  filename, int  flags, const String &  encoding = String()  )

virtual

Opens a file.

See description of parameters in FileStorage::FileStorage. The method calls FileStorage::release before opening the file.

Parameters

filename	Name of the file to open or the text string to read the data from. Extension of the file (.xml, .yml/.yaml or .json) determines its format (XML, YAML or JSON respectively). Also you can append .gz to work with compressed files, for example myHugeMatrix.xml.gz. If both FileStorage::WRITE and FileStorage::MEMORY flags are specified, source is used just to specify the output file format (e.g. mydata.xml, .yml etc.). A file name can also contain parameters. You can use this format, "*?base64" (e.g. "file.json?base64" (case sensitive)), as an alternative to FileStorage::BASE64 flag.
flags	Mode of operation. One of FileStorage::Mode
encoding	Encoding of the file. Note that UTF-16 XML encoding is not supported currently and you should use 8-bit encoding instead of it.

CvFileStorage* cv::FileStorage::operator* ( )

inline

Returns the obsolete C FileStorage structure.

Returns

Pointer to the underlying C FileStorage structure

const CvFileStorage* cv::FileStorage::operator* ( ) const

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

References CV_WRAP.

FileNode cv::FileStorage::operator[]

(

const String &

nodename

)

const

Returns the specified element of the top-level mapping.

Parameters

nodename

Name of the file node.

Returns

Node with the given name.

FileNode cv::FileStorage::operator[]

(

const char *

nodename

)

const

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

virtual void cv::FileStorage::release ( )

virtual

Closes the file and releases all the memory buffers.

Call this method after all I/O operations with the storage are finished.

virtual String cv::FileStorage::releaseAndGetString ( )

virtual

Closes the file and releases all the memory buffers.

Call this method after all I/O operations with the storage are finished. If the storage was opened for writing data and FileStorage::WRITE was specified

Examples:

filestorage.cpp.

FileNode cv::FileStorage::root

(

int

streamidx = 0

)

const

Returns the top-level mapping.

Parameters

streamidx

Zero-based index of the stream. In most cases there is only one stream in the file. However, YAML supports multiple streams and so there can be several.

Returns

The top-level mapping.

Referenced by cv::DescriptorMatcher::read().

Here is the caller graph for this function:

void cv::FileStorage::write	(	const String &	name,
		double	val
	)

Simplified writing API to use with bindings.

Parameters

name	Name of the written object
val	Value of the written object

void cv::FileStorage::write	(	const String &	name,
		const String &	val
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void cv::FileStorage::write	(	const String &	name,
		InputArray	val
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

void cv::FileStorage::writeComment	(	const String &	comment,
		bool	append = false
	)

Writes a comment.

The function writes a comment into file storage. The comments are skipped when the storage is read.

Parameters

comment	The written comment, single-line or multi-line
append	If true, the function tries to put the comment at the end of current line. Else if the comment is multi-line, or if it does not fit at the end of the current line, the comment starts a new line.

void cv::FileStorage::writeObj	(	const String &	name,
		const void *	obj
	)

Writes the registered C structure (CvMat, CvMatND, CvSeq).

Parameters

name	Name of the written object.
obj	Pointer to the object.

See also

ocvWrite for details.

void cv::FileStorage::writeRaw	(	const String &	fmt,
		const uchar *	vec,
		size_t	len
	)

Writes multiple numbers.

Writes one or more numbers of the specified format to the currently written structure. Usually it is more convenient to use operator << instead of this method.

Parameters

fmt	Specification of each array element, see format specification
vec	Pointer to the written array.
len	Number of the uchar elements to write.

Referenced by cv::FileNode::read().

Here is the caller graph for this function:

Friends And Related Function Documentation

FileStorage & operator<< ( FileStorage &  fs, const String &  str  )

related

Writes string to a file storage.

template<typename _Tp >

static FileStorage & operator<< ( FileStorage &  fs, const _Tp &  value  )

related

Writes data to a file storage.

References CV_Error, elname, INSIDE_MAP, isOpened(), NAME_EXPECTED, state, and cv::Error::StsError.

Here is the call graph for this function:

static FileStorage & operator<< ( FileStorage &  fs, const char *  str  )

related

Writes data to a file storage.

static FileStorage & operator<< ( FileStorage &  fs, char *  value  )

related

Writes data to a file storage.

void write ( FileStorage &  fs, const String &  name, int  value  )

related

void write ( FileStorage &  fs, const String &  name, float  value  )

related

void write ( FileStorage &  fs, const String &  name, double  value  )

related

void write ( FileStorage &  fs, const String &  name, const String &  value  )

related

void write ( FileStorage &  fs, const String &  name, const Mat &  value  )

related

void write ( FileStorage &  fs, const String &  name, const SparseMat &  value  )

related

void write ( FileStorage &  fs, const String &  name, const std::vector< KeyPoint > &  value  )

related

void write ( FileStorage &  fs, const String &  name, const std::vector< DMatch > &  value  )

related

template<typename _Tp >

static void write ( FileStorage &  fs, const _Tp &  value  )

related

void write ( FileStorage &  fs, const int &  value  )

related

void write ( FileStorage &  fs, const float &  value  )

related

void write ( FileStorage &  fs, const double &  value  )

related

void write ( FileStorage &  fs, const String &  value  )

related

template<typename _Tp >

static void write ( FileStorage &  fs, const Point_< _Tp > &  pt  )

related

References cv::Point_< _Tp >::x, and cv::Point_< _Tp >::y.

template<typename _Tp >

static void write ( FileStorage &  fs, const Point3_< _Tp > &  pt  )

related

References cv::Point3_< _Tp >::x, cv::Point3_< _Tp >::y, and cv::Point3_< _Tp >::z.

template<typename _Tp >

static void write ( FileStorage &  fs, const Size_< _Tp > &  sz  )

related

References cv::Size_< _Tp >::height, and cv::Size_< _Tp >::width.

template<typename _Tp >

static void write ( FileStorage &  fs, const Complex< _Tp > &  c  )

related

References cv::Complex< _Tp >::im, and cv::Complex< _Tp >::re.

template<typename _Tp >

static void write ( FileStorage &  fs, const Rect_< _Tp > &  r  )

related

References cv::Rect_< _Tp >::height, cv::Rect_< _Tp >::width, cv::Rect_< _Tp >::x, and cv::Rect_< _Tp >::y.

template<typename _Tp , int cn>

static void write ( FileStorage &  fs, const Vec< _Tp, cn > &  v  )

related

References cv::Matx< _Tp, cn, 1 >::val.

template<typename _Tp >

static void write ( FileStorage &  fs, const Scalar_< _Tp > &  s  )

related

References cv::Matx< _Tp, cn, 1 >::val.

static void write ( FileStorage &  fs, const Range &  r  )

related

References cv::Range::end, and cv::Range::start.

template<typename _Tp >

static void write ( FileStorage &  fs, const std::vector< _Tp > &  vec  )

related

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const Point_< _Tp > &  pt  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const Point3_< _Tp > &  pt  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const Size_< _Tp > &  sz  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const Complex< _Tp > &  c  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const Rect_< _Tp > &  r  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp , int cn>

static void write ( FileStorage &  fs, const String &  name, const Vec< _Tp, cn > &  v  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const Scalar_< _Tp > &  s  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

static void write ( FileStorage &  fs, const String &  name, const Range &  r  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const std::vector< _Tp > &  vec  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

template<typename _Tp >

static void write ( FileStorage &  fs, const String &  name, const std::vector< std::vector< _Tp > > &  vec  )

related

References cv::FileNode::FLOW, and cv::FileNode::SEQ.

void writeScalar ( FileStorage &  fs, int  value  )

related

void writeScalar ( FileStorage &  fs, float  value  )

related

void writeScalar ( FileStorage &  fs, double  value  )

related

void writeScalar ( FileStorage &  fs, const String &  value  )

related

Member Data Documentation

String cv::FileStorage::elname

the currently written element

Referenced by operator<<().

Ptr<CvFileStorage> cv::FileStorage::fs

the underlying C FileStorage structure

int cv::FileStorage::state

the writer state

Referenced by operator<<().

std::vector<char> cv::FileStorage::structs

the stack of written structures

---

The documentation for this class was generated from the following file:

• core/include/opencv2/core/persistence.hpp
