Abstract base class for shape transformation algorithms. More...

#include "shape_transformer.hpp"

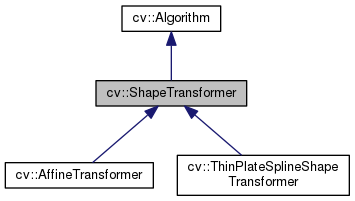

Inheritance diagram for cv::ShapeTransformer:

Collaboration diagram for cv::ShapeTransformer:

Public Member Functions
virtual float	applyTransformation (InputArray input, OutputArray output=noArray())=0
	Apply a transformation, given a pre-estimated transformation parameters. More...

virtual void	clear ()
	Clears the algorithm state. More...

virtual bool	empty () const
	Returns true if the Algorithm is empty (e.g. More...

virtual void	estimateTransformation (InputArray transformingShape, InputArray targetShape, std::vector< DMatch > &matches)=0
	Estimate the transformation parameters of the current transformer algorithm, based on point matches. More...

virtual String	getDefaultName () const
	Returns the algorithm string identifier. More...

virtual void	read (const FileNode &fn)
	Reads algorithm parameters from a file storage. More...

virtual void	save (const String &filename) const
	Saves the algorithm to a file. More...

virtual void	warpImage (InputArray transformingImage, OutputArray output, int flags=INTER_LINEAR, int borderMode=BORDER_CONSTANT, const Scalar &borderValue=Scalar()) const =0
	Apply a transformation, given a pre-estimated transformation parameters, to an Image. More...

virtual void	write (FileStorage &fs) const
	Stores algorithm parameters in a file storage. More...

Static Public Member Functions
template<typename _Tp >
static Ptr< _Tp >	load (const String &filename, const String &objname=String())
	Loads algorithm from the file. More...

template<typename _Tp >
static Ptr< _Tp >	loadFromString (const String &strModel, const String &objname=String())
	Loads algorithm from a String. More...

template<typename _Tp >
static Ptr< _Tp >	read (const FileNode &fn)
	Reads algorithm from the file node. More...

Protected Member Functions
void	writeFormat (FileStorage &fs) const

Detailed Description

Abstract base class for shape transformation algorithms.

Member Function Documentation

virtual float cv::ShapeTransformer::applyTransformation	(	InputArray	input,
		OutputArray	output = `noArray()`
	)

pure virtual

Apply a transformation, given a pre-estimated transformation parameters.

Parameters

input	Contour (set of points) to apply the transformation.
output	Output contour.

virtual void cv::Algorithm::clear ( )

inlinevirtualinherited

Clears the algorithm state.

Reimplemented in cv::FlannBasedMatcher, cv::DescriptorMatcher, and cv::cuda::DescriptorMatcher.

virtual bool cv::Algorithm::empty ( ) const

inlinevirtualinherited

Returns true if the Algorithm is empty (e.g.

in the very beginning or after unsuccessful read

Reimplemented in cv::DescriptorMatcher, cv::ml::StatModel, cv::Feature2D, cv::BaseCascadeClassifier, and cv::cuda::DescriptorMatcher.

virtual void cv::ShapeTransformer::estimateTransformation	(	InputArray	transformingShape,
		InputArray	targetShape,
		std::vector< DMatch > &	matches
	)

pure virtual

Estimate the transformation parameters of the current transformer algorithm, based on point matches.

Parameters

transformingShape	Contour defining first shape.
targetShape	Contour defining second shape (Target).
matches	Standard vector of Matches between points.

virtual String cv::Algorithm::getDefaultName ( ) const

virtualinherited

Returns the algorithm string identifier.

This string is used as top level xml/yml node tag when the object is saved to a file or string.

template<typename _Tp >

static Ptr<_Tp> cv::Algorithm::load	(	const String &	filename,
		const String &	objname = `String()`
	)

inlinestaticinherited

Loads algorithm from the file.

Parameters

filename	Name of the file to read.
objname	The optional name of the node to read (if empty, the first top-level node will be used)

This is static template method of Algorithm. It's usage is following (in the case of SVM):

Ptr<SVM> svm = Algorithm::load<SVM>("my_svm_model.xml");

In order to make this method work, the derived class must overwrite Algorithm::read(const FileNode& fn).

References cv::Ptr< T >::empty(), cv::FileNode::empty(), cv::FileStorage::getFirstTopLevelNode(), and cv::FileStorage::READ.

Here is the call graph for this function:

template<typename _Tp >

static Ptr<_Tp> cv::Algorithm::loadFromString	(	const String &	strModel,
		const String &	objname = `String()`
	)

inlinestaticinherited

Loads algorithm from a String.

Parameters

strModel	The string variable containing the model you want to load.
objname	The optional name of the node to read (if empty, the first top-level node will be used)

This is static template method of Algorithm. It's usage is following (in the case of SVM):

Ptr<SVM> svm = Algorithm::loadFromString<SVM>(myStringModel);

References CV_WRAP, cv::Ptr< T >::empty(), cv::FileNode::empty(), cv::FileStorage::getFirstTopLevelNode(), cv::FileStorage::MEMORY, and cv::FileStorage::READ.

Here is the call graph for this function:

virtual void cv::Algorithm::read ( const FileNode & fn )

inlinevirtualinherited

Reads algorithm parameters from a file storage.

Reimplemented in cv::FlannBasedMatcher, cv::DescriptorMatcher, and cv::Feature2D.

template<typename _Tp >

static Ptr<_Tp> cv::Algorithm::read ( const FileNode & fn )

inlinestaticinherited

Reads algorithm from the file node.

This is static template method of Algorithm. It's usage is following (in the case of SVM):

cv::FileStorage fsRead("example.xml", FileStorage::READ);

Ptr<SVM> svm = Algorithm::read<SVM>(fsRead.root());

In order to make this method work, the derived class must overwrite Algorithm::read(const FileNode& fn) and also have static create() method without parameters (or with all the optional parameters)

References cv::Ptr< T >::empty().

Here is the call graph for this function:

virtual void cv::Algorithm::save ( const String & filename ) const

virtualinherited

Saves the algorithm to a file.

In order to make this method work, the derived class must implement Algorithm::write(FileStorage& fs).

virtual void cv::ShapeTransformer::warpImage	(	InputArray	transformingImage,
		OutputArray	output,
		int	flags = `INTER_LINEAR`,
		int	borderMode = `BORDER_CONSTANT`,
		const Scalar &	borderValue = `Scalar()`
	)		const

pure virtual

Apply a transformation, given a pre-estimated transformation parameters, to an Image.

Parameters

transformingImage	Input image.
output	Output image.
flags	Image interpolation method.
borderMode	border style.
borderValue	border value.

virtual void cv::Algorithm::write ( FileStorage & fs ) const

inlinevirtualinherited

Stores algorithm parameters in a file storage.

Reimplemented in cv::FlannBasedMatcher, cv::DescriptorMatcher, and cv::Feature2D.

void cv::Algorithm::writeFormat ( FileStorage & fs ) const

protectedinherited

The documentation for this class was generated from the following file:

shape/include/opencv2/shape/shape_transformer.hpp
