Template sparse n-dimensional array class derived from SparseMat. More...

#include "mat.hpp"

Inheritance diagram for cv::SparseMat_< _Tp >:

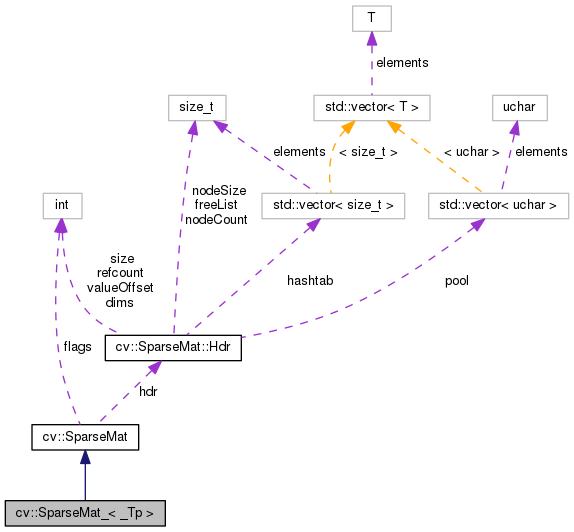

Collaboration diagram for cv::SparseMat_< _Tp >:

Public Types
enum	{ MAGIC_VAL =0x42FD0000, MAX_DIM =32, HASH_SCALE =0x5bd1e995, HASH_BIT =0x80000000 }

typedef SparseMatConstIterator_< _Tp >	const_iterator

typedef SparseMatIterator_< _Tp >	iterator

Public Member Functions
	SparseMat_ ()
	the default constructor More...

	SparseMat_ (int dims, const int *_sizes)
	the full constructor equivelent to SparseMat(dims, _sizes, DataType<_Tp>::type) More...

	SparseMat_ (const SparseMat &m)
	the copy constructor. If DataType<_Tp>.type != m.type(), the m elements are converted More...

	SparseMat_ (const SparseMat_ &m)
	the copy constructor. This is O(1) operation - no data is copied More...

	SparseMat_ (const Mat &m)
	converts dense matrix to the sparse form More...

void	addref ()
	manually increments the reference counter to the header. More...

void	assignTo (SparseMat &m, int type=-1) const

SparseMatIterator_< _Tp >	begin ()
	returns sparse matrix iterator pointing to the first sparse matrix element More...

SparseMatConstIterator_< _Tp >	begin () const
	returns read-only sparse matrix iterator pointing to the first sparse matrix element More...

int	channels () const
	returns the number of channels in each matrix element More...

void	clear ()
	sets all the sparse matrix elements to 0, which means clearing the hash table. More...

SparseMat_	clone () const
	makes full copy of the matrix. All the elements are duplicated More...

void	convertTo (SparseMat &m, int rtype, double alpha=1) const
	multiplies all the matrix elements by the specified scale factor alpha and converts the results to the specified data type More...

void	convertTo (Mat &m, int rtype, double alpha=1, double beta=0) const
	converts sparse matrix to dense n-dim matrix with optional type conversion and scaling. More...

void	copyTo (SparseMat &m) const
	copies all the data to the destination matrix. All the previous content of m is erased More...

void	copyTo (Mat &m) const
	converts sparse matrix to dense matrix. More...

void	create (int dims, const int *_sizes, int _type)
	reallocates sparse matrix. More...

void	create (int dims, const int *_sizes)
	equivalent to cv::SparseMat::create(dims, _sizes, DataType<_Tp>::type) More...

int	depth () const
	returns depth of the matrix elements More...

int	dims () const
	returns the matrix dimensionality More...

size_t	elemSize () const
	converts sparse matrix to the old-style representation; all the elements are copied. More...

size_t	elemSize1 () const
	returns elemSize()/channels() More...

SparseMatIterator_< _Tp >	end ()
	returns sparse matrix iterator pointing to the element following the last sparse matrix element More...

SparseMatConstIterator_< _Tp >	end () const
	returns read-only sparse matrix iterator pointing to the element following the last sparse matrix element More...

void	erase (int i0, int i1, size_t *hashval=0)
	erases the specified element (2D case) More...

void	erase (int i0, int i1, int i2, size_t *hashval=0)
	erases the specified element (3D case) More...

void	erase (const int idx, size_t hashval=0)
	erases the specified element (nD case) More...

size_t	hash (int i0) const
	computes the element hash value (1D case) More...

size_t	hash (int i0, int i1) const
	computes the element hash value (2D case) More...

size_t	hash (int i0, int i1, int i2) const
	computes the element hash value (3D case) More...

size_t	hash (const int *idx) const
	computes the element hash value (nD case) More...

uchar *	newNode (const int *idx, size_t hashval)

Node *	node (size_t nidx)

const Node *	node (size_t nidx) const

size_t	nzcount () const
	returns the number of non-zero elements (=the number of hash table nodes) More...

_Tp	operator() (int i0, size_t *hashval=0) const
	equivalent to SparseMat::value<_Tp>(i0, hashval) More...

_Tp	operator() (int i0, int i1, size_t *hashval=0) const
	equivalent to SparseMat::value<_Tp>(i0, i1, hashval) More...

_Tp	operator() (int i0, int i1, int i2, size_t *hashval=0) const
	equivalent to SparseMat::value<_Tp>(i0, i1, i2, hashval) More...

_Tp	operator() (const int idx, size_t hashval=0) const
	equivalent to SparseMat::value<_Tp>(idx, hashval) More...

SparseMat_ &	operator= (const SparseMat &m)
	converts the old-style sparse matrix to the C++ class. All the elements are copied More...

SparseMat_ &	operator= (const SparseMat_ &m)
	the assignment operator. This is O(1) operation - no data is copied More...

SparseMat_ &	operator= (const Mat &m)
	converts dense matrix to the sparse form More...

_Tp &	ref (int i0, size_t *hashval=0)
	equivalent to SparseMat::ref<_Tp>(i0, hashval) More...

_Tp &	ref (int i0, int i1, size_t *hashval=0)
	equivalent to SparseMat::ref<_Tp>(i0, i1, hashval) More...

_Tp &	ref (int i0, int i1, int i2, size_t *hashval=0)
	equivalent to SparseMat::ref<_Tp>(i0, i1, i2, hashval) More...

_Tp &	ref (const int idx, size_t hashval=0)
	equivalent to SparseMat::ref<_Tp>(idx, hashval) More...

void	release ()

void	removeNode (size_t hidx, size_t nidx, size_t previdx)

void	resizeHashTab (size_t newsize)

const int *	size () const
	returns the array of sizes, or NULL if the matrix is not allocated More...

int	size (int i) const
	returns the size of i-th matrix dimension (or 0) More...

int	type () const
	converts sparse matrix to the old-style CvSparseMat. All the elements are copied More...

template<typename _Tp >
_Tp &	value (Node *n)
	returns the value stored in the sparse martix node More...

template<typename _Tp >
const _Tp &	value (const Node *n) const
	returns the value stored in the sparse martix node More...


uchar *	ptr (int i0, bool createMissing, size_t *hashval=0)
	specialized variants for 1D, 2D, 3D cases and the generic_type one for n-D case. More...

uchar *	ptr (int i0, int i1, bool createMissing, size_t *hashval=0)
	returns pointer to the specified element (2D case) More...

uchar *	ptr (int i0, int i1, int i2, bool createMissing, size_t *hashval=0)
	returns pointer to the specified element (3D case) More...

uchar *	ptr (const int idx, bool createMissing, size_t hashval=0)
	returns pointer to the specified element (nD case) More...


template<typename _Tp >
_Tp	value (int i0, size_t *hashval=0) const
	return value of the specified sparse matrix element. More...

template<typename _Tp >
_Tp	value (int i0, int i1, size_t *hashval=0) const
	returns value of the specified element (2D case) More...

template<typename _Tp >
_Tp	value (int i0, int i1, int i2, size_t *hashval=0) const
	returns value of the specified element (3D case) More...

template<typename _Tp >
_Tp	value (const int idx, size_t hashval=0) const
	returns value of the specified element (nD case) More...


template<typename _Tp >
const _Tp *	find (int i0, size_t *hashval=0) const
	Return pointer to the specified sparse matrix element if it exists. More...

template<typename _Tp >
const _Tp *	find (int i0, int i1, size_t *hashval=0) const
	returns pointer to the specified element (2D case) More...

template<typename _Tp >
const _Tp *	find (int i0, int i1, int i2, size_t *hashval=0) const
	returns pointer to the specified element (3D case) More...

template<typename _Tp >
const _Tp *	find (const int idx, size_t hashval=0) const
	returns pointer to the specified element (nD case) More...

Public Attributes
int	flags

Hdr *	hdr

Detailed Description

template<typename _Tp>
class cv::SparseMat_< _Tp >

Template sparse n-dimensional array class derived from SparseMat.

SparseMat_ is a thin wrapper on top of SparseMat created in the same way as Mat_ . It simplifies notation of some operations:

int sz[] = {10, 20, 30};
SparseMat_<double> M(3, sz);
...
M.ref(1, 2, 3) = M(4, 5, 6) + M(7, 8, 9);

Member Typedef Documentation

template<typename _Tp>

typedef SparseMatConstIterator_<_Tp> cv::SparseMat_< _Tp >::const_iterator

template<typename _Tp>

typedef SparseMatIterator_<_Tp> cv::SparseMat_< _Tp >::iterator

Member Enumeration Documentation

anonymous enum

inherited

Enumerator
MAGIC_VAL
MAX_DIM
HASH_SCALE
HASH_BIT

Constructor & Destructor Documentation

template<typename _Tp>

cv::SparseMat_< _Tp >::SparseMat_ ( )

the default constructor

template<typename _Tp>

cv::SparseMat_< _Tp >::SparseMat_	(	int	dims,
		const int *	_sizes
	)

the full constructor equivelent to SparseMat(dims, _sizes, DataType<_Tp>::type)

template<typename _Tp>

cv::SparseMat_< _Tp >::SparseMat_ ( const SparseMat & m )

the copy constructor. If DataType<_Tp>.type != m.type(), the m elements are converted

template<typename _Tp>

cv::SparseMat_< _Tp >::SparseMat_ ( const SparseMat_< _Tp > & m )

the copy constructor. This is O(1) operation - no data is copied

template<typename _Tp>

cv::SparseMat_< _Tp >::SparseMat_ ( const Mat & m )

converts dense matrix to the sparse form

Member Function Documentation

void cv::SparseMat::addref ( )

inherited

manually increments the reference counter to the header.

void cv::SparseMat::assignTo	(	SparseMat &	m,
		int	type = `-1`
	)		const

inherited

template<typename _Tp>

SparseMatIterator_<_Tp> cv::SparseMat_< _Tp >::begin ( )

returns sparse matrix iterator pointing to the first sparse matrix element

template<typename _Tp>

SparseMatConstIterator_<_Tp> cv::SparseMat_< _Tp >::begin ( ) const

returns read-only sparse matrix iterator pointing to the first sparse matrix element

template<typename _Tp>

int cv::SparseMat_< _Tp >::channels ( ) const

returns the number of channels in each matrix element

void cv::SparseMat::clear ( )

inherited

sets all the sparse matrix elements to 0, which means clearing the hash table.

template<typename _Tp>

SparseMat_ cv::SparseMat_< _Tp >::clone ( ) const

makes full copy of the matrix. All the elements are duplicated

void cv::SparseMat::convertTo	(	SparseMat &	m,
		int	rtype,
		double	alpha = `1`
	)		const

inherited

multiplies all the matrix elements by the specified scale factor alpha and converts the results to the specified data type

void cv::SparseMat::convertTo	(	Mat &	m,
		int	rtype,
		double	alpha = `1`,
		double	beta = `0`
	)		const

inherited

converts sparse matrix to dense n-dim matrix with optional type conversion and scaling.

Parameters

[out]	m	- output matrix; if it does not have a proper size or type before the operation, it is reallocated
[in]	rtype	– desired output matrix type or, rather, the depth since the number of channels are the same as the input has; if rtype is negative, the output matrix will have the same type as the input.
[in]	alpha	– optional scale factor
[in]	beta	– optional delta added to the scaled values

void cv::SparseMat::copyTo ( SparseMat & m ) const

inherited

copies all the data to the destination matrix. All the previous content of m is erased

void cv::SparseMat::copyTo ( Mat & m ) const

inherited

converts sparse matrix to dense matrix.

void cv::SparseMat::create	(	int	dims,
		const int *	_sizes,
		int	_type
	)

inherited

reallocates sparse matrix.

If the matrix already had the proper size and type, it is simply cleared with clear(), otherwise, the old matrix is released (using release()) and the new one is allocated.

template<typename _Tp>

void cv::SparseMat_< _Tp >::create	(	int	dims,
		const int *	_sizes
	)

equivalent to cv::SparseMat::create(dims, _sizes, DataType<_Tp>::type)

template<typename _Tp>

int cv::SparseMat_< _Tp >::depth ( ) const

returns depth of the matrix elements

int cv::SparseMat::dims ( ) const

inherited

returns the matrix dimensionality

size_t cv::SparseMat::elemSize ( ) const

inherited

converts sparse matrix to the old-style representation; all the elements are copied.

returns the size of each element in bytes (not including the overhead - the space occupied by SparseMat::Node elements)

size_t cv::SparseMat::elemSize1 ( ) const

inherited

returns elemSize()/channels()

template<typename _Tp>

SparseMatIterator_<_Tp> cv::SparseMat_< _Tp >::end ( )

returns sparse matrix iterator pointing to the element following the last sparse matrix element

template<typename _Tp>

SparseMatConstIterator_<_Tp> cv::SparseMat_< _Tp >::end ( ) const

returns read-only sparse matrix iterator pointing to the element following the last sparse matrix element

void cv::SparseMat::erase	(	int	i0,
		int	i1,
		size_t *	hashval = `0`
	)

inherited

erases the specified element (2D case)

void cv::SparseMat::erase	(	int	i0,
		int	i1,
		int	i2,
		size_t *	hashval = `0`
	)

inherited

erases the specified element (3D case)

void cv::SparseMat::erase	(	const int *	idx,
		size_t *	hashval = `0`
	)

inherited

erases the specified element (nD case)

template<typename _Tp >

const _Tp* cv::SparseMat::find	(	int	i0,
		size_t *	hashval = `0`
	)		const

inherited

Return pointer to the specified sparse matrix element if it exists.

find<_Tp>(i0,...[,hashval]) is equivalent to (_const Tp*)ptr(i0,...false[,hashval]).

If the specified element does not exist, the methods return NULL.returns pointer to the specified element (1D case)

template<typename _Tp >

const _Tp* cv::SparseMat::find	(	int	i0,
		int	i1,
		size_t *	hashval = `0`
	)		const

inherited

returns pointer to the specified element (2D case)

template<typename _Tp >

const _Tp* cv::SparseMat::find	(	int	i0,
		int	i1,
		int	i2,
		size_t *	hashval = `0`
	)		const

inherited

returns pointer to the specified element (3D case)

template<typename _Tp >

const _Tp* cv::SparseMat::find	(	const int *	idx,
		size_t *	hashval = `0`
	)		const

inherited

returns pointer to the specified element (nD case)

size_t cv::SparseMat::hash ( int i0 ) const

inherited

computes the element hash value (1D case)

size_t cv::SparseMat::hash	(	int	i0,
		int	i1
	)		const

inherited

computes the element hash value (2D case)

size_t cv::SparseMat::hash	(	int	i0,
		int	i1,
		int	i2
	)		const

inherited

computes the element hash value (3D case)

size_t cv::SparseMat::hash ( const int * idx ) const

inherited

computes the element hash value (nD case)

uchar* cv::SparseMat::newNode	(	const int *	idx,
		size_t	hashval
	)

inherited

Node* cv::SparseMat::node ( size_t nidx )

inherited

const Node* cv::SparseMat::node ( size_t nidx ) const

inherited

size_t cv::SparseMat::nzcount ( ) const

inherited

returns the number of non-zero elements (=the number of hash table nodes)

template<typename _Tp>

_Tp cv::SparseMat_< _Tp >::operator()	(	int	i0,
		size_t *	hashval = `0`
	)		const

equivalent to SparseMat::value<_Tp>(i0, hashval)

template<typename _Tp>

_Tp cv::SparseMat_< _Tp >::operator()	(	int	i0,
		int	i1,
		size_t *	hashval = `0`
	)		const

equivalent to SparseMat::value<_Tp>(i0, i1, hashval)

template<typename _Tp>

_Tp cv::SparseMat_< _Tp >::operator()	(	int	i0,
		int	i1,
		int	i2,
		size_t *	hashval = `0`
	)		const

equivalent to SparseMat::value<_Tp>(i0, i1, i2, hashval)

template<typename _Tp>

_Tp cv::SparseMat_< _Tp >::operator()	(	const int *	idx,
		size_t *	hashval = `0`
	)		const

equivalent to SparseMat::value<_Tp>(idx, hashval)

template<typename _Tp>

SparseMat_& cv::SparseMat_< _Tp >::operator= ( const SparseMat & m )

converts the old-style sparse matrix to the C++ class. All the elements are copied

the assignment operator. If DataType<_Tp>.type != m.type(), the m elements are converted

template<typename _Tp>

SparseMat_& cv::SparseMat_< _Tp >::operator= ( const SparseMat_< _Tp > & m )

the assignment operator. This is O(1) operation - no data is copied

template<typename _Tp>

SparseMat_& cv::SparseMat_< _Tp >::operator= ( const Mat & m )

converts dense matrix to the sparse form

uchar* cv::SparseMat::ptr	(	int	i0,
		bool	createMissing,
		size_t *	hashval = `0`
	)

inherited

specialized variants for 1D, 2D, 3D cases and the generic_type one for n-D case.

return pointer to the matrix element.

if the element is there (it's non-zero), the pointer to it is returned
if it's not there and createMissing=false, NULL pointer is returned
if it's not there and createMissing=true, then the new element is created and initialized with 0. Pointer to it is returned
if the optional hashval pointer is not NULL, the element hash value is not computed, but *hashval is taken instead.returns pointer to the specified element (1D case)

uchar* cv::SparseMat::ptr	(	int	i0,
		int	i1,
		bool	createMissing,
		size_t *	hashval = `0`
	)

inherited

returns pointer to the specified element (2D case)

uchar* cv::SparseMat::ptr	(	int	i0,
		int	i1,
		int	i2,
		bool	createMissing,
		size_t *	hashval = `0`
	)

inherited

returns pointer to the specified element (3D case)

uchar* cv::SparseMat::ptr	(	const int *	idx,
		bool	createMissing,
		size_t *	hashval = `0`
	)

inherited

returns pointer to the specified element (nD case)

template<typename _Tp>

_Tp& cv::SparseMat_< _Tp >::ref	(	int	i0,
		size_t *	hashval = `0`
	)

equivalent to SparseMat::ref<_Tp>(i0, hashval)

template<typename _Tp>

_Tp& cv::SparseMat_< _Tp >::ref	(	int	i0,
		int	i1,
		size_t *	hashval = `0`
	)

equivalent to SparseMat::ref<_Tp>(i0, i1, hashval)

template<typename _Tp>

_Tp& cv::SparseMat_< _Tp >::ref	(	int	i0,
		int	i1,
		int	i2,
		size_t *	hashval = `0`
	)

equivalent to SparseMat::ref<_Tp>(i0, i1, i2, hashval)

template<typename _Tp>

_Tp& cv::SparseMat_< _Tp >::ref	(	const int *	idx,
		size_t *	hashval = `0`
	)

equivalent to SparseMat::ref<_Tp>(idx, hashval)

void cv::SparseMat::release ( )

inherited

void cv::SparseMat::removeNode	(	size_t	hidx,
		size_t	nidx,
		size_t	previdx
	)

inherited

void cv::SparseMat::resizeHashTab ( size_t newsize )

inherited

const int* cv::SparseMat::size ( ) const

inherited

returns the array of sizes, or NULL if the matrix is not allocated

int cv::SparseMat::size ( int i ) const

inherited

returns the size of i-th matrix dimension (or 0)

template<typename _Tp>

int cv::SparseMat_< _Tp >::type ( ) const

converts sparse matrix to the old-style CvSparseMat. All the elements are copied

returns type of the matrix elements

template<typename _Tp >

_Tp cv::SparseMat::value	(	int	i0,
		size_t *	hashval = `0`
	)		const

inherited

return value of the specified sparse matrix element.

value<_Tp>(i0,...[,hashval]) is equivalent to

{ const _Tp* p = find<_Tp>(i0,...[,hashval]); return p ? *p : _Tp(); }

That is, if the element did not exist, the methods return 0.returns value of the specified element (1D case)

template<typename _Tp >

_Tp cv::SparseMat::value	(	int	i0,
		int	i1,
		size_t *	hashval = `0`
	)		const

inherited

returns value of the specified element (2D case)

template<typename _Tp >

_Tp cv::SparseMat::value	(	int	i0,
		int	i1,
		int	i2,
		size_t *	hashval = `0`
	)		const

inherited

returns value of the specified element (3D case)

template<typename _Tp >

_Tp cv::SparseMat::value	(	const int *	idx,
		size_t *	hashval = `0`
	)		const

inherited

returns value of the specified element (nD case)

template<typename _Tp >

_Tp& cv::SparseMat::value ( Node * n )

inherited

returns the value stored in the sparse martix node

template<typename _Tp >

const _Tp& cv::SparseMat::value ( const Node * n ) const

inherited

returns the value stored in the sparse martix node

Member Data Documentation

int cv::SparseMat::flags

inherited

Hdr* cv::SparseMat::hdr

inherited

The documentation for this class was generated from the following file:

core/include/opencv2/core/mat.hpp

Public Types

Public Member Functions

Public Attributes

Detailed Description

template<typename _Tp> class cv::SparseMat_< _Tp >

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename _Tp>
class cv::SparseMat_< _Tp >
