cv::WImage< T > Class Template Reference

Image class which provides a thin layer around an IplImage. More...

#include "wimage.hpp"

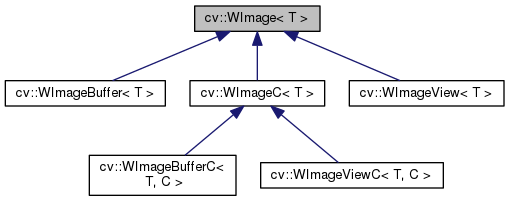

Inheritance diagram for cv::WImage< T >:

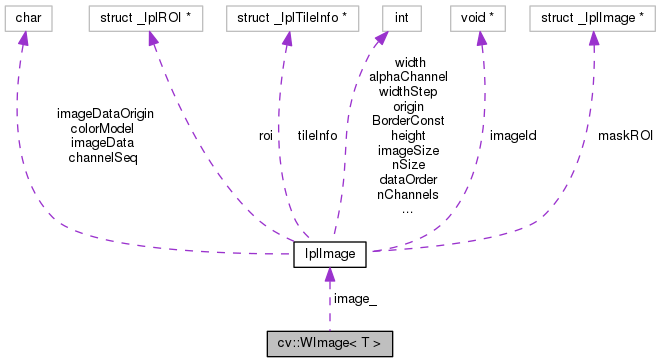

Collaboration diagram for cv::WImage< T >:

Public Types
typedef T	BaseType

Public Member Functions
virtual	~WImage ()=0
int	Channels () const
int	ChannelSize () const
void	CopyFrom (const WImage< T > &src)
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
int	Height () const
T *	ImageData ()
const T *	ImageData () const
IplImage *	Ipl ()
const IplImage *	Ipl () const
T *	operator() (int c, int r)
const T *	operator() (int c, int r) const
int	PixelSize () const
const T *	Row (int r) const
T *	Row (int r)
void	SetZero ()
WImageView< T >	View (int c, int r, int width, int height)
int	Width () const
int	WidthStep () const

Protected Member Functions
	WImage (const WImage &)
	WImage (IplImage *img)
void	operator= (const WImage &)
void	SetIpl (IplImage *image)

Protected Attributes
IplImage *	image_

Detailed Description

template<typename T>
class cv::WImage< T >

Image class which provides a thin layer around an IplImage.

The goals of the class design are:

-# All the data has explicit ownership to avoid memory leaks
-# No hidden allocations or copies for performance.
-# Easy access to OpenCV methods (which will access IPP if available)
-# Can easily treat external data as an image
-# Easy to create images which are subsets of other images
-# Fast pixel access which can take advantage of number of channels if known at compile time.

The WImage class is the image class which provides the data accessors. The 'W' comes from the fact that it is also a wrapper around the popular but inconvenient IplImage class. A WImage can be constructed either using a WImageBuffer class which allocates and frees the data, or using a WImageView class which constructs a subimage or a view into external data. The view class does no memory management. Each class actually has two versions, one when the number of channels is known at compile time and one when it isn't. Using the one with the number of channels specified can provide some compile time optimizations by using the fact that the number of channels is a constant.

We use the convention (c,r) to refer to column c and row r with (0,0) being the upper left corner. This is similar to standard Euclidean coordinates with the first coordinate varying in the horizontal direction and the second coordinate varying in the vertical direction. Thus (c,r) is usually in the domain [0, width) X [0, height)

Example usage:

WImageBuffer3_b  im(5,7);  // Make a 5X7 3 channel image of type uchar
WImageView3_b  sub_im(im, 2,2, 3,3); // 3X3 submatrix
vector<float> vec(10, 3.0f);
WImageView1_f user_im(&vec[0], 2, 5);  // 2X5 image w/ supplied data

im.SetZero();  // same as cvSetZero(im.Ipl())
*im(2, 3) = 15;  // Modify the element at column 2, row 3
MySetRand(&sub_im);

// Copy the second row into the first.  This can be done with no memory
// allocation and will use SSE if IPP is available.
int w = im.Width();
im.View(0,0, w,1).CopyFrom(im.View(0,1, w,1));

// Doesn't care about source of data since using WImage
void MySetRand(WImage_b* im) { // Works with any number of channels
for (int r = 0; r < im->Height(); ++r) {
 float* row = im->Row(r);
 for (int c = 0; c < im->Width(); ++c) {
    for (int ch = 0; ch < im->Channels(); ++ch, ++row) {
      *row = uchar(rand() & 255);
    }
 }
}
}

Functions that are not part of the basic image allocation, viewing, and access should come from OpenCV, except some useful functions that are not part of OpenCV can be found in wimage_util.h

Member Typedef Documentation

template<typename T>

typedef T cv::WImage< T >::BaseType

Constructor & Destructor Documentation

template<typename T>

cv::WImage< T >::WImage ( const WImage< T > &  )

protected

Referenced by cv::WImage< T >::SetZero().

Here is the caller graph for this function:

template<typename T>

cv::WImage< T >::WImage ( IplImage *  img )

inlineexplicitprotected

References IplImage::depth.

Member Function Documentation

template<typename T>

int cv::WImage< T >::Channels ( ) const

inline

References cv::WImage< T >::image_, and IplImage::nChannels.

Referenced by cv::WImageBuffer< T >::CloneFrom(), cv::WImage< T >::operator()(), cv::WImage< T >::PixelSize(), and cv::WImageC< T, C >::WImageC().

Here is the caller graph for this function:

template<typename T>

int cv::WImage< T >::ChannelSize ( ) const

inline

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

template<typename T>

void cv::WImage< T >::CopyFrom ( const WImage< T > &  src )

inline

References cvCopy(), cv::WImage< T >::image_, and cv::WImage< T >::Ipl().

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T>

int cv::WImage< T >::Depth

(

)

const

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

template<>

int cv::WImage< uchar >::Depth ( ) const

inline

References IPL_DEPTH_8U.

template<>

int cv::WImage< signed char >::Depth ( ) const

inline

References IPL_DEPTH_8S.

template<>

int cv::WImage< short >::Depth ( ) const

inline

References IPL_DEPTH_16S.

template<>

int cv::WImage< ushort >::Depth ( ) const

inline

References IPL_DEPTH_16U.

template<>

int cv::WImage< int >::Depth ( ) const

inline

References IPL_DEPTH_32S.

template<>

int cv::WImage< float >::Depth ( ) const

inline

References IPL_DEPTH_32F.

template<>

int cv::WImage< double >::Depth ( ) const

inline

References IPL_DEPTH_64F.

template<typename T>

int cv::WImage< T >::Height ( ) const

inline

References IplImage::height, and cv::WImage< T >::image_.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

template<typename T>

T* cv::WImage< T >::ImageData ( )

inline

References cv::WImage< T >::image_, and IplImage::imageData.

template<typename T>

const T* cv::WImage< T >::ImageData ( ) const

inline

References cv::WImage< T >::image_, and IplImage::imageData.

template<typename T>

IplImage* cv::WImage< T >::Ipl ( )

inline

References cv::WImage< T >::image_.

Referenced by cv::WImage< T >::CopyFrom(), cv::WImageC< T, C >::CopyFrom(), cv::WImageView< T >::operator=(), cv::WImageViewC< T, C >::operator=(), cv::WImageView< T >::WImageView(), and cv::WImageViewC< T, C >::WImageViewC().

Here is the caller graph for this function:

template<typename T>

const IplImage* cv::WImage< T >::Ipl ( ) const

inline

References cv::WImage< T >::image_.

template<typename T>

T* cv::WImage< T >::operator() ( int  c, int  r  )

inline

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

template<typename T>

const T* cv::WImage< T >::operator() ( int  c, int  r  ) const

inline

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

template<typename T>

void cv::WImage< T >::operator= ( const WImage< T > &  )

protected

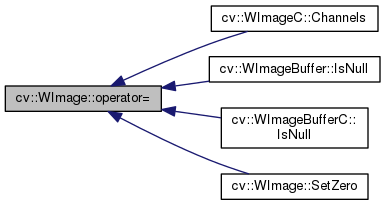

Referenced by cv::WImageC< T, C >::Channels(), cv::WImageBuffer< T >::IsNull(), cv::WImageBufferC< T, C >::IsNull(), and cv::WImage< T >::SetZero().

Here is the caller graph for this function:

template<typename T>

int cv::WImage< T >::PixelSize ( ) const

inline

References cv::WImage< T >::Channels(), cv::WImage< T >::ChannelSize(), and cv::WImage< T >::Depth().

Here is the call graph for this function:

template<typename T>

const T* cv::WImage< T >::Row ( int  r ) const

inline

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

template<typename T>

T* cv::WImage< T >::Row ( int  r )

inline

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

template<typename T>

void cv::WImage< T >::SetIpl ( IplImage *  image )

inlineprotected

References IplImage::depth, and cv::WImage< T >::image_.

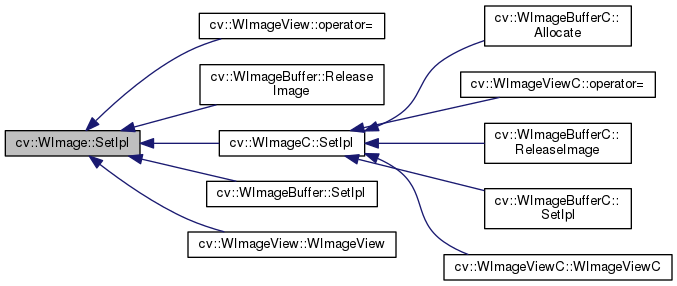

Referenced by cv::WImageView< T >::operator=(), cv::WImageBuffer< T >::ReleaseImage(), cv::WImageC< T, C >::SetIpl(), cv::WImageBuffer< T >::SetIpl(), and cv::WImageView< T >::WImageView().

Here is the caller graph for this function:

template<typename T>

void cv::WImage< T >::SetZero ( )

inline

References cvSetZero(), cv::WImage< T >::image_, cv::WImage< T >::operator=(), cv::WImage< T >::View(), and cv::WImage< T >::WImage().

Here is the call graph for this function:

template<typename T>

int cv::WImage< T >::Width ( ) const

inline

References cv::WImage< T >::image_, and IplImage::width.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

template<typename T>

int cv::WImage< T >::WidthStep ( ) const

inline

References cv::WImage< T >::image_, and IplImage::widthStep.

Member Data Documentation

template<typename T>

IplImage* cv::WImage< T >::image_

protected

Referenced by cv::WImage< T >::Channels(), cv::WImage< T >::CopyFrom(), cv::WImage< T >::Height(), cv::WImage< T >::ImageData(), cv::WImage< T >::Ipl(), cv::WImage< T >::operator()(), cv::WImage< T >::Row(), cv::WImage< T >::SetIpl(), cv::WImage< T >::SetZero(), cv::WImage< T >::Width(), and cv::WImage< T >::WidthStep().

---

The documentation for this class was generated from the following file:

• core/include/opencv2/core/wimage.hpp
