cv::WImageBuffer< T > Class Template Reference

Image class which owns the data, so it can be allocated and is always freed. More...

#include "wimage.hpp"

Inheritance diagram for cv::WImageBuffer< T >:

Collaboration diagram for cv::WImageBuffer< T >:

Public Types
typedef WImage< T >::BaseType	BaseType

Public Member Functions
	WImageBuffer ()
	WImageBuffer (int width, int height, int nchannels)
	WImageBuffer (IplImage *img)
	~WImageBuffer ()
void	Allocate (int width, int height, int nchannels)
int	Channels () const
int	ChannelSize () const
void	CloneFrom (const WImage< T > &src)
void	CopyFrom (const WImage< T > &src)
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
template<>
int	Depth () const
int	Height () const
T *	ImageData ()
const T *	ImageData () const
IplImage *	Ipl ()
const IplImage *	Ipl () const
bool	IsNull () const
T *	operator() (int c, int r)
const T *	operator() (int c, int r) const
int	PixelSize () const
void	ReleaseImage ()
const T *	Row (int r) const
T *	Row (int r)
void	SetIpl (IplImage *img)
void	SetZero ()
WImageView< T >	View (int c, int r, int width, int height)
int	Width () const
int	WidthStep () const

Protected Attributes
IplImage *	image_

Detailed Description

template<typename T>
class cv::WImageBuffer< T >

Image class which owns the data, so it can be allocated and is always freed.

It cannot be copied but can be explicity cloned.

Member Typedef Documentation

template<typename T >

typedef WImage<T>::BaseType cv::WImageBuffer< T >::BaseType

Constructor & Destructor Documentation

template<typename T >

cv::WImageBuffer< T >::WImageBuffer ( )

inline

template<typename T >

cv::WImageBuffer< T >::WImageBuffer ( int  width, int  height, int  nchannels  )

inline

template<typename T >

cv::WImageBuffer< T >::WImageBuffer ( IplImage *  img )

inlineexplicit

template<typename T >

cv::WImageBuffer< T >::~WImageBuffer ( )

inline

Member Function Documentation

template<typename T>

int cv::WImage< T >::Channels ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::nChannels.

Referenced by cv::WImageBuffer< T >::CloneFrom(), cv::WImage< T >::operator()(), cv::WImage< T >::PixelSize(), and cv::WImageC< T, C >::WImageC().

Here is the caller graph for this function:

template<typename T>

int cv::WImage< T >::ChannelSize ( ) const

inlineinherited

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

template<typename T >

void cv::WImageBuffer< T >::CloneFrom ( const WImage< T > &  src )

inline

References cv::WImage< T >::Channels(), cv::WImage< T >::CopyFrom(), cv::WImage< T >::Height(), and cv::WImage< T >::Width().

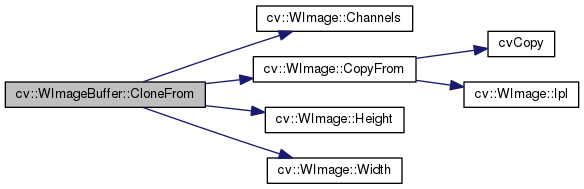

Here is the call graph for this function:

template<typename T>

void cv::WImage< T >::CopyFrom ( const WImage< T > &  src )

inlineinherited

References cvCopy(), cv::WImage< T >::image_, and cv::WImage< T >::Ipl().

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename T>

int cv::WImage< T >::Depth ( ) const

inherited

Referenced by cv::WImage< T >::PixelSize().

Here is the caller graph for this function:

template<>

int cv::WImage< uchar >::Depth ( ) const

inlineinherited

References IPL_DEPTH_8U.

template<>

int cv::WImage< signed char >::Depth ( ) const

inlineinherited

References IPL_DEPTH_8S.

template<>

int cv::WImage< short >::Depth ( ) const

inlineinherited

References IPL_DEPTH_16S.

template<>

int cv::WImage< ushort >::Depth ( ) const

inlineinherited

References IPL_DEPTH_16U.

template<>

int cv::WImage< int >::Depth ( ) const

inlineinherited

References IPL_DEPTH_32S.

template<>

int cv::WImage< float >::Depth ( ) const

inlineinherited

References IPL_DEPTH_32F.

template<>

int cv::WImage< double >::Depth ( ) const

inlineinherited

References IPL_DEPTH_64F.

template<typename T>

int cv::WImage< T >::Height ( ) const

inlineinherited

References IplImage::height, and cv::WImage< T >::image_.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

template<typename T>

T* cv::WImage< T >::ImageData ( )

inlineinherited

References cv::WImage< T >::image_, and IplImage::imageData.

template<typename T>

const T* cv::WImage< T >::ImageData ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::imageData.

template<typename T>

IplImage* cv::WImage< T >::Ipl ( )

inlineinherited

References cv::WImage< T >::image_.

Referenced by cv::WImage< T >::CopyFrom(), cv::WImageC< T, C >::CopyFrom(), cv::WImageView< T >::operator=(), cv::WImageViewC< T, C >::operator=(), cv::WImageView< T >::WImageView(), and cv::WImageViewC< T, C >::WImageViewC().

Here is the caller graph for this function:

template<typename T>

const IplImage* cv::WImage< T >::Ipl ( ) const

inlineinherited

References cv::WImage< T >::image_.

template<typename T >

bool cv::WImageBuffer< T >::IsNull ( ) const

inline

References cv::WImage< T >::operator=().

Here is the call graph for this function:

template<typename T>

T* cv::WImage< T >::operator() ( int  c, int  r  )

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

template<typename T>

const T* cv::WImage< T >::operator() ( int  c, int  r  ) const

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

Here is the call graph for this function:

template<typename T>

int cv::WImage< T >::PixelSize ( ) const

inlineinherited

References cv::WImage< T >::Channels(), cv::WImage< T >::ChannelSize(), and cv::WImage< T >::Depth().

Here is the call graph for this function:

template<typename T >

void cv::WImageBuffer< T >::ReleaseImage ( )

inline

References cvReleaseImage(), and cv::WImage< T >::SetIpl().

Here is the call graph for this function:

template<typename T>

const T* cv::WImage< T >::Row ( int  r ) const

inlineinherited

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

template<typename T>

T* cv::WImage< T >::Row ( int  r )

inlineinherited

References cv::WImage< T >::image_, IplImage::imageData, and IplImage::widthStep.

template<typename T >

void cv::WImageBuffer< T >::SetIpl ( IplImage *  img )

inline

References cv::WImage< T >::SetIpl().

Here is the call graph for this function:

template<typename T>

void cv::WImage< T >::SetZero ( )

inlineinherited

References cvSetZero(), cv::WImage< T >::image_, cv::WImage< T >::operator=(), cv::WImage< T >::View(), and cv::WImage< T >::WImage().

Here is the call graph for this function:

template<typename T>

int cv::WImage< T >::Width ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::width.

Referenced by cv::WImageBuffer< T >::CloneFrom(), and cv::WImageBufferC< T, C >::CloneFrom().

Here is the caller graph for this function:

template<typename T>

int cv::WImage< T >::WidthStep ( ) const

inlineinherited

References cv::WImage< T >::image_, and IplImage::widthStep.

Member Data Documentation

template<typename T>

IplImage* cv::WImage< T >::image_

protectedinherited

Referenced by cv::WImage< T >::Channels(), cv::WImage< T >::CopyFrom(), cv::WImage< T >::Height(), cv::WImage< T >::ImageData(), cv::WImage< T >::Ipl(), cv::WImage< T >::operator()(), cv::WImage< T >::Row(), cv::WImage< T >::SetIpl(), cv::WImage< T >::SetZero(), cv::WImage< T >::Width(), and cv::WImage< T >::WidthStep().

---

The documentation for this class was generated from the following file:

• core/include/opencv2/core/wimage.hpp
