cv::viz::Mesh Class Reference

This class wraps mesh attributes, and it can load a mesh from a ply file. More...

#include "types.hpp"

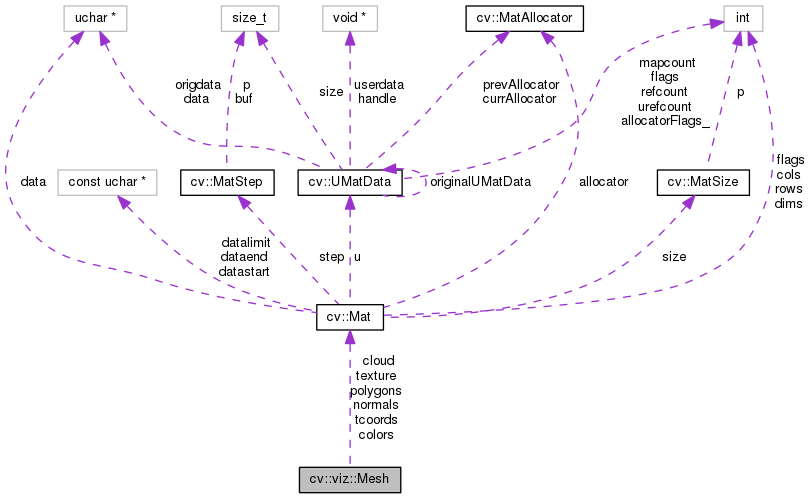

Collaboration diagram for cv::viz::Mesh:

Public Types
enum	{   LOAD_AUTO = 0,   LOAD_PLY = 1,   LOAD_OBJ = 2 }

Static Public Member Functions
static Mesh	load (const String &file, int type=LOAD_PLY)
	Loads a mesh from a ply or a obj file. More...

Public Attributes
Mat	cloud
Mat	colors
Mat	normals
Mat	polygons
	Raw integer list of the form: (n,id1,id2,...,idn, n,id1,id2,...,idn, ...) where n is the number of points in the poligon, and id is a zero-offset index into an associated cloud. More...
Mat	tcoords
Mat	texture

Detailed Description

This class wraps mesh attributes, and it can load a mesh from a ply file.

:

Member Enumeration Documentation

anonymous enum

Enumerator
LOAD_AUTO
LOAD_PLY
LOAD_OBJ

Member Function Documentation

static Mesh cv::viz::Mesh::load ( const String &  file, int  type = LOAD_PLY  )

static

Loads a mesh from a ply or a obj file.

Parameters

file	File name
type	File type (for now only PLY and OBJ are supported)

File type** can be one of the following:

• LOAD_PLY
• LOAD_OBJ

Member Data Documentation

Mat cv::viz::Mesh::cloud

Mat cv::viz::Mesh::colors

Mat cv::viz::Mesh::normals

Mat cv::viz::Mesh::polygons

Raw integer list of the form: (n,id1,id2,...,idn, n,id1,id2,...,idn, ...) where n is the number of points in the poligon, and id is a zero-offset index into an associated cloud.

Mat cv::viz::Mesh::tcoords

Mat cv::viz::Mesh::texture

---

The documentation for this class was generated from the following file:

• viz/include/opencv2/viz/types.hpp
