Connections with C++

Collaboration diagram for Connections with C++:

Classes
struct	CvType
	class for automatic module/RTTI data registration/unregistration More...
class	cv::Seq< _Tp >
	Template Sequence Class derived from CvSeq. More...
class	cv::SeqIterator< _Tp >
	STL-style Sequence Iterator inherited from the CvSeqReader structure. More...

Typedefs
typedef Ptr< CvMemStorage >	cv::MemStorage

Functions
	cv::Seq< _Tp >::Seq ()
	the default constructor More...
	cv::Seq< _Tp >::Seq (const CvSeq *seq)
	the constructor for wrapping CvSeq structure. The real element type in CvSeq should match _Tp. More...
	cv::Seq< _Tp >::Seq (MemStorage &storage, int headerSize=sizeof(CvSeq))
	creates the empty sequence that resides in the specified storage More...
	cv::SeqIterator< _Tp >::SeqIterator ()
	the default constructor More...
	cv::SeqIterator< _Tp >::SeqIterator (const Seq< _Tp > &seq, bool seekEnd=false)
	the constructor setting the iterator to the beginning or to the end of the sequence More...
_Tp &	cv::Seq< _Tp >::back ()
	returns reference to the last sequence element More...
const _Tp &	cv::Seq< _Tp >::back () const
	returns read-only reference to the last sequence element More...
SeqIterator< _Tp >	cv::Seq< _Tp >::begin () const
	returns iterator pointing to the beginning of the sequence More...
int	cv::Seq< _Tp >::channels () const
	returns the number of channels in each sequence element More...
void	cv::Seq< _Tp >::clear ()
	removes all the elements from the sequence More...
void	cv::clearSeq (CvSeq *seq)
void	cv::Seq< _Tp >::copyTo (std::vector< _Tp > &vec, const Range &range=Range::all()) const
	copies the whole sequence or the sequence slice to the specified vector More...
Mat	cv::cvarrToMat (const CvArr *arr, bool copyData=false, bool allowND=true, int coiMode=0, AutoBuffer< double > *buf=0)
	converts array (CvMat or IplImage) to cv::Mat More...
static Mat	cv::cvarrToMatND (const CvArr *arr, bool copyData=false, int coiMode=0)
int	cv::Seq< _Tp >::depth () const
	returns the depth of sequence elements (CV_8U ... CV_64F) More...
size_t	cv::Seq< _Tp >::elemSize () const
	returns the size of each sequence element More...
bool	cv::Seq< _Tp >::empty () const
	returns true iff the sequence contains no elements More...
SeqIterator< _Tp >	cv::Seq< _Tp >::end () const
	returns iterator pointing to the element following the last sequence element More...
void	cv::extractImageCOI (const CvArr *arr, OutputArray coiimg, int coi=-1)
	extracts Channel of Interest from CvMat or IplImage and makes cv::Mat out of it. More...
_Tp &	cv::Seq< _Tp >::front ()
	returns reference to the first sequence element More...
const _Tp &	cv::Seq< _Tp >::front () const
	returns read-only reference to the first sequence element More...
schar *	cv::getSeqElem (const CvSeq *seq, int index)
size_t	cv::Seq< _Tp >::index (const _Tp &elem) const
	returns index of the specified sequence element More...
void	cv::Seq< _Tp >::insert (int idx, const _Tp &elem)
	inserts the specified element to the specified position More...
void	cv::Seq< _Tp >::insert (int idx, const _Tp *elems, size_t count)
	inserts zero or more elements to the specified position More...
void	cv::insertImageCOI (InputArray coiimg, CvArr *arr, int coi=-1)
	inserts single-channel cv::Mat into a multi-channel CvMat or IplImage More...
	cv::Seq< _Tp >::operator std::vector< _Tp > () const
	returns the vector containing all the sequence elements More...
template<typename _Tp >
bool	cv::operator!= (const SeqIterator< _Tp > &a, const SeqIterator< _Tp > &b)
_Tp &	cv::SeqIterator< _Tp >::operator* ()
	returns reference to the current sequence element More...
const _Tp &	cv::SeqIterator< _Tp >::operator* () const
	returns read-only reference to the current sequence element More...
SeqIterator &	cv::SeqIterator< _Tp >::operator++ ()
	moves iterator to the next sequence element More...
SeqIterator	cv::SeqIterator< _Tp >::operator++ (int) const
	moves iterator to the next sequence element More...
SeqIterator &	cv::SeqIterator< _Tp >::operator+= (int)
	moves iterator forward by the specified offset (possibly negative) More...
template<typename _Tp >
ptrdiff_t	cv::operator- (const SeqIterator< _Tp > &a, const SeqIterator< _Tp > &b)
SeqIterator &	cv::SeqIterator< _Tp >::operator-- ()
	moves iterator to the previous sequence element More...
SeqIterator	cv::SeqIterator< _Tp >::operator-- (int) const
	moves iterator to the previous sequence element More...
SeqIterator &	cv::SeqIterator< _Tp >::operator-= (int)
	moves iterator backward by the specified offset (possibly negative) More...
template<typename _Tp >
bool	cv::operator== (const SeqIterator< _Tp > &a, const SeqIterator< _Tp > &b)
_Tp &	cv::Seq< _Tp >::operator[] (int idx)
	returns read-write reference to the specified element More...
const _Tp &	cv::Seq< _Tp >::operator[] (int idx) const
	returns read-only reference to the specified element More...
void	cv::Seq< _Tp >::pop_back ()
	removes the last element from the sequence More...
void	cv::Seq< _Tp >::pop_back (_Tp *elems, size_t count)
	removes zero or more elements from the end of the sequence More...
void	cv::Seq< _Tp >::pop_front ()
	removes the first element from the sequence More...
void	cv::Seq< _Tp >::pop_front (_Tp *elems, size_t count)
	removes zero or more elements from the beginning of the sequence More...
void	cv::Seq< _Tp >::push_back (const _Tp &elem)
	appends the specified element to the end of the sequence More...
void	cv::Seq< _Tp >::push_back (const _Tp *elems, size_t count)
	appends zero or more elements to the end of the sequence More...
void	cv::Seq< _Tp >::push_front (const _Tp &elem)
	appends the specified element to the front of the sequence More...
void	cv::Seq< _Tp >::push_front (const _Tp *elems, size_t count)
	appends zero or more elements to the front of the sequence More...
void	cv::Seq< _Tp >::remove (int idx)
	removes element at the specified position More...
void	cv::Seq< _Tp >::remove (const Range &r)
	removes the specified subsequence More...
void	cv::SeqIterator< _Tp >::seek (size_t pos)
	positions the iterator within the sequence More...
void	cv::seqInsertSlice (CvSeq *seq, int before_index, const CvArr *from_arr)
void	cv::seqPop (CvSeq *seq, void *element=0)
void	cv::seqPopFront (CvSeq *seq, void *element=0)
void	cv::seqPopMulti (CvSeq *seq, void *elements, int count, int in_front=0)
schar *	cv::seqPush (CvSeq *seq, const void *element=0)
schar *	cv::seqPushFront (CvSeq *seq, const void *element=0)
void	cv::seqRemove (CvSeq *seq, int index)
void	cv::seqRemoveSlice (CvSeq *seq, CvSlice slice)
size_t	cv::Seq< _Tp >::size () const
	returns the number of elements in the sequence More...
size_t	cv::SeqIterator< _Tp >::tell () const
	reports the current iterator position More...
int	cv::Seq< _Tp >::type () const
	returns the type of sequence elements (CV_8UC1 ... CV_64FC(CV_CN_MAX) ...) More...

Detailed Description

Typedef Documentation

typedef Ptr<CvMemStorage> cv::MemStorage

#include <core/include/opencv2/core/core_c.h>

Function Documentation

template<typename _Tp >

cv::Seq< _Tp >::Seq ( )

inline

#include <core/include/opencv2/core/core_c.h>

the default constructor

template<typename _Tp >

cv::Seq< _Tp >::Seq ( const CvSeq< _Tp > *  seq )

inline

#include <core/include/opencv2/core/core_c.h>

the constructor for wrapping CvSeq structure. The real element type in CvSeq should match _Tp.

References CV_Assert, and CvSeq::elem_size.

template<typename _Tp >

cv::Seq< _Tp >::Seq ( MemStorage &  storage, int  headerSize = sizeof(CvSeq< _Tp >)  )

inline

#include <core/include/opencv2/core/core_c.h>

creates the empty sequence that resides in the specified storage

References CV_Assert, and cvCreateSeq().

Here is the call graph for this function:

template<typename _Tp >

cv::SeqIterator< _Tp >::SeqIterator ( )

inline

#include <core/include/opencv2/core/core_c.h>

the default constructor

template<typename _Tp >

cv::SeqIterator< _Tp >::SeqIterator ( const Seq< _Tp > &  seq, bool  seekEnd = false  )

inline

#include <core/include/opencv2/core/core_c.h>

the constructor setting the iterator to the beginning or to the end of the sequence

References cvStartReadSeq(), cv::Seq< _Tp >::seq, and CvSeq::total.

Here is the call graph for this function:

template<typename _Tp >

_Tp & cv::Seq< _Tp >::back ( )

inline

#include <core/include/opencv2/core/core_c.h>

returns reference to the last sequence element

References cv::getSeqElem().

Here is the call graph for this function:

template<typename _Tp >

const _Tp & cv::Seq< _Tp >::back ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns read-only reference to the last sequence element

References cv::getSeqElem().

Here is the call graph for this function:

template<typename _Tp >

SeqIterator< _Tp > cv::Seq< _Tp >::begin ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns iterator pointing to the beginning of the sequence

template<typename _Tp >

int cv::Seq< _Tp >::channels ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns the number of channels in each sequence element

References CV_MAT_CN, and CvSeq::flags.

template<typename _Tp >

void cv::Seq< _Tp >::clear ( )

inline

#include <core/include/opencv2/core/core_c.h>

removes all the elements from the sequence

References cv::clearSeq().

Here is the call graph for this function:

void cv::clearSeq

(

CvSeq *

seq

)

#include <core/include/opencv2/core/core_c.h>

Referenced by cv::Seq< _Tp >::clear().

Here is the caller graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::copyTo ( std::vector< _Tp > &  vec, const Range &  range = Range::all()  ) const

inline

#include <core/include/opencv2/core/core_c.h>

copies the whole sequence or the sequence slice to the specified vector

References cv::Range::all(), cvCvtSeqToArray(), cv::Range::end, cv::Range::start, and CvSeq::total.

Referenced by cv::Seq< _Tp >::operator std::vector< _Tp >().

Here is the call graph for this function:

Here is the caller graph for this function:

Mat cv::cvarrToMat	(	const CvArr *	arr,
		bool	copyData = false,
		bool	allowND = true,
		int	coiMode = 0,
		AutoBuffer< double > *	buf = 0
	)

#include <core/include/opencv2/core/core_c.h>

converts array (CvMat or IplImage) to cv::Mat

Referenced by cv::cvarrToMatND().

Here is the caller graph for this function:

static Mat cv::cvarrToMatND ( const CvArr *  arr, bool  copyData = false, int  coiMode = 0  )

inlinestatic

#include <core/include/opencv2/core/core_c.h>

References CV_EXPORTS, cv::cvarrToMat(), cv::extractImageCOI(), and cv::insertImageCOI().

Here is the call graph for this function:

template<typename _Tp >

int cv::Seq< _Tp >::depth ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns the depth of sequence elements (CV_8U ... CV_64F)

References CV_MAT_DEPTH, and CvSeq::flags.

template<typename _Tp >

size_t cv::Seq< _Tp >::elemSize ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns the size of each sequence element

References CvSeq::elem_size.

template<typename _Tp >

bool cv::Seq< _Tp >::empty ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns true iff the sequence contains no elements

References CvSeq::total.

template<typename _Tp >

SeqIterator< _Tp > cv::Seq< _Tp >::end ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns iterator pointing to the element following the last sequence element

void cv::extractImageCOI	(	const CvArr *	arr,
		OutputArray	coiimg,
		int	coi = -1
	)

#include <core/include/opencv2/core/core_c.h>

extracts Channel of Interest from CvMat or IplImage and makes cv::Mat out of it.

Referenced by cv::cvarrToMatND().

Here is the caller graph for this function:

template<typename _Tp >

_Tp & cv::Seq< _Tp >::front ( )

inline

#include <core/include/opencv2/core/core_c.h>

returns reference to the first sequence element

References cv::getSeqElem().

Here is the call graph for this function:

template<typename _Tp >

const _Tp & cv::Seq< _Tp >::front ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns read-only reference to the first sequence element

References cv::getSeqElem().

Here is the call graph for this function:

schar* cv::getSeqElem	(	const CvSeq *	seq,
		int	index
	)

#include <core/include/opencv2/core/core_c.h>

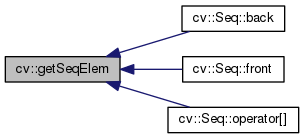

Referenced by cv::Seq< _Tp >::back(), cv::Seq< _Tp >::front(), and cv::Seq< _Tp >::operator[]().

Here is the caller graph for this function:

template<typename _Tp >

size_t cv::Seq< _Tp >::index ( const _Tp &  elem ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns index of the specified sequence element

References cvSeqElemIdx().

Referenced by cv::SeqIterator< _Tp >::tell().

Here is the call graph for this function:

Here is the caller graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::insert ( int  idx, const _Tp &  elem  )

inline

#include <core/include/opencv2/core/core_c.h>

inserts the specified element to the specified position

template<typename _Tp >

void cv::Seq< _Tp >::insert ( int  idx, const _Tp *  elems, size_t  count  )

inline

#include <core/include/opencv2/core/core_c.h>

inserts zero or more elements to the specified position

References cvMat(), and cv::seqInsertSlice().

Here is the call graph for this function:

void cv::insertImageCOI	(	InputArray	coiimg,
		CvArr *	arr,
		int	coi = -1
	)

#include <core/include/opencv2/core/core_c.h>

inserts single-channel cv::Mat into a multi-channel CvMat or IplImage

Referenced by cv::cvarrToMatND().

Here is the caller graph for this function:

template<typename _Tp >

cv::Seq< _Tp >::operator std::vector< _Tp > ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns the vector containing all the sequence elements

References cv::Seq< _Tp >::copyTo().

Here is the call graph for this function:

template<typename _Tp >

bool cv::operator!= ( const SeqIterator< _Tp > &  a, const SeqIterator< _Tp > &  b  )

inline

#include <core/include/opencv2/core/core_c.h>

template<typename _Tp >

_Tp & cv::SeqIterator< _Tp >::operator* ( )

inline

#include <core/include/opencv2/core/core_c.h>

returns reference to the current sequence element

template<typename _Tp >

const _Tp & cv::SeqIterator< _Tp >::operator* ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns read-only reference to the current sequence element

template<typename _Tp >

SeqIterator< _Tp > & cv::SeqIterator< _Tp >::operator++ ( )

inline

#include <core/include/opencv2/core/core_c.h>

moves iterator to the next sequence element

References CV_NEXT_SEQ_ELEM, and CvSeq::total.

template<typename _Tp >

SeqIterator< _Tp > cv::SeqIterator< _Tp >::operator++ ( int  ) const

inline

#include <core/include/opencv2/core/core_c.h>

moves iterator to the next sequence element

template<typename _Tp >

SeqIterator< _Tp > & cv::SeqIterator< _Tp >::operator+= ( int  delta )

inline

#include <core/include/opencv2/core/core_c.h>

moves iterator forward by the specified offset (possibly negative)

References cvSetSeqReaderPos(), and CvSeq::total.

Here is the call graph for this function:

template<typename _Tp >

ptrdiff_t cv::operator- ( const SeqIterator< _Tp > &  a, const SeqIterator< _Tp > &  b  )

inline

#include <core/include/opencv2/core/core_c.h>

References cv::SeqIterator< _Tp >::index, CvSeqReader::seq, and CvSeq::total.

template<typename _Tp >

SeqIterator< _Tp > & cv::SeqIterator< _Tp >::operator-- ( )

inline

#include <core/include/opencv2/core/core_c.h>

moves iterator to the previous sequence element

References CV_PREV_SEQ_ELEM, and CvSeq::total.

template<typename _Tp >

SeqIterator< _Tp > cv::SeqIterator< _Tp >::operator-- ( int  ) const

inline

#include <core/include/opencv2/core/core_c.h>

moves iterator to the previous sequence element

template<typename _Tp >

SeqIterator< _Tp > & cv::SeqIterator< _Tp >::operator-= ( int  delta )

inline

#include <core/include/opencv2/core/core_c.h>

moves iterator backward by the specified offset (possibly negative)

template<typename _Tp >

bool cv::operator== ( const SeqIterator< _Tp > &  a, const SeqIterator< _Tp > &  b  )

inline

#include <core/include/opencv2/core/core_c.h>

References cv::SeqIterator< _Tp >::index, and CvSeqReader::seq.

Referenced by cv::instr::NodeData::getMeanMs().

Here is the caller graph for this function:

template<typename _Tp >

_Tp & cv::Seq< _Tp >::operator[] ( int  idx )

inline

#include <core/include/opencv2/core/core_c.h>

returns read-write reference to the specified element

References cv::getSeqElem().

Here is the call graph for this function:

template<typename _Tp >

const _Tp & cv::Seq< _Tp >::operator[] ( int  idx ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns read-only reference to the specified element

References cv::getSeqElem().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::pop_back ( )

inline

#include <core/include/opencv2/core/core_c.h>

removes the last element from the sequence

References cv::seqPop().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::pop_back ( _Tp *  elems, size_t  count  )

inline

#include <core/include/opencv2/core/core_c.h>

removes zero or more elements from the end of the sequence

References cv::seqPopMulti().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::pop_front ( )

inline

#include <core/include/opencv2/core/core_c.h>

removes the first element from the sequence

References cv::seqPopFront().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::pop_front ( _Tp *  elems, size_t  count  )

inline

#include <core/include/opencv2/core/core_c.h>

removes zero or more elements from the beginning of the sequence

References cv::seqPopMulti().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::push_back ( const _Tp &  elem )

inline

#include <core/include/opencv2/core/core_c.h>

appends the specified element to the end of the sequence

References cvSeqPush().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::push_back ( const _Tp *  elems, size_t  count  )

inline

#include <core/include/opencv2/core/core_c.h>

appends zero or more elements to the end of the sequence

References cvSeqPushMulti().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::push_front ( const _Tp &  elem )

inline

#include <core/include/opencv2/core/core_c.h>

appends the specified element to the front of the sequence

References cvSeqPushFront().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::push_front ( const _Tp *  elems, size_t  count  )

inline

#include <core/include/opencv2/core/core_c.h>

appends zero or more elements to the front of the sequence

References cvSeqPushMulti().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::remove ( int  idx )

inline

#include <core/include/opencv2/core/core_c.h>

removes element at the specified position

References cv::seqRemove().

Here is the call graph for this function:

template<typename _Tp >

void cv::Seq< _Tp >::remove ( const Range &  r )

inline

#include <core/include/opencv2/core/core_c.h>

removes the specified subsequence

References cvSlice(), cv::Range::end, cv::seqRemoveSlice(), and cv::Range::start.

Here is the call graph for this function:

template<typename _Tp >

void cv::SeqIterator< _Tp >::seek ( size_t  pos )

inline

#include <core/include/opencv2/core/core_c.h>

positions the iterator within the sequence

References cvSetSeqReaderPos().

Here is the call graph for this function:

void cv::seqInsertSlice	(	CvSeq *	seq,
		int	before_index,
		const CvArr *	from_arr
	)

#include <core/include/opencv2/core/core_c.h>

Referenced by cv::Seq< _Tp >::insert().

Here is the caller graph for this function:

void cv::seqPop	(	CvSeq *	seq,
		void *	element = 0
	)

#include <core/include/opencv2/core/core_c.h>

Referenced by cv::Seq< _Tp >::pop_back().

Here is the caller graph for this function:

void cv::seqPopFront	(	CvSeq *	seq,
		void *	element = 0
	)

#include <core/include/opencv2/core/core_c.h>

Referenced by cv::Seq< _Tp >::pop_front().

Here is the caller graph for this function:

void cv::seqPopMulti	(	CvSeq *	seq,
		void *	elements,
		int	count,
		int	in_front = 0
	)

#include <core/include/opencv2/core/core_c.h>

Referenced by cv::Seq< _Tp >::pop_back(), and cv::Seq< _Tp >::pop_front().

Here is the caller graph for this function:

schar* cv::seqPush	(	CvSeq *	seq,
		const void *	element = 0
	)

#include <core/include/opencv2/core/core_c.h>

schar* cv::seqPushFront	(	CvSeq *	seq,
		const void *	element = 0
	)

#include <core/include/opencv2/core/core_c.h>

void cv::seqRemove	(	CvSeq *	seq,
		int	index
	)

#include <core/include/opencv2/core/core_c.h>

Referenced by cv::Seq< _Tp >::remove().

Here is the caller graph for this function:

void cv::seqRemoveSlice	(	CvSeq *	seq,
		CvSlice	slice
	)

#include <core/include/opencv2/core/core_c.h>

Referenced by cv::Seq< _Tp >::remove().

Here is the caller graph for this function:

template<typename _Tp >

size_t cv::Seq< _Tp >::size ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns the number of elements in the sequence

References CvSeq::total.

template<typename _Tp >

size_t cv::SeqIterator< _Tp >::tell ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

reports the current iterator position

References cv::Seq< _Tp >::index().

Here is the call graph for this function:

template<typename _Tp >

int cv::Seq< _Tp >::type ( ) const

inline

#include <core/include/opencv2/core/core_c.h>

returns the type of sequence elements (CV_8UC1 ... CV_64FC(CV_CN_MAX) ...)

References CV_MAT_TYPE, and CvSeq::flags.
