cv::FileNodeIterator Class Reference

used to iterate through sequences and mappings. More...

#include <opencv2/core/persistence.hpp>

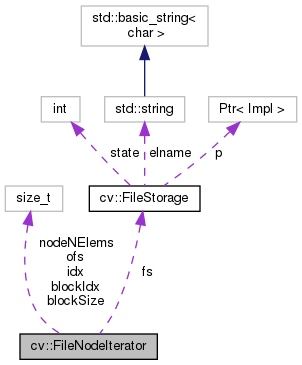

Collaboration diagram for cv::FileNodeIterator:

Public Member Functions
	FileNodeIterator ()
	The constructors. More...
	FileNodeIterator (const FileNode &node, bool seekEnd)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
	FileNodeIterator (const FileNodeIterator &it)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
bool	equalTo (const FileNodeIterator &it) const
FileNode	operator* () const
	returns the currently observed element More...
FileNodeIterator &	operator++ ()
	moves iterator to the next node More...
FileNodeIterator	operator++ (int)
	moves iterator to the next node More...
FileNodeIterator &	operator+= (int ofs)
	moves iterator forward by the specified offset (possibly negative) More...
FileNodeIterator &	readRaw (const String &fmt, void *vec, size_t len=(size_t) INT_MAX)
	Reads node elements to the buffer with the specified format. More...
size_t	remaining () const
	returns the number of remaining (not read yet) elements More...

Protected Attributes
size_t	blockIdx
size_t	blockSize
const FileStorage *	fs
size_t	idx
size_t	nodeNElems
size_t	ofs

Related Functions
(Note that these are not member functions.)
template<typename _Tp >
static FileNodeIterator &	operator>> (FileNodeIterator &it, _Tp &value)
	Reads data from a file storage. More...
template<typename _Tp >
static FileNodeIterator &	operator>> (FileNodeIterator &it, std::vector< _Tp > &vec)
	Reads data from a file storage. More...
bool	operator== (const FileNodeIterator &it1, const FileNodeIterator &it2)
bool	operator!= (const FileNodeIterator &it1, const FileNodeIterator &it2)
static ptrdiff_t	operator- (const FileNodeIterator &it1, const FileNodeIterator &it2)
static bool	operator< (const FileNodeIterator &it1, const FileNodeIterator &it2)

Detailed Description

used to iterate through sequences and mappings.

A standard STL notation, with node.begin(), node.end() denoting the beginning and the end of a sequence, stored in node. See the data reading sample in the beginning of the section.

Examples:

samples/cpp/filestorage.cpp.

Constructor & Destructor Documentation

FileNodeIterator() [1/3]

cv::FileNodeIterator::FileNodeIterator

(

)

The constructors.

These constructors are used to create a default iterator, set it to specific element in a file node or construct it from another iterator.

FileNodeIterator() [2/3]

cv::FileNodeIterator::FileNodeIterator	(	const FileNode &	node,
		bool	seekEnd
	)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

node	File node - the collection to iterate over; it can be a scalar (equivalent to 1-element collection) or "none" (equivalent to empty collection).
seekEnd	- true if iterator needs to be set after the last element of the node; that is: node.begin() => FileNodeIterator(node, false) node.end() => FileNodeIterator(node, true)

FileNodeIterator() [3/3]

cv::FileNodeIterator::FileNodeIterator

(

const FileNodeIterator &

it

)

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

it	Iterator to be used as initialization for the created iterator.

Member Function Documentation

equalTo()

bool cv::FileNodeIterator::equalTo

(

const FileNodeIterator &

it

)

const

operator*()

FileNode cv::FileNodeIterator::operator*

(

)

const

returns the currently observed element

operator++() [1/2]

FileNodeIterator& cv::FileNodeIterator::operator++

(

)

moves iterator to the next node

operator++() [2/2]

FileNodeIterator cv::FileNodeIterator::operator++

(

int

)

moves iterator to the next node

operator+=()

FileNodeIterator& cv::FileNodeIterator::operator+=

(

int

ofs

)

moves iterator forward by the specified offset (possibly negative)

readRaw()

FileNodeIterator& cv::FileNodeIterator::readRaw	(	const String &	fmt,
		void *	vec,
		size_t	len = (size_t) INT_MAX
	)

Reads node elements to the buffer with the specified format.

Usually it is more convenient to use operator >> instead of this method.

Parameters

fmt	Specification of each array element. See format specification
vec	Pointer to the destination array.
len	Number of bytes to read (buffer size limit). If it is greater than number of remaining elements then all of them will be read.

remaining()

size_t cv::FileNodeIterator::remaining

(

)

const

returns the number of remaining (not read yet) elements

Referenced by operator-(), and operator<().

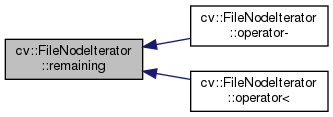

Here is the caller graph for this function:

Friends And Related Function Documentation

operator!=()

bool operator!= ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

operator-()

static ptrdiff_t operator- ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

References remaining().

Here is the call graph for this function:

operator<()

static bool operator< ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

References remaining().

Here is the call graph for this function:

operator==()

bool operator== ( const FileNodeIterator &  it1, const FileNodeIterator &  it2  )

related

operator>>() [1/2]

template<typename _Tp >

static FileNodeIterator & operator>> ( FileNodeIterator &  it, _Tp &  value  )

related

Reads data from a file storage.

operator>>() [2/2]

template<typename _Tp >

static FileNodeIterator & operator>> ( FileNodeIterator &  it, std::vector< _Tp > &  vec  )

related

Reads data from a file storage.

Member Data Documentation

blockIdx

size_t cv::FileNodeIterator::blockIdx

protected

blockSize

size_t cv::FileNodeIterator::blockSize

protected

fs

const FileStorage* cv::FileNodeIterator::fs

protected

idx

size_t cv::FileNodeIterator::idx

protected

nodeNElems

size_t cv::FileNodeIterator::nodeNElems

protected

ofs

size_t cv::FileNodeIterator::ofs

protected

---

The documentation for this class was generated from the following file:

• opencv2/core/persistence.hpp
