cv::detail::FeaturesMatcher Class Reference

Feature matchers base class. More...

#include <opencv2/stitching/detail/matchers.hpp>

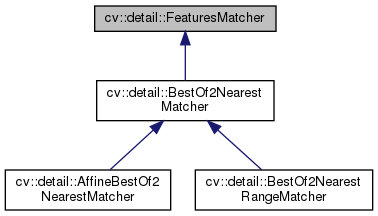

Inheritance diagram for cv::detail::FeaturesMatcher:

Collaboration diagram for cv::detail::FeaturesMatcher:

Public Member Functions
virtual	~FeaturesMatcher ()
virtual void	collectGarbage ()
	Frees unused memory allocated before if there is any. More...
bool	isThreadSafe () const
void	operator() (const ImageFeatures &features1, const ImageFeatures &features2, MatchesInfo &matches_info)
	This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts. More...
void	operator() (const std::vector< ImageFeatures > &features, std::vector< MatchesInfo > &pairwise_matches, const cv::UMat &mask=cv::UMat())
	Performs images matching. More...

Protected Member Functions
	FeaturesMatcher (bool is_thread_safe=false)
virtual void	match (const ImageFeatures &features1, const ImageFeatures &features2, MatchesInfo &matches_info)=0
	This method must implement matching logic in order to make the wrappers detail::FeaturesMatcher::operator()_ work. More...

Protected Attributes
bool	is_thread_safe_

Detailed Description

Feature matchers base class.

Constructor & Destructor Documentation

~FeaturesMatcher()

virtual cv::detail::FeaturesMatcher::~FeaturesMatcher ( )

inlinevirtual

FeaturesMatcher()

cv::detail::FeaturesMatcher::FeaturesMatcher ( bool  is_thread_safe = false )

inlineprotected

Member Function Documentation

collectGarbage()

virtual void cv::detail::FeaturesMatcher::collectGarbage ( )

inlinevirtual

Frees unused memory allocated before if there is any.

Reimplemented in cv::detail::BestOf2NearestMatcher.

isThreadSafe()

bool cv::detail::FeaturesMatcher::isThreadSafe ( ) const

inline

Returns

True, if it's possible to use the same matcher instance in parallel, false otherwise

match()

virtual void cv::detail::FeaturesMatcher::match ( const ImageFeatures &  features1, const ImageFeatures &  features2, MatchesInfo &  matches_info  )

protectedpure virtual

This method must implement matching logic in order to make the wrappers detail::FeaturesMatcher::operator()_ work.

Parameters

features1	first image features
features2	second image features
matches_info	found matches

Implemented in cv::detail::AffineBestOf2NearestMatcher, and cv::detail::BestOf2NearestMatcher.

operator()() [1/2]

void cv::detail::FeaturesMatcher::operator() ( const ImageFeatures &  features1, const ImageFeatures &  features2, MatchesInfo &  matches_info  )

inline

This is an overloaded member function, provided for convenience. It differs from the above function only in what argument(s) it accepts.

Parameters

features1	First image features
features2	Second image features
matches_info	Found matches

References CV_OUT, CV_WRAP_AS, and cv::gapi::mask().

Here is the call graph for this function:

operator()() [2/2]

void cv::detail::FeaturesMatcher::operator()	(	const std::vector< ImageFeatures > &	features,
		std::vector< MatchesInfo > &	pairwise_matches,
		const cv::UMat &	mask = cv::UMat()
	)

Performs images matching.

Parameters

features	Features of the source images
pairwise_matches	Found pairwise matches
mask	Mask indicating which image pairs must be matched

The function is parallelized with the TBB library.

See also

detail::MatchesInfo

Member Data Documentation

is_thread_safe_

bool cv::detail::FeaturesMatcher::is_thread_safe_

protected

---

The documentation for this class was generated from the following file:

• opencv2/stitching/detail/matchers.hpp
