cv::detail::PlaneWarperGpu Class Reference

#include <opencv2/stitching/detail/warpers.hpp>

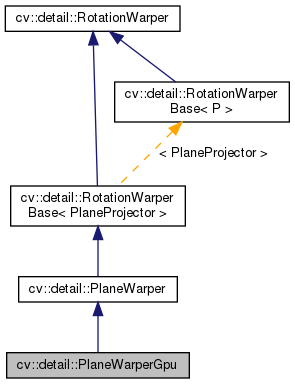

Inheritance diagram for cv::detail::PlaneWarperGpu:

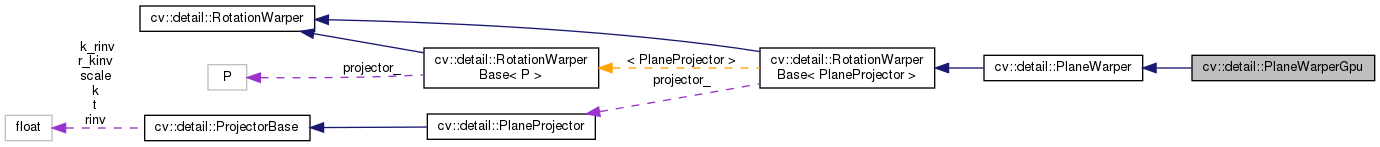

Collaboration diagram for cv::detail::PlaneWarperGpu:

Public Member Functions
	PlaneWarperGpu (float scale=1.f)
Rect	buildMaps (Size src_size, InputArray K, InputArray R, OutputArray xmap, OutputArray ymap) CV_OVERRIDE
	Builds the projection maps according to the given camera data. More...
Rect	buildMaps (Size src_size, InputArray K, InputArray R, InputArray T, OutputArray xmap, OutputArray ymap) CV_OVERRIDE
Rect	buildMaps (Size src_size, InputArray K, InputArray R, cuda::GpuMat &xmap, cuda::GpuMat &ymap)
Rect	buildMaps (Size src_size, InputArray K, InputArray R, InputArray T, cuda::GpuMat &xmap, cuda::GpuMat &ymap)
float	getScale () const CV_OVERRIDE
void	setScale (float val) CV_OVERRIDE
Point	warp (InputArray src, InputArray K, InputArray R, int interp_mode, int border_mode, OutputArray dst) CV_OVERRIDE
	Projects the image. More...
Point	warp (InputArray src, InputArray K, InputArray R, InputArray T, int interp_mode, int border_mode, OutputArray dst) CV_OVERRIDE
Point	warp (const cuda::GpuMat &src, InputArray K, InputArray R, int interp_mode, int border_mode, cuda::GpuMat &dst)
Point	warp (const cuda::GpuMat &src, InputArray K, InputArray R, InputArray T, int interp_mode, int border_mode, cuda::GpuMat &dst)
void	warpBackward (InputArray src, InputArray K, InputArray R, int interp_mode, int border_mode, Size dst_size, OutputArray dst) CV_OVERRIDE
	Projects the image backward. More...
Point2f	warpPoint (const Point2f &pt, InputArray K, InputArray R) CV_OVERRIDE
	Projects the image point. More...
Point2f	warpPoint (const Point2f &pt, InputArray K, InputArray R, InputArray T)
Rect	warpRoi (Size src_size, InputArray K, InputArray R) CV_OVERRIDE
Rect	warpRoi (Size src_size, InputArray K, InputArray R, InputArray T)

Protected Member Functions
void	detectResultRoi (Size src_size, Point &dst_tl, Point &dst_br) CV_OVERRIDE
void	detectResultRoiByBorder (Size src_size, Point &dst_tl, Point &dst_br)

Protected Attributes
PlaneProjector	projector_

Constructor & Destructor Documentation

PlaneWarperGpu()

cv::detail::PlaneWarperGpu::PlaneWarperGpu ( float  scale = 1.f )

inline

Member Function Documentation

buildMaps() [1/4]

Rect cv::detail::PlaneWarperGpu::buildMaps ( Size  src_size, InputArray  K, InputArray  R, OutputArray  xmap, OutputArray  ymap  )

inlinevirtual

Builds the projection maps according to the given camera data.

Parameters

src_size	Source image size
K	Camera intrinsic parameters
R	Camera rotation matrix
xmap	Projection map for the x axis
ymap	Projection map for the y axis

Returns

Projected image minimum bounding box

Reimplemented from cv::detail::PlaneWarper.

buildMaps() [2/4]

Rect cv::detail::PlaneWarperGpu::buildMaps ( Size  src_size, InputArray  K, InputArray  R, InputArray  T, OutputArray  xmap, OutputArray  ymap  )

inlinevirtual

Reimplemented from cv::detail::PlaneWarper.

buildMaps() [3/4]

Rect cv::detail::PlaneWarperGpu::buildMaps	(	Size	src_size,
		InputArray	K,
		InputArray	R,
		cuda::GpuMat &	xmap,
		cuda::GpuMat &	ymap
	)

buildMaps() [4/4]

Rect cv::detail::PlaneWarperGpu::buildMaps	(	Size	src_size,
		InputArray	K,
		InputArray	R,
		InputArray	T,
		cuda::GpuMat &	xmap,
		cuda::GpuMat &	ymap
	)

detectResultRoi()

void cv::detail::PlaneWarper::detectResultRoi ( Size  src_size, Point &  dst_tl, Point &  dst_br  )

protectedvirtualinherited

Reimplemented from cv::detail::RotationWarperBase< PlaneProjector >.

detectResultRoiByBorder()

void cv::detail::RotationWarperBase< PlaneProjector >::detectResultRoiByBorder ( Size  src_size, Point &  dst_tl, Point &  dst_br  )

protectedinherited

getScale()

float cv::detail::RotationWarperBase< PlaneProjector >::getScale ( ) const

inlinevirtualinherited

Reimplemented from cv::detail::RotationWarper.

setScale()

void cv::detail::RotationWarperBase< PlaneProjector >::setScale ( float  val )

inlinevirtualinherited

Reimplemented from cv::detail::RotationWarper.

warp() [1/4]

Point cv::detail::PlaneWarperGpu::warp ( InputArray  src, InputArray  K, InputArray  R, int  interp_mode, int  border_mode, OutputArray  dst  )

inlinevirtual

Projects the image.

Parameters

src	Source image
K	Camera intrinsic parameters
R	Camera rotation matrix
interp_mode	Interpolation mode
border_mode	Border extrapolation mode
dst	Projected image

Returns

Project image top-left corner

Reimplemented from cv::detail::PlaneWarper.

warp() [2/4]

Point cv::detail::PlaneWarperGpu::warp ( InputArray  src, InputArray  K, InputArray  R, InputArray  T, int  interp_mode, int  border_mode, OutputArray  dst  )

inlinevirtual

Reimplemented from cv::detail::PlaneWarper.

warp() [3/4]

Point cv::detail::PlaneWarperGpu::warp	(	const cuda::GpuMat &	src,
		InputArray	K,
		InputArray	R,
		int	interp_mode,
		int	border_mode,
		cuda::GpuMat &	dst
	)

warp() [4/4]

Point cv::detail::PlaneWarperGpu::warp	(	const cuda::GpuMat &	src,
		InputArray	K,
		InputArray	R,
		InputArray	T,
		int	interp_mode,
		int	border_mode,
		cuda::GpuMat &	dst
	)

warpBackward()

void cv::detail::RotationWarperBase< PlaneProjector >::warpBackward ( InputArray  src, InputArray  K, InputArray  R, int  interp_mode, int  border_mode, Size  dst_size, OutputArray  dst  )

virtualinherited

Projects the image backward.

Parameters

src	Projected image
K	Camera intrinsic parameters
R	Camera rotation matrix
interp_mode	Interpolation mode
border_mode	Border extrapolation mode
dst_size	Backward-projected image size
dst	Backward-projected image

Implements cv::detail::RotationWarper.

warpPoint() [1/2]

Point2f cv::detail::PlaneWarper::warpPoint ( const Point2f &  pt, InputArray  K, InputArray  R  )

virtualinherited

Projects the image point.

Parameters

pt	Source point
K	Camera intrinsic parameters
R	Camera rotation matrix

Returns

Projected point

Implements cv::detail::RotationWarper.

Reimplemented in cv::detail::AffineWarper.

warpPoint() [2/2]

Point2f cv::detail::PlaneWarper::warpPoint ( const Point2f &  pt, InputArray  K, InputArray  R, InputArray  T  )

inherited

warpRoi() [1/2]

Rect cv::detail::PlaneWarper::warpRoi ( Size  src_size, InputArray  K, InputArray  R  )

virtualinherited

Parameters

src_size	Source image bounding box
K	Camera intrinsic parameters
R	Camera rotation matrix

Returns

Projected image minimum bounding box

Implements cv::detail::RotationWarper.

Reimplemented in cv::detail::AffineWarper.

warpRoi() [2/2]

Rect cv::detail::PlaneWarper::warpRoi ( Size  src_size, InputArray  K, InputArray  R, InputArray  T  )

inherited

Member Data Documentation

projector_

PlaneProjector cv::detail::RotationWarperBase< PlaneProjector >::projector_

protectedinherited

---

The documentation for this class was generated from the following file:

• opencv2/stitching/detail/warpers.hpp
