cv::detail::VoronoiSeamFinder Class Reference

Voronoi diagram-based seam estimator. More...

#include <opencv2/stitching/detail/seam_finders.hpp>

Inheritance diagram for cv::detail::VoronoiSeamFinder:

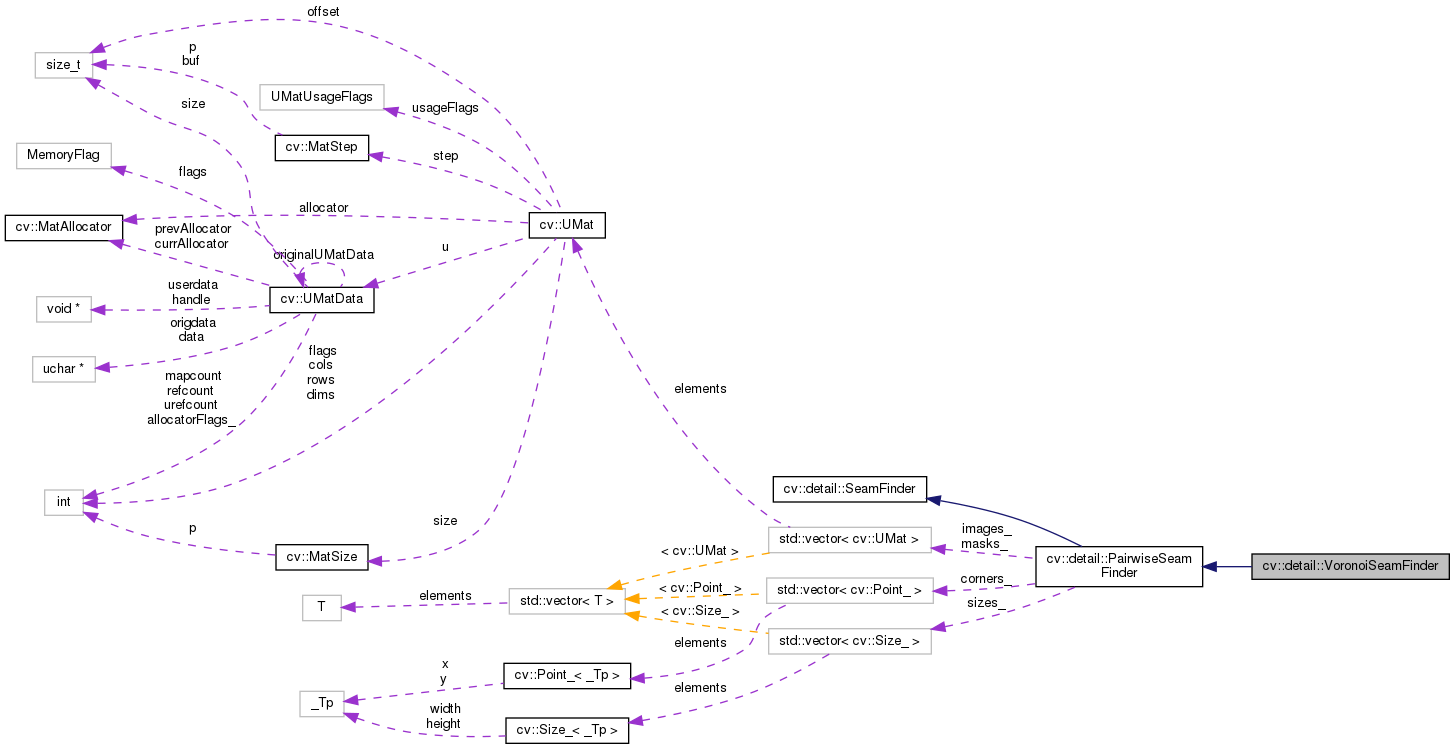

Collaboration diagram for cv::detail::VoronoiSeamFinder:

Public Types

enum  {
  NO,
  VORONOI_SEAM,
  DP_SEAM
}


Public Member Functions

virtual void find (const std::vector< UMat > &src, const std::vector< Point > &corners, std::vector< UMat > &masks) CV_OVERRIDE
 Estimates seams. More...

virtual void find (const std::vector< Size > &size, const std::vector< Point > &corners, std::vector< UMat > &masks)


Static Public Member Functions

static Ptr< SeamFindercreateDefault (int type)


Protected Member Functions

void run ()


Protected Attributes

std::vector< Pointcorners_

std::vector< UMatimages_

std::vector< UMatmasks_

std::vector< Sizesizes_


Detailed Description

Voronoi diagram-based seam estimator.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum
inherited
Enumerator
NO
VORONOI_SEAM
DP_SEAM

Member Function Documentation

◆ createDefault()

static Ptr<SeamFinder> cv::detail::SeamFinder::createDefault ( int  type)
staticinherited

◆ find() [1/2]

virtual void cv::detail::VoronoiSeamFinder::find ( const std::vector< UMat > &  src,
const std::vector< Point > &  corners,
std::vector< UMat > &  masks
)
virtual

Estimates seams.

Parameters
srcSource images
cornersSource image top-left corners
masksSource image masks to update

Reimplemented from cv::detail::PairwiseSeamFinder.

◆ find() [2/2]

virtual void cv::detail::VoronoiSeamFinder::find ( const std::vector< Size > &  size,
const std::vector< Point > &  corners,
std::vector< UMat > &  masks
)
virtual

◆ run()

void cv::detail::PairwiseSeamFinder::run ( )
protectedinherited

Member Data Documentation

◆ corners_

std::vector<Point> cv::detail::PairwiseSeamFinder::corners_
protectedinherited

◆ images_

std::vector<UMat> cv::detail::PairwiseSeamFinder::images_
protectedinherited

◆ masks_

std::vector<UMat> cv::detail::PairwiseSeamFinder::masks_
protectedinherited

◆ sizes_

std::vector<Size> cv::detail::PairwiseSeamFinder::sizes_
protectedinherited

The documentation for this class was generated from the following file:
