cv::QtFont Struct Reference

QtFont available only for Qt. More...

#include <opencv2/highgui.hpp>

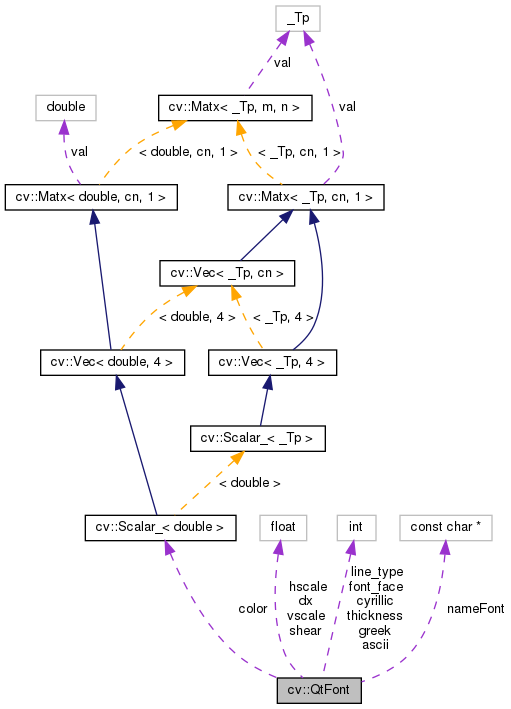

Collaboration diagram for cv::QtFont:

Public Attributes
const int *	ascii
	font data and metrics More...
Scalar	color
	Color of the font. More...
const int *	cyrillic
float	dx
	horizontal interval between letters More...
int	font_face
	See cv::QtFontStyles. More...
const int *	greek
float	hscale
int	line_type
	PointSize. More...
const char *	nameFont
	Name of the font. More...
float	shear
	slope coefficient: 0 - normal, >0 - italic More...
int	thickness
	See cv::QtFontWeights. More...
float	vscale

Detailed Description

QtFont available only for Qt.

See cv::fontQt

Member Data Documentation

ascii

const int* cv::QtFont::ascii

font data and metrics

color

Scalar cv::QtFont::color

Color of the font.

Scalar(blue_component, green_component, red_component[, alpha_component])

cyrillic

const int* cv::QtFont::cyrillic

dx

float cv::QtFont::dx

horizontal interval between letters

font_face

int cv::QtFont::font_face

See cv::QtFontStyles.

greek

const int* cv::QtFont::greek

hscale

float cv::QtFont::hscale

line_type

int cv::QtFont::line_type

PointSize.

nameFont

const char* cv::QtFont::nameFont

Name of the font.

shear

float cv::QtFont::shear

slope coefficient: 0 - normal, >0 - italic

thickness

int cv::QtFont::thickness

See cv::QtFontWeights.

vscale

float cv::QtFont::vscale

---

The documentation for this struct was generated from the following file:

• opencv2/highgui.hpp
