AKAZE and ORB planar tracking

Introduction

In this tutorial we will compare AKAZE and ORB local features using them to find matches between video frames and track object movements.

The algorithm is as follows:

• Detect and describe keypoints on the first frame, manually set object boundaries
• For every next frame:
  1. Detect and describe keypoints
  2. Match them using bruteforce matcher
  3. Estimate homography transformation using RANSAC
  4. Filter inliers from all the matches
  5. Apply homography transformation to the bounding box to find the object
  6. Draw bounding box and inliers, compute inlier ratio as evaluation metric

Data

To do the tracking we need a video and object position on the first frame.

You can download our example video and data from here.

To run the code you have to specify input (camera id or video_file). Then, select a bounding box with the mouse, and press any key to start tracking

./planar_tracking blais.mp4

Source Code

#include <opencv2/features2d.hpp>
#include <opencv2/videoio.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/calib3d.hpp>
#include <opencv2/highgui.hpp>      //for imshow
#include <vector>
#include <iostream>
#include <iomanip>

#include "stats.h" // Stats structure definition
#include "utils.h" // Drawing and printing functions

using namespace std;
using namespace cv;

const double akaze_thresh = 3e-4; // AKAZE detection threshold set to locate about 1000 keypoints
const double ransac_thresh = 2.5f; // RANSAC inlier threshold
const double nn_match_ratio = 0.8f; // Nearest-neighbour matching ratio
const int bb_min_inliers = 100; // Minimal number of inliers to draw bounding box
const int stats_update_period = 10; // On-screen statistics are updated every 10 frames

namespace example {
class Tracker
{
public:
    Tracker(Ptr<Feature2D> _detector, Ptr<DescriptorMatcher> _matcher) :
        detector(_detector),
        matcher(_matcher)
    {}

    void setFirstFrame(const Mat frame, vector<Point2f> bb, string title, Stats& stats);
    Mat process(const Mat frame, Stats& stats);
    Ptr<Feature2D> getDetector() {
        return detector;
    }
protected:
    Ptr<Feature2D> detector;
    Ptr<DescriptorMatcher> matcher;
    Mat first_frame, first_desc;
    vector<KeyPoint> first_kp;
    vector<Point2f> object_bb;
};

void Tracker::setFirstFrame(const Mat frame, vector<Point2f> bb, string title, Stats& stats)
{
    cv::Point *ptMask = new cv::Point[bb.size()];
    const Point* ptContain = { &ptMask[0] };
    int iSize = static_cast<int>(bb.size());
    for (size_t i=0; i<bb.size(); i++) {
        ptMask[i].x = static_cast<int>(bb[i].x);
        ptMask[i].y = static_cast<int>(bb[i].y);
    }
    first_frame = frame.clone();
    cv::Mat matMask = cv::Mat::zeros(frame.size(), CV_8UC1);
    cv::fillPoly(matMask, &ptContain, &iSize, 1, cv::Scalar::all(255));
    detector->detectAndCompute(first_frame, matMask, first_kp, first_desc);
    stats.keypoints = (int)first_kp.size();
    drawBoundingBox(first_frame, bb);
    putText(first_frame, title, Point(0, 60), FONT_HERSHEY_PLAIN, 5, Scalar::all(0), 4);
    object_bb = bb;
    delete[] ptMask;
}

Mat Tracker::process(const Mat frame, Stats& stats)
{
    TickMeter tm;
    vector<KeyPoint> kp;
    Mat desc;

    tm.start();
    detector->detectAndCompute(frame, noArray(), kp, desc);
    stats.keypoints = (int)kp.size();

    vector< vector<DMatch> > matches;
    vector<KeyPoint> matched1, matched2;
    matcher->knnMatch(first_desc, desc, matches, 2);
    for(unsigned i = 0; i < matches.size(); i++) {
        if(matches[i][0].distance < nn_match_ratio * matches[i][1].distance) {
            matched1.push_back(first_kp[matches[i][0].queryIdx]);
            matched2.push_back(      kp[matches[i][0].trainIdx]);
        }
    }
    stats.matches = (int)matched1.size();

    Mat inlier_mask, homography;
    vector<KeyPoint> inliers1, inliers2;
    vector<DMatch> inlier_matches;
    if(matched1.size() >= 4) {
        homography = findHomography(Points(matched1), Points(matched2),
                                    RANSAC, ransac_thresh, inlier_mask);
    }
    tm.stop();
    stats.fps = 1. / tm.getTimeSec();

    if(matched1.size() < 4 || homography.empty()) {
        Mat res;
        hconcat(first_frame, frame, res);
        stats.inliers = 0;
        stats.ratio = 0;
        return res;
    }
    for(unsigned i = 0; i < matched1.size(); i++) {
        if(inlier_mask.at<uchar>(i)) {
            int new_i = static_cast<int>(inliers1.size());
            inliers1.push_back(matched1[i]);
            inliers2.push_back(matched2[i]);
            inlier_matches.push_back(DMatch(new_i, new_i, 0));
        }
    }
    stats.inliers = (int)inliers1.size();
    stats.ratio = stats.inliers * 1.0 / stats.matches;

    vector<Point2f> new_bb;
    perspectiveTransform(object_bb, new_bb, homography);
    Mat frame_with_bb = frame.clone();
    if(stats.inliers >= bb_min_inliers) {
        drawBoundingBox(frame_with_bb, new_bb);
    }
    Mat res;
    drawMatches(first_frame, inliers1, frame_with_bb, inliers2,
                inlier_matches, res,
                Scalar(255, 0, 0), Scalar(255, 0, 0));
    return res;
}
}

int main(int argc, char **argv)
{
    CommandLineParser parser(argc, argv, "{@input_path |0|input path can be a camera id, like 0,1,2 or a video filename}");
    parser.printMessage();
    string input_path = parser.get<string>(0);
    string video_name = input_path;

    VideoCapture video_in;

    if ( ( isdigit(input_path[0]) && input_path.size() == 1 ) )
    {
    int camera_no = input_path[0] - '0';
        video_in.open( camera_no );
    }
    else {
        video_in.open(video_name);
    }

    if(!video_in.isOpened()) {
        cerr << "Couldn't open " << video_name << endl;
        return 1;
    }

    Stats stats, akaze_stats, orb_stats;
    Ptr<AKAZE> akaze = AKAZE::create();
    akaze->setThreshold(akaze_thresh);
    Ptr<ORB> orb = ORB::create();
    Ptr<DescriptorMatcher> matcher = DescriptorMatcher::create("BruteForce-Hamming");
    example::Tracker akaze_tracker(akaze, matcher);
    example::Tracker orb_tracker(orb, matcher);

    Mat frame;
    namedWindow(video_name, WINDOW_NORMAL);
    cout << "\nPress any key to stop the video and select a bounding box" << endl;

    while ( waitKey(1) < 1 )
    {
        video_in >> frame;
        cv::resizeWindow(video_name, frame.size());
        imshow(video_name, frame);
    }

    vector<Point2f> bb;
    cv::Rect uBox = cv::selectROI(video_name, frame);
    bb.push_back(cv::Point2f(static_cast<float>(uBox.x), static_cast<float>(uBox.y)));
    bb.push_back(cv::Point2f(static_cast<float>(uBox.x+uBox.width), static_cast<float>(uBox.y)));
    bb.push_back(cv::Point2f(static_cast<float>(uBox.x+uBox.width), static_cast<float>(uBox.y+uBox.height)));
    bb.push_back(cv::Point2f(static_cast<float>(uBox.x), static_cast<float>(uBox.y+uBox.height)));

    akaze_tracker.setFirstFrame(frame, bb, "AKAZE", stats);
    orb_tracker.setFirstFrame(frame, bb, "ORB", stats);

    Stats akaze_draw_stats, orb_draw_stats;
    Mat akaze_res, orb_res, res_frame;
    int i = 0;
    for(;;) {
        i++;
        bool update_stats = (i % stats_update_period == 0);
        video_in >> frame;
        // stop the program if no more images
        if(frame.empty()) break;

        akaze_res = akaze_tracker.process(frame, stats);
        akaze_stats += stats;
        if(update_stats) {
            akaze_draw_stats = stats;
        }

        orb->setMaxFeatures(stats.keypoints);
        orb_res = orb_tracker.process(frame, stats);
        orb_stats += stats;
        if(update_stats) {
            orb_draw_stats = stats;
        }

        drawStatistics(akaze_res, akaze_draw_stats);
        drawStatistics(orb_res, orb_draw_stats);
        vconcat(akaze_res, orb_res, res_frame);
        cv::imshow(video_name, res_frame);
        if(waitKey(1)==27) break; //quit on ESC button
    }
    akaze_stats /= i - 1;
    orb_stats /= i - 1;
    printStatistics("AKAZE", akaze_stats);
    printStatistics("ORB", orb_stats);
    return 0;
}

Explanation

Tracker class

This class implements algorithm described abobve using given feature detector and descriptor matcher.

• Setting up the first frame

  void Tracker::setFirstFrame(const Mat frame, vector<Point2f> bb, string title, Stats& stats)
  {
      first_frame = frame.clone();
      (*detector)(first_frame, noArray(), first_kp, first_desc);
      stats.keypoints = (int)first_kp.size();
      drawBoundingBox(first_frame, bb);
      putText(first_frame, title, Point(0, 60), FONT_HERSHEY_PLAIN, 5, Scalar::all(0), 4);
      object_bb = bb;
  }

  We compute and store keypoints and descriptors from the first frame and prepare it for the output.

  We need to save number of detected keypoints to make sure both detectors locate roughly the same number of those.

• Processing frames

  1. Locate keypoints and compute descriptors

     (*detector)(frame, noArray(), kp, desc);

     To find matches between frames we have to locate the keypoints first.

     In this tutorial detectors are set up to find about 1000 keypoints on each frame.

  2. Use 2-nn matcher to find correspondences

     matcher->knnMatch(first_desc, desc, matches, 2);
     for(unsigned i = 0; i < matches.size(); i++) {
         if(matches[i][0].distance < nn_match_ratio * matches[i][1].distance) {
             matched1.push_back(first_kp[matches[i][0].queryIdx]);
             matched2.push_back(      kp[matches[i][0].trainIdx]);
         }
     }

     If the closest match is nn_match_ratio closer than the second closest one, then it's a match.
  3. Use RANSAC to estimate homography transformation

     homography = findHomography(Points(matched1), Points(matched2),
                                 RANSAC, ransac_thresh, inlier_mask);

     If there are at least 4 matches we can use random sample consensus to estimate image transformation.
  4. Save the inliers

     for(unsigned i = 0; i < matched1.size(); i++) {
         if(inlier_mask.at<uchar>(i)) {
             int new_i = static_cast<int>(inliers1.size());
             inliers1.push_back(matched1[i]);
             inliers2.push_back(matched2[i]);
             inlier_matches.push_back(DMatch(new_i, new_i, 0));
         }
     }

     Since findHomography computes the inliers we only have to save the chosen points and matches.

  5. Project object bounding box

     perspectiveTransform(object_bb, new_bb, homography);

     If there is a reasonable number of inliers we can use estimated transformation to locate the object.

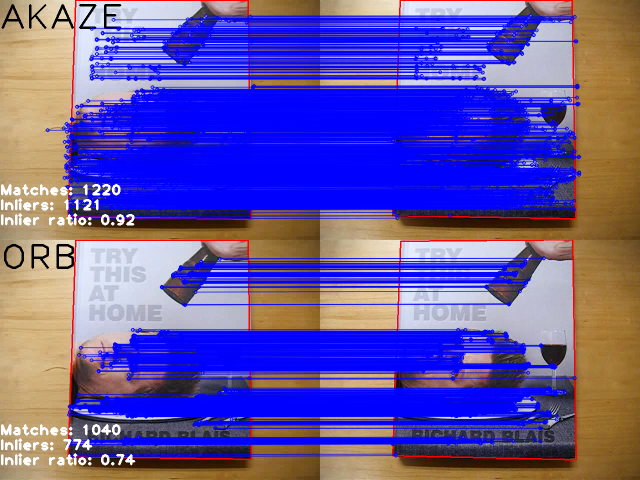

Results

You can watch the resulting video on youtube.

AKAZE statistics:

Matches      626
Inliers      410
Inlier ratio 0.58
Keypoints    1117

ORB statistics:

Matches      504
Inliers      319
Inlier ratio 0.56
Keypoints    1112
