Analog-to-digital converter for analog I2C sensors. More...

#include <sg_103020013_I2CADC.hpp>

Inheritance diagram for SG::I2CADC:

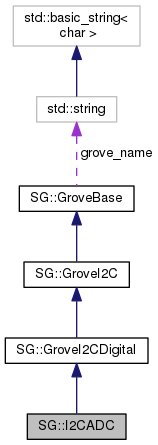

Collaboration diagram for SG::I2CADC:

[legend]

Public Types
enum	ERegister { ERegister::kConversionResult = 0, ERegister::kAlertStatus = 1, ERegister::kConfiguration = 2, ERegister::kLowLimit = 3, ERegister::kHighLimit = 4, ERegister::kHysteresis = 5, ERegister::kLowestConversion = 6, ERegister::kHighestConversion = 7 }
	I2CADC registers. More...

typedef uint8_t	I2CBus
	I2C bus. More...

typedef uint8_t	I2CAddress
	I2C addresses. More...

typedef uint8_t	I2CRegister
	I2C register. More...

typedef std::vector< uint8_t >	I2CBlock
	Block of sequential bytes to read or write. More...

Public Member Functions
virtual	~I2CADC (void)
	Destructor. More...

	I2CADC (const std::string &n="", const I2CAddress addr=0)
	Constructor. More...

I2CADC &	reset (void)
	Reset the I2CADC configuration. More...

I2CADC &	disable_automatic_mode (void)
	The I2CADC can be configured to perform auto conversions. More...

I2CADC &	enable_automatic_mode (const uint8_t value=1)
	The I2CADC can be configured to perform periodic auto conversions. More...

uint16_t	get_result (void)
	Read the most recent 12-bit analog-to-digital conversion result register (0x00). More...

uint16_t	get_minimum_result (void)
	Return the lowest conversion result seen since the I2CADC was last reset. More...

uint16_t	get_maximum_result (void)
	Return the highest conversion result seen since the I2CADC was last reset. More...

I2CADC &	reset_minimum_result (void)
	Reset the minimum conversion value stored in register 0x06 when automatic conversion mode is enabled. More...

I2CADC &	reset_maximum_result (void)
	Reset the maximum conversion value stored in register 0x07 when automatic conversion mode is enabled. More...

uint16_t	get_and_reset_minimum_result (void)
	Get the minimum conversion result and reset the register. More...

uint16_t	get_and_reset_maximum_result (void)
	Get the maximum conversion result and reset the register. More...

virtual bool	is_analog (void) const
	This is always `false` for GroveI2CDigital. More...

virtual bool	is_digital (void) const
	This is always `true` for GroveI2CDigital. More...

I2CAddress	get_address_from_type (void) const
	Get the address for this Grove type. More...

virtual uint8_t	read8 (const I2CRegister reg)
	Read a byte (8 bits) from the specificed register. More...

virtual uint16_t	read16 (const I2CRegister reg)
	Read a 16-bit word from the specified register. More...

virtual uint16_t	read12 (const I2CRegister reg)
	Read a 16-bit word from the specified register, but only keep the bottom 12 bits. More...

virtual I2CBlock	read_block (const I2CRegister reg)
	Read a consecutive block of bytes, anywhere between 1 and 32 bytes in length. More...

virtual GroveI2CDigital &	write_byte (const uint8_t value)
	Write a single byte to the I2C bus. More...

virtual GroveI2CDigital &	write_block (const I2CRegister reg, const I2CBlock &v)
	Write a consecutive block of bytes, anywhere between 1 and 32 bytes in length. More...

virtual GroveI2CDigital &	write_block (const I2CBlock &v)
	Write a consecutive block of bytes directly to the I2C file handle. More...

virtual bool	is_grove_uart (void) const
	This is always `false` for GroveI2C. More...

virtual bool	is_grove_i2c (void) const
	This is always `true` for GroveI2C. More...

virtual bool	is_grove_gpio (void) const
	This is always `false` for GroveI2C. More...

virtual uint32_t	get_sku (void) const
	Return a guess as to the Seeed SKU number based on the grove type. More...

virtual std::string	get_type_name (void) const
	Return a short text string representing the grove type. More...

virtual EGroveType	get_type (void) const
	Return the grove type. More...

virtual std::string	get_name (void) const
	Return the user-supplied name. More...

virtual std::string	get_description (void) const
	Return a multi-word 1-line description of this object. More...


bool	operator== (const I2CADC &rhs) const
	Test object equality. More...

bool	operator!= (const I2CADC &rhs) const
	Test object equality. More...


virtual uint8_t	read8 (const ERegister reg)
	For convenience, read + write using the register enum. More...

virtual uint16_t	read12 (const ERegister reg)
	For convenience, read + write using the register enum. More...

virtual I2CADC &	write8 (const ERegister reg, const uint8_t value)
	For convenience, read + write using the register enum. More...

virtual I2CADC &	write16 (const ERegister reg, const uint16_t value)
	For convenience, read + write using the register enum. More...


virtual GroveI2CDigital &	write8 (const I2CRegister reg, const uint8_t value)
	Write the given value to the specified register. More...

virtual GroveI2CDigital &	write16 (const I2CRegister reg, const uint16_t value)


bool	operator== (const GroveBase &rhs) const
	Test object equality. More...

bool	operator!= (const GroveBase &rhs) const
	Test object equality. More...

Static Public Member Functions
static I2CBus	detect_i2c_bus_number (const bool force_detect=false, const int force_bus_number=-1)
	Detect the I2C bus to use to talk to Grove I2C devices. More...

static I2CAddress	get_address_from_type (const EGroveType &type)
	Get the default I2C address for a given type. More...

Public Attributes
I2CBus	i2c_bus_number
	The bus number to use for I2C Grove twigs. More...

I2CAddress	i2c_address
	The I2C address used to communicate with the Grove device. More...

int	i2c_file_handle
	The file handle to /dev/i2c-* used to communicate with the Grove device. More...

EGroveType	grove_type
	Grove type. More...

std::string	grove_name
	User-supplied name. More...

Detailed Description

Analog-to-digital converter for analog I2C sensors.

Apparently, the default I2C address for this twig used to be 0x55. This conflicts with the BeagleBone Green EEPROM which also uses i2c-1 addresses 0x54 through 0x57.

For example, do not connect any I2C Groves twigs and run the i2cdetect command:

sudo i2cdetect -r -y 1
1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
         -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- UU UU UU UU -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- --

If your ADC indicates it is using address 0x55, then locate the labels for ADDR0 and ADDR1, along with H and L at the bottom of the ADC. You'll need to cut the trace to use a different address. See http://www.seeedstudio.com/wiki/Grove_-_I2C_ADC#With_Beaglebone_Green for details.

Connect the ADC to the left-hand J4 I2C grove interface, and run the i2cdetect command to find the address of your ADC:

sudo i2cdetect -r -y 1
1  2  3  4  5  6  7  8  9  a  b  c  d  e  f
         -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
50 -- -- -- UU UU UU UU -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- -- -- -- -- -- -- -- -- --
-- -- -- -- -- -- -- --

In the above example, the ADC is at address 0x50.

Description	Image

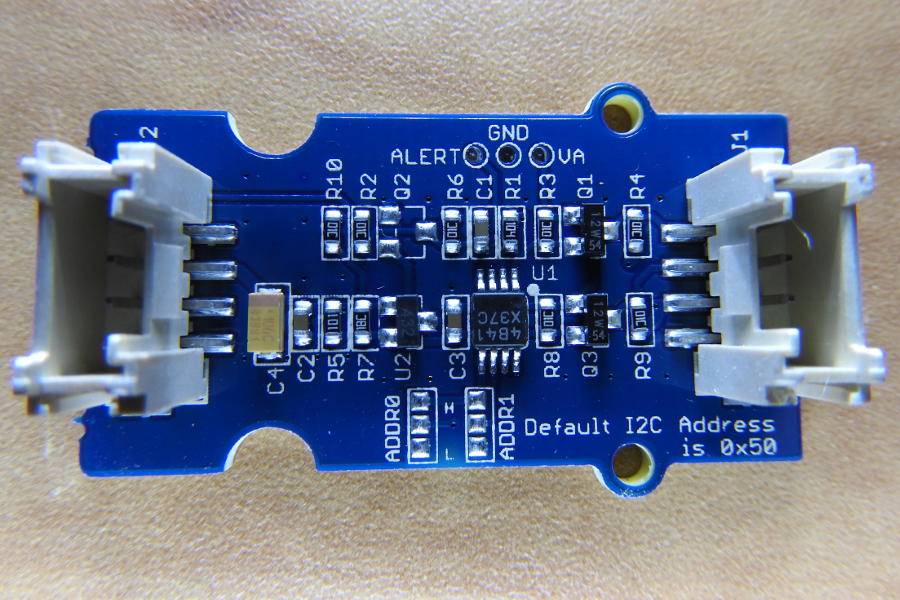

I2C ADC with a default address of `0x50`.
I2C ADC with a temperature sensor. `J1` connects to the BeagleBone Green, and `J2` connects to the analog I2C twig.

See also: http://www.seeedstudio.com/wiki/Grove_-_I2C_ADC; http://www.seeedstudio.com/depot/Grove-I2C-ADC-p-1580.html; http://www.seeedstudio.com/wiki/images/3/34/ADC121C021_Datasheet.pdf

Member Typedef Documentation

◆ I2CAddress

typedef uint8_t SG::GroveI2CDigital::I2CAddress

inherited

I2C addresses.

See also: get_address_from_type()

◆ I2CBlock

typedef std::vector<uint8_t> SG::GroveI2CDigital::I2CBlock

inherited

Block of sequential bytes to read or write.

◆ I2CBus

typedef uint8_t SG::GroveI2CDigital::I2CBus

inherited

I2C bus.

See also: detect_i2c_bus_number()

◆ I2CRegister

typedef uint8_t SG::GroveI2CDigital::I2CRegister

inherited

I2C register.

Member Enumeration Documentation

◆ ERegister

enum SG::I2CADC::ERegister

strong

I2CADC registers.

See also: ADC121C021 datasheet page 17

Enumerator
kConversionResult	0 (this register is read-only)
kAlertStatus	1
kConfiguration	2
kLowLimit	3
kHighLimit	4
kHysteresis	5
kLowestConversion	6
kHighestConversion	7

Constructor & Destructor Documentation

◆ ~I2CADC()

SG::I2CADC::~I2CADC ( void )

virtual

Destructor.

◆ I2CADC()

SG::I2CADC::I2CADC	(	const std::string &	n = `""`,
		const I2CAddress	addr = `0`
	)

Constructor.

Member Function Documentation

◆ detect_i2c_bus_number()

SG::GroveI2CDigital::I2CBus SG::GroveI2CDigital::detect_i2c_bus_number	(	const bool	force_detect = `false`,
		const int	force_bus_number = `-1`
	)

staticinherited

Detect the I2C bus to use to talk to Grove I2C devices.

This is normally 1 or 2. The detection consists of looking at /dev/i2c* devices.

Parameters

[in]	force_detect	The detected bus number is usually remembered to prevent having to re-detect it every time a new GroveI2C object is instantiated. If `force_detect` is set to `true`, then this will force GroveI2C to ignore the previously cached bus number and re-detect the I2C bus.
[in]	force_bus_number	If an explicit bus number should be used, then `force_bus_number` can be set to the correct bus value. This will prevent calls to `detect_i2c_bus_number()` from attempting to auto-detect the I2C bus. Setting the I2C bus number this way wont change existing GroveI2C objects that have already been instantiated. Only new objects will use the new bus number. The actual bus number used by specific objects is i2c_bus_number.

Exceptions

std::system_error	if /dev cannot be opened.
std::runtime_error	if the I2C bus cannot be found in /dev.

Referenced by SG::GroveI2CDigital::is_digital().

Here is the caller graph for this function:

◆ disable_automatic_mode()

I2CADC& SG::I2CADC::disable_automatic_mode ( void )

inline

The I2CADC can be configured to perform auto conversions.

When automatic mode is disabled, the I2CADC can enter low-power mode, and a conversion is only started whenever the result register (register #0) is read.

Disabling automatic mode is equivalent to calling enable_automatic_mode(0).

Note: The Vmin and Vmax conversion registers (#6 and #7) which store the lowest and highest values seen by the I2CADC are not updated when automatic mode has been disabled.

See also: enable_automatic_mode()

References enable_automatic_mode().

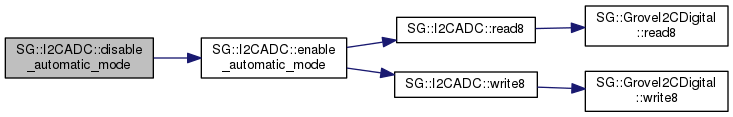

Here is the call graph for this function:

◆ enable_automatic_mode()

SG::I2CADC & SG::I2CADC::enable_automatic_mode ( const uint8_t value = 1 )

The I2CADC can be configured to perform periodic auto conversions.

When enabled, the I2CADC will not go into low-power mode, but instead will periodically perform analog-to-digital conversions, set alerts if necessary, remember high and low values, and store the most recent result into the conversion result register.

Parameters

[in] value Determines the conversion interval. Must be between 0 and 7 (total of 3 bits). When auto-conversion is enabled, the I2CADC can be configured to perform between 0.4 and 27 thousands samples per second (ksps).

Value	Binary	Meaning
`0`	`0b0000`	automatic conversion mode is disabled.
`1`	`0b0001`	cycle time x 32 (27 ksps)
`2`	`0b0010`	cycle time x 64 (13.5 ksps)
`3`	`0b0011`	cycle time x 128 (6.7 ksps)
`4`	`0b0100`	cycle time x 256 (3.4 ksps)
`5`	`0b0101`	cycle time x 512 (1.7 ksps)
`6`	`0b0110`	cycle time x 1024 (0.9 ksps)
`7`	`0b0111`	cycle time x 2048 (0.4 ksps)

See also: ADC121C021 datasheet, page 19 ("configuration register"); ADC121C021 datasheet, page 27 ("automatic conversion mode")

References kConfiguration, read8(), and write8().

Referenced by disable_automatic_mode(), and temperature().

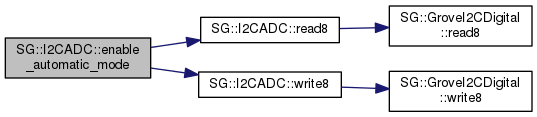

Here is the call graph for this function:

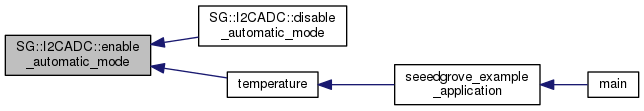

Here is the caller graph for this function:

◆ get_address_from_type() [1/2]

SG::GroveI2CDigital::I2CAddress SG::GroveI2CDigital::get_address_from_type ( const EGroveType & type )

staticinherited

Get the default I2C address for a given type.

Note that several Grove types have multiple addresses. This only returns the first address.

See also: http://www.seeedstudio.com/wiki/I2C_And_I2C_Address_of_Seeed_Product

References SG::k3AxisDigitalAccelerometer16g, SG::k3AxisDigitalAccelerometer1_5g, SG::k3AxisDigitalAccelerometer400g, SG::k3AxisDigitalCompass, SG::k3AxisDigitalGyro, SG::k6AxisAccelerometerAndCompassV1, SG::k6AxisAccelerometerAndCompassV2, SG::kBarometerHighAccuracy, SG::kBarometerSensor, SG::kBarometerSensorBMP180, SG::kDigitalInfraredTemperatureSensor, SG::kDigitalLightSensor, SG::kGestureV1, SG::kI2CADC, SG::kI2CColorSensor, SG::kI2CFMReceiver, SG::kI2CMotorDriverV10, SG::kI2CMotorDriverV12, SG::kIMU10DOF, SG::kIMU9DOFV1, SG::kIMU9DOFV2, SG::kLCDRGBBacklight, SG::kMultichannelGasSensor, SG::kNFCTag, SG::kOLEDDisplay0_96, SG::kOLEDDisplay1_12, SG::kQTouchSensor, SG::kRTC, SG::kTemperatureAndHumiditySensor, and SG::kTouchSensor.

◆ get_address_from_type() [2/2]

I2CAddress SG::GroveI2CDigital::get_address_from_type ( void ) const

inlineinherited

Get the address for this Grove type.

References SG::GroveI2CDigital::get_address_from_type(), SG::GroveBase::get_type(), SG::GroveI2CDigital::read16(), and SG::GroveI2CDigital::read8().

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::GroveI2CDigital::GroveI2CDigital(), and SG::GroveI2CDigital::is_digital().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_and_reset_maximum_result()

uint16_t SG::I2CADC::get_and_reset_maximum_result ( void )

inline

Get the maximum conversion result and reset the register.

References get_maximum_result(), read12(), read8(), reset_maximum_result(), write16(), and write8().

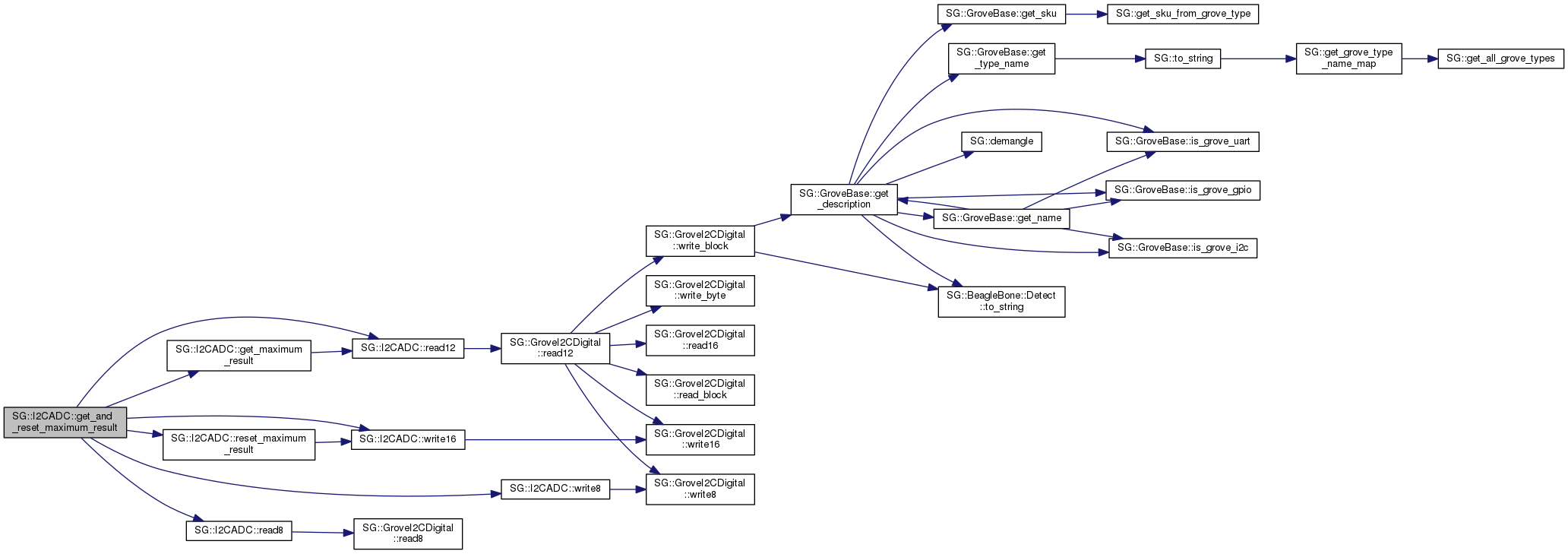

Here is the call graph for this function:

◆ get_and_reset_minimum_result()

uint16_t SG::I2CADC::get_and_reset_minimum_result ( void )

inline

Get the minimum conversion result and reset the register.

References get_minimum_result(), and reset_minimum_result().

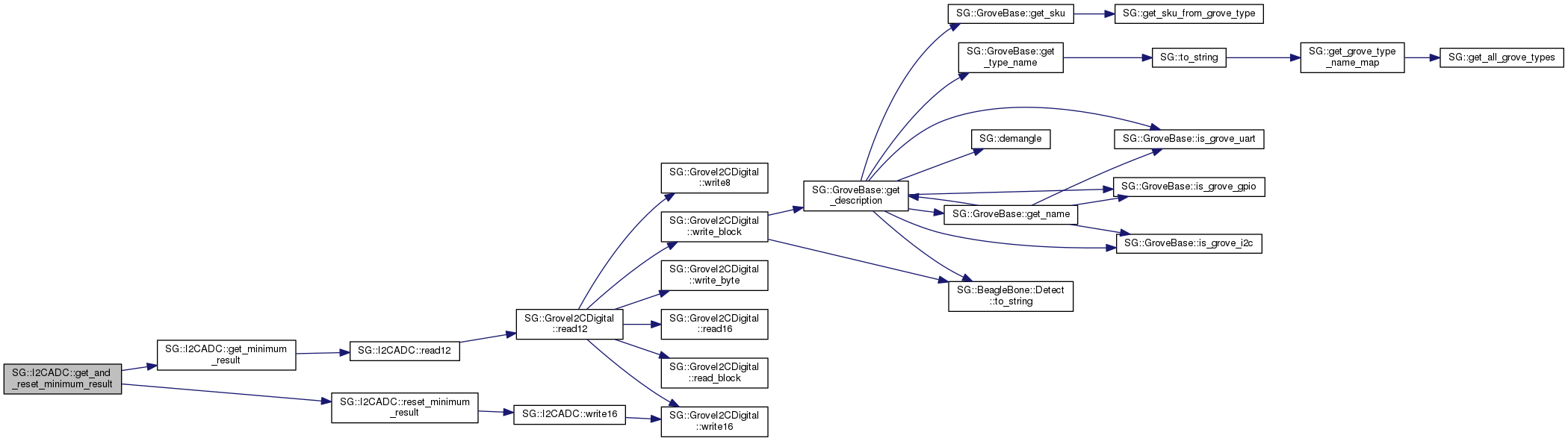

Here is the call graph for this function:

◆ get_description()

std::string SG::GroveBase::get_description ( void ) const

virtualinherited

Return a multi-word 1-line description of this object.

References SG::demangle(), SG::GroveBase::get_name(), SG::GroveBase::get_sku(), SG::GroveBase::get_type_name(), SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), SG::GroveBase::is_grove_uart(), and SG::BeagleBone::Detect::to_string().

Referenced by buzzer(), chainable_rgb_led(), common_oled(), SG::GroveBase::get_name(), SG::GroveI2CDigital::GroveI2CDigital(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), temperature(), variable_led(), and SG::GroveI2CDigital::write_block().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_maximum_result()

uint16_t SG::I2CADC::get_maximum_result ( void )

inline

Return the highest conversion result seen since the I2CADC was last reset.

This is the 12-bit value stored in register Vmin (0x06).

Note: This register is only updated when automatic mode has been enabled.

References kHighestConversion, and read12().

Referenced by get_and_reset_maximum_result().

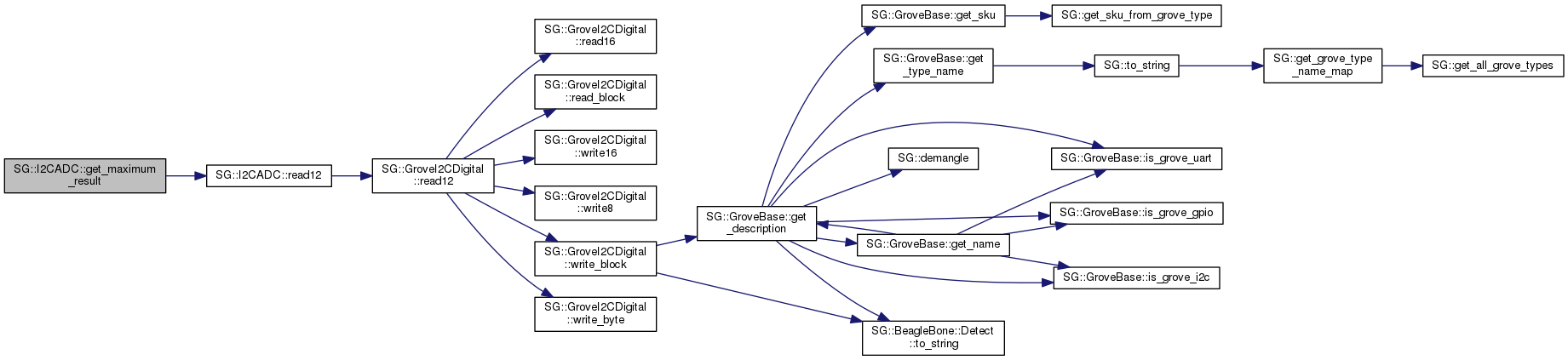

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_minimum_result()

uint16_t SG::I2CADC::get_minimum_result ( void )

inline

Return the lowest conversion result seen since the I2CADC was last reset.

This is the 12-bit value stored in register Vmin (0x06).

Note: This register is only updated when automatic mode has been enabled.

References kLowestConversion, and read12().

Referenced by get_and_reset_minimum_result().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_name()

virtual std::string SG::GroveBase::get_name ( void ) const

inlinevirtualinherited

Return the user-supplied name.

References SG::GroveBase::get_description(), SG::GroveBase::grove_name, SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), and SG::GroveBase::is_grove_uart().

Referenced by SG::GroveBase::get_description(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_result()

uint16_t SG::I2CADC::get_result ( void )

inline

Read the most recent 12-bit analog-to-digital conversion result register (0x00).

If automatic mode is disabled, this will force the I2CADC to immediatelly perform a conversion.

When you have an analog Grove twig connected to an I2CADC, this is the method to call to read the value from the connected Grove. The value returned will only have 12 bits, even though the C++ type is uint16_t. This is because the I2CADC specifically stores only 12 bits. This means the result will be between 0 and 4095 (0x0fff).

Note: For advanced users, if you have enabled alerts on the I2CADC and need to inspect the alert flag, call read16(0x00) instead to get access to bit D15. Calling get_result() will mask out the upper 4 bits, including the alert flag.

References kConversionResult, and read12().

Referenced by SG::TemperatureSensor::get_celsius().

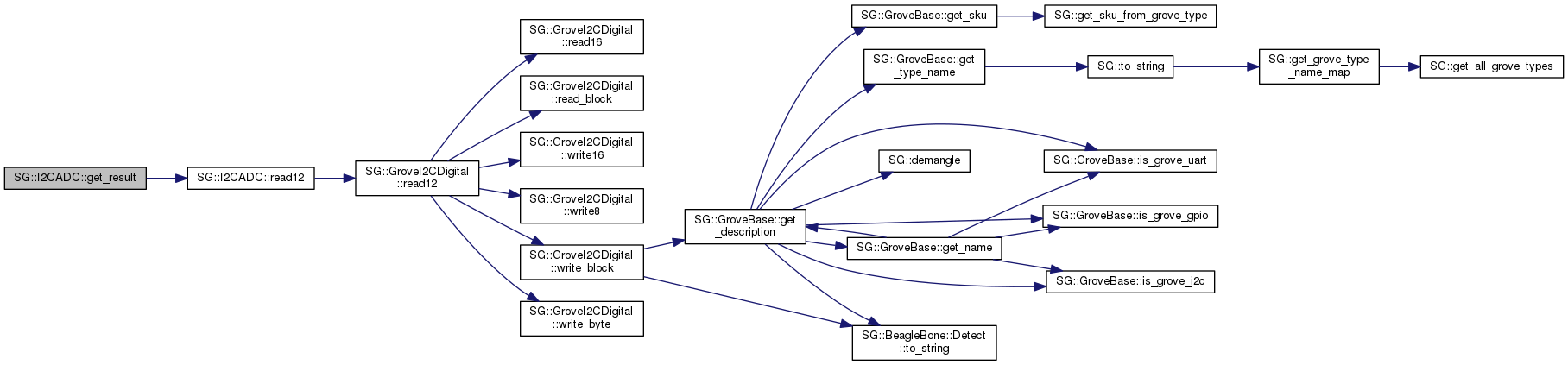

Here is the call graph for this function:

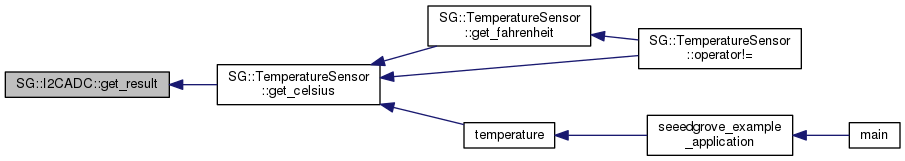

Here is the caller graph for this function:

◆ get_sku()

virtual uint32_t SG::GroveBase::get_sku ( void ) const

inlinevirtualinherited

Return a guess as to the Seeed SKU number based on the grove type.

References SG::get_sku_from_grove_type(), and SG::GroveBase::grove_type.

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_type()

virtual EGroveType SG::GroveBase::get_type ( void ) const

inlinevirtualinherited

Return the grove type.

References SG::GroveBase::grove_type.

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the caller graph for this function:

◆ get_type_name()

virtual std::string SG::GroveBase::get_type_name ( void ) const

inlinevirtualinherited

Return a short text string representing the grove type.

References SG::GroveBase::grove_type, and SG::to_string().

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_analog()

virtual bool SG::GroveI2CDigital::is_analog ( void ) const

inlinevirtualinherited

This is always false for GroveI2CDigital.

Implements SG::GroveI2C.

◆ is_digital()

virtual bool SG::GroveI2CDigital::is_digital ( void ) const

inlinevirtualinherited

This is always true for GroveI2CDigital.

Implements SG::GroveI2C.

References SG::GroveI2CDigital::detect_i2c_bus_number(), and SG::GroveI2CDigital::get_address_from_type().

Here is the call graph for this function:

◆ is_grove_gpio()

virtual bool SG::GroveI2C::is_grove_gpio ( void ) const

inlinevirtualinherited

This is always false for GroveI2C.

Implements SG::GroveBase.

References SG::GroveI2C::is_analog(), and SG::GroveI2C::is_digital().

Here is the call graph for this function:

◆ is_grove_i2c()

virtual bool SG::GroveI2C::is_grove_i2c ( void ) const

inlinevirtualinherited

This is always true for GroveI2C.

Implements SG::GroveBase.

◆ is_grove_uart()

virtual bool SG::GroveI2C::is_grove_uart ( void ) const

inlinevirtualinherited

This is always false for GroveI2C.

Implements SG::GroveBase.

◆ operator!=() [1/2]

bool SG::GroveBase::operator!= ( const GroveBase & rhs ) const

inlineinherited

Test object equality.

References SG::GroveBase::operator==().

Here is the call graph for this function:

◆ operator!=() [2/2]

bool SG::I2CADC::operator!= ( const I2CADC & rhs ) const

inline

Test object equality.

References operator==(), and reset().

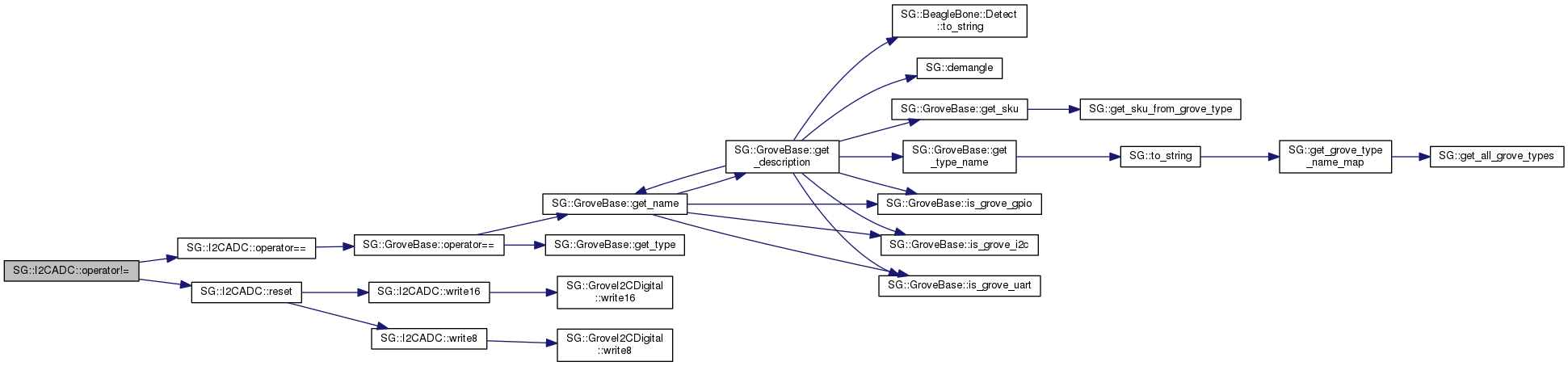

Here is the call graph for this function:

◆ operator==() [1/2]

bool SG::GroveBase::operator== ( const GroveBase & rhs ) const

inherited

Test object equality.

References SG::GroveBase::get_name(), and SG::GroveBase::get_type().

Referenced by SG::GroveBase::operator!=(), SG::Buzzer::operator==(), SG::TemperatureAndHumiditySensor::operator==(), SG::TemperatureSensor::operator==(), and operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator==() [2/2]

bool SG::I2CADC::operator== ( const I2CADC & rhs ) const

Test object equality.

References SG::GroveI2CDigital::i2c_address, and SG::GroveBase::operator==().

Referenced by operator!=().

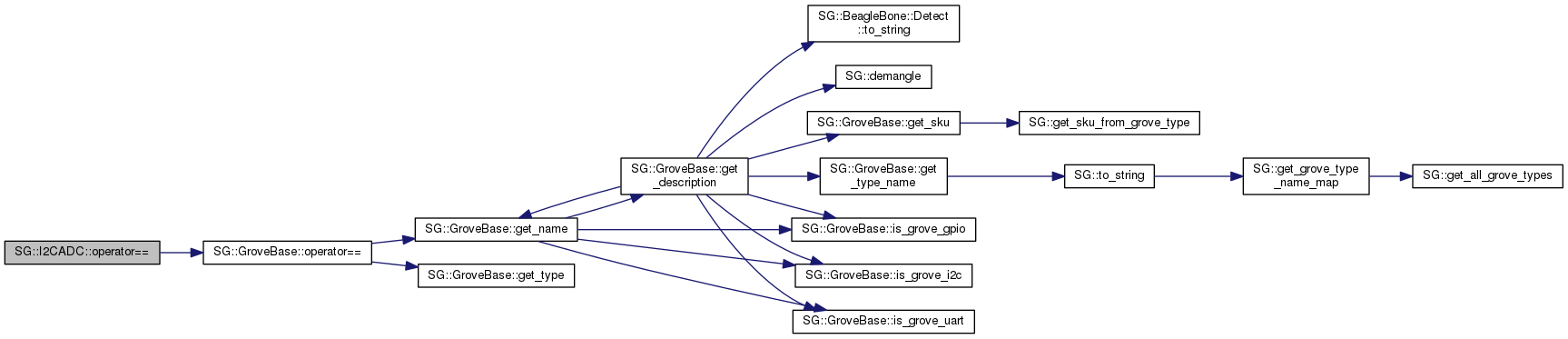

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read12() [1/2]

virtual uint16_t SG::GroveI2CDigital::read12 ( const I2CRegister reg )

inlinevirtualinherited

Read a 16-bit word from the specified register, but only keep the bottom 12 bits.

Some devices such as the I2CADC return 12-bit values.

References SG::GroveI2CDigital::read16(), SG::GroveI2CDigital::read_block(), SG::GroveI2CDigital::write16(), SG::GroveI2CDigital::write8(), SG::GroveI2CDigital::write_block(), and SG::GroveI2CDigital::write_byte().

Referenced by read12().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read12() [2/2]

uint16_t SG::I2CADC::read12 ( const ERegister reg )

virtual

For convenience, read + write using the register enum.

References SG::GroveI2CDigital::read12().

Referenced by get_and_reset_maximum_result(), get_maximum_result(), get_minimum_result(), and get_result().

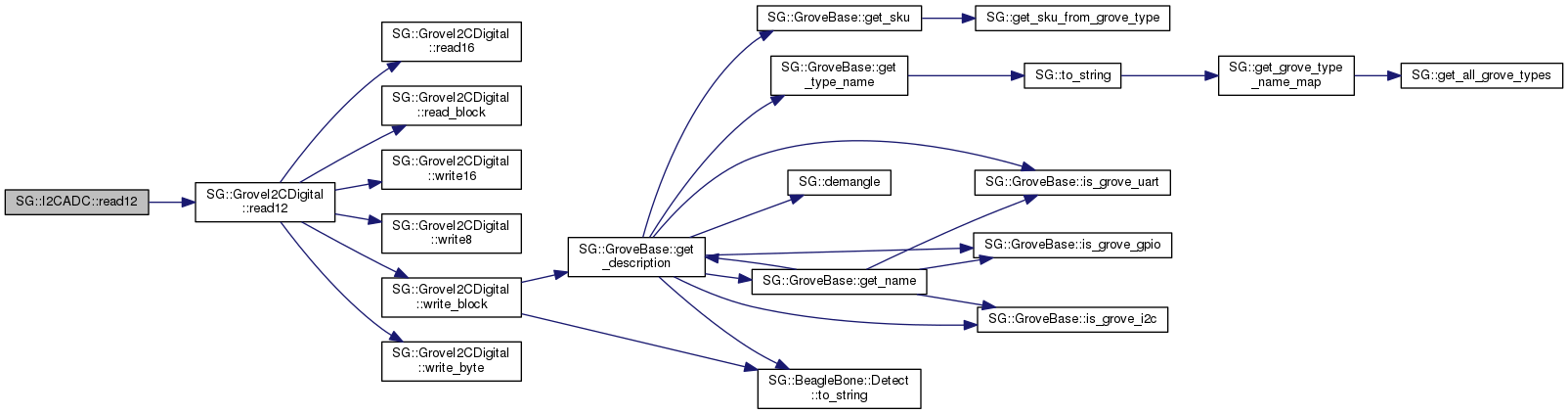

Here is the call graph for this function:

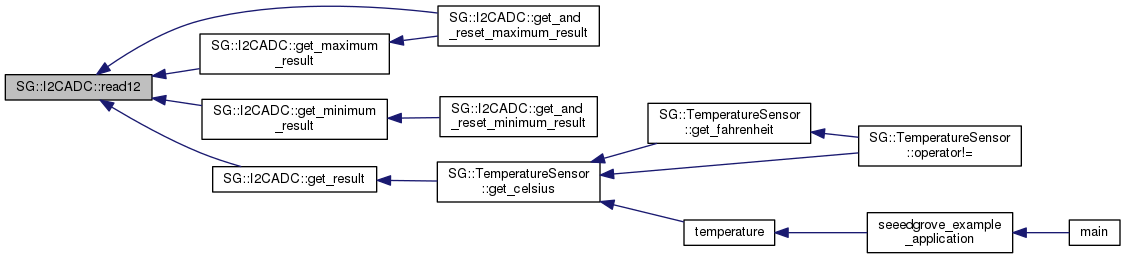

Here is the caller graph for this function:

◆ read16()

uint16_t SG::GroveI2CDigital::read16 ( const I2CRegister reg )

virtualinherited

Read a 16-bit word from the specified register.

Exceptions

std::system_error if the register cannot be read.

Note: The high/low bytes in the 16-bit word are swapped after reading.

Referenced by SG::GroveI2CDigital::get_address_from_type(), and SG::GroveI2CDigital::read12().

Here is the caller graph for this function:

◆ read8() [1/2]

uint8_t SG::GroveI2CDigital::read8 ( const I2CRegister reg )

virtualinherited

Read a byte (8 bits) from the specificed register.

Exceptions

std::system_error if the register cannot be read.

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::ThreeAxisDigitalCompass::get_config(), SG::ThreeAxisDigitalCompass::get_data(), SG::ThreeAxisDigitalCompass::get_mode(), SG::ThreeAxisDigitalCompass::get_status(), and read8().

Here is the caller graph for this function:

◆ read8() [2/2]

uint8_t SG::I2CADC::read8 ( const ERegister reg )

virtual

For convenience, read + write using the register enum.

References SG::GroveI2CDigital::read8().

Referenced by enable_automatic_mode(), and get_and_reset_maximum_result().

Here is the call graph for this function:

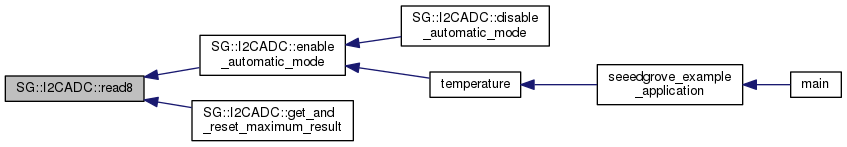

Here is the caller graph for this function:

◆ read_block()

SG::GroveI2CDigital::I2CBlock SG::GroveI2CDigital::read_block ( const I2CRegister reg )

virtualinherited

Read a consecutive block of bytes, anywhere between 1 and 32 bytes in length.

See also: write_block()

Exceptions

std::system_error if the register cannot be read.

Referenced by SG::GroveI2CDigital::read12().

Here is the caller graph for this function:

◆ reset()

SG::I2CADC & SG::I2CADC::reset ( void )

Reset the I2CADC configuration.

This stores a default value into every register, similar to when it is first powered on.

The exact default values for each register are described in the ADC121C021 datasheet, pages 18-22.

References kAlertStatus, kConfiguration, kHighestConversion, kHighLimit, kHysteresis, kLowestConversion, kLowLimit, write16(), and write8().

Referenced by operator!=().

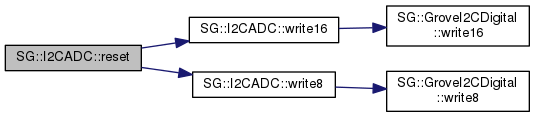

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset_maximum_result()

I2CADC& SG::I2CADC::reset_maximum_result ( void )

inline

Reset the maximum conversion value stored in register 0x07 when automatic conversion mode is enabled.

References kHighestConversion, and write16().

Referenced by get_and_reset_maximum_result().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ reset_minimum_result()

I2CADC& SG::I2CADC::reset_minimum_result ( void )

inline

Reset the minimum conversion value stored in register 0x06 when automatic conversion mode is enabled.

References kLowestConversion, and write16().

Referenced by get_and_reset_minimum_result().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write16() [1/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write16	(	const I2CRegister	reg,
		const uint16_t	value
	)

virtualinherited

Note: The high/low bytes in the 16-bit word are swapped prior to writting.

Exceptions

std::system_error if the value cannot be written.

Referenced by SG::GroveI2CDigital::read12(), and write16().

Here is the caller graph for this function:

◆ write16() [2/2]

SG::I2CADC & SG::I2CADC::write16	(	const ERegister	reg,
		const uint16_t	value
	)

virtual

For convenience, read + write using the register enum.

References SG::GroveI2CDigital::write16().

Referenced by get_and_reset_maximum_result(), reset(), reset_maximum_result(), and reset_minimum_result().

Here is the call graph for this function:

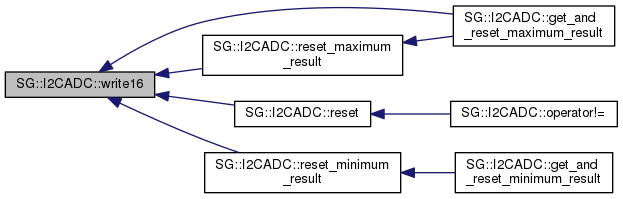

Here is the caller graph for this function:

◆ write8() [1/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write8	(	const I2CRegister	reg,
		const uint8_t	value
	)

virtualinherited

Write the given value to the specified register.

Exceptions

std::system_error if the value cannot be written.

Referenced by SG::GroveI2CDigital::read12(), SG::ThreeAxisDigitalCompass::set_config(), SG::ThreeAxisDigitalCompass::set_mode(), and write8().

Here is the caller graph for this function:

◆ write8() [2/2]

SG::I2CADC & SG::I2CADC::write8	(	const ERegister	reg,
		const uint8_t	value
	)

virtual

For convenience, read + write using the register enum.

References SG::GroveI2CDigital::write8().

Referenced by enable_automatic_mode(), get_and_reset_maximum_result(), and reset().

Here is the call graph for this function:

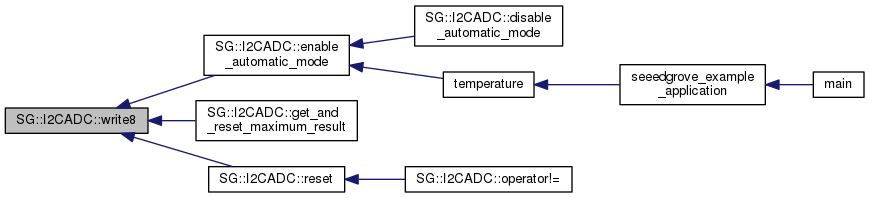

Here is the caller graph for this function:

◆ write_block() [1/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write_block	(	const I2CRegister	reg,
		const I2CBlock &	v
	)

virtualinherited

Write a consecutive block of bytes, anywhere between 1 and 32 bytes in length.

See also: read_block()

Exceptions

std::length_error	if the block is too long to write.
std::system_error	if the block failed to write.

References SG::GroveBase::get_description(), SG::GroveI2CDigital::i2c_address, and SG::BeagleBone::Detect::to_string().

Referenced by SG::CommonOLED::flood(), SG::GroveI2CDigital::read12(), SG::OLED096::reset(), SG::CommonOLED::send_command(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), and SG::CommonOLED::show().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_block() [2/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write_block ( const I2CBlock & v )

virtualinherited

Write a consecutive block of bytes directly to the I2C file handle.

Exceptions

std::system_error if the block failed to write.

References SG::GroveBase::get_description(), SG::GroveI2CDigital::i2c_address, SG::GroveI2CDigital::i2c_file_handle, and SG::BeagleBone::Detect::to_string().

Here is the call graph for this function:

◆ write_byte()

SG::GroveI2CDigital & SG::GroveI2CDigital::write_byte ( const uint8_t value )

virtualinherited

Write a single byte to the I2C bus.

Exceptions

std::system_error if the value cannot be writen.

Referenced by SG::OLED096::all_off_display(), SG::OLED096::all_on_display(), SG::OLED096::invert_display(), SG::OLED096::normal_display(), SG::GroveI2CDigital::read12(), and SG::CommonOLED::set_display_bitmap().

Here is the caller graph for this function:

Member Data Documentation

◆ grove_name

std::string SG::GroveBase::grove_name

inherited

User-supplied name.

Referenced by SG::GroveBase::get_name(), and SG::GroveBase::operator=().

◆ grove_type

EGroveType SG::GroveBase::grove_type

inherited

Grove type.

Referenced by SG::GroveBase::get_sku(), SG::GroveBase::get_type(), SG::GroveBase::get_type_name(), and SG::GroveBase::operator=().

◆ i2c_address

I2CAddress SG::GroveI2CDigital::i2c_address

inherited

The I2C address used to communicate with the Grove device.

Referenced by SG::GroveI2CDigital::GroveI2CDigital(), operator==(), and SG::GroveI2CDigital::write_block().

◆ i2c_bus_number

I2CBus SG::GroveI2CDigital::i2c_bus_number

inherited

The bus number to use for I2C Grove twigs.

The exposed I2C bus is usually 1 or 2. This is normally auto-detected by detect_i2c_bus_number() called by the constructor, and doesn't need to be manually set.

Referenced by SG::GroveI2CDigital::GroveI2CDigital().

◆ i2c_file_handle

int SG::GroveI2CDigital::i2c_file_handle

inherited

The file handle to /dev/i2c-* used to communicate with the Grove device.

Referenced by SG::GroveI2CDigital::GroveI2CDigital(), SG::GroveI2CDigital::write_block(), and SG::GroveI2CDigital::~GroveI2CDigital().

The documentation for this class was generated from the following files:

src-groves/sg_103020013_I2CADC.hpp
src-groves/sg_103020013_I2CADC.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Member Typedef Documentation

◆ I2CAddress

◆ I2CBlock

◆ I2CBus

◆ I2CRegister

Member Enumeration Documentation

◆ ERegister

Constructor & Destructor Documentation

◆ ~I2CADC()

◆ I2CADC()

Member Function Documentation

◆ detect_i2c_bus_number()

◆ disable_automatic_mode()

◆ enable_automatic_mode()

◆ get_address_from_type() [1/2]

◆ get_address_from_type() [2/2]

◆ get_and_reset_maximum_result()

◆ get_and_reset_minimum_result()

◆ get_description()

◆ get_maximum_result()

◆ get_minimum_result()

◆ get_name()

◆ get_result()

◆ get_sku()

◆ get_type()

◆ get_type_name()

◆ is_analog()

◆ is_digital()

◆ is_grove_gpio()

◆ is_grove_i2c()

◆ is_grove_uart()

◆ operator!=() [1/2]

◆ operator!=() [2/2]

◆ operator==() [1/2]

◆ operator==() [2/2]

◆ read12() [1/2]

◆ read12() [2/2]

◆ read16()

◆ read8() [1/2]

◆ read8() [2/2]

◆ read_block()

◆ reset()

◆ reset_maximum_result()

◆ reset_minimum_result()

◆ write16() [1/2]

◆ write16() [2/2]

◆ write8() [1/2]

◆ write8() [2/2]

◆ write_block() [1/2]

◆ write_block() [2/2]

◆ write_byte()

Member Data Documentation

◆ grove_name

◆ grove_type

◆ i2c_address

◆ i2c_bus_number

◆ i2c_file_handle
