Base class for digital I2C Groves. More...

#include <sg_GroveI2CDigital.hpp>

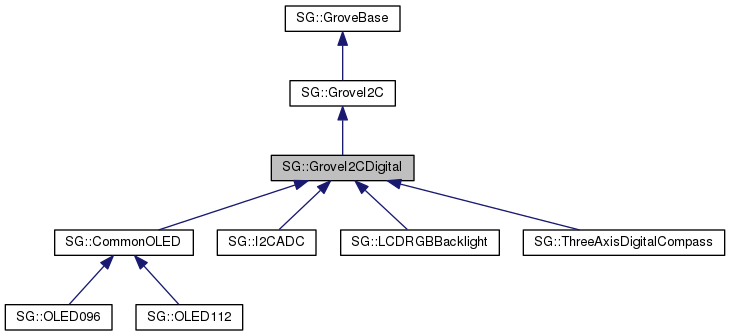

Inheritance diagram for SG::GroveI2CDigital:

[legend]

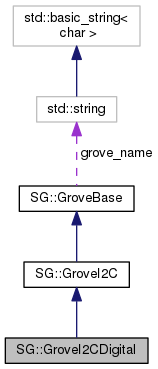

Collaboration diagram for SG::GroveI2CDigital:

[legend]

Public Types
typedef uint8_t	I2CBus
	I2C bus. More...

typedef uint8_t	I2CAddress
	I2C addresses. More...

typedef uint8_t	I2CRegister
	I2C register. More...

typedef std::vector< uint8_t >	I2CBlock
	Block of sequential bytes to read or write. More...

Public Member Functions
	GroveI2CDigital (const SG::EGroveType t=SG::EGroveType::kUnknown, const std::string &n="", const I2CAddress addr=0)
	Constructor. More...

virtual	~GroveI2CDigital (void)
	Destructor. More...

virtual bool	is_analog (void) const
	This is always `false` for GroveI2CDigital. More...

virtual bool	is_digital (void) const
	This is always `true` for GroveI2CDigital. More...

I2CAddress	get_address_from_type (void) const
	Get the address for this Grove type. More...

virtual uint8_t	read8 (const I2CRegister reg)
	Read a byte (8 bits) from the specificed register. More...

virtual uint16_t	read16 (const I2CRegister reg)
	Read a 16-bit word from the specified register. More...

virtual uint16_t	read12 (const I2CRegister reg)
	Read a 16-bit word from the specified register, but only keep the bottom 12 bits. More...

virtual I2CBlock	read_block (const I2CRegister reg)
	Read a consecutive block of bytes, anywhere between 1 and 32 bytes in length. More...

virtual GroveI2CDigital &	write_byte (const uint8_t value)
	Write a single byte to the I2C bus. More...

virtual GroveI2CDigital &	write_block (const I2CRegister reg, const I2CBlock &v)
	Write a consecutive block of bytes, anywhere between 1 and 32 bytes in length. More...

virtual GroveI2CDigital &	write_block (const I2CBlock &v)
	Write a consecutive block of bytes directly to the I2C file handle. More...

virtual bool	is_grove_uart (void) const
	This is always `false` for GroveI2C. More...

virtual bool	is_grove_i2c (void) const
	This is always `true` for GroveI2C. More...

virtual bool	is_grove_gpio (void) const
	This is always `false` for GroveI2C. More...

virtual uint32_t	get_sku (void) const
	Return a guess as to the Seeed SKU number based on the grove type. More...

virtual std::string	get_type_name (void) const
	Return a short text string representing the grove type. More...

virtual EGroveType	get_type (void) const
	Return the grove type. More...

virtual std::string	get_name (void) const
	Return the user-supplied name. More...

virtual std::string	get_description (void) const
	Return a multi-word 1-line description of this object. More...


virtual GroveI2CDigital &	write8 (const I2CRegister reg, const uint8_t value)
	Write the given value to the specified register. More...

virtual GroveI2CDigital &	write16 (const I2CRegister reg, const uint16_t value)


bool	operator== (const GroveBase &rhs) const
	Test object equality. More...

bool	operator!= (const GroveBase &rhs) const
	Test object equality. More...

Static Public Member Functions
static I2CBus	detect_i2c_bus_number (const bool force_detect=false, const int force_bus_number=-1)
	Detect the I2C bus to use to talk to Grove I2C devices. More...

static I2CAddress	get_address_from_type (const EGroveType &type)
	Get the default I2C address for a given type. More...

Public Attributes
I2CBus	i2c_bus_number
	The bus number to use for I2C Grove twigs. More...

I2CAddress	i2c_address
	The I2C address used to communicate with the Grove device. More...

int	i2c_file_handle
	The file handle to /dev/i2c-* used to communicate with the Grove device. More...

EGroveType	grove_type
	Grove type. More...

std::string	grove_name
	User-supplied name. More...

Detailed Description

Base class for digital I2C Groves.

The BeagleBone Green has two I2C buses. The first is /dev/i2c-0 and the second is /dev/i2c-1 or /dev/i2c-2. The first one, i2c-0, is not exposed and isn't of interest to the SG++ library. The second one is where I2C Grove twigs are connected.

When looking at the top of a BeagleBone Green with the network interface towards the top and the Grove interfaces at the bottom, i2c-1 (or i2c-2) is the left-hand-side Grove interface labelled J4. On the board, you'll also see the labels SCL (serial clock line), SDA (serial data line), 3V3, and GND.

Several parts of the BeagleBone Green are always connected to the I2C bus. It is important to note the addresses, because they can conflict with the address of Seeed twigs, such as Seeed's I2C ADC twig which defaults to address 0x55.

Bus/Device	Address	Name	Description	Also See
`/dev/i2c-0`	`0x24`	TPS65217	PMU (power management unit)	`/sys/bus/i2c/devices/0-0024`
`/dev/i2c-0`	`0x50`	AT24C256	EEPROM	`/sys/bus/i2c/devices/0-0050`
`/dev/i2c-1`	`0x54`	AT24C256	EEPROM	`/sys/bus/i2c/devices/1-0054`
`/dev/i2c-1`	`0x55`	AT24C256	EEPROM	`/sys/bus/i2c/devices/1-0055`
`/dev/i2c-1`	`0x56`	AT24C256	EEPROM	`/sys/bus/i2c/devices/1-0056`
`/dev/i2c-1`	`0x57`	AT24C256	EEPROM	`/sys/bus/i2c/devices/1-0057`

The other interface labelled J5 on the bottom right side is the UART Grove interface.

See also: GroveUART; GroveGPIO; https://www.kernel.org/doc/Documentation/i2c/dev-interface

Member Typedef Documentation

◆ I2CAddress

typedef uint8_t SG::GroveI2CDigital::I2CAddress

I2C addresses.

See also: get_address_from_type()

◆ I2CBlock

typedef std::vector<uint8_t> SG::GroveI2CDigital::I2CBlock

Block of sequential bytes to read or write.

◆ I2CBus

typedef uint8_t SG::GroveI2CDigital::I2CBus

I2C bus.

See also: detect_i2c_bus_number()

◆ I2CRegister

typedef uint8_t SG::GroveI2CDigital::I2CRegister

I2C register.

Constructor & Destructor Documentation

◆ GroveI2CDigital()

SG::GroveI2CDigital::GroveI2CDigital	(	const SG::EGroveType	t = `SG::EGroveType::kUnknown`,
		const std::string &	n = `""`,
		const I2CAddress	addr = `0`
	)

Constructor.

Exceptions

std::system_error	if the I2C device cannot be opened.
std::system_error	if the I2C slave address cannot be set.

References get_address_from_type(), SG::GroveBase::get_description(), i2c_address, i2c_bus_number, i2c_file_handle, I2C_SLAVE, and SG::BeagleBone::Detect::to_string().

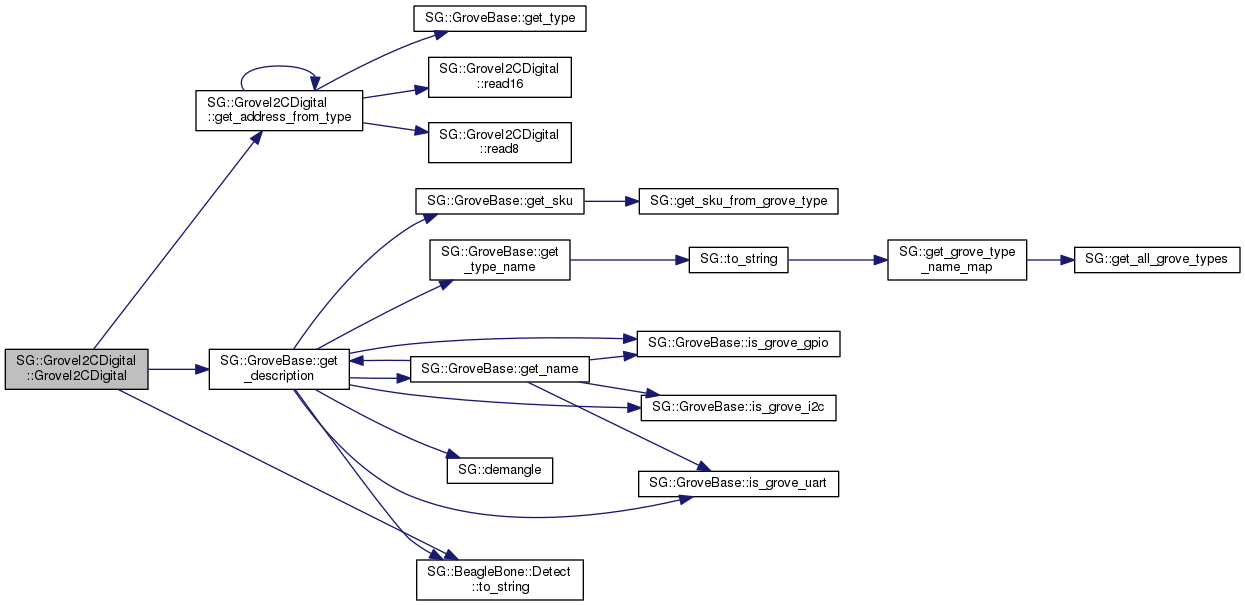

Here is the call graph for this function:

◆ ~GroveI2CDigital()

SG::GroveI2CDigital::~GroveI2CDigital ( void )

virtual

Destructor.

References i2c_file_handle.

Member Function Documentation

◆ detect_i2c_bus_number()

SG::GroveI2CDigital::I2CBus SG::GroveI2CDigital::detect_i2c_bus_number	(	const bool	force_detect = `false`,
		const int	force_bus_number = `-1`
	)

static

Detect the I2C bus to use to talk to Grove I2C devices.

This is normally 1 or 2. The detection consists of looking at /dev/i2c* devices.

Parameters

[in]	force_detect	The detected bus number is usually remembered to prevent having to re-detect it every time a new GroveI2C object is instantiated. If `force_detect` is set to `true`, then this will force GroveI2C to ignore the previously cached bus number and re-detect the I2C bus.
[in]	force_bus_number	If an explicit bus number should be used, then `force_bus_number` can be set to the correct bus value. This will prevent calls to `detect_i2c_bus_number()` from attempting to auto-detect the I2C bus. Setting the I2C bus number this way wont change existing GroveI2C objects that have already been instantiated. Only new objects will use the new bus number. The actual bus number used by specific objects is i2c_bus_number.

Exceptions

std::system_error	if /dev cannot be opened.
std::runtime_error	if the I2C bus cannot be found in /dev.

Referenced by is_digital().

Here is the caller graph for this function:

◆ get_address_from_type() [1/2]

SG::GroveI2CDigital::I2CAddress SG::GroveI2CDigital::get_address_from_type ( const EGroveType & type )

static

Get the default I2C address for a given type.

Note that several Grove types have multiple addresses. This only returns the first address.

See also: http://www.seeedstudio.com/wiki/I2C_And_I2C_Address_of_Seeed_Product

References SG::k3AxisDigitalAccelerometer16g, SG::k3AxisDigitalAccelerometer1_5g, SG::k3AxisDigitalAccelerometer400g, SG::k3AxisDigitalCompass, SG::k3AxisDigitalGyro, SG::k6AxisAccelerometerAndCompassV1, SG::k6AxisAccelerometerAndCompassV2, SG::kBarometerHighAccuracy, SG::kBarometerSensor, SG::kBarometerSensorBMP180, SG::kDigitalInfraredTemperatureSensor, SG::kDigitalLightSensor, SG::kGestureV1, SG::kI2CADC, SG::kI2CColorSensor, SG::kI2CFMReceiver, SG::kI2CMotorDriverV10, SG::kI2CMotorDriverV12, SG::kIMU10DOF, SG::kIMU9DOFV1, SG::kIMU9DOFV2, SG::kLCDRGBBacklight, SG::kMultichannelGasSensor, SG::kNFCTag, SG::kOLEDDisplay0_96, SG::kOLEDDisplay1_12, SG::kQTouchSensor, SG::kRTC, SG::kTemperatureAndHumiditySensor, and SG::kTouchSensor.

◆ get_address_from_type() [2/2]

I2CAddress SG::GroveI2CDigital::get_address_from_type ( void ) const

inline

Get the address for this Grove type.

References get_address_from_type(), SG::GroveBase::get_type(), read16(), and read8().

Referenced by get_address_from_type(), GroveI2CDigital(), and is_digital().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_description()

std::string SG::GroveBase::get_description ( void ) const

virtualinherited

Return a multi-word 1-line description of this object.

References SG::demangle(), SG::GroveBase::get_name(), SG::GroveBase::get_sku(), SG::GroveBase::get_type_name(), SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), SG::GroveBase::is_grove_uart(), and SG::BeagleBone::Detect::to_string().

Referenced by buzzer(), chainable_rgb_led(), common_oled(), SG::GroveBase::get_name(), GroveI2CDigital(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), temperature(), variable_led(), and write_block().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_name()

virtual std::string SG::GroveBase::get_name ( void ) const

inlinevirtualinherited

Return the user-supplied name.

References SG::GroveBase::get_description(), SG::GroveBase::grove_name, SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), and SG::GroveBase::is_grove_uart().

Referenced by SG::GroveBase::get_description(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_sku()

virtual uint32_t SG::GroveBase::get_sku ( void ) const

inlinevirtualinherited

Return a guess as to the Seeed SKU number based on the grove type.

References SG::get_sku_from_grove_type(), and SG::GroveBase::grove_type.

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_type()

virtual EGroveType SG::GroveBase::get_type ( void ) const

inlinevirtualinherited

Return the grove type.

References SG::GroveBase::grove_type.

Referenced by get_address_from_type(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the caller graph for this function:

◆ get_type_name()

virtual std::string SG::GroveBase::get_type_name ( void ) const

inlinevirtualinherited

Return a short text string representing the grove type.

References SG::GroveBase::grove_type, and SG::to_string().

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ is_analog()

virtual bool SG::GroveI2CDigital::is_analog ( void ) const

inlinevirtual

This is always false for GroveI2CDigital.

Implements SG::GroveI2C.

◆ is_digital()

virtual bool SG::GroveI2CDigital::is_digital ( void ) const

inlinevirtual

This is always true for GroveI2CDigital.

Implements SG::GroveI2C.

References detect_i2c_bus_number(), and get_address_from_type().

Here is the call graph for this function:

◆ is_grove_gpio()

virtual bool SG::GroveI2C::is_grove_gpio ( void ) const

inlinevirtualinherited

This is always false for GroveI2C.

Implements SG::GroveBase.

References SG::GroveI2C::is_analog(), and SG::GroveI2C::is_digital().

Here is the call graph for this function:

◆ is_grove_i2c()

virtual bool SG::GroveI2C::is_grove_i2c ( void ) const

inlinevirtualinherited

This is always true for GroveI2C.

Implements SG::GroveBase.

◆ is_grove_uart()

virtual bool SG::GroveI2C::is_grove_uart ( void ) const

inlinevirtualinherited

This is always false for GroveI2C.

Implements SG::GroveBase.

◆ operator!=()

bool SG::GroveBase::operator!= ( const GroveBase & rhs ) const

inlineinherited

Test object equality.

References SG::GroveBase::operator==().

Here is the call graph for this function:

◆ operator==()

bool SG::GroveBase::operator== ( const GroveBase & rhs ) const

inherited

Test object equality.

References SG::GroveBase::get_name(), and SG::GroveBase::get_type().

Referenced by SG::GroveBase::operator!=(), SG::Buzzer::operator==(), SG::TemperatureAndHumiditySensor::operator==(), SG::TemperatureSensor::operator==(), and SG::I2CADC::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read12()

virtual uint16_t SG::GroveI2CDigital::read12 ( const I2CRegister reg )

inlinevirtual

Read a 16-bit word from the specified register, but only keep the bottom 12 bits.

Some devices such as the I2CADC return 12-bit values.

References read16(), read_block(), write16(), write8(), write_block(), and write_byte().

Referenced by SG::I2CADC::read12().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ read16()

uint16_t SG::GroveI2CDigital::read16 ( const I2CRegister reg )

virtual

Read a 16-bit word from the specified register.

Exceptions

std::system_error if the register cannot be read.

Note: The high/low bytes in the 16-bit word are swapped after reading.

Referenced by get_address_from_type(), and read12().

Here is the caller graph for this function:

◆ read8()

uint8_t SG::GroveI2CDigital::read8 ( const I2CRegister reg )

virtual

Read a byte (8 bits) from the specificed register.

Exceptions

std::system_error if the register cannot be read.

Referenced by get_address_from_type(), SG::ThreeAxisDigitalCompass::get_config(), SG::ThreeAxisDigitalCompass::get_data(), SG::ThreeAxisDigitalCompass::get_mode(), SG::ThreeAxisDigitalCompass::get_status(), and SG::I2CADC::read8().

Here is the caller graph for this function:

◆ read_block()

SG::GroveI2CDigital::I2CBlock SG::GroveI2CDigital::read_block ( const I2CRegister reg )

virtual

Read a consecutive block of bytes, anywhere between 1 and 32 bytes in length.

See also: write_block()

Exceptions

std::system_error if the register cannot be read.

Referenced by read12().

Here is the caller graph for this function:

◆ write16()

SG::GroveI2CDigital & SG::GroveI2CDigital::write16	(	const I2CRegister	reg,
		const uint16_t	value
	)

virtual

Note: The high/low bytes in the 16-bit word are swapped prior to writting.

Exceptions

std::system_error if the value cannot be written.

Referenced by read12(), and SG::I2CADC::write16().

Here is the caller graph for this function:

◆ write8()

SG::GroveI2CDigital & SG::GroveI2CDigital::write8	(	const I2CRegister	reg,
		const uint8_t	value
	)

virtual

Write the given value to the specified register.

Exceptions

std::system_error if the value cannot be written.

Referenced by read12(), SG::ThreeAxisDigitalCompass::set_config(), SG::ThreeAxisDigitalCompass::set_mode(), and SG::I2CADC::write8().

Here is the caller graph for this function:

◆ write_block() [1/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write_block	(	const I2CRegister	reg,
		const I2CBlock &	v
	)

virtual

Write a consecutive block of bytes, anywhere between 1 and 32 bytes in length.

See also: read_block()

Exceptions

std::length_error	if the block is too long to write.
std::system_error	if the block failed to write.

References SG::GroveBase::get_description(), i2c_address, and SG::BeagleBone::Detect::to_string().

Referenced by SG::CommonOLED::flood(), read12(), SG::OLED096::reset(), SG::CommonOLED::send_command(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), and SG::CommonOLED::show().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ write_block() [2/2]

SG::GroveI2CDigital & SG::GroveI2CDigital::write_block ( const I2CBlock & v )

virtual

Write a consecutive block of bytes directly to the I2C file handle.

Exceptions

std::system_error if the block failed to write.

References SG::GroveBase::get_description(), i2c_address, i2c_file_handle, and SG::BeagleBone::Detect::to_string().

Here is the call graph for this function:

◆ write_byte()

SG::GroveI2CDigital & SG::GroveI2CDigital::write_byte ( const uint8_t value )

virtual

Write a single byte to the I2C bus.

Exceptions

std::system_error if the value cannot be writen.

Referenced by SG::OLED096::all_off_display(), SG::OLED096::all_on_display(), SG::OLED096::invert_display(), SG::OLED096::normal_display(), read12(), and SG::CommonOLED::set_display_bitmap().

Here is the caller graph for this function:

Member Data Documentation

◆ grove_name

std::string SG::GroveBase::grove_name

inherited

User-supplied name.

Referenced by SG::GroveBase::get_name(), and SG::GroveBase::operator=().

◆ grove_type

EGroveType SG::GroveBase::grove_type

inherited

Grove type.

Referenced by SG::GroveBase::get_sku(), SG::GroveBase::get_type(), SG::GroveBase::get_type_name(), and SG::GroveBase::operator=().

◆ i2c_address

I2CAddress SG::GroveI2CDigital::i2c_address

The I2C address used to communicate with the Grove device.

Referenced by GroveI2CDigital(), SG::I2CADC::operator==(), and write_block().

◆ i2c_bus_number

I2CBus SG::GroveI2CDigital::i2c_bus_number

The bus number to use for I2C Grove twigs.

The exposed I2C bus is usually 1 or 2. This is normally auto-detected by detect_i2c_bus_number() called by the constructor, and doesn't need to be manually set.

Referenced by GroveI2CDigital().

◆ i2c_file_handle

int SG::GroveI2CDigital::i2c_file_handle

The file handle to /dev/i2c-* used to communicate with the Grove device.

Referenced by GroveI2CDigital(), write_block(), and ~GroveI2CDigital().

The documentation for this class was generated from the following files:

src-groves/sg_GroveI2CDigital.hpp
src-groves/sg_GroveI2CDigital.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Detailed Description

Member Typedef Documentation

◆ I2CAddress

◆ I2CBlock

◆ I2CBus

◆ I2CRegister

Constructor & Destructor Documentation

◆ GroveI2CDigital()

◆ ~GroveI2CDigital()

Member Function Documentation

◆ detect_i2c_bus_number()

◆ get_address_from_type() [1/2]

◆ get_address_from_type() [2/2]

◆ get_description()

◆ get_name()

◆ get_sku()

◆ get_type()

◆ get_type_name()

◆ is_analog()

◆ is_digital()

◆ is_grove_gpio()

◆ is_grove_i2c()

◆ is_grove_uart()

◆ operator!=()

◆ operator==()

◆ read12()

◆ read16()

◆ read8()

◆ read_block()

◆ write16()

◆ write8()

◆ write_block() [1/2]

◆ write_block() [2/2]

◆ write_byte()

Member Data Documentation

◆ grove_name

◆ grove_type

◆ i2c_address

◆ i2c_bus_number

◆ i2c_file_handle
