SG::GroveGPIO Class Reference

Base class for Groves that use the UART interface in GPIO mode (General Purpose Input Output). More...

#include <sg_GroveGPIO.hpp>

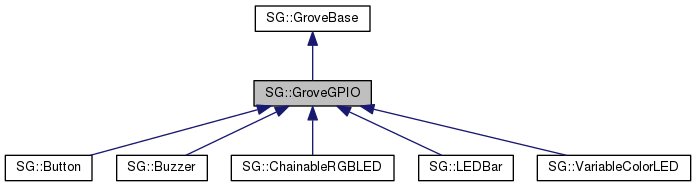

Inheritance diagram for SG::GroveGPIO:

Collaboration diagram for SG::GroveGPIO:

Public Member Functions
	GroveGPIO (const SG::EGroveType t=SG::EGroveType::kUnknown, const std::string &n="")
	Constructor. More...
virtual	~GroveGPIO (void)
	Destructor. More...
virtual GroveGPIO &	send_2_bytes (uint16_t bits)
	Send 16 bits (2 bytes). More...
virtual GroveGPIO &	send_byte (uint8_t byte)
	Send a single byte. More...
virtual bool	is_grove_uart (void) const
	Determine if this is a Grove UART device. More...
virtual bool	is_grove_i2c (void) const
	Determine if this is a Grove I2C device. More...
virtual bool	is_grove_gpio (void) const
	Determine if this is a Grove GPIO device. More...
virtual uint32_t	get_sku (void) const
	Return a guess as to the Seeed SKU number based on the grove type. More...
virtual std::string	get_type_name (void) const
	Return a short text string representing the grove type. More...
virtual EGroveType	get_type (void) const
	Return the grove type. More...
virtual std::string	get_name (void) const
	Return the user-supplied name. More...
virtual std::string	get_description (void) const
	Return a multi-word 1-line description of this object. More...
bool	operator== (const GroveBase &rhs) const
	Test object equality. More...
bool	operator!= (const GroveBase &rhs) const
	Test object equality. More...

Public Attributes
EGroveType	grove_type
	Grove type. More...
std::string	grove_name
	User-supplied name. More...

Detailed Description

Base class for Groves that use the UART interface in GPIO mode (General Purpose Input Output).

When looking at the top of a BeagleBone Green with the network interface towards the top and the Grove interfaces at the bottom, this is the right-hand-side Grove interface labelled J5. On the board, you'll also see the labels RXD, TXD, 3V3, and GND.

See also

GroveUART

GroveI2C

Constructor & Destructor Documentation

GroveGPIO()

SG::GroveGPIO::GroveGPIO	(	const SG::EGroveType	t = SG::EGroveType::kUnknown,
		const std::string &	n = ""
	)

Constructor.

~GroveGPIO()

SG::GroveGPIO::~GroveGPIO ( void  )

virtual

Destructor.

Member Function Documentation

get_description()

std::string SG::GroveBase::get_description ( void  ) const

virtualinherited

Return a multi-word 1-line description of this object.

References SG::demangle(), SG::GroveBase::get_name(), SG::GroveBase::get_sku(), SG::GroveBase::get_type_name(), SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), SG::GroveBase::is_grove_uart(), and SG::BeagleBone::Detect::to_string().

Referenced by buzzer(), chainable_rgb_led(), common_oled(), SG::GroveBase::get_name(), SG::GroveI2CDigital::GroveI2CDigital(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), temperature(), variable_led(), and SG::GroveI2CDigital::write_block().

Here is the call graph for this function:

Here is the caller graph for this function:

get_name()

virtual std::string SG::GroveBase::get_name ( void  ) const

inlinevirtualinherited

Return the user-supplied name.

References SG::GroveBase::get_description(), SG::GroveBase::grove_name, SG::GroveBase::is_grove_gpio(), SG::GroveBase::is_grove_i2c(), and SG::GroveBase::is_grove_uart().

Referenced by SG::GroveBase::get_description(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

get_sku()

virtual uint32_t SG::GroveBase::get_sku ( void  ) const

inlinevirtualinherited

Return a guess as to the Seeed SKU number based on the grove type.

References SG::get_sku_from_grove_type(), and SG::GroveBase::grove_type.

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

get_type()

virtual EGroveType SG::GroveBase::get_type ( void  ) const

inlinevirtualinherited

Return the grove type.

References SG::GroveBase::grove_type.

Referenced by SG::GroveI2CDigital::get_address_from_type(), SG::GroveBase::operator=(), and SG::GroveBase::operator==().

Here is the caller graph for this function:

get_type_name()

virtual std::string SG::GroveBase::get_type_name ( void  ) const

inlinevirtualinherited

Return a short text string representing the grove type.

References SG::GroveBase::grove_type, and SG::to_string().

Referenced by SG::GroveBase::get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

is_grove_gpio()

virtual bool SG::GroveGPIO::is_grove_gpio ( void  ) const

inlinevirtual

Determine if this is a Grove GPIO device.

See also

SG::GroveGPIO

Implements SG::GroveBase.

is_grove_i2c()

virtual bool SG::GroveGPIO::is_grove_i2c ( void  ) const

inlinevirtual

Determine if this is a Grove I2C device.

See also

SG::GroveI2C

Implements SG::GroveBase.

is_grove_uart()

virtual bool SG::GroveGPIO::is_grove_uart ( void  ) const

inlinevirtual

Determine if this is a Grove UART device.

See also

SG::GroveUART

Implements SG::GroveBase.

operator!=()

bool SG::GroveBase::operator!= ( const GroveBase &  rhs ) const

inlineinherited

Test object equality.

References SG::GroveBase::operator==().

Here is the call graph for this function:

operator==()

bool SG::GroveBase::operator== ( const GroveBase &  rhs ) const

inherited

Test object equality.

References SG::GroveBase::get_name(), and SG::GroveBase::get_type().

Referenced by SG::GroveBase::operator!=(), SG::Buzzer::operator==(), SG::TemperatureAndHumiditySensor::operator==(), SG::TemperatureSensor::operator==(), and SG::I2CADC::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

send_2_bytes()

SG::GroveGPIO & SG::GroveGPIO::send_2_bytes ( uint16_t  bits )

virtual

Send 16 bits (2 bytes).

References send_byte().

Here is the call graph for this function:

send_byte()

SG::GroveGPIO & SG::GroveGPIO::send_byte ( uint8_t  byte )

virtual

Send a single byte.

References SG::SGpp::get(), SG::SGpp::gpio, SG::GpioManagement::set_high(), and SG::GpioManagement::set_low().

Referenced by send_2_bytes(), and SG::ChainableRGBLED::turn_on().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

grove_name

std::string SG::GroveBase::grove_name

inherited

User-supplied name.

Referenced by SG::GroveBase::get_name(), and SG::GroveBase::operator=().

grove_type

EGroveType SG::GroveBase::grove_type

inherited

Grove type.

Referenced by SG::GroveBase::get_sku(), SG::GroveBase::get_type(), SG::GroveBase::get_type_name(), and SG::GroveBase::operator=().

---

The documentation for this class was generated from the following files:

• src-groves/sg_GroveGPIO.hpp
• src-groves/sg_GroveGPIO.cpp
