zbar::Image Class Reference

stores image data samples along with associated format and size metadata More...

Inheritance diagram for zbar::Image:

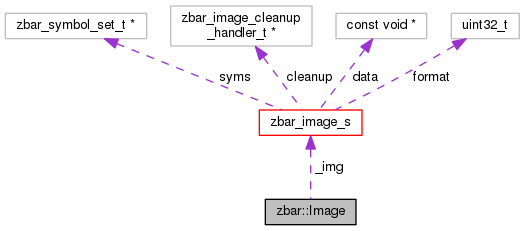

Collaboration diagram for zbar::Image:

Classes
class	Handler
	general Image result handler. More...
class	SymbolIterator

Public Member Functions
	Image (unsigned width=0, unsigned height=0, const std::string &format="", const void *data=NULL, unsigned long length=0)
	constructor. More...
	~Image ()
Image	convert (unsigned long format) const
	image format conversion. More...
Image	convert (unsigned long format, unsigned width, unsigned height) const
	image format conversion with crop/pad. More...
const void *	get_data () const
	return the image sample data. More...
unsigned long	get_data_length () const
	return the size of the image sample data. More...
unsigned long	get_format () const
	retrieve the image format. More...
unsigned	get_height () const
	retrieve the height of the image. More...
unsigned	get_sequence () const
	retrieve a "sequence" (page/frame) number associated with this image. More...
const SymbolSet	get_symbols () const
unsigned	get_width () const
	retrieve the width of the image. More...
	operator const zbar_image_t * () const
	cast to C image object More...
	operator zbar_image_t * ()
	cast to C image object More...
void	set_data (const void *data, unsigned long length)
	specify image sample data. More...
void	set_format (unsigned long format)
	specify the fourcc image format code for image sample data. More...
void	set_format (const std::string &format)
	specify the fourcc image format code for image sample data. More...
void	set_sequence (unsigned sequence_num)
	associate a "sequence" (page/frame) number with this image. More...
void	set_size (unsigned width, unsigned height)
	specify the pixel size of the image. More...
void	set_symbols (const SymbolSet &syms)
SymbolIterator	symbol_begin () const
	create a new SymbolIterator over decoded results. More...
SymbolIterator	symbol_end () const
	return a SymbolIterator suitable for ending iteration. More...

Protected Member Functions
	Image (zbar_image_t *src, int refs=0)
	constructor. More...

Static Protected Member Functions
static void	_cleanup (zbar_image_t *img)
	default data cleanup (noop) More...

Private Attributes
zbar_image_t *	_img

Friends
class	Video

Detailed Description

stores image data samples along with associated format and size metadata

Constructor & Destructor Documentation

zbar::Image::Image ( unsigned  width = 0, unsigned  height = 0, const std::string &  format = "", const void *  data = NULL, unsigned long  length = 0  )

inline

constructor.

create a new Image with the specified parameters

References _img, test_zbar::data, format, scan_image::height, set_data(), set_format(), set_size(), scan_image::width, and zbar::zbar_image_set_userdata().

Referenced by convert().

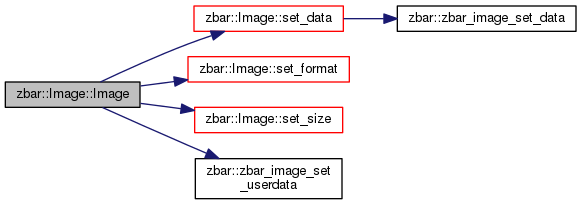

Here is the call graph for this function:

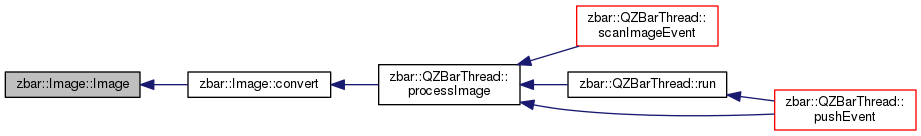

Here is the caller graph for this function:

zbar::Image::~Image ( )

inline

References _img, and zbar::zbar_image_ref().

Here is the call graph for this function:

zbar::Image::Image ( zbar_image_t *  src, int  refs = 0  )

inlineprotected

constructor.

create a new Image from a zbar_image_t C object

References _img, zbar::zbar_image_ref(), and zbar::zbar_image_set_userdata().

Here is the call graph for this function:

Member Function Documentation

static void zbar::Image::_cleanup ( zbar_image_t *  img )

inlinestaticprotected

default data cleanup (noop)

References zbar::zbar_image_get_userdata().

Referenced by set_data().

Here is the call graph for this function:

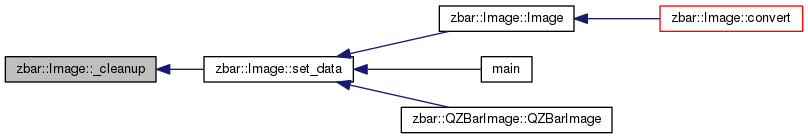

Here is the caller graph for this function:

Image zbar::Image::convert ( unsigned long  format ) const

inline

image format conversion.

see zbar_image_convert()

References _img, Image(), and zbar::zbar_image_convert().

Referenced by zbar::QZBarThread::processImage().

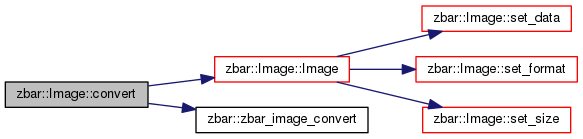

Here is the call graph for this function:

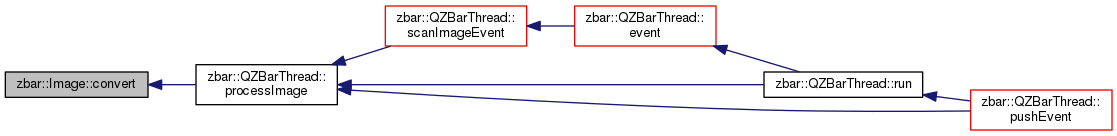

Here is the caller graph for this function:

Image zbar::Image::convert ( unsigned long  format, unsigned  width, unsigned  height  ) const

inline

image format conversion with crop/pad.

see zbar_image_convert_resize()

Since

0.4

References _img, Image(), and zbar::zbar_image_convert_resize().

Here is the call graph for this function:

const void* zbar::Image::get_data ( ) const

inline

return the image sample data.

see zbar_image_get_data()

References _img, and zbar::zbar_image_get_data().

Here is the call graph for this function:

unsigned long zbar::Image::get_data_length ( ) const

inline

return the size of the image sample data.

see zbar_image_get_data_length()

Since

0.6

References _img, and zbar::zbar_image_get_data_length().

Here is the call graph for this function:

unsigned long zbar::Image::get_format ( ) const

inline

retrieve the image format.

see zbar_image_get_format()

References _img, and zbar::zbar_image_get_format().

Here is the call graph for this function:

unsigned zbar::Image::get_height ( ) const

inline

retrieve the height of the image.

see zbar_image_get_height()

References _img, and zbar::zbar_image_get_height().

Here is the call graph for this function:

unsigned zbar::Image::get_sequence ( ) const

inline

retrieve a "sequence" (page/frame) number associated with this image.

see zbar_image_get_sequence()

Since

0.6

References _img, and zbar::zbar_image_get_sequence().

Here is the call graph for this function:

const SymbolSet zbar::Image::get_symbols ( ) const

inline

References _img, and zbar::zbar_image_get_symbols().

Referenced by zbar::QZBarThread::processImage(), and symbol_begin().

Here is the call graph for this function:

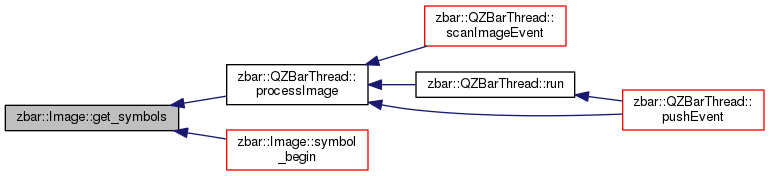

Here is the caller graph for this function:

unsigned zbar::Image::get_width ( ) const

inline

retrieve the width of the image.

see zbar_image_get_width()

References _img, and zbar::zbar_image_get_width().

Here is the call graph for this function:

zbar::Image::operator const zbar_image_t * ( ) const

inline

cast to C image object

References _img.

zbar::Image::operator zbar_image_t * ( )

inline

cast to C image object

References _img.

void zbar::Image::set_data ( const void *  data, unsigned long  length  )

inline

specify image sample data.

see zbar_image_set_data()

References _cleanup(), _img, and zbar::zbar_image_set_data().

Referenced by Image(), main(), and zbar::QZBarImage::QZBarImage().

Here is the call graph for this function:

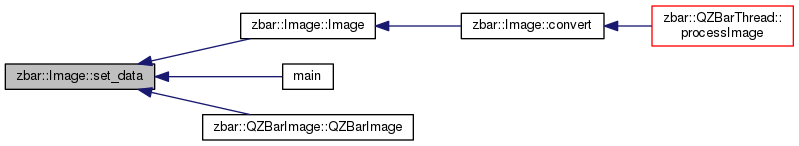

Here is the caller graph for this function:

void zbar::Image::set_format ( unsigned long  format )

inline

specify the fourcc image format code for image sample data.

see zbar_image_set_format()

References _img, and zbar::zbar_image_set_format().

Referenced by Image(), and zbar::QZBarImage::QZBarImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::Image::set_format ( const std::string &  format )

inline

specify the fourcc image format code for image sample data.

see zbar_image_set_format()

References _img, fourcc, and zbar::zbar_image_set_format().

Here is the call graph for this function:

void zbar::Image::set_sequence ( unsigned  sequence_num )

inline

associate a "sequence" (page/frame) number with this image.

see zbar_image_set_sequence()

Since

0.6

References _img, and zbar::zbar_image_set_sequence().

Here is the call graph for this function:

void zbar::Image::set_size ( unsigned  width, unsigned  height  )

inline

specify the pixel size of the image.

see zbar_image_set_size()

References _img, and zbar::zbar_image_set_size().

Referenced by Image(), and zbar::QZBarImage::QZBarImage().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::Image::set_symbols ( const SymbolSet &  syms )

inline

References _img, and zbar::zbar_image_set_symbols().

Referenced by zbar::QZBarThread::processImage().

Here is the call graph for this function:

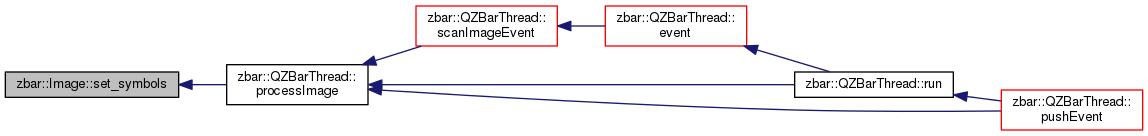

Here is the caller graph for this function:

SymbolIterator zbar::Image::symbol_begin ( ) const

inline

create a new SymbolIterator over decoded results.

References get_symbols().

Referenced by zbar::QZBarThread::image_callback(), and main().

Here is the call graph for this function:

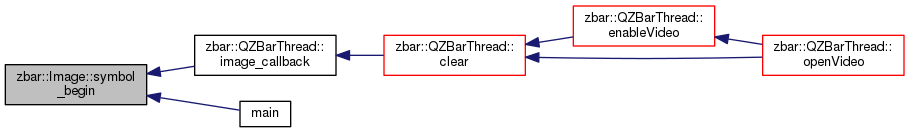

Here is the caller graph for this function:

SymbolIterator zbar::Image::symbol_end ( ) const

inline

return a SymbolIterator suitable for ending iteration.

Referenced by zbar::QZBarThread::image_callback(), and main().

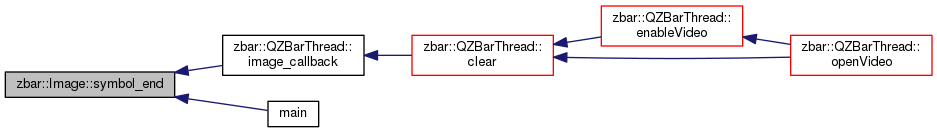

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class Video

friend

Member Data Documentation

zbar_image_t* zbar::Image::_img

private

Referenced by convert(), get_data(), get_data_length(), get_format(), get_height(), get_sequence(), get_symbols(), get_width(), Image(), operator const zbar_image_t *(), operator zbar_image_t *(), set_data(), set_format(), set_sequence(), set_size(), set_symbols(), and ~Image().

---

The documentation for this class was generated from the following file:

• Image.h
