zbar Namespace Reference

C++ namespace for library interfaces. More...

Classes

class  BusyError
 all resources busy. More...

class  ClosedError
 output window is closed. More...

class  Decoder
 low-level bar width stream decoder interface. More...

class  Exception
 base class for exceptions defined by this API. More...

class  FormatError
 image format error More...

class  Image
 stores image data samples along with associated format and size metadata More...

class  ImageScanner
 mid-level image scanner interface. More...

class  InternalError
 internal library error. More...

class  InvalidError
 invalid request. More...

class  LockingError
 locking error. More...

class  Processor
 high-level self-contained image processor. More...

class  QZBar
 barcode reader Qt4 widget. More...

class  QZBarImage
 wrap a QImage and convert into a format suitable for scanning. More...

class  QZBarThread

class  Scanner
 low-level linear intensity sample stream scanner interface. More...

class  Symbol
 decoded barcode symbol result object. More...

class  SymbolIterator
 iteration over Symbol result objects in a scanned Image or SymbolSet. More...

class  SymbolSet
 container for decoded result symbols associated with an image or a composite symbol. More...

class  SystemError
 failed system call. More...

class  UnsupportedError
 unsupported request. More...

class  Video
 mid-level video source abstraction. More...

class  Window
 mid-level output window abstraction. More...

class  XDisplayError
 X11 display error. More...

class  XProtoError
 X11 protocol error. More...


Functions

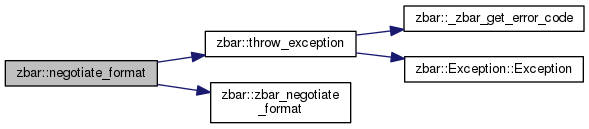

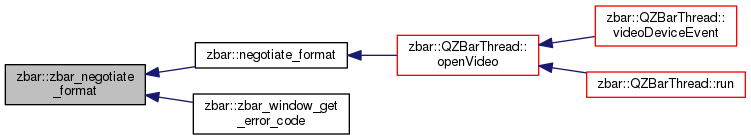

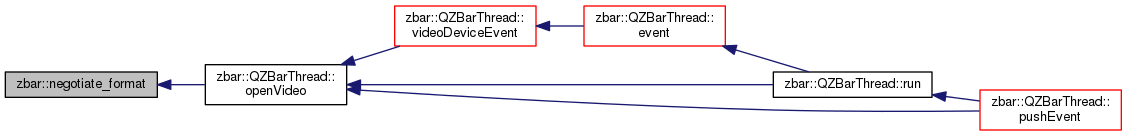

static void negotiate_format (Video &video, Window &window)
 select a compatible format between video input and output window. More...

static std::exception throw_exception (const void *obj)
 extract error information and create exception. More...


Global library interfaces

enum  zbar_color_e {
  ZBAR_SPACE,
  ZBAR_BAR
}
 "color" of element: bar or space. More...

enum  zbar_symbol_type_e {
  ZBAR_NONE,
  ZBAR_PARTIAL,
  ZBAR_EAN8,
  ZBAR_UPCE,
  ZBAR_ISBN10,
  ZBAR_UPCA,
  ZBAR_EAN13,
  ZBAR_ISBN13,
  ZBAR_I25,
  ZBAR_CODE39,
  ZBAR_PDF417,
  ZBAR_QRCODE,
  ZBAR_CODE128,
  ZBAR_SYMBOL,
  ZBAR_ADDON2,
  ZBAR_ADDON5,
  ZBAR_ADDON
}
 decoded symbol type. More...

enum  zbar_error_e {
  ZBAR_OK,
  ZBAR_ERR_NOMEM,
  ZBAR_ERR_INTERNAL,
  ZBAR_ERR_UNSUPPORTED,
  ZBAR_ERR_INVALID,
  ZBAR_ERR_SYSTEM,
  ZBAR_ERR_LOCKING,
  ZBAR_ERR_BUSY,
  ZBAR_ERR_XDISPLAY,
  ZBAR_ERR_XPROTO,
  ZBAR_ERR_CLOSED,
  ZBAR_ERR_WINAPI,
  ZBAR_ERR_NUM
}
 error codes. More...

enum  zbar_config_e {
  ZBAR_CFG_ENABLE,
  ZBAR_CFG_ADD_CHECK,
  ZBAR_CFG_EMIT_CHECK,
  ZBAR_CFG_ASCII,
  ZBAR_CFG_NUM,
  ZBAR_CFG_MIN_LEN,
  ZBAR_CFG_MAX_LEN,
  ZBAR_CFG_POSITION,
  ZBAR_CFG_X_DENSITY,
  ZBAR_CFG_Y_DENSITY
}
 decoder configuration options. More...

typedef enum zbar::zbar_color_e zbar_color_t
 "color" of element: bar or space. More...

typedef enum zbar::zbar_symbol_type_e zbar_symbol_type_t
 decoded symbol type. More...

typedef enum zbar::zbar_error_e zbar_error_t
 error codes. More...

typedef enum zbar::zbar_config_e zbar_config_t
 decoder configuration options. More...

int zbar_version (unsigned *major, unsigned *minor)
 retrieve runtime library version information. More...

void zbar_set_verbosity (int verbosity)
 set global library debug level. More...

void zbar_increase_verbosity (void)
 increase global library debug level. More...

const char * zbar_get_symbol_name (zbar_symbol_type_t sym)
 retrieve string name for symbol encoding. More...

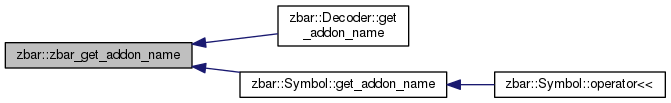

const char * zbar_get_addon_name (zbar_symbol_type_t sym)
 retrieve string name for addon encoding. More...

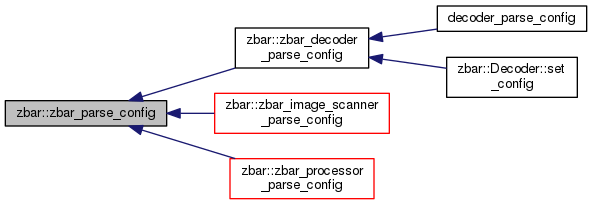

int zbar_parse_config (const char *config_string, zbar_symbol_type_t *symbology, zbar_config_t *config, int *value)
 parse a configuration string of the form "[symbology.]config[=value]". More...

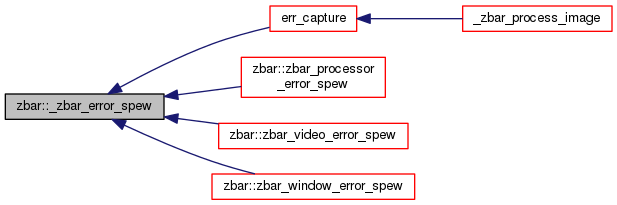

int _zbar_error_spew (const void *object, int verbosity)

const char * _zbar_error_string (const void *object, int verbosity)

zbar_error_t _zbar_get_error_code (const void *object)


Symbol interface

decoded barcode symbol result object.

stores type, data, and image location of decoded symbol. all memory is owned by the library

typedef struct zbar_symbol_s zbar_symbol_t
 opaque decoded symbol object. More...

void zbar_symbol_ref (const zbar_symbol_t *symbol, int refs)
 symbol reference count manipulation. More...

zbar_symbol_type_t zbar_symbol_get_type (const zbar_symbol_t *symbol)
 retrieve type of decoded symbol. More...

const char * zbar_symbol_get_data (const zbar_symbol_t *symbol)
 retrieve data decoded from symbol. More...

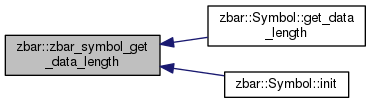

unsigned int zbar_symbol_get_data_length (const zbar_symbol_t *symbol)
 retrieve length of binary data. More...

int zbar_symbol_get_quality (const zbar_symbol_t *symbol)
 retrieve a symbol confidence metric. More...

int zbar_symbol_get_count (const zbar_symbol_t *symbol)
 retrieve current cache count. More...

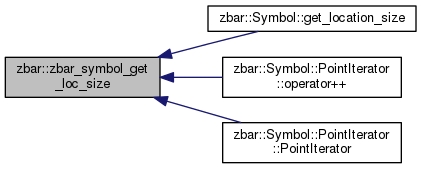

unsigned zbar_symbol_get_loc_size (const zbar_symbol_t *symbol)
 retrieve the number of points in the location polygon. More...

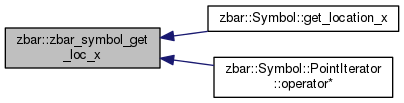

int zbar_symbol_get_loc_x (const zbar_symbol_t *symbol, unsigned index)
 retrieve location polygon x-coordinates. More...

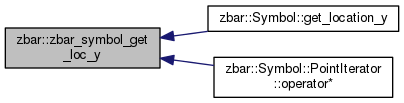

int zbar_symbol_get_loc_y (const zbar_symbol_t *symbol, unsigned index)
 retrieve location polygon y-coordinates. More...

const zbar_symbol_tzbar_symbol_next (const zbar_symbol_t *symbol)
 iterate the set to which this symbol belongs (there can be only one). More...

const zbar_symbol_set_tzbar_symbol_get_components (const zbar_symbol_t *symbol)
 retrieve components of a composite result. More...

const zbar_symbol_tzbar_symbol_first_component (const zbar_symbol_t *symbol)
 iterate components of a composite result. More...

char * zbar_symbol_xml (const zbar_symbol_t *symbol, char **buffer, unsigned *buflen)
 print XML symbol element representation to user result buffer. More...


Symbol Set interface

container for decoded result symbols associated with an image or a composite symbol.

Since
0.10
typedef struct zbar_symbol_set_s zbar_symbol_set_t
 opaque symbol iterator object. More...

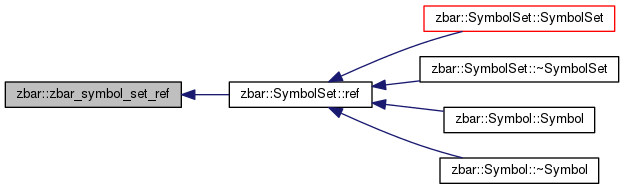

void zbar_symbol_set_ref (const zbar_symbol_set_t *symbols, int refs)
 reference count manipulation. More...

int zbar_symbol_set_get_size (const zbar_symbol_set_t *symbols)
 retrieve set size. More...

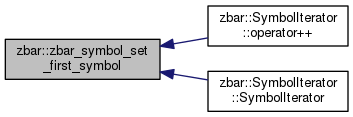

const zbar_symbol_tzbar_symbol_set_first_symbol (const zbar_symbol_set_t *symbols)
 set iterator. More...


Image interface

stores image data samples along with associated format and size metadata

typedef struct zbar_image_s zbar_image_t
 opaque image object. More...

typedef voidzbar_image_cleanup_handler_t) (zbar_image_t *image)
 cleanup handler callback function. More...

typedef voidzbar_image_data_handler_t) (zbar_image_t *image, const void *userdata)
 data handler callback function. More...

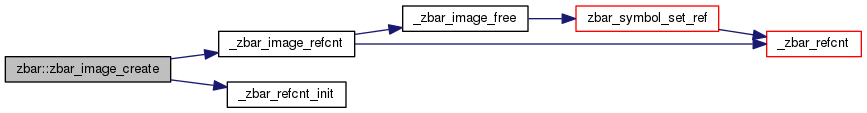

zbar_image_tzbar_image_create (void)
 new image constructor. More...

void zbar_image_destroy (zbar_image_t *image)
 image destructor. More...

void zbar_image_ref (zbar_image_t *image, int refs)
 image reference count manipulation. More...

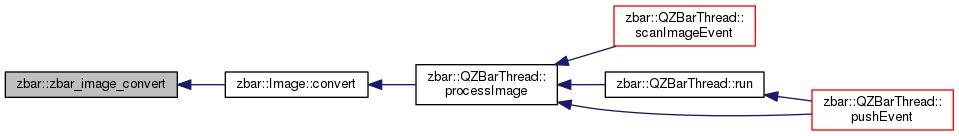

zbar_image_tzbar_image_convert (const zbar_image_t *image, unsigned long format)
 image format conversion. More...

zbar_image_tzbar_image_convert_resize (const zbar_image_t *image, unsigned long format, unsigned width, unsigned height)
 image format conversion with crop/pad. More...

unsigned long zbar_image_get_format (const zbar_image_t *image)
 retrieve the image format. More...

unsigned zbar_image_get_sequence (const zbar_image_t *image)
 retrieve a "sequence" (page/frame) number associated with this image. More...

unsigned zbar_image_get_width (const zbar_image_t *image)
 retrieve the width of the image. More...

unsigned zbar_image_get_height (const zbar_image_t *image)
 retrieve the height of the image. More...

const voidzbar_image_get_data (const zbar_image_t *image)
 return the image sample data. More...

unsigned long zbar_image_get_data_length (const zbar_image_t *img)
 return the size of image data. More...

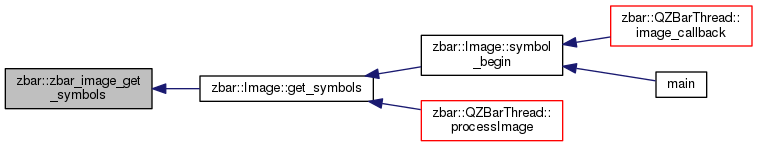

const zbar_symbol_set_tzbar_image_get_symbols (const zbar_image_t *image)
 retrieve the decoded results. More...

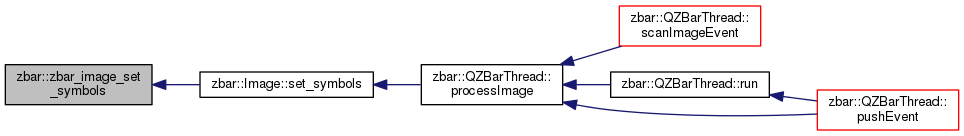

void zbar_image_set_symbols (zbar_image_t *image, const zbar_symbol_set_t *symbols)
 associate the specified symbol set with the image, replacing any existing results. More...

const zbar_symbol_tzbar_image_first_symbol (const zbar_image_t *image)
 image_scanner decode result iterator. More...

void zbar_image_set_format (zbar_image_t *image, unsigned long format)
 specify the fourcc image format code for image sample data. More...

void zbar_image_set_sequence (zbar_image_t *image, unsigned sequence_num)
 associate a "sequence" (page/frame) number with this image. More...

void zbar_image_set_size (zbar_image_t *image, unsigned width, unsigned height)
 specify the pixel size of the image. More...

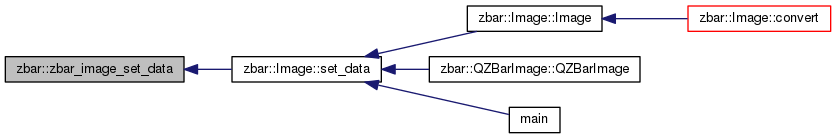

void zbar_image_set_data (zbar_image_t *image, const void *data, unsigned long data_byte_length, zbar_image_cleanup_handler_t *cleanup_hndlr)
 specify image sample data. More...

void zbar_image_free_data (zbar_image_t *image)
 built-in cleanup handler. More...

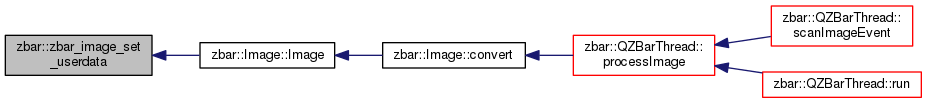

void zbar_image_set_userdata (zbar_image_t *image, void *userdata)
 associate user specified data value with an image. More...

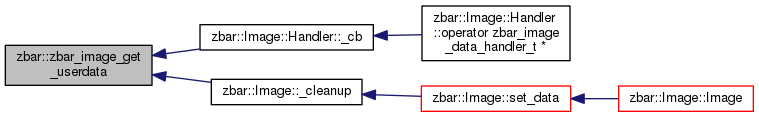

voidzbar_image_get_userdata (const zbar_image_t *image)
 return user specified data value associated with the image. More...

int zbar_image_write (const zbar_image_t *image, const char *filebase)
 dump raw image data to a file for debug. More...

zbar_image_tzbar_image_read (char *filename)
 read back an image in the format written by zbar_image_write() More...


Processor interface

high-level self-contained image processor. processes video and images for barcodes, optionally displaying images to a library owned output window

typedef struct zbar_processor_s zbar_processor_t
 opaque standalone processor object. More...

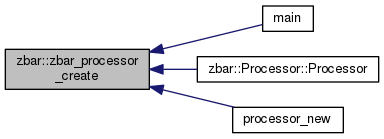

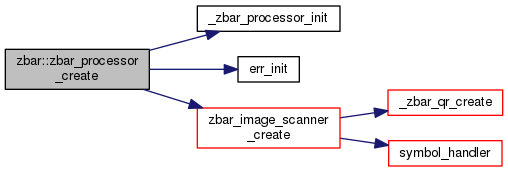

zbar_processor_tzbar_processor_create (int threaded)
 constructor. More...

void zbar_processor_destroy (zbar_processor_t *processor)
 destructor. More...

int zbar_processor_init (zbar_processor_t *processor, const char *video_device, int enable_display)
 (re)initialization. More...

int zbar_processor_request_size (zbar_processor_t *processor, unsigned width, unsigned height)
 request a preferred size for the video image from the device. More...

int zbar_processor_request_interface (zbar_processor_t *processor, int version)
 request a preferred video driver interface version for debug/testing. More...

int zbar_processor_request_iomode (zbar_processor_t *video, int iomode)
 request a preferred video I/O mode for debug/testing. More...

int zbar_processor_force_format (zbar_processor_t *processor, unsigned long input_format, unsigned long output_format)
 force specific input and output formats for debug/testing. More...

zbar_image_data_handler_tzbar_processor_set_data_handler (zbar_processor_t *processor, zbar_image_data_handler_t *handler, const void *userdata)
 setup result handler callback. More...

void zbar_processor_set_userdata (zbar_processor_t *processor, void *userdata)
 associate user specified data value with the processor. More...

voidzbar_processor_get_userdata (const zbar_processor_t *processor)
 return user specified data value associated with the processor. More...

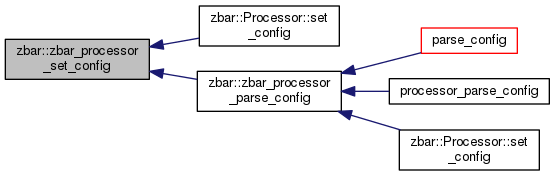

int zbar_processor_set_config (zbar_processor_t *processor, zbar_symbol_type_t symbology, zbar_config_t config, int value)
 set config for indicated symbology (0 for all) to specified value. More...

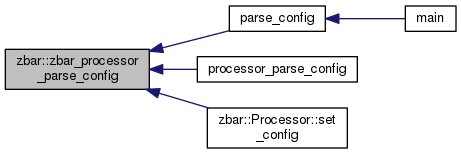

static int zbar_processor_parse_config (zbar_processor_t *processor, const char *config_string)
 parse configuration string using zbar_parse_config() and apply to processor using zbar_processor_set_config(). More...

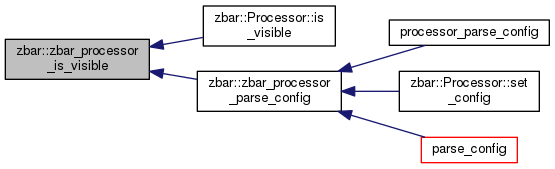

int zbar_processor_is_visible (zbar_processor_t *processor)
 retrieve the current state of the ouput window. More...

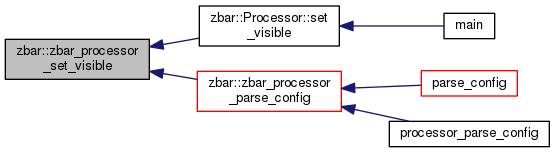

int zbar_processor_set_visible (zbar_processor_t *processor, int visible)
 show or hide the display window owned by the library. More...

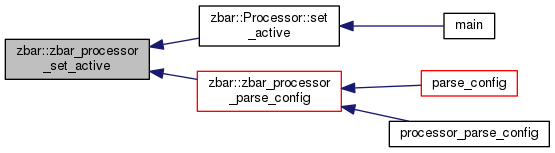

int zbar_processor_set_active (zbar_processor_t *processor, int active)
 control the processor in free running video mode. More...

const zbar_symbol_set_tzbar_processor_get_results (const zbar_processor_t *processor)
 retrieve decode results for last scanned image/frame. More...

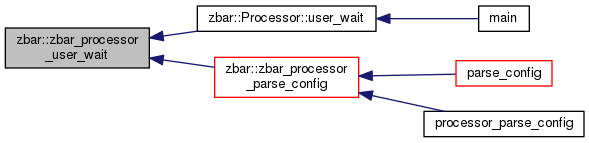

int zbar_processor_user_wait (zbar_processor_t *processor, int timeout)
 wait for input to the display window from the user (via mouse or keyboard). More...

int zbar_process_one (zbar_processor_t *processor, int timeout)
 process from the video stream until a result is available, or the timeout (in milliseconds) expires. More...

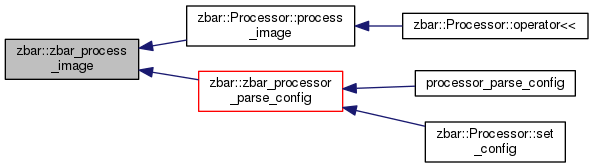

int zbar_process_image (zbar_processor_t *processor, zbar_image_t *image)
 process the provided image for barcodes. More...

static int zbar_processor_error_spew (const zbar_processor_t *processor, int verbosity)
 display detail for last processor error to stderr. More...

static const char * zbar_processor_error_string (const zbar_processor_t *processor, int verbosity)
 retrieve the detail string for the last processor error. More...

static zbar_error_t zbar_processor_get_error_code (const zbar_processor_t *processor)
 retrieve the type code for the last processor error. More...


Video interface

mid-level video source abstraction. captures images from a video device

typedef struct zbar_video_s zbar_video_t
 opaque video object. More...

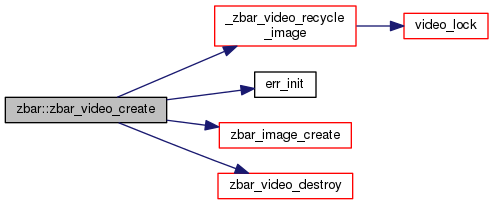

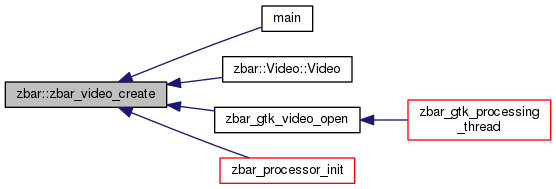

zbar_video_tzbar_video_create (void)
 constructor. More...

void zbar_video_destroy (zbar_video_t *video)
 destructor. More...

int zbar_video_open (zbar_video_t *video, const char *device)
 open and probe a video device. More...

int zbar_video_get_fd (const zbar_video_t *video)
 retrieve file descriptor associated with open *nix video device useful for using select()/poll() to tell when new images are available (NB v4l2 only!!). More...

int zbar_video_request_size (zbar_video_t *video, unsigned width, unsigned height)
 request a preferred size for the video image from the device. More...

int zbar_video_request_interface (zbar_video_t *video, int version)
 request a preferred driver interface version for debug/testing. More...

int zbar_video_request_iomode (zbar_video_t *video, int iomode)
 request a preferred I/O mode for debug/testing. More...

int zbar_video_get_width (const zbar_video_t *video)
 retrieve current output image width. More...

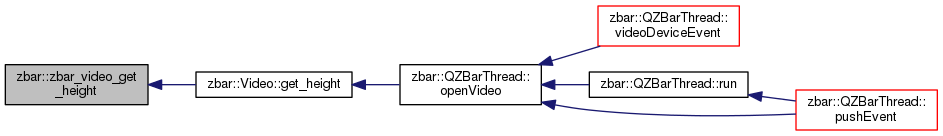

int zbar_video_get_height (const zbar_video_t *video)
 retrieve current output image height. More...

int zbar_video_init (zbar_video_t *video, unsigned long format)
 initialize video using a specific format for debug. More...

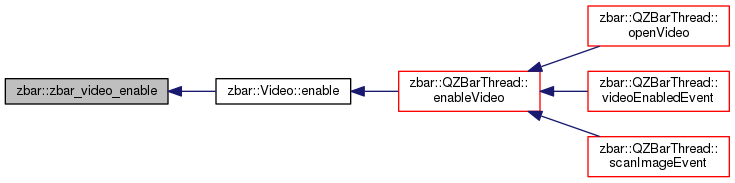

int zbar_video_enable (zbar_video_t *video, int enable)
 start/stop video capture. More...

zbar_image_tzbar_video_next_image (zbar_video_t *video)
 retrieve next captured image. More...

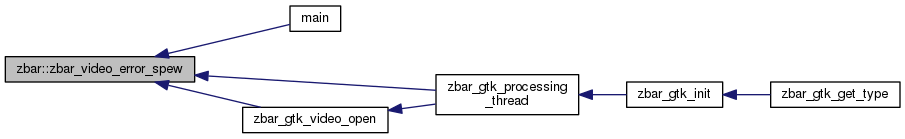

static int zbar_video_error_spew (const zbar_video_t *video, int verbosity)
 display detail for last video error to stderr. More...

static const char * zbar_video_error_string (const zbar_video_t *video, int verbosity)
 retrieve the detail string for the last video error. More...

static zbar_error_t zbar_video_get_error_code (const zbar_video_t *video)
 retrieve the type code for the last video error. More...


Window interface

mid-level output window abstraction. displays images to user-specified platform specific output window

typedef struct zbar_window_s zbar_window_t
 opaque window object. More...

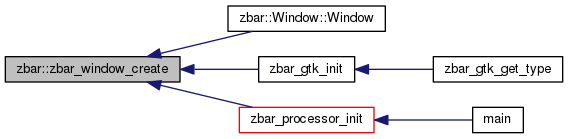

zbar_window_tzbar_window_create (void)
 constructor. More...

void zbar_window_destroy (zbar_window_t *window)
 destructor. More...

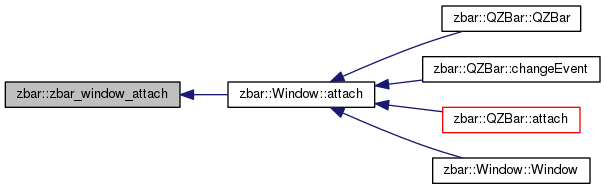

int zbar_window_attach (zbar_window_t *window, void *x11_display_w32_hwnd, unsigned long x11_drawable)
 associate reader with an existing platform window. More...

void zbar_window_set_overlay (zbar_window_t *window, int level)
 control content level of the reader overlay. More...

int zbar_window_get_overlay (const zbar_window_t *window)
 retrieve current content level of reader overlay. More...

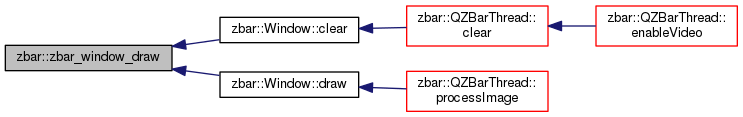

int zbar_window_draw (zbar_window_t *window, zbar_image_t *image)
 draw a new image into the output window. More...

int zbar_window_redraw (zbar_window_t *window)
 redraw the last image (exposure handler). More...

int zbar_window_resize (zbar_window_t *window, unsigned width, unsigned height)
 resize the image window (reconfigure handler). More...

static int zbar_window_error_spew (const zbar_window_t *window, int verbosity)
 display detail for last window error to stderr. More...

static const char * zbar_window_error_string (const zbar_window_t *window, int verbosity)
 retrieve the detail string for the last window error. More...

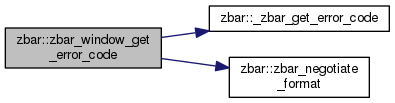

static zbar_error_t zbar_window_get_error_code (const zbar_window_t *window)
 retrieve the type code for the last window error. More...

int zbar_negotiate_format (zbar_video_t *video, zbar_window_t *window)
 select a compatible format between video input and output window. More...


Image Scanner interface

mid-level image scanner interface. reads barcodes from 2-D images

typedef struct zbar_image_scanner_s zbar_image_scanner_t
 opaque image scanner object. More...

zbar_image_scanner_tzbar_image_scanner_create (void)
 constructor. More...

void zbar_image_scanner_destroy (zbar_image_scanner_t *scanner)
 destructor. More...

zbar_image_data_handler_tzbar_image_scanner_set_data_handler (zbar_image_scanner_t *scanner, zbar_image_data_handler_t *handler, const void *userdata)
 setup result handler callback. More...

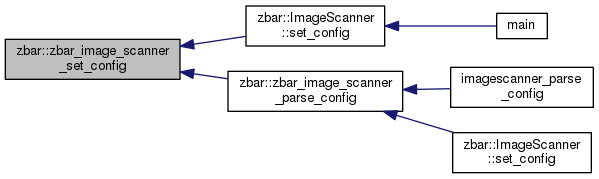

int zbar_image_scanner_set_config (zbar_image_scanner_t *scanner, zbar_symbol_type_t symbology, zbar_config_t config, int value)
 set config for indicated symbology (0 for all) to specified value. More...

static int zbar_image_scanner_parse_config (zbar_image_scanner_t *scanner, const char *config_string)
 parse configuration string using zbar_parse_config() and apply to image scanner using zbar_image_scanner_set_config(). More...

void zbar_image_scanner_enable_cache (zbar_image_scanner_t *scanner, int enable)
 enable or disable the inter-image result cache (default disabled). More...

void zbar_image_scanner_recycle_image (zbar_image_scanner_t *scanner, zbar_image_t *image)
 remove any previously decoded results from the image scanner and the specified image. More...

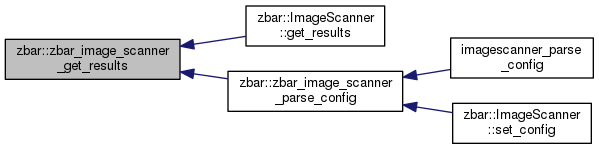

const zbar_symbol_set_tzbar_image_scanner_get_results (const zbar_image_scanner_t *scanner)
 retrieve decode results for last scanned image. More...

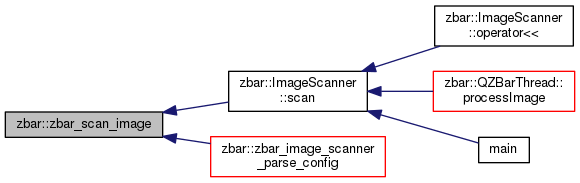

int zbar_scan_image (zbar_image_scanner_t *scanner, zbar_image_t *image)
 scan for symbols in provided image. More...


Decoder interface

low-level bar width stream decoder interface. identifies symbols and extracts encoded data

typedef struct zbar_decoder_s zbar_decoder_t
 opaque decoder object. More...

typedef voidzbar_decoder_handler_t) (zbar_decoder_t *decoder)
 decoder data handler callback function. More...

zbar_decoder_tzbar_decoder_create (void)
 constructor. More...

void zbar_decoder_destroy (zbar_decoder_t *decoder)
 destructor. More...

int zbar_decoder_set_config (zbar_decoder_t *decoder, zbar_symbol_type_t symbology, zbar_config_t config, int value)
 set config for indicated symbology (0 for all) to specified value. More...

static int zbar_decoder_parse_config (zbar_decoder_t *decoder, const char *config_string)
 parse configuration string using zbar_parse_config() and apply to decoder using zbar_decoder_set_config(). More...

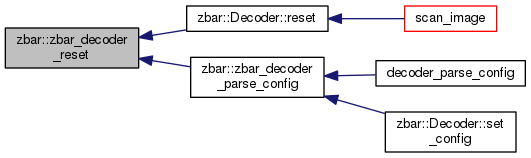

void zbar_decoder_reset (zbar_decoder_t *decoder)
 clear all decoder state. More...

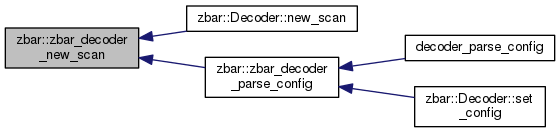

void zbar_decoder_new_scan (zbar_decoder_t *decoder)
 mark start of a new scan pass. More...

zbar_symbol_type_t zbar_decode_width (zbar_decoder_t *decoder, unsigned width)
 process next bar/space width from input stream. More...

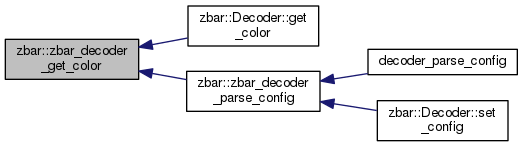

zbar_color_t zbar_decoder_get_color (const zbar_decoder_t *decoder)
 retrieve color of next element passed to zbar_decode_width(). More...

const char * zbar_decoder_get_data (const zbar_decoder_t *decoder)
 retrieve last decoded data. More...

unsigned int zbar_decoder_get_data_length (const zbar_decoder_t *decoder)
 retrieve length of binary data. More...

zbar_symbol_type_t zbar_decoder_get_type (const zbar_decoder_t *decoder)
 retrieve last decoded symbol type. More...

zbar_decoder_handler_tzbar_decoder_set_handler (zbar_decoder_t *decoder, zbar_decoder_handler_t *handler)
 setup data handler callback. More...

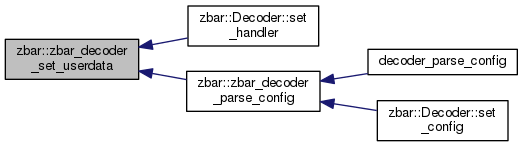

void zbar_decoder_set_userdata (zbar_decoder_t *decoder, void *userdata)
 associate user specified data value with the decoder. More...

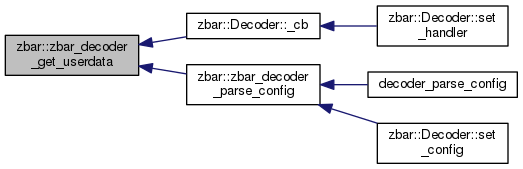

voidzbar_decoder_get_userdata (const zbar_decoder_t *decoder)
 return user specified data value associated with the decoder. More...


Scanner interface

low-level linear intensity sample stream scanner interface. identifies "bar" edges and measures width between them. optionally passes to bar width decoder

typedef struct zbar_scanner_s zbar_scanner_t
 opaque scanner object. More...

zbar_scanner_tzbar_scanner_create (zbar_decoder_t *decoder)
 constructor. More...

void zbar_scanner_destroy (zbar_scanner_t *scanner)
 destructor. More...

zbar_symbol_type_t zbar_scanner_reset (zbar_scanner_t *scanner)
 clear all scanner state. More...

zbar_symbol_type_t zbar_scanner_new_scan (zbar_scanner_t *scanner)
 mark start of a new scan pass. More...

zbar_symbol_type_t zbar_scanner_flush (zbar_scanner_t *scanner)
 flush scanner processing pipeline. More...

zbar_symbol_type_t zbar_scan_y (zbar_scanner_t *scanner, int y)
 process next sample intensity value. More...

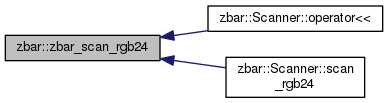

static zbar_symbol_type_t zbar_scan_rgb24 (zbar_scanner_t *scanner, unsigned char *rgb)
 process next sample from RGB (or BGR) triple. More...

unsigned zbar_scanner_get_width (const zbar_scanner_t *scanner)
 retrieve last scanned width. More...

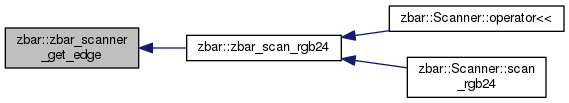

unsigned zbar_scanner_get_edge (const zbar_scanner_t *scn, unsigned offset, int prec)
 retrieve sample position of last edge. More...

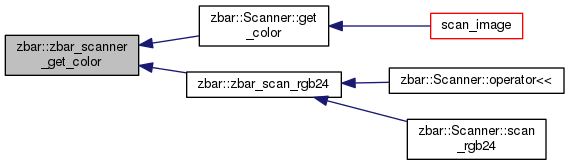

zbar_color_t zbar_scanner_get_color (const zbar_scanner_t *scanner)
 retrieve last scanned color. More...


Detailed Description

C++ namespace for library interfaces.

Typedef Documentation

"color" of element: bar or space.

decoder configuration options.

Since
0.4
typedef void( zbar::zbar_decoder_handler_t) (zbar_decoder_t *decoder)

decoder data handler callback function.

called by decoder when new data has just been decoded

opaque decoder object.

error codes.

typedef void( zbar::zbar_image_cleanup_handler_t) (zbar_image_t *image)

cleanup handler callback function.

called to free sample data when an image is destroyed.

typedef void( zbar::zbar_image_data_handler_t) (zbar_image_t *image, const void *userdata)

data handler callback function.

called when decoded symbol results are available for an image

opaque image scanner object.

opaque image object.

opaque standalone processor object.

opaque scanner object.

opaque symbol iterator object.

Since
0.10

opaque decoded symbol object.

decoded symbol type.

opaque video object.

opaque window object.

Enumeration Type Documentation

"color" of element: bar or space.

Enumerator
ZBAR_SPACE

light area or space between bars

ZBAR_BAR

dark area or colored bar segment

decoder configuration options.

Since
0.4
Enumerator
ZBAR_CFG_ENABLE

enable symbology/feature

ZBAR_CFG_ADD_CHECK

enable check digit when optional

ZBAR_CFG_EMIT_CHECK

return check digit when present

ZBAR_CFG_ASCII

enable full ASCII character set

ZBAR_CFG_NUM

number of boolean decoder configs

ZBAR_CFG_MIN_LEN

minimum data length for valid decode

ZBAR_CFG_MAX_LEN

maximum data length for valid decode

ZBAR_CFG_POSITION

enable scanner to collect position data

ZBAR_CFG_X_DENSITY

image scanner vertical scan density

ZBAR_CFG_Y_DENSITY

image scanner horizontal scan density

error codes.

Enumerator
ZBAR_OK

no error

ZBAR_ERR_NOMEM

out of memory

ZBAR_ERR_INTERNAL

internal library error

ZBAR_ERR_UNSUPPORTED

unsupported request

ZBAR_ERR_INVALID

invalid request

ZBAR_ERR_SYSTEM

system error

ZBAR_ERR_LOCKING

locking error

ZBAR_ERR_BUSY

all resources busy

ZBAR_ERR_XDISPLAY

X11 display error.

ZBAR_ERR_XPROTO

X11 protocol error.

ZBAR_ERR_CLOSED

output window is closed

ZBAR_ERR_WINAPI

windows system error

ZBAR_ERR_NUM

number of error codes

decoded symbol type.

Enumerator
ZBAR_NONE

no symbol decoded

ZBAR_PARTIAL

intermediate status

ZBAR_EAN8

EAN-8.

ZBAR_UPCE

UPC-E.

ZBAR_ISBN10

ISBN-10 (from EAN-13).

Since
0.4
ZBAR_UPCA

UPC-A.

ZBAR_EAN13

EAN-13.

ZBAR_ISBN13

ISBN-13 (from EAN-13).

Since
0.4
ZBAR_I25

Interleaved 2 of 5.

Since
0.4
ZBAR_CODE39

Code 39.

Since
0.4
ZBAR_PDF417

PDF417.

Since
0.6
ZBAR_QRCODE

QR Code.

Since
0.10
ZBAR_CODE128

Code 128.

ZBAR_SYMBOL

mask for base symbol type

ZBAR_ADDON2

2-digit add-on flag

ZBAR_ADDON5

5-digit add-on flag

ZBAR_ADDON

add-on flag mask

Function Documentation

int zbar::_zbar_error_spew ( const void object,
int  verbosity
)

type unsafe error API (don't use)

References _zbar_error_string(), ERRINFO_MAGIC, fprintf(), errinfo_s::magic, and errinfo_s::sev.

Referenced by err_capture(), zbar_processor_error_spew(), zbar_video_error_spew(), and zbar_window_error_spew().

Here is the call graph for this function:

Here is the caller graph for this function:

zbar_error_t zbar::_zbar_get_error_code ( const void object)
static void zbar::negotiate_format ( Video video,
Window window
)
inlinestatic

select a compatible format between video input and output window.

see zbar_negotiate_format()

References throw_exception(), and zbar_negotiate_format().

Referenced by zbar::QZBarThread::openVideo().

Here is the call graph for this function:

Here is the caller graph for this function:

zbar_symbol_type_t zbar::zbar_decode_width ( zbar_decoder_t decoder,
unsigned  width
)

process next bar/space width from input stream.

the width is in arbitrary relative units. first value of a scan is ZBAR_SPACE width, alternating from there.

Returns
appropriate symbol type if width completes decode of a symbol (data is available for retrieval)
ZBAR_PARTIAL as a hint if part of a symbol was decoded
ZBAR_NONE (0) if no new symbol data is available

Referenced by zbar::Decoder::decode_width(), zbar::Decoder::operator<<(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

zbar_decoder_t* zbar::zbar_decoder_create ( void  )

constructor.

References BUFFER_MIN, CFG, ZBAR_CFG_EMIT_CHECK, ZBAR_CFG_ENABLE, ZBAR_CFG_MIN_LEN, and zbar_decoder_reset().

Referenced by zbar::Decoder::Decoder(), decoder_new(), main(), and zbar_image_scanner_create().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::zbar_decoder_destroy ( zbar_decoder_t decoder)

destructor.

Referenced by zbar::Decoder::~Decoder().

Here is the caller graph for this function:

zbar_color_t zbar::zbar_decoder_get_color ( const zbar_decoder_t decoder)

retrieve color of next element passed to zbar_decode_width().

Referenced by zbar::Decoder::get_color(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

const char* zbar::zbar_decoder_get_data ( const zbar_decoder_t decoder)

retrieve last decoded data.

Returns
the data string or NULL if no new data available. the returned data buffer is owned by library, contents are only valid between non-0 return from zbar_decode_width and next library call

Referenced by zbar::Decoder::get_data_chars(), zbar::Decoder::get_data_string(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

unsigned int zbar::zbar_decoder_get_data_length ( const zbar_decoder_t decoder)

retrieve length of binary data.

Returns
the length of the decoded data or 0 if no new data available.

Referenced by zbar::Decoder::get_data_length(), zbar::Decoder::get_data_string(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

zbar_symbol_type_t zbar::zbar_decoder_get_type ( const zbar_decoder_t decoder)

retrieve last decoded symbol type.

Returns
the type or ZBAR_NONE if no new data available

Referenced by zbar::Decoder::get_addon_name(), zbar::Decoder::get_symbol_name(), zbar::Decoder::get_type(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

void* zbar::zbar_decoder_get_userdata ( const zbar_decoder_t decoder)

return user specified data value associated with the decoder.

Referenced by zbar::Decoder::_cb(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

void zbar::zbar_decoder_new_scan ( zbar_decoder_t decoder)

mark start of a new scan pass.

clears any intra-symbol state and resets color to ZBAR_SPACE. any partially decoded symbol state is retained

Referenced by zbar::Decoder::new_scan(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

static int zbar::zbar_decoder_parse_config ( zbar_decoder_t decoder,
const char *  config_string
)
inlinestatic
void zbar::zbar_decoder_reset ( zbar_decoder_t decoder)

clear all decoder state.

any partial symbols are flushed

Referenced by zbar::Decoder::reset(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

int zbar::zbar_decoder_set_config ( zbar_decoder_t decoder,
zbar_symbol_type_t  symbology,
zbar_config_t  config,
int  value
)

set config for indicated symbology (0 for all) to specified value.

Returns
0 for success, non-0 for failure (config does not apply to specified symbology, or value out of range)
Since
0.4

Referenced by zbar::Decoder::set_config(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

zbar_decoder_handler_t* zbar::zbar_decoder_set_handler ( zbar_decoder_t decoder,
zbar_decoder_handler_t handler
)

setup data handler callback.

the registered function will be called by the decoder just before zbar_decode_width() returns a non-zero value. pass a NULL value to disable callbacks.

Returns
the previously registered handler

Referenced by zbar::Decoder::set_handler(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

void zbar::zbar_decoder_set_userdata ( zbar_decoder_t decoder,
void userdata
)

associate user specified data value with the decoder.

Referenced by zbar::Decoder::set_handler(), and zbar_decoder_parse_config().

Here is the caller graph for this function:

const char* zbar::zbar_get_addon_name ( zbar_symbol_type_t  sym)

retrieve string name for addon encoding.

Parameters
symsymbol type encoding
Returns
static string name for any addon, or the empty string if no addons were decoded

Referenced by zbar::Decoder::get_addon_name(), and zbar::Symbol::get_addon_name().

Here is the caller graph for this function:

const char* zbar::zbar_get_symbol_name ( zbar_symbol_type_t  sym)

retrieve string name for symbol encoding.

Parameters
symsymbol type encoding
Returns
the static string name for the specified symbol type, or "UNKNOWN" if the encoding is not recognized

Referenced by zbar::Decoder::get_symbol_name(), and zbar::Symbol::get_type_name().

Here is the caller graph for this function:

zbar_image_t* zbar::zbar_image_convert ( const zbar_image_t image,
unsigned long  format
)

image format conversion.

refer to the documentation for supported image formats

Returns
a new image with the sample data from the original image converted to the requested format. the original image is unaffected.
Note
the converted image size may be rounded (up) due to format constraints

Referenced by zbar::Image::convert().

Here is the caller graph for this function:

zbar_image_t* zbar::zbar_image_convert_resize ( const zbar_image_t image,
unsigned long  format,
unsigned  width,
unsigned  height
)

image format conversion with crop/pad.

if the requested size is larger than the image, the last row/column are duplicated to cover the difference. if the requested size is smaller than the image, the extra rows/columns are dropped from the right/bottom.

Returns
a new image with the sample data from the original image converted to the requested format and size.
Note
the image is not scaled
See also
zbar_image_convert()
Since
0.4

Referenced by zbar::Image::convert().

Here is the caller graph for this function:

zbar_image_t* zbar::zbar_image_create ( void  )

new image constructor.

Returns
a new image object with uninitialized data and format. this image should be destroyed (using zbar_image_destroy()) as soon as the application is finished with it

References _zbar_image_refcnt(), and _zbar_refcnt_init().

Referenced by _zbar_format_lookup(), image_new(), main(), scan_image(), zbar_gtk_processing_thread(), zbar_image_convert_resize(), zbar_image_copy(), zbar_image_free_data(), zbar_video_create(), zbar_video_init(), and zbar_video_next_image().

Here is the call graph for this function:

void zbar::zbar_image_destroy ( zbar_image_t image)

image destructor.

all images created by or returned to the application should be destroyed using this function. when an image is destroyed, the associated data cleanup handler will be invoked if available

Note
make no assumptions about the image or the data buffer. they may not be destroyed/cleaned immediately if the library is still using them. if necessary, use the cleanup handler hook to keep track of image data buffers
const zbar_symbol_t* zbar::zbar_image_first_symbol ( const zbar_image_t image)

image_scanner decode result iterator.

Returns
the first decoded symbol result for an image or NULL if no results are available
void zbar::zbar_image_free_data ( zbar_image_t image)

built-in cleanup handler.

passes the image data buffer to free()

const void* zbar::zbar_image_get_data ( const zbar_image_t image)

return the image sample data.

the returned data buffer is only valid until zbar_image_destroy() is called

Referenced by zbar::Image::get_data().

Here is the caller graph for this function:

unsigned long zbar::zbar_image_get_data_length ( const zbar_image_t img)

return the size of image data.

Since
0.6

Referenced by zbar::Image::get_data_length().

Here is the caller graph for this function:

unsigned long zbar::zbar_image_get_format ( const zbar_image_t image)

retrieve the image format.

Returns
the fourcc describing the format of the image sample data

Referenced by zbar::Image::get_format().

Here is the caller graph for this function:

unsigned zbar::zbar_image_get_height ( const zbar_image_t image)

retrieve the height of the image.

Returns
the height in sample rows

Referenced by zbar::Image::get_height().

Here is the caller graph for this function:

unsigned zbar::zbar_image_get_sequence ( const zbar_image_t image)

retrieve a "sequence" (page/frame) number associated with this image.

Since
0.6

Referenced by zbar::Image::get_sequence().

Here is the caller graph for this function:

const zbar_symbol_set_t* zbar::zbar_image_get_symbols ( const zbar_image_t image)

retrieve the decoded results.

Returns
the (possibly empty) set of decoded symbols
NULL if the image has not been scanned
Since
0.10

Referenced by zbar::Image::get_symbols().

Here is the caller graph for this function:

void* zbar::zbar_image_get_userdata ( const zbar_image_t image)

return user specified data value associated with the image.

Since
0.5

Referenced by zbar::Image::Handler::_cb(), and zbar::Image::_cleanup().

Here is the caller graph for this function:

unsigned zbar::zbar_image_get_width ( const zbar_image_t image)

retrieve the width of the image.

Returns
the width in sample columns

Referenced by zbar::Image::get_width().

Here is the caller graph for this function:

zbar_image_t* zbar::zbar_image_read ( char *  filename)

read back an image in the format written by zbar_image_write()

Note
TBD
void zbar::zbar_image_ref ( zbar_image_t image,
int  refs
)

image reference count manipulation.

increment the reference count when you store a new reference to the image. decrement when the reference is no longer used. do not refer to the image any longer once the count is decremented. zbar_image_ref(image, -1) is the same as zbar_image_destroy(image)

Since
0.5

Referenced by zbar::Image::Image(), and zbar::Image::~Image().

Here is the caller graph for this function:

void zbar::zbar_image_scanner_destroy ( zbar_image_scanner_t scanner)

destructor.

Referenced by zbar::ImageScanner::~ImageScanner().

Here is the caller graph for this function:

void zbar::zbar_image_scanner_enable_cache ( zbar_image_scanner_t scanner,
int  enable
)

enable or disable the inter-image result cache (default disabled).

mostly useful for scanning video frames, the cache filters duplicate results from consecutive images, while adding some consistency checking and hysteresis to the results. this interface also clears the cache

Referenced by zbar::ImageScanner::enable_cache(), and zbar_image_scanner_parse_config().

Here is the caller graph for this function:

const zbar_symbol_set_t* zbar::zbar_image_scanner_get_results ( const zbar_image_scanner_t scanner)

retrieve decode results for last scanned image.

Returns
the symbol set result container or NULL if no results are available
Note
the symbol set does not have its reference count adjusted; ensure that the count is incremented if the results may be kept after the next image is scanned
Since
0.10

Referenced by zbar::ImageScanner::get_results(), and zbar_image_scanner_parse_config().

Here is the caller graph for this function:

static int zbar::zbar_image_scanner_parse_config ( zbar_image_scanner_t scanner,
const char *  config_string
)
inlinestatic

parse configuration string using zbar_parse_config() and apply to image scanner using zbar_image_scanner_set_config().

Returns
0 for success, non-0 for failure
See also
zbar_parse_config()
zbar_image_scanner_set_config()
Since
0.4

References scanner, zbar_image_scanner_enable_cache(), zbar_image_scanner_get_results(), zbar_image_scanner_recycle_image(), zbar_image_scanner_set_config(), zbar_parse_config(), and zbar_scan_image().

Referenced by imagescanner_parse_config(), and zbar::ImageScanner::set_config().

Here is the caller graph for this function:

void zbar::zbar_image_scanner_recycle_image ( zbar_image_scanner_t scanner,
zbar_image_t image
)

remove any previously decoded results from the image scanner and the specified image.

somewhat more efficient version of zbar_image_set_symbols(image, NULL) which may retain memory for subsequent decodes

Since
0.10

Referenced by zbar::ImageScanner::recycle_image(), and zbar_image_scanner_parse_config().

Here is the caller graph for this function:

int zbar::zbar_image_scanner_set_config ( zbar_image_scanner_t scanner,
zbar_symbol_type_t  symbology,
zbar_config_t  config,
int  value
)

set config for indicated symbology (0 for all) to specified value.

Returns
0 for success, non-0 for failure (config does not apply to specified symbology, or value out of range)
See also
zbar_decoder_set_config()
Since
0.4

Referenced by zbar::ImageScanner::set_config(), and zbar_image_scanner_parse_config().

Here is the caller graph for this function:

zbar_image_data_handler_t* zbar::zbar_image_scanner_set_data_handler ( zbar_image_scanner_t scanner,
zbar_image_data_handler_t handler,
const void userdata
)

setup result handler callback.

the specified function will be called by the scanner whenever new results are available from a decoded image. pass a NULL value to disable callbacks.

Returns
the previously registered handler

Referenced by zbar::ImageScanner::set_handler().

Here is the caller graph for this function:

void zbar::zbar_image_set_data ( zbar_image_t image,
const void data,
unsigned long  data_byte_length,
zbar_image_cleanup_handler_t cleanup_hndlr
)

specify image sample data.

when image data is no longer needed by the library the specific data cleanup handler will be called (unless NULL)

Note
application image data will not be modified by the library

Referenced by zbar::Image::set_data().

Here is the caller graph for this function:

void zbar::zbar_image_set_format ( zbar_image_t image,
unsigned long  format
)

specify the fourcc image format code for image sample data.

refer to the documentation for supported formats.

Note
this does not convert the data! (see zbar_image_convert() for that)

Referenced by zbar::Image::set_format().

Here is the caller graph for this function:

void zbar::zbar_image_set_sequence ( zbar_image_t image,
unsigned  sequence_num
)

associate a "sequence" (page/frame) number with this image.

Since
0.6

Referenced by zbar::Image::set_sequence().

Here is the caller graph for this function:

void zbar::zbar_image_set_size ( zbar_image_t image,
unsigned  width,
unsigned  height
)

specify the pixel size of the image.

Note
this does not affect the data!

Referenced by zbar::Image::set_size().

Here is the caller graph for this function:

void zbar::zbar_image_set_symbols ( zbar_image_t image,
const zbar_symbol_set_t symbols
)

associate the specified symbol set with the image, replacing any existing results.

use NULL to release the current results from the image.

See also
zbar_image_scanner_recycle_image()
Since
0.10

Referenced by zbar::Image::set_symbols().

Here is the caller graph for this function:

void zbar::zbar_image_set_userdata ( zbar_image_t image,
void userdata
)

associate user specified data value with an image.

Since
0.5

Referenced by zbar::Image::Image().

Here is the caller graph for this function:

int zbar::zbar_image_write ( const zbar_image_t image,
const char *  filebase
)

dump raw image data to a file for debug.

the data will be prefixed with a 16 byte header consisting of:

  • 4 bytes uint = 0x676d697a ("zimg")
  • 4 bytes format fourcc
  • 2 bytes width
  • 2 bytes height
  • 4 bytes size of following image data in bytes this header can be dumped w/eg:
           od -Ax -tx1z -N16 -w4 [file]

    for some formats the image can be displayed/converted using ImageMagick, eg:
           display -size 640x480+16 [-depth ?] [-sampling-factor ?x?] \
               {GRAY,RGB,UYVY,YUV}:[file]

Parameters
imagethe image object to dump
filebasebase filename, appended with ".XXXX.zimg" where XXXX is the format fourcc
Returns
0 on success or a system error code on failure
void zbar::zbar_increase_verbosity ( void  )

increase global library debug level.

eg, for -vvvv

References _zbar_verbosity.

Referenced by increase_verbosity(), and main().

Here is the caller graph for this function:

int zbar::zbar_negotiate_format ( zbar_video_t video,
zbar_window_t window
)

select a compatible format between video input and output window.

the selection algorithm attempts to use a format shared by video input and window output which is also most useful for barcode scanning. if a format conversion is necessary, it will heuristically attempt to minimize the cost of the conversion

Referenced by negotiate_format(), and zbar_window_get_error_code().

Here is the caller graph for this function:

int zbar::zbar_parse_config ( const char *  config_string,
zbar_symbol_type_t symbology,
zbar_config_t config,
int *  value
)

parse a configuration string of the form "[symbology.]config[=value]".

the config must match one of the recognized names. the symbology, if present, must match one of the recognized names. if symbology is unspecified, it will be set to 0. if value is unspecified it will be set to 1.

Returns
0 if the config is parsed successfully, 1 otherwise
Since
0.4

Referenced by zbar_decoder_parse_config(), zbar_image_scanner_parse_config(), and zbar_processor_parse_config().

Here is the caller graph for this function:

int zbar::zbar_process_image ( zbar_processor_t processor,
zbar_image_t image
)

process the provided image for barcodes.

if the library window is visible, the image will be displayed.

Returns
>0 if symbols were successfully decoded, 0 if no symbols were found or -1 if an error occurs

Referenced by zbar::Processor::process_image(), and zbar_processor_parse_config().

Here is the caller graph for this function:

int zbar::zbar_process_one ( zbar_processor_t processor,
int  timeout
)

process from the video stream until a result is available, or the timeout (in milliseconds) expires.

specify a timeout of -1 to scan indefinitely (zbar_processor_set_active() may still be used to abort the scan from another thread). if the library window is visible, video display will be enabled.

Note
that multiple results may still be returned (despite the name).
Returns
>0 if symbols were successfully decoded, 0 if no symbols were found (ie, the timeout expired) or -1 if an error occurs

Referenced by zbar::Processor::process_one(), and zbar_processor_parse_config().

Here is the caller graph for this function:

zbar_processor_t* zbar::zbar_processor_create ( int  threaded)

constructor.

if threaded is set and threading is available the processor will spawn threads where appropriate to avoid blocking and improve responsiveness

References _zbar_mutex_init, _zbar_processor_init(), err_init(), proc, zbar_image_scanner_create(), and ZBAR_MOD_PROCESSOR.

Referenced by main(), zbar::Processor::Processor(), and processor_new().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::zbar_processor_destroy ( zbar_processor_t processor)

destructor.

cleans up all resources associated with the processor

Referenced by zbar::Processor::~Processor().

Here is the caller graph for this function:

static int zbar::zbar_processor_error_spew ( const zbar_processor_t processor,
int  verbosity
)
inlinestatic

display detail for last processor error to stderr.

Returns
a non-zero value suitable for passing to exit()

References _zbar_error_spew().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

static const char* zbar::zbar_processor_error_string ( const zbar_processor_t processor,
int  verbosity
)
inlinestatic

retrieve the detail string for the last processor error.

References _zbar_error_string().

Here is the call graph for this function:

int zbar::zbar_processor_force_format ( zbar_processor_t processor,
unsigned long  input_format,
unsigned long  output_format
)

force specific input and output formats for debug/testing.

Note
must be called before zbar_processor_init()

Referenced by zbar::Processor::force_format().

Here is the caller graph for this function:

static zbar_error_t zbar::zbar_processor_get_error_code ( const zbar_processor_t processor)
inlinestatic

retrieve the type code for the last processor error.

References _zbar_get_error_code().

Referenced by input_wait(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

const zbar_symbol_set_t* zbar::zbar_processor_get_results ( const zbar_processor_t processor)

retrieve decode results for last scanned image/frame.

Returns
the symbol set result container or NULL if no results are available
Note
the returned symbol set has its reference count incremented; ensure that the count is decremented after use
Since
0.10

Referenced by zbar::Processor::get_results(), and zbar_processor_parse_config().

Here is the caller graph for this function:

void* zbar::zbar_processor_get_userdata ( const zbar_processor_t processor)

return user specified data value associated with the processor.

Since
0.6
int zbar::zbar_processor_init ( zbar_processor_t processor,
const char *  video_device,
int  enable_display
)

(re)initialization.

opens a video input device and/or prepares to display output

Referenced by zbar::Processor::init().

Here is the caller graph for this function:

int zbar::zbar_processor_is_visible ( zbar_processor_t processor)

retrieve the current state of the ouput window.

Returns
1 if the output window is currently displayed, 0 if not.
-1 if an error occurs

Referenced by zbar::Processor::is_visible(), and zbar_processor_parse_config().

Here is the caller graph for this function:

static int zbar::zbar_processor_parse_config ( zbar_processor_t processor,
const char *  config_string
)
inlinestatic
int zbar::zbar_processor_request_interface ( zbar_processor_t processor,
int  version
)

request a preferred video driver interface version for debug/testing.

Note
must be called before zbar_processor_init()
Since
0.6

Referenced by zbar::Processor::request_interface().

Here is the caller graph for this function:

int zbar::zbar_processor_request_iomode ( zbar_processor_t video,
int  iomode
)

request a preferred video I/O mode for debug/testing.

You will get errors if the driver does not support the specified mode.

    0 = auto-detect
    1 = force I/O using read()
    2 = force memory mapped I/O using mmap()
    3 = force USERPTR I/O (v4l2 only)
Note
must be called before zbar_processor_init()
Since
0.7

Referenced by zbar::Processor::request_iomode().

Here is the caller graph for this function:

int zbar::zbar_processor_request_size ( zbar_processor_t processor,
unsigned  width,
unsigned  height
)

request a preferred size for the video image from the device.

the request may be adjusted or completely ignored by the driver.

Note
must be called before zbar_processor_init()
Since
0.6

Referenced by zbar::Processor::request_size().

Here is the caller graph for this function:

int zbar::zbar_processor_set_active ( zbar_processor_t processor,
int  active
)

control the processor in free running video mode.

only works if video input is initialized. if threading is in use, scanning will occur in the background, otherwise this is only useful wrapping calls to zbar_processor_user_wait(). if the library output window is visible, video display will be enabled.

Referenced by zbar::Processor::set_active(), and zbar_processor_parse_config().

Here is the caller graph for this function:

int zbar::zbar_processor_set_config ( zbar_processor_t processor,
zbar_symbol_type_t  symbology,
zbar_config_t  config,
int  value
)

set config for indicated symbology (0 for all) to specified value.

Returns
0 for success, non-0 for failure (config does not apply to specified symbology, or value out of range)
See also
zbar_decoder_set_config()
Since
0.4

Referenced by zbar::Processor::set_config(), and zbar_processor_parse_config().

Here is the caller graph for this function:

zbar_image_data_handler_t* zbar::zbar_processor_set_data_handler ( zbar_processor_t processor,
zbar_image_data_handler_t handler,
const void userdata
)

setup result handler callback.

the specified function will be called by the processor whenever new results are available from the video stream or a static image. pass a NULL value to disable callbacks.

Parameters
processorthe object on which to set the handler.
handlerthe function to call when new results are available.
userdatais set as with zbar_processor_set_userdata().
Returns
the previously registered handler

Referenced by zbar::Processor::set_handler().

Here is the caller graph for this function:

void zbar::zbar_processor_set_userdata ( zbar_processor_t processor,
void userdata
)

associate user specified data value with the processor.

Since
0.6
int zbar::zbar_processor_set_visible ( zbar_processor_t processor,
int  visible
)

show or hide the display window owned by the library.

the size will be adjusted to the input size

Referenced by zbar::Processor::set_visible(), and zbar_processor_parse_config().

Here is the caller graph for this function:

int zbar::zbar_processor_user_wait ( zbar_processor_t processor,
int  timeout
)

wait for input to the display window from the user (via mouse or keyboard).

Returns
>0 when input is received, 0 if timeout ms expired with no input or -1 in case of an error

Referenced by zbar::Processor::user_wait(), and zbar_processor_parse_config().

Here is the caller graph for this function:

int zbar::zbar_scan_image ( zbar_image_scanner_t scanner,
zbar_image_t image
)

scan for symbols in provided image.

The image format must be "Y800" or "GRAY".

Returns
>0 if symbols were successfully decoded from the image, 0 if no symbols were found or -1 if an error occurs
See also
zbar_image_convert()
Since
0.9 - changed to only accept grayscale images

Referenced by zbar::ImageScanner::scan(), and zbar_image_scanner_parse_config().

Here is the caller graph for this function:

static zbar_symbol_type_t zbar::zbar_scan_rgb24 ( zbar_scanner_t scanner,
unsigned char *  rgb
)
inlinestatic

process next sample from RGB (or BGR) triple.

References zbar_scan_y(), zbar_scanner_get_color(), zbar_scanner_get_edge(), and zbar_scanner_get_width().

Referenced by zbar::Scanner::operator<<(), and zbar::Scanner::scan_rgb24().

Here is the call graph for this function:

Here is the caller graph for this function:

zbar_symbol_type_t zbar::zbar_scan_y ( zbar_scanner_t scanner,
int  y
)

process next sample intensity value.

intensity (y) is in arbitrary relative units.

Returns
result of zbar_decode_width() if a decoder is attached, otherwise
(ZBAR_PARTIAL) when new edge is detected or 0 (ZBAR_NONE) if no new edge is detected

Referenced by zbar::Scanner::operator<<(), zbar::Scanner::scan_y(), and zbar_scan_rgb24().

Here is the caller graph for this function:

zbar_scanner_t* zbar::zbar_scanner_create ( zbar_decoder_t decoder)

constructor.

if decoder is non-NULL it will be attached to scanner and called automatically at each new edge current color is initialized to ZBAR_SPACE (so an initial BAR->SPACE transition may be discarded)

Referenced by zbar::Scanner::Scanner().

Here is the caller graph for this function:

void zbar::zbar_scanner_destroy ( zbar_scanner_t scanner)

destructor.

Referenced by zbar::Scanner::~Scanner().

Here is the caller graph for this function:

zbar_symbol_type_t zbar::zbar_scanner_flush ( zbar_scanner_t scanner)

flush scanner processing pipeline.

forces current scanner position to be a scan boundary. call multiple times (max 3) to completely flush decoder.

Returns
any decode/scan results flushed from the pipeline
Note
when not using callback handlers, the return value should be checked the same as zbar_scan_y()
Since
0.9

Referenced by zbar::Scanner::flush().

Here is the caller graph for this function:

zbar_color_t zbar::zbar_scanner_get_color ( const zbar_scanner_t scanner)

retrieve last scanned color.

Referenced by zbar::Scanner::get_color(), and zbar_scan_rgb24().

Here is the caller graph for this function:

unsigned zbar::zbar_scanner_get_edge ( const zbar_scanner_t scn,
unsigned  offset,
int  prec
)

retrieve sample position of last edge.

Since
0.10

Referenced by zbar_scan_rgb24().

Here is the caller graph for this function:

unsigned zbar::zbar_scanner_get_width ( const zbar_scanner_t scanner)

retrieve last scanned width.

Referenced by zbar::Scanner::get_width(), and zbar_scan_rgb24().

Here is the caller graph for this function:

zbar_symbol_type_t zbar::zbar_scanner_new_scan ( zbar_scanner_t scanner)

mark start of a new scan pass.

resets color to ZBAR_SPACE. also updates an associated decoder.

Returns
any decode results flushed from the pipeline
Note
when not using callback handlers, the return value should be checked the same as zbar_scan_y()
call zbar_scanner_flush() at least twice before calling this method to ensure no decode results are lost

Referenced by zbar::Scanner::new_scan().

Here is the caller graph for this function:

zbar_symbol_type_t zbar::zbar_scanner_reset ( zbar_scanner_t scanner)

clear all scanner state.

also resets an associated decoder

Referenced by zbar::Scanner::reset().

Here is the caller graph for this function:

void zbar::zbar_set_verbosity ( int  verbosity)

set global library debug level.

Parameters
verbositydesired debug level. higher values create more spew

References _zbar_verbosity.

Referenced by main(), and set_verbosity().

Here is the caller graph for this function:

const zbar_symbol_t* zbar::zbar_symbol_first_component ( const zbar_symbol_t symbol)

iterate components of a composite result.

Returns
the first physical component symbol of a composite result
NULL if the symbol is already a physical symbol
Since
0.10
const zbar_symbol_set_t* zbar::zbar_symbol_get_components ( const zbar_symbol_t symbol)

retrieve components of a composite result.

Returns
the symbol set containing the components
NULL if the symbol is already a physical symbol
Since
0.10

Referenced by zbar::Symbol::get_components().

Here is the caller graph for this function:

int zbar::zbar_symbol_get_count ( const zbar_symbol_t symbol)

retrieve current cache count.

when the cache is enabled for the image_scanner this provides inter-frame reliability and redundancy information for video streams.

Returns
< 0 if symbol is still uncertain.
0 if symbol is newly verified.
> 0 for duplicate symbols

Referenced by zbar::Symbol::get_count().

Here is the caller graph for this function:

const char* zbar::zbar_symbol_get_data ( const zbar_symbol_t symbol)

retrieve data decoded from symbol.

Returns
the data string

Referenced by zbar::Symbol::init().

Here is the caller graph for this function:

unsigned int zbar::zbar_symbol_get_data_length ( const zbar_symbol_t symbol)

retrieve length of binary data.

Returns
the length of the decoded data

Referenced by zbar::Symbol::get_data_length(), and zbar::Symbol::init().

Here is the caller graph for this function:

unsigned zbar::zbar_symbol_get_loc_size ( const zbar_symbol_t symbol)

retrieve the number of points in the location polygon.

the location polygon defines the image area that the symbol was extracted from.

Returns
the number of points in the location polygon
Note
this is currently not a polygon, but the scan locations where the symbol was decoded

Referenced by zbar::Symbol::get_location_size(), zbar::Symbol::PointIterator::operator++(), and zbar::Symbol::PointIterator::PointIterator().

Here is the caller graph for this function:

int zbar::zbar_symbol_get_loc_x ( const zbar_symbol_t symbol,
unsigned  index
)

retrieve location polygon x-coordinates.

points are specified by 0-based index.

Returns
the x-coordinate for a point in the location polygon.
-1 if index is out of range

Referenced by zbar::Symbol::get_location_x(), and zbar::Symbol::PointIterator::operator*().

Here is the caller graph for this function:

int zbar::zbar_symbol_get_loc_y ( const zbar_symbol_t symbol,
unsigned  index
)

retrieve location polygon y-coordinates.

points are specified by 0-based index.

Returns
the y-coordinate for a point in the location polygon.
-1 if index is out of range

Referenced by zbar::Symbol::get_location_y(), and zbar::Symbol::PointIterator::operator*().

Here is the caller graph for this function:

int zbar::zbar_symbol_get_quality ( const zbar_symbol_t symbol)

retrieve a symbol confidence metric.

Returns
an unscaled, relative quantity: larger values are better than smaller values, where "large" and "small" are application dependent.
Note
expect the exact definition of this quantity to change as the metric is refined. currently, only the ordered relationship between two values is defined and will remain stable in the future
Since
0.9
zbar_symbol_type_t zbar::zbar_symbol_get_type ( const zbar_symbol_t symbol)

retrieve type of decoded symbol.

Returns
the symbol type

Referenced by zbar::Symbol::init().

Here is the caller graph for this function:

const zbar_symbol_t* zbar::zbar_symbol_next ( const zbar_symbol_t symbol)

iterate the set to which this symbol belongs (there can be only one).

Returns
the next symbol in the set, or
NULL when no more results are available

Referenced by zbar::SymbolIterator::operator++().

Here is the caller graph for this function:

void zbar::zbar_symbol_ref ( const zbar_symbol_t symbol,
int  refs
)

symbol reference count manipulation.

increment the reference count when you store a new reference to the symbol. decrement when the reference is no longer used. do not refer to the symbol once the count is decremented and the containing image has been recycled or destroyed.

Note
the containing image holds a reference to the symbol, so you only need to use this if you keep a symbol after the image has been destroyed or reused.
Since
0.9

Referenced by zbar::Symbol::ref().

Here is the caller graph for this function:

const zbar_symbol_t* zbar::zbar_symbol_set_first_symbol ( const zbar_symbol_set_t symbols)

set iterator.

Returns
the first decoded symbol result in a set
NULL if the set is empty
Since
0.10

Referenced by zbar::SymbolIterator::operator++(), and zbar::SymbolIterator::SymbolIterator().

Here is the caller graph for this function:

int zbar::zbar_symbol_set_get_size ( const zbar_symbol_set_t symbols)

retrieve set size.

Returns
the number of symbols in the set.
Since
0.10

Referenced by zbar::SymbolSet::get_size().

Here is the caller graph for this function:

void zbar::zbar_symbol_set_ref ( const zbar_symbol_set_t symbols,
int  refs
)

reference count manipulation.

increment the reference count when you store a new reference. decrement when the reference is no longer used. do not refer to the object any longer once references have been released.

Since
0.10

Referenced by zbar::SymbolSet::ref().

Here is the caller graph for this function:

char* zbar::zbar_symbol_xml ( const zbar_symbol_t symbol,
char **  buffer,
unsigned *  buflen
)

print XML symbol element representation to user result buffer.

See also
http://zbar.sourceforge.net/2008/barcode.xsd for the schema.
Parameters
symbolis the symbol to print
bufferis the inout result pointer, it will be reallocated with a larger size if necessary.
buflenis inout length of the result buffer.
Returns
the buffer pointer
Since
0.6

Referenced by zbar::Symbol::xml().

Here is the caller graph for this function:

int zbar::zbar_version ( unsigned *  major,
unsigned *  minor
)

retrieve runtime library version information.

Parameters
majorset to the running major version (unless NULL)
minorset to the running minor version (unless NULL)
Returns
0

References ZBAR_VERSION_MAJOR, and ZBAR_VERSION_MINOR.

Referenced by version().

Here is the caller graph for this function:

zbar_video_t* zbar::zbar_video_create ( void  )

constructor.

References _zbar_mutex_init, _zbar_video_recycle_image(), err_init(), void, zbar_image_create(), ZBAR_MOD_VIDEO, zbar_video_destroy(), and ZBAR_VIDEO_IMAGES_MAX.

Referenced by main(), zbar::Video::Video(), zbar_gtk_video_open(), and zbar_processor_init().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::zbar_video_destroy ( zbar_video_t video)

destructor.

Referenced by zbar::Video::~Video().

Here is the caller graph for this function:

int zbar::zbar_video_enable ( zbar_video_t video,
int  enable
)

start/stop video capture.

all buffered images are retired when capture is disabled.

Returns
0 if successful or -1 if an error occurs

Referenced by zbar::Video::enable().

Here is the caller graph for this function:

static int zbar::zbar_video_error_spew ( const zbar_video_t video,
int  verbosity
)
inlinestatic

display detail for last video error to stderr.

Returns
a non-zero value suitable for passing to exit()

References _zbar_error_spew().

Referenced by main(), zbar_gtk_processing_thread(), and zbar_gtk_video_open().

Here is the call graph for this function:

Here is the caller graph for this function:

static const char* zbar::zbar_video_error_string ( const zbar_video_t video,
int  verbosity
)
inlinestatic

retrieve the detail string for the last video error.

References _zbar_error_string().

Here is the call graph for this function:

static zbar_error_t zbar::zbar_video_get_error_code ( const zbar_video_t video)
inlinestatic

retrieve the type code for the last video error.

References _zbar_get_error_code().

Here is the call graph for this function:

int zbar::zbar_video_get_fd ( const zbar_video_t video)

retrieve file descriptor associated with open *nix video device useful for using select()/poll() to tell when new images are available (NB v4l2 only!!).

Returns
the file descriptor or -1 if the video device is not open or the driver only supports v4l1

Referenced by zbar::Video::get_fd().

Here is the caller graph for this function:

int zbar::zbar_video_get_height ( const zbar_video_t video)

retrieve current output image height.

Returns
the height or 0 if the video device is not open

Referenced by zbar::Video::get_height().

Here is the caller graph for this function:

int zbar::zbar_video_get_width ( const zbar_video_t video)

retrieve current output image width.

Returns
the width or 0 if the video device is not open

Referenced by zbar::Video::get_width().

Here is the caller graph for this function:

int zbar::zbar_video_init ( zbar_video_t video,
unsigned long  format
)

initialize video using a specific format for debug.

use zbar_negotiate_format() to automatically select and initialize the best available format

Referenced by zbar::Video::init().

Here is the caller graph for this function:

zbar_image_t* zbar::zbar_video_next_image ( zbar_video_t video)

retrieve next captured image.

blocks until an image is available.

Returns
NULL if video is not enabled or an error occurs

Referenced by zbar::Video::next_image().

Here is the caller graph for this function:

int zbar::zbar_video_open ( zbar_video_t video,
const char *  device
)

open and probe a video device.

the device specified by platform specific unique name (v4l device node path in *nix eg "/dev/video", DirectShow DevicePath property in windows).

Returns
0 if successful or -1 if an error occurs

Referenced by zbar::Video::close(), and zbar::Video::open().

Here is the caller graph for this function:

int zbar::zbar_video_request_interface ( zbar_video_t video,
int  version
)

request a preferred driver interface version for debug/testing.

Note
must be called before zbar_video_open()
Since
0.6

Referenced by zbar::Video::request_interface().

Here is the caller graph for this function:

int zbar::zbar_video_request_iomode ( zbar_video_t video,
int  iomode
)

request a preferred I/O mode for debug/testing.

You will get errors if the driver does not support the specified mode.

    0 = auto-detect
    1 = force I/O using read()
    2 = force memory mapped I/O using mmap()
    3 = force USERPTR I/O (v4l2 only)
Note
must be called before zbar_video_open()
Since
0.7

Referenced by zbar::Video::request_iomode().

Here is the caller graph for this function:

int zbar::zbar_video_request_size ( zbar_video_t video,
unsigned  width,
unsigned  height
)

request a preferred size for the video image from the device.

the request may be adjusted or completely ignored by the driver.

Returns
0 if successful or -1 if the video device is already initialized
Since
0.6

Referenced by zbar::Video::request_size().

Here is the caller graph for this function:

int zbar::zbar_window_attach ( zbar_window_t window,
void x11_display_w32_hwnd,
unsigned long  x11_drawable
)

associate reader with an existing platform window.

This can be any "Drawable" for X Windows or a "HWND" for windows. input images will be scaled into the output window. pass NULL to detach from the resource, further input will be ignored

Referenced by zbar::Window::attach().

Here is the caller graph for this function:

zbar_window_t* zbar::zbar_window_create ( void  )

constructor.

References _zbar_mutex_init, err_init(), void, and ZBAR_MOD_WINDOW.

Referenced by zbar::Window::Window(), zbar_gtk_init(), and zbar_processor_init().

Here is the call graph for this function:

Here is the caller graph for this function:

void zbar::zbar_window_destroy ( zbar_window_t window)

destructor.

Referenced by zbar::Window::~Window().

Here is the caller graph for this function:

int zbar::zbar_window_draw ( zbar_window_t window,
zbar_image_t image
)

draw a new image into the output window.

Referenced by zbar::Window::clear(), and zbar::Window::draw().

Here is the caller graph for this function:

static int zbar::zbar_window_error_spew ( const zbar_window_t window,
int  verbosity
)
inlinestatic

display detail for last window error to stderr.

Returns
a non-zero value suitable for passing to exit()

References _zbar_error_spew().

Referenced by zbar_gtk_realize().

Here is the call graph for this function:

Here is the caller graph for this function:

static const char* zbar::zbar_window_error_string ( const zbar_window_t window,
int  verbosity
)
inlinestatic

retrieve the detail string for the last window error.

References _zbar_error_string().

Here is the call graph for this function:

static zbar_error_t zbar::zbar_window_get_error_code ( const zbar_window_t window)
inlinestatic

retrieve the type code for the last window error.

References _zbar_get_error_code(), video, window, and zbar_negotiate_format().

Here is the call graph for this function:

int zbar::zbar_window_get_overlay ( const zbar_window_t window)

retrieve current content level of reader overlay.

See also
zbar_window_set_overlay()
Since
0.10
int zbar::zbar_window_redraw ( zbar_window_t window)

redraw the last image (exposure handler).

Referenced by zbar::Window::redraw().

Here is the caller graph for this function:

int zbar::zbar_window_resize ( zbar_window_t window,
unsigned  width,
unsigned  height
)

resize the image window (reconfigure handler).

this does not update the contents of the window

Since
0.3, changed in 0.4 to not redraw window

Referenced by zbar::Window::resize().

Here is the caller graph for this function:

void zbar::zbar_window_set_overlay ( zbar_window_t window,
int  level
)

control content level of the reader overlay.

the overlay displays graphical data for informational or debug purposes. higher values increase the level of annotation (possibly decreasing performance).

    0 = disable overlay
    1 = outline decoded symbols (default)
    2 = also track and display input frame rate

Referenced by zbar::Window::set_overlay().

Here is the caller graph for this function:
