SG::GroveBase Class Reference

#include <sg_GroveBase.hpp>

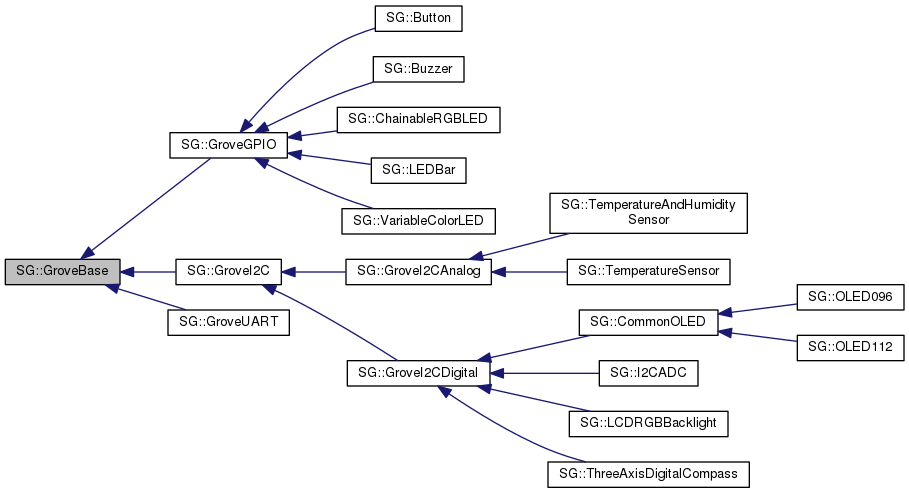

Inheritance diagram for SG::GroveBase:

Collaboration diagram for SG::GroveBase:

Public Member Functions
virtual	~GroveBase (void)
	Destructor. More...
	GroveBase (const SG::EGroveType t=SG::EGroveType::kUnknown, const std::string &n="")
	Constructor. More...
	GroveBase (const GroveBase &rhs)
	Copy constructor. More...
GroveBase &	operator= (const GroveBase &rhs)
	Assignment. More...
virtual uint32_t	get_sku (void) const
	Return a guess as to the Seeed SKU number based on the grove type. More...
virtual std::string	get_type_name (void) const
	Return a short text string representing the grove type. More...
virtual EGroveType	get_type (void) const
	Return the grove type. More...
virtual std::string	get_name (void) const
	Return the user-supplied name. More...
virtual std::string	get_description (void) const
	Return a multi-word 1-line description of this object. More...
virtual bool	is_grove_uart (void) const =0
	Determine if this is a Grove UART device. More...
virtual bool	is_grove_i2c (void) const =0
	Determine if this is a Grove I2C device. More...
virtual bool	is_grove_gpio (void) const =0
	Determine if this is a Grove GPIO device. More...
bool	operator== (const GroveBase &rhs) const
	Test object equality. More...
bool	operator!= (const GroveBase &rhs) const
	Test object equality. More...

Public Attributes
EGroveType	grove_type
	Grove type. More...
std::string	grove_name
	User-supplied name. More...

Constructor & Destructor Documentation

~GroveBase()

SG::GroveBase::~GroveBase ( void  )

virtual

Destructor.

GroveBase() [1/2]

SG::GroveBase::GroveBase	(	const SG::EGroveType	t = SG::EGroveType::kUnknown,
		const std::string &	n = ""
	)

Constructor.

GroveBase() [2/2]

SG::GroveBase::GroveBase

(

const GroveBase &

rhs

)

Copy constructor.

Member Function Documentation

get_description()

std::string SG::GroveBase::get_description ( void  ) const

virtual

Return a multi-word 1-line description of this object.

References SG::demangle(), get_name(), get_sku(), get_type_name(), is_grove_gpio(), is_grove_i2c(), is_grove_uart(), and SG::BeagleBone::Detect::to_string().

Referenced by buzzer(), chainable_rgb_led(), common_oled(), get_name(), SG::GroveI2CDigital::GroveI2CDigital(), SG::CommonOLED::set_display_bitmap(), SG::CommonOLED::set_orientation(), temperature(), variable_led(), and SG::GroveI2CDigital::write_block().

Here is the call graph for this function:

Here is the caller graph for this function:

get_name()

virtual std::string SG::GroveBase::get_name ( void  ) const

inlinevirtual

Return the user-supplied name.

References get_description(), grove_name, is_grove_gpio(), is_grove_i2c(), and is_grove_uart().

Referenced by get_description(), operator=(), and operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

get_sku()

virtual uint32_t SG::GroveBase::get_sku ( void  ) const

inlinevirtual

Return a guess as to the Seeed SKU number based on the grove type.

References SG::get_sku_from_grove_type(), and grove_type.

Referenced by get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

get_type()

virtual EGroveType SG::GroveBase::get_type ( void  ) const

inlinevirtual

Return the grove type.

References grove_type.

Referenced by SG::GroveI2CDigital::get_address_from_type(), operator=(), and operator==().

Here is the caller graph for this function:

get_type_name()

virtual std::string SG::GroveBase::get_type_name ( void  ) const

inlinevirtual

Return a short text string representing the grove type.

References grove_type, and SG::to_string().

Referenced by get_description().

Here is the call graph for this function:

Here is the caller graph for this function:

is_grove_gpio()

virtual bool SG::GroveBase::is_grove_gpio ( void  ) const

pure virtual

Determine if this is a Grove GPIO device.

See also

SG::GroveGPIO

Implemented in SG::GroveGPIO, SG::GroveUART, and SG::GroveI2C.

Referenced by get_description(), and get_name().

Here is the caller graph for this function:

is_grove_i2c()

virtual bool SG::GroveBase::is_grove_i2c ( void  ) const

pure virtual

Determine if this is a Grove I2C device.

See also

SG::GroveI2C

Implemented in SG::GroveGPIO, SG::GroveUART, and SG::GroveI2C.

Referenced by get_description(), and get_name().

Here is the caller graph for this function:

is_grove_uart()

virtual bool SG::GroveBase::is_grove_uart ( void  ) const

pure virtual

Determine if this is a Grove UART device.

See also

SG::GroveUART

Implemented in SG::GroveGPIO, SG::GroveUART, and SG::GroveI2C.

Referenced by get_description(), and get_name().

Here is the caller graph for this function:

operator!=()

bool SG::GroveBase::operator!= ( const GroveBase &  rhs ) const

inline

Test object equality.

References operator==().

Here is the call graph for this function:

operator=()

SG::GroveBase & SG::GroveBase::operator=

(

const GroveBase &

rhs

)

Assignment.

References get_name(), get_type(), grove_name, and grove_type.

Referenced by SG::TemperatureAndHumiditySensor::operator=(), SG::Buzzer::operator=(), and SG::TemperatureSensor::operator=().

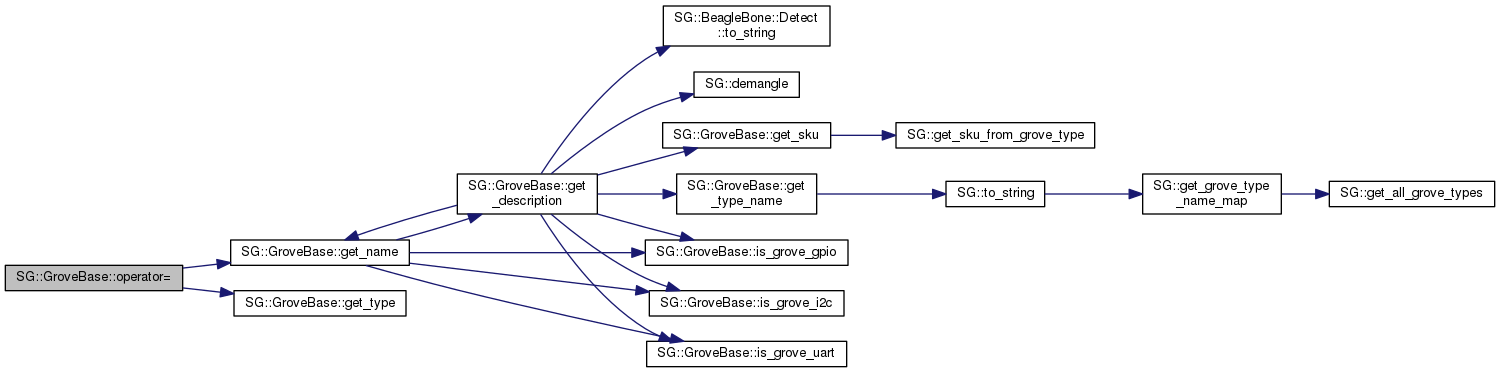

Here is the call graph for this function:

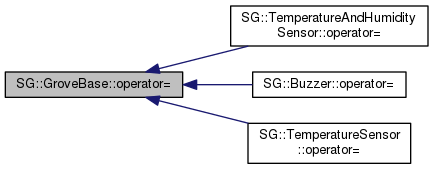

Here is the caller graph for this function:

operator==()

bool SG::GroveBase::operator==

(

const GroveBase &

rhs

)

const

Test object equality.

References get_name(), and get_type().

Referenced by operator!=(), SG::Buzzer::operator==(), SG::TemperatureAndHumiditySensor::operator==(), SG::TemperatureSensor::operator==(), and SG::I2CADC::operator==().

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

grove_name

std::string SG::GroveBase::grove_name

User-supplied name.

Referenced by get_name(), and operator=().

grove_type

EGroveType SG::GroveBase::grove_type

Grove type.

Referenced by get_sku(), get_type(), get_type_name(), and operator=().

---

The documentation for this class was generated from the following files:

• src-groves/sg_GroveBase.hpp
• src-groves/sg_GroveBase.cpp
